TIPIf the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.6. Tighten the locknut on the brake cable.
7. Slide the rubber cover to its original position.
8. Turn in the adjusting bolt at the rear brake cal-
iper until it feels tight, then turn it out 1/8 turn
and tighten its locknut to the specified torque.
NOTICE: When tightening the locknut,hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00521]
WARNING
EWB02090Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.EBU24743Brake light switches The brake light, which is activated by the brake
pedal and brake lever, should come on just before
braking takes effect.
1. Rubber cover
2. Parking brake free play adjusting nut
3. Locknut
2
3
1(a)(b)
Tightening torque:
Locknut (rear brake caliper):
16 Nm (1.6 m·kgf, 12 ft·lbf)
U33B71E0.book Page 27 Wednesday, August 10, 2011 9:01 AM

8-28

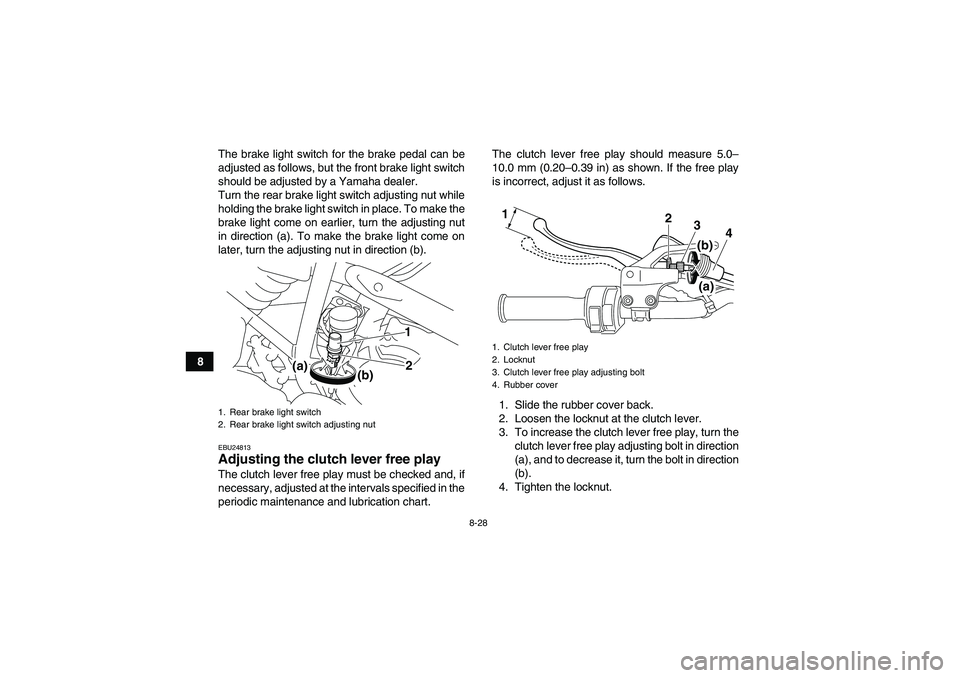

8The brake light switch for the brake pedal can be
adjusted as follows, but the front brake light switch
should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make the
brake light come on earlier, turn the adjusting nut
in direction (a). To make the brake light come on
later, turn the adjusting nut in direction (b).
EBU24813Adjusting the clutch lever free play The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.The clutch lever free play should measure 5.0–
10.0 mm (0.20–0.39 in) as shown. If the free play
is incorrect, adjust it as follows.
1. Slide the rubber cover back.
2. Loosen the locknut at the clutch lever.
3. To increase the clutch lever free play, turn the
clutch lever free play adjusting bolt in direction
(a), and to decrease it, turn the bolt in direction
(b).
4. Tighten the locknut.1. Rear brake light switch
2. Rear brake light switch adjusting nut
12
(b)
(a)
1. Clutch lever free play
2. Locknut
3. Clutch lever free play adjusting bolt
4. Rubber cover1
3
4
(a) (b) 2
U33B71E0.book Page 28 Wednesday, August 10, 2011 9:01 AM

8-29
8 5. Slide the rubber cover back to its original po-
sition.
TIPIf the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate cor-
rectly, have a Yamaha dealer check the internal

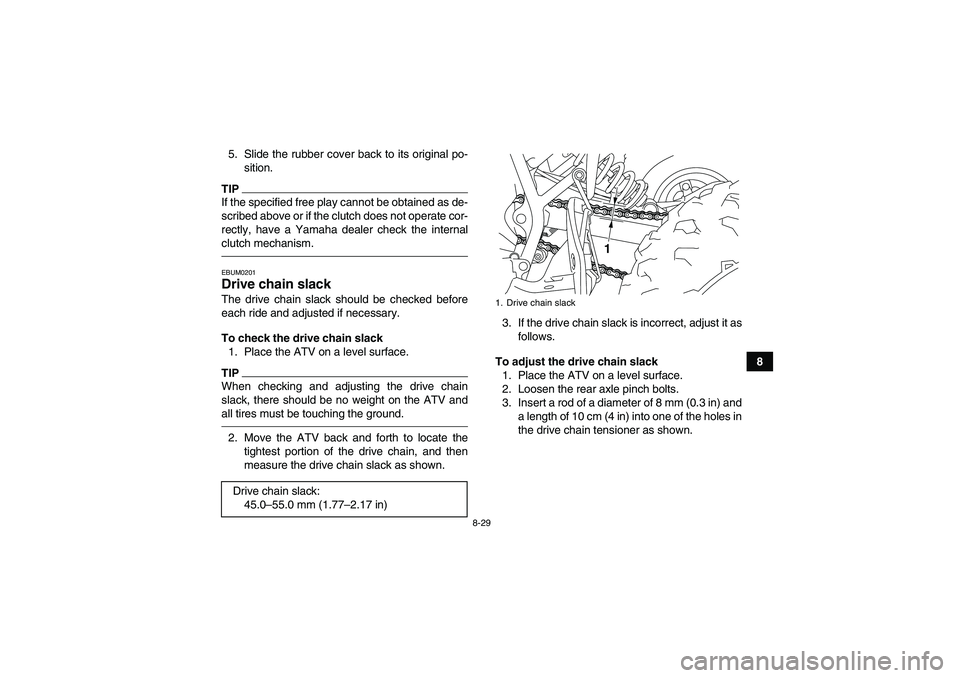

clutch mechanism.EBUM0201Drive chain slack The drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack
1. Place the ATV on a level surface.TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the rear axle pinch bolts.
3. Insert a rod of a diameter of 8 mm (0.3 in) and
a length of 10 cm (4 in) into one of the holes in
the drive chain tensioner as shown.
Drive chain slack:
45.0–55.0 mm (1.77–2.17 in)
1. Drive chain slack
1
U33B71E0.book Page 29 Wednesday, August 10, 2011 9:01 AM

8-30
8
TIPA rod can be obtained at a Yamaha dealer to make
this adjustment.4. Shift the transmission into neutral.
5. To tighten the drive chain, push the ATV back-
ward. To loosen the drive chain, push the ATV
forward. NOTICE: Improper drive chain
slack will overload the engine as well as
other vital parts of the ATV and can lead to
drive chain slippage or breakage. To pre-vent this from occurring, keep the drive
chain slack within the specified limits.
[ECB00542]
6. Pull the rod out, and then tighten the rear axle
pinch bolts to the specified torque in the order
shown.
7. Check that the clearance between the speed
sensor and the speed sensor rotor is 3–5 mm
(0.12–0.19 in). If the clearance is out of spec-
ification, adjust the speed sensor position as
follows.
1. Rear wheel axle pinch bolt
2. Rod
3. Drive chain tensioner
4. Hole
4 3
2
11
Tightening torque:
Rear axle pinch bolt:
21 Nm (2.1 m·kgf, 15 ft·lbf)
12
5634
78
U33B71E0.book Page 30 Wednesday, August 10, 2011 9:01 AM

8-31
8
TIPThis specified clearance is necessary for the
speedometer to indicate an accurate reading.8. Loosen the speed sensor bracket bolt.
9. Adjust the position of the speed sensor so that
the clearance between the sensor and the
speed sensor rotor is 3–5 mm (0.12–0.19 in).
10. Tighten the bolt to the specified torque.
EBU24882Lubricating the drive chain The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00561The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas.1. Clean the drive chain with kerosene and a
small soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00571]
1. Speed sensor rotor
2. Speed sensor
3. Speed sensor bracket bolt
4. Clearance
3 2
4
1
Tightening torque:
Speed sensor bracket bolt:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U33B71E0.book Page 31 Wednesday, August 10, 2011 9:01 AM

8-32
82. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00581]
EBU24902

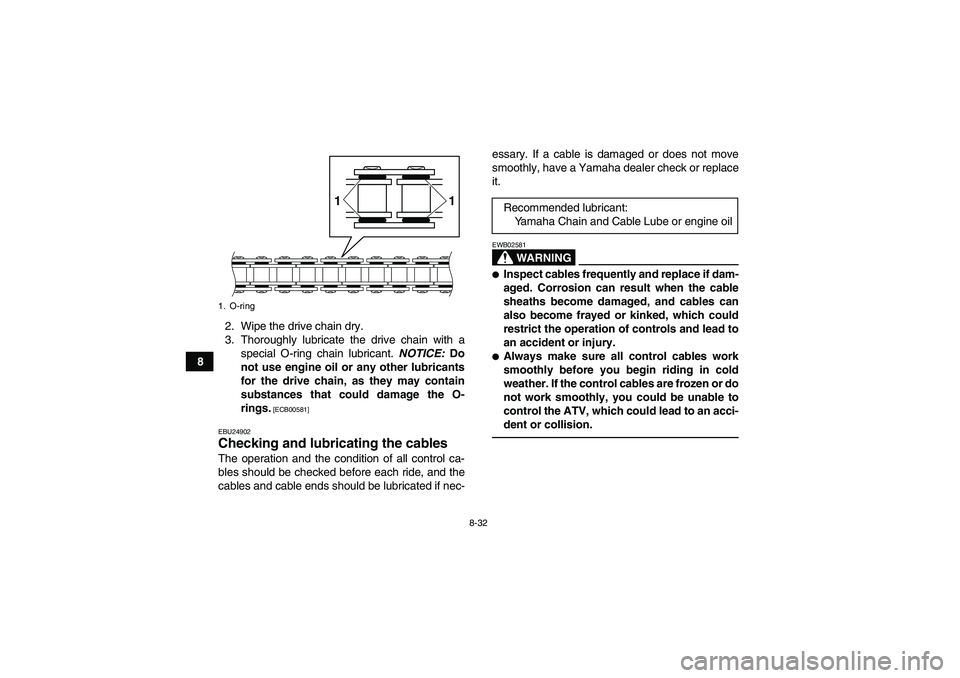

Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02581
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.
1. O-ring
1 1
Recommended lubricant:
Yamaha Chain and Cable Lube or engine oil
U33B71E0.book Page 32 Wednesday, August 10, 2011 9:01 AM

8-33
8

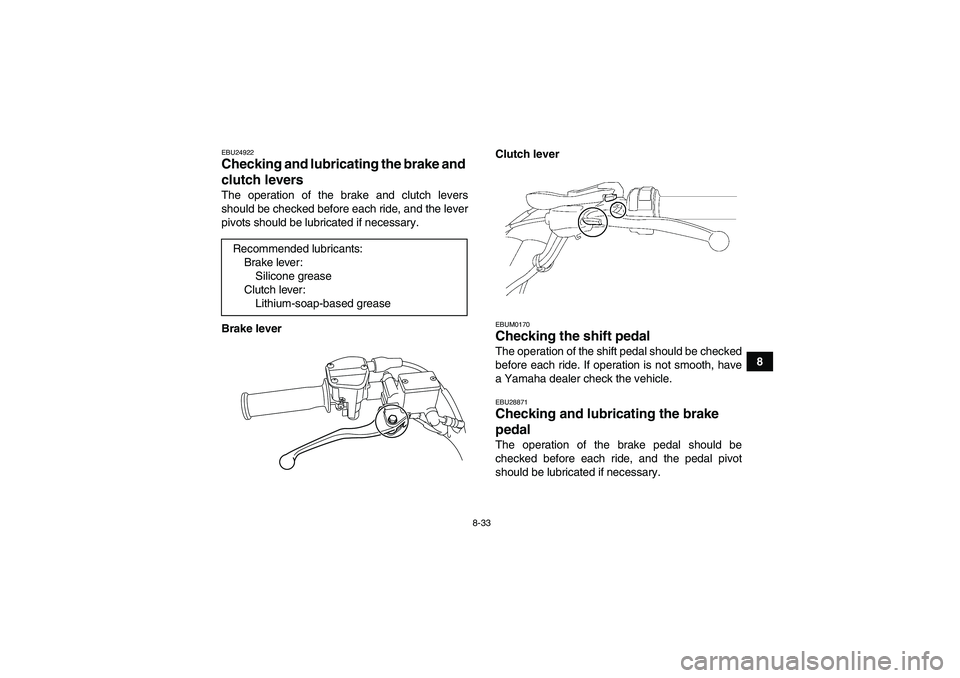

EBU24922Checking and lubricating the brake and
clutch levers The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Brake leverClutch lever
EBUM0170Checking the shift pedal The operation of the shift pedal should be checked
before each ride. If operation is not smooth, have
a Yamaha dealer check the vehicle.EBU28871Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary. Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
U33B71E0.book Page 33 Wednesday, August 10, 2011 9:01 AM

8-34
8

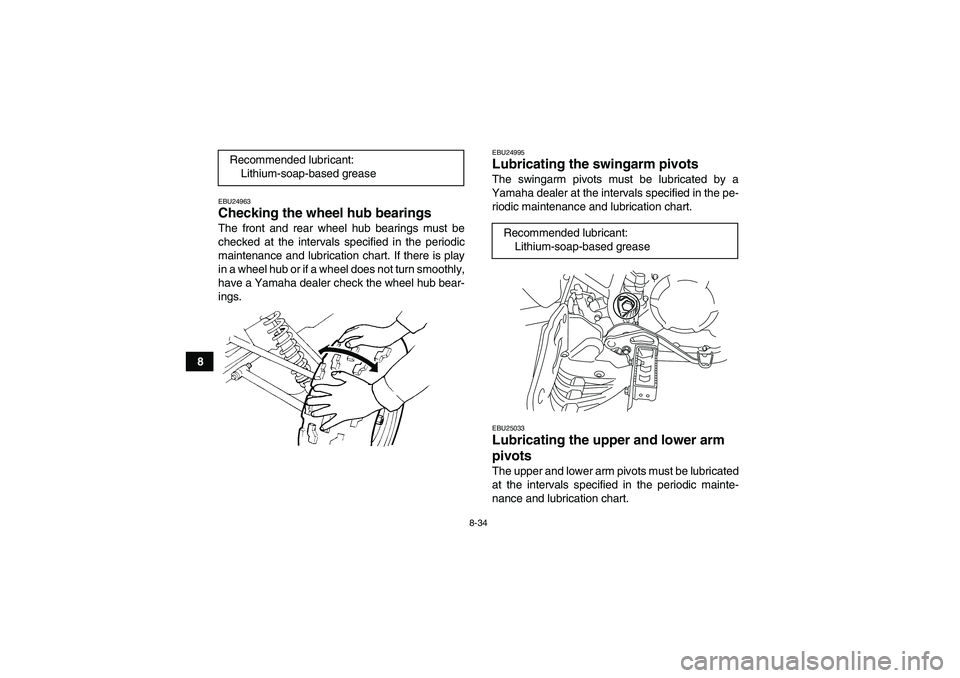

EBU24963Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.
EBU24995Lubricating the swingarm pivots The swingarm pivots must be lubricated by a
Yamaha dealer at the intervals specified in the pe-
riodic maintenance and lubrication chart.EBU25033Lubricating the upper and lower arm
pivots The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart. Recommended lubricant:
Lithium-soap-based greaseRecommended lubricant:
Lithium-soap-based grease
U33B71E0.book Page 34 Wednesday, August 10, 2011 9:01 AM

8-35
8

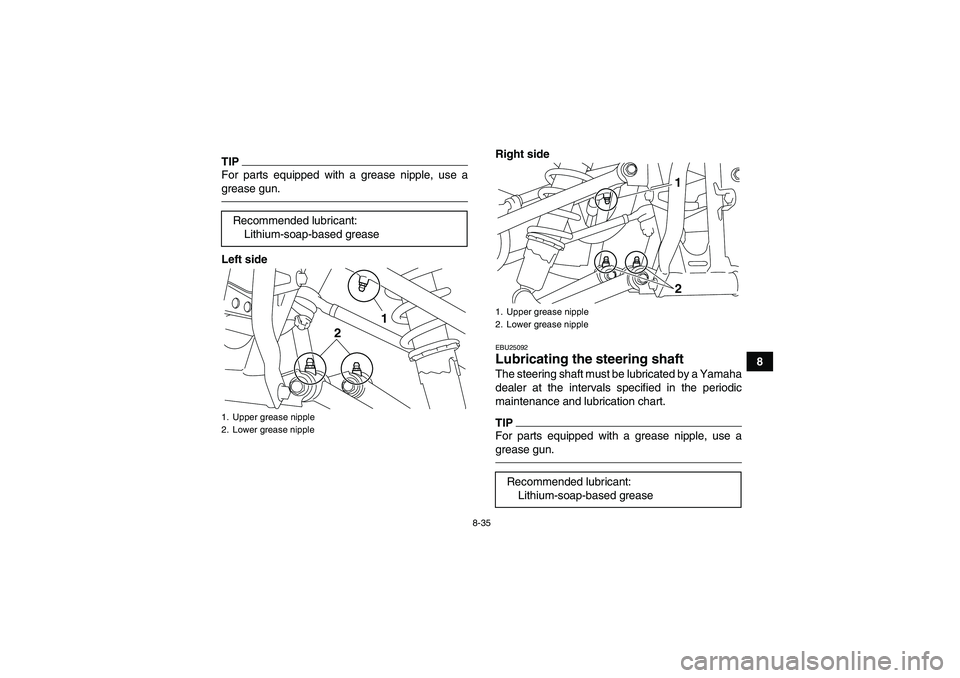

TIPFor parts equipped with a grease nipple, use a
grease gun.Left sideRight side
EBU25092Lubricating the steering shaft The steering shaft must be lubricated by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
Recommended lubricant:
Lithium-soap-based grease1. Upper grease nipple
2. Lower grease nipple
2
1
1. Upper grease nipple
2. Lower grease nippleRecommended lubricant:
Lithium-soap-based grease
1
2
U33B71E0.book Page 35 Wednesday, August 10, 2011 9:01 AM

8-36
8

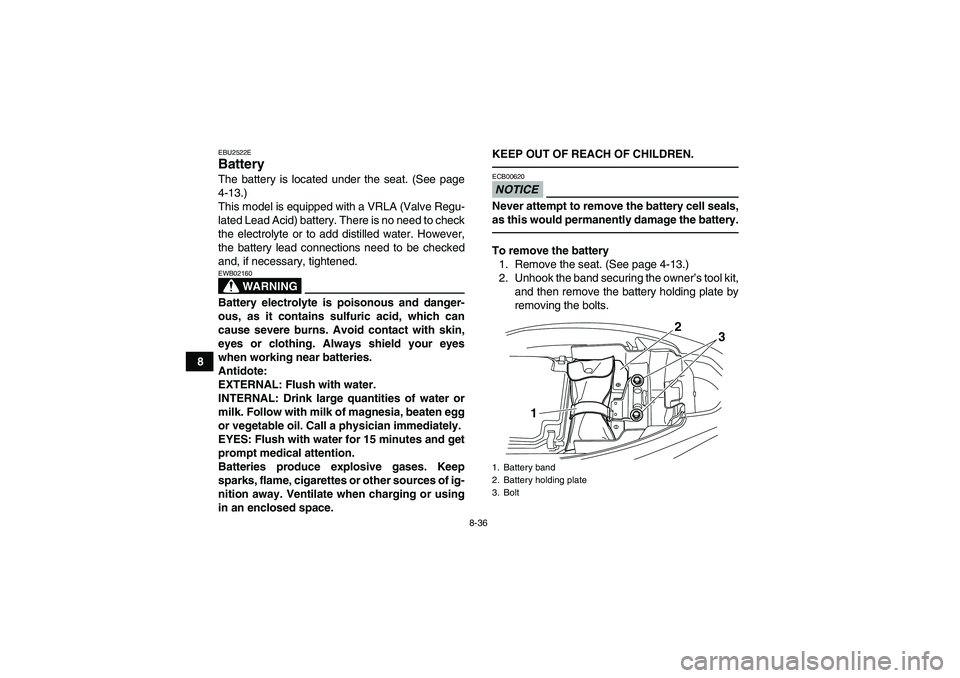

EBU2522EBattery The battery is located under the seat. (See page
4-13.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00620Never attempt to remove the battery cell seals,
as this would permanently damage the battery.To remove the battery
1. Remove the seat. (See page 4-13.)
2. Unhook the band securing the owner’s tool kit,
and then remove the battery holding plate by
removing the bolts.1. Battery band
2. Battery holding plate
3. Bolt
3
1
2
