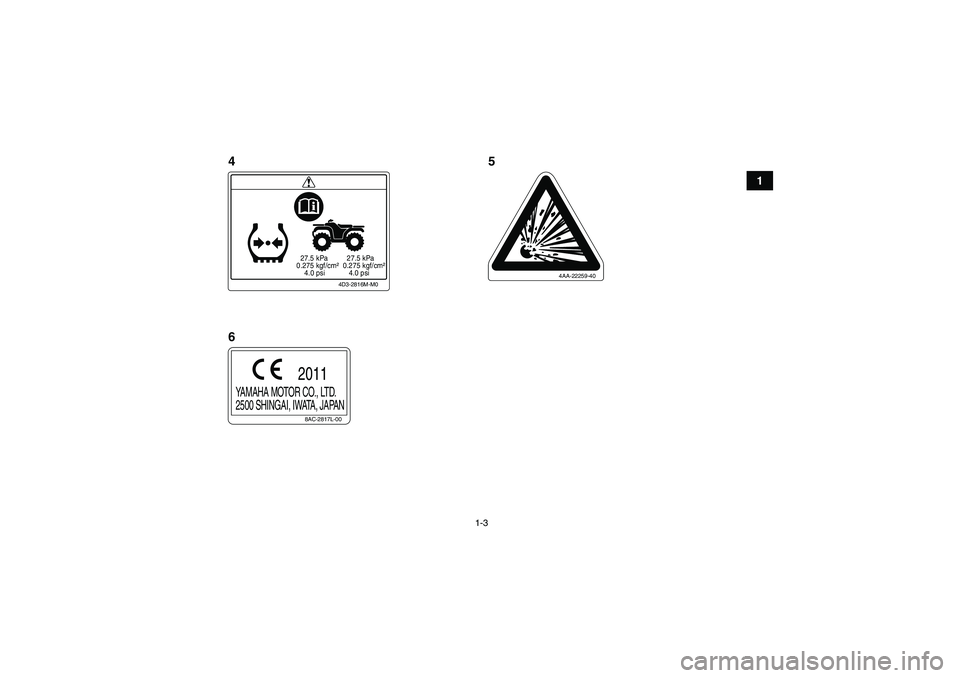

YAMAHA YFM250R-W 2012 User Guide 1-3
1
  27.5 kPa
0.275 kgf/cm²
    4.0 psi  27.5 kPa
0.275 kgf/cm²
   4.0 psi
4D3-2816M-M0
4AA-22259-40
8AC-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2011
45
6
U33B71E0.book  Page 3

Page 12 of 130

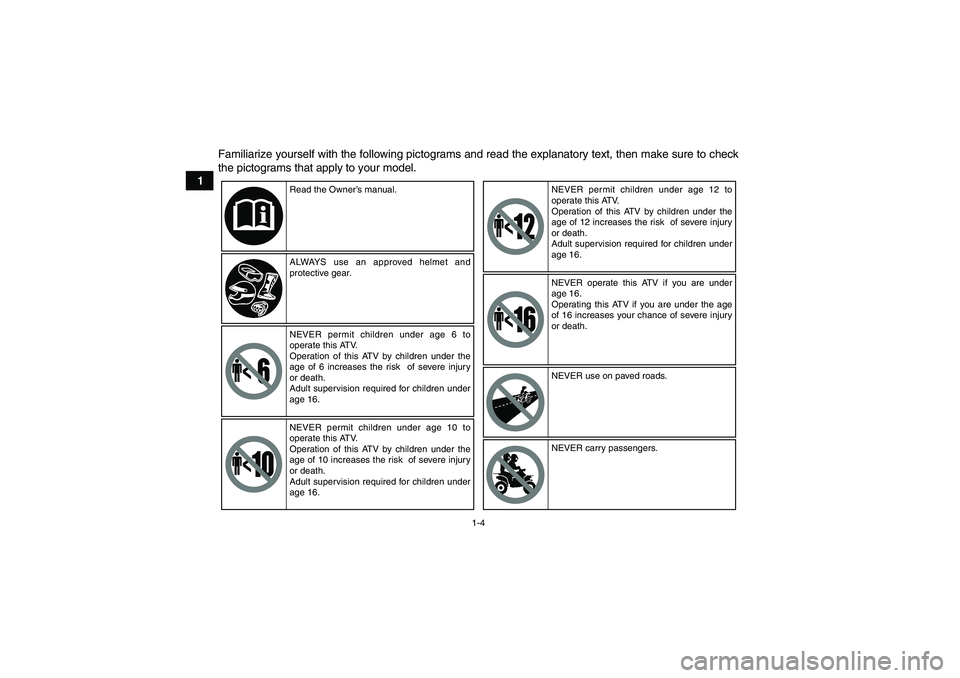

YAMAHA YFM250R-W 2012 User Guide 1-4
1Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approve

Page 13 of 130

YAMAHA YFM250R-W 2012 User Guide 1-5
1
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi

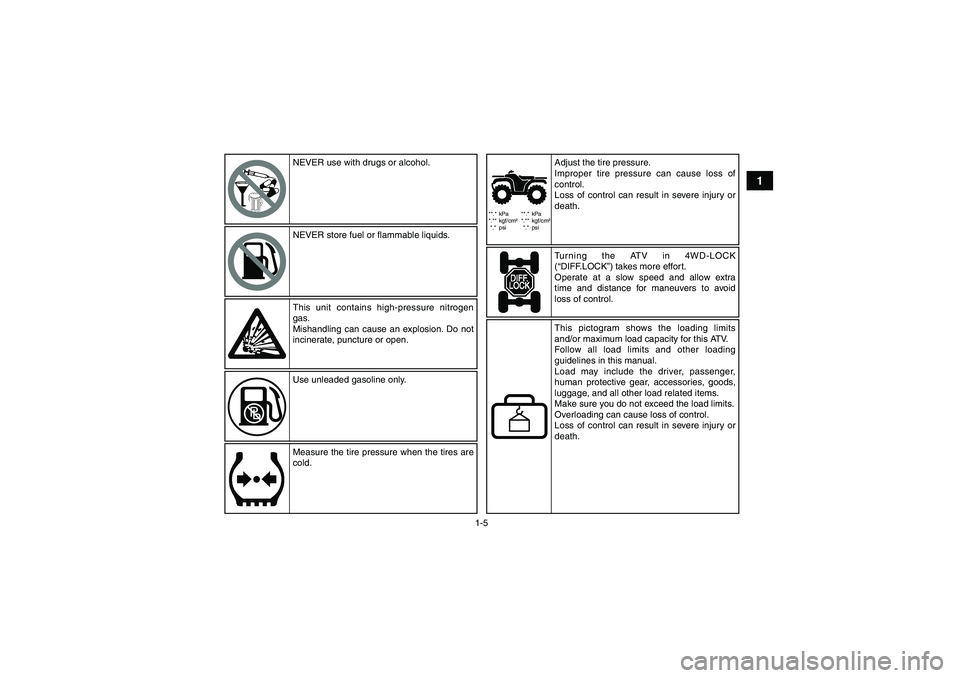

NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling c

Page 14 of 130

YAMAHA YFM250R-W 2012 User Guide 1-6
1
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN

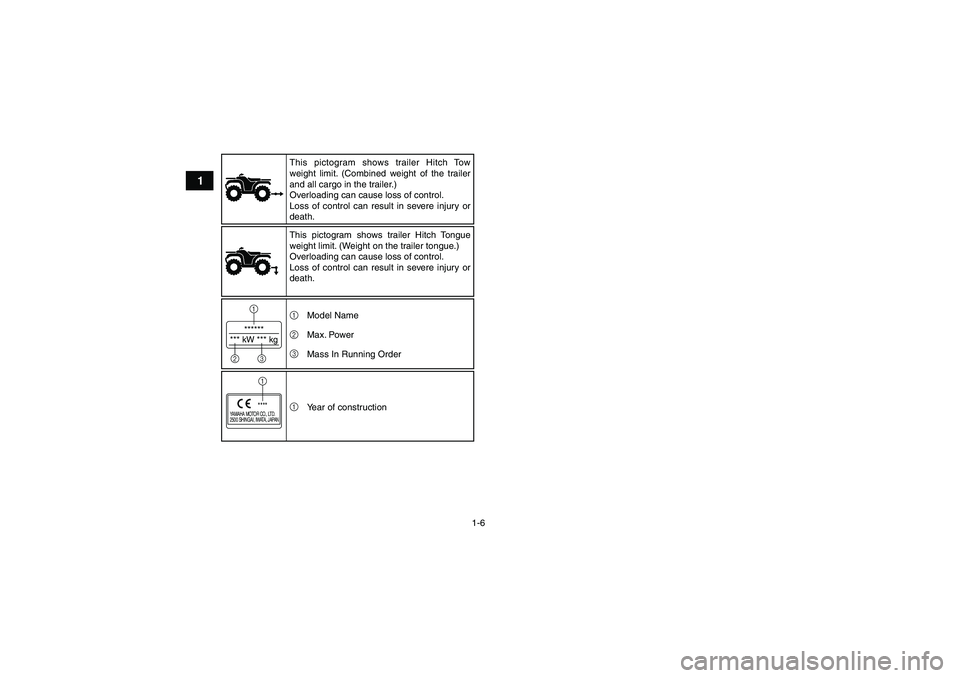

****1This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the traile

Page 15 of 130

YAMAHA YFM250R-W 2012 User Guide 2-1
2
EBU17431

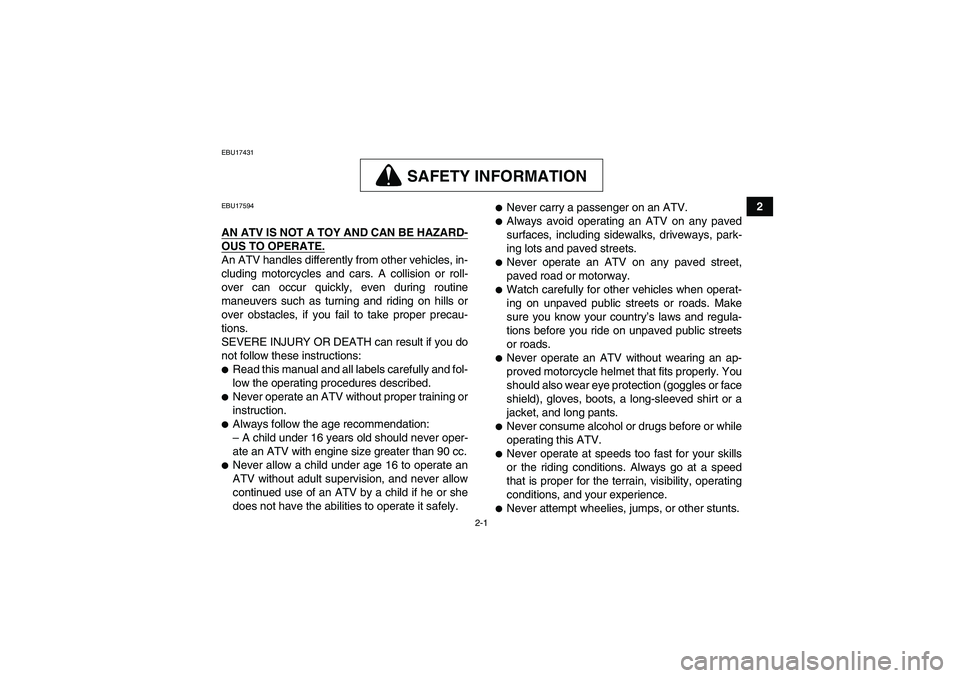

SAFETY INFORMATION
EBU17594AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
ov

Page 16 of 130

YAMAHA YFM250R-W 2012 User Guide 2-2
2

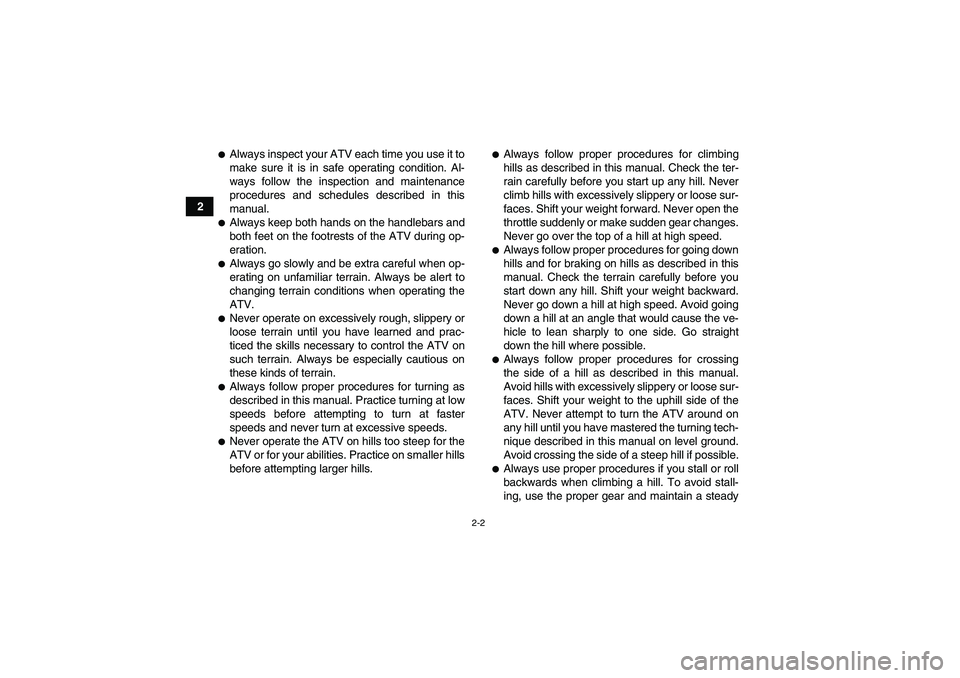

Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Al-
ways follow the inspection and maintenance
procedures and schedules described in this
manual.Al

Page 17 of 130

YAMAHA YFM250R-W 2012 User Guide 2-3

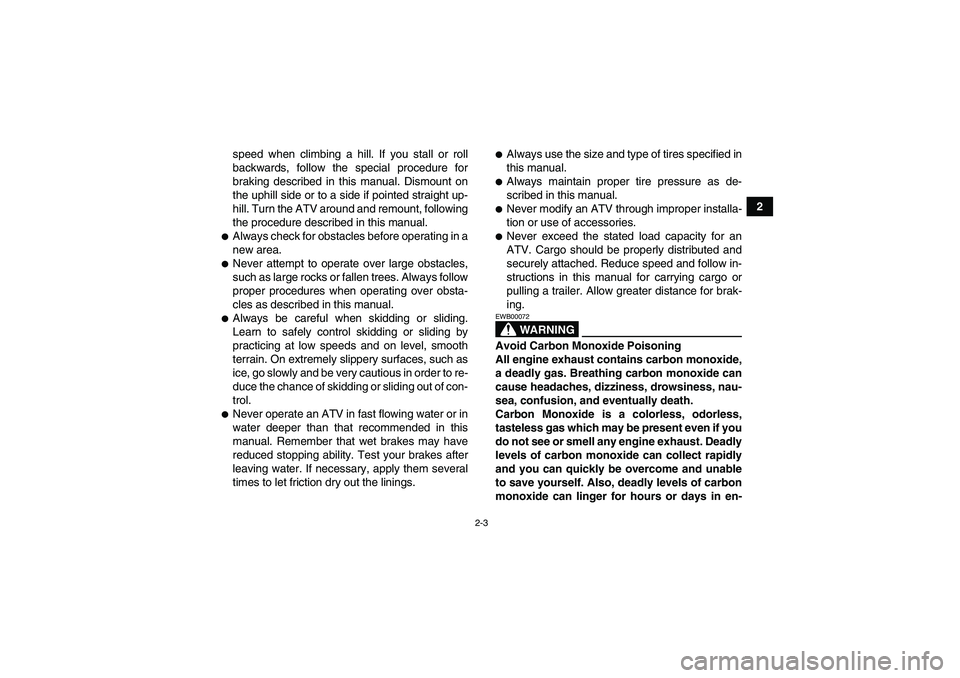

2 speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hi

Page 18 of 130

YAMAHA YFM250R-W 2012 User Guide 2-4

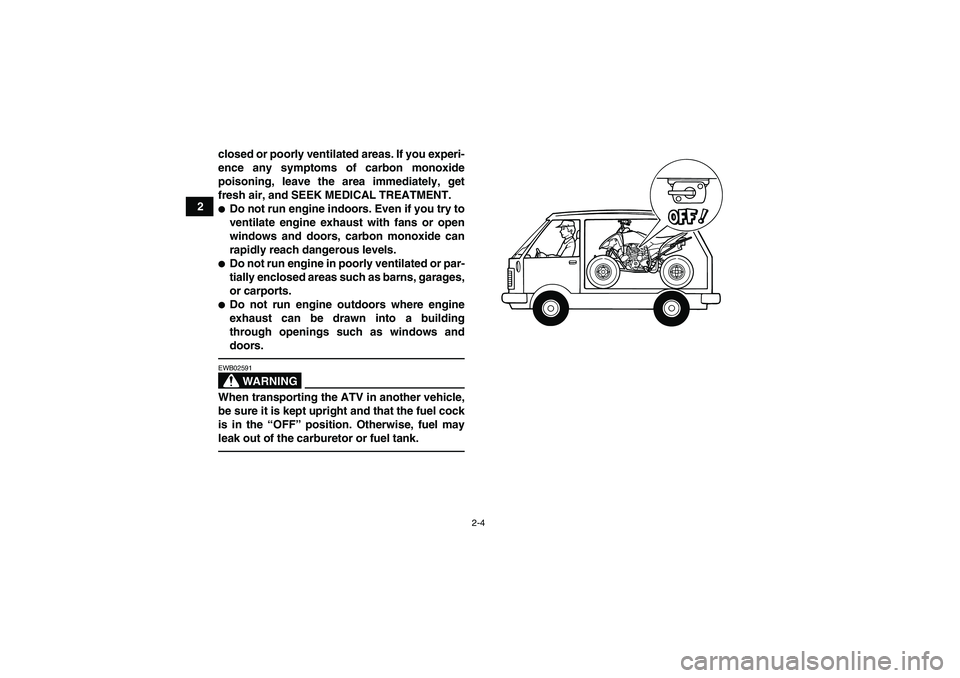

2closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.
Do not run engine indoors

Page 19 of 130

YAMAHA YFM250R-W 2012 User Guide 3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Headlight
2. Fuel cock
3. Starter (choke)
4. Throttle stop screw
5. Fuse
6. Tail/brake light
7. Shift pedal
7 123456
1. Spark arrest

Page 20 of 130

YAMAHA YFM250R-W 2012 User Guide 3-2
3

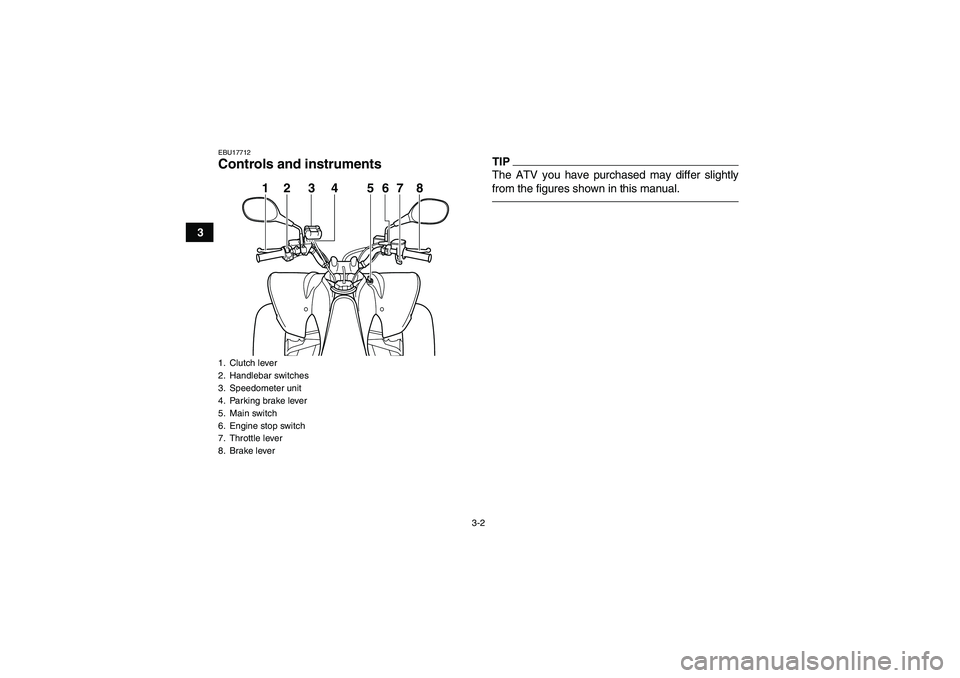

EBU17712Controls and instruments
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Clutch lever
2. Handlebar switches
3. Speedometer unit
4. Parking bra
