Page 70 of 380
4-5 1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
3. Start switch “START”
1. Contacteur d’éclairage “LIGHTS”
2. Coupe-circuit du moteur “ENG. STOP”
3. Contacteur du démarreur “START”
1. Interruptor de luces “LIGHTS”
2. Interruptor de paro del motor “ENG. STOP”
3. Interruptor de arranque “START”
EBU00053
Handlebar switches
EBU01156
Light switch “LIGHTS”
Set the switch to the “LO” position to turn on the
low beam and the taillight.
Set the switch to the “HI” position to turn on the
high beam and the taillight.
Set the switch to the “OFF” position to turn off all of
the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
U5NF62.book Page 5 Wednesday, May 8, 2002 1:40 PM
Page 72 of 380
4-7 1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
3. Start switch “START”
1. Contacteur d’éclairage “LIGHTS”
2. Coupe-circuit du moteur “ENG. STOP”
3. Contacteur du démarreur “START”
1. Interruptor de luces “LIGHTS”
2. Interruptor de paro del motor “ENG. STOP”
3. Interruptor de arranque “START”
EBU01158
Engine stop switch “ENG. STOP”
Make sure that the engine stop switch is in the
“RUN” position before starting the engine. The en-
gine stop switch controls ignition and can be used
at all times to stop the engine, especially in an
emergency. The engine will not start or run when
the engine stop switch is turned to “OFF”.
EBU00647
Start switch “START”
The starter motor cranks the engine when this
switch is pushed.CAUTION:
See the starting instructions on page 6-3 prior
to starting the engine.
U5NF62.book Page 7 Wednesday, May 8, 2002 1:40 PM
Page 73 of 380
4-8
FBU01158
Coupe-circuit du moteur “ENG. STOP”
S’assurer que le coupe-circuit du moteur est placé sur
“RUN” avant de mettre le moteur en marche. Le coupe-
circuit du moteur contrôle l’allumage et peut à tout mo-
ment servir à couper le moteur. Il est particulièrement uti-
le en cas d’urgence. Le moteur ne se met pas en marche
ou ne tourne pas quand son coupe-circuit est sur “OFF”.
FBU00647
Contacteur du démarreur “START”
Pour mettre le moteur en marche, enfoncer le contacteur
du démarreur.ATTENTION:_ Il convient de lire les instructions de démarrage à la
page 6-4 avant de mettre le moteur en marche. _
SBU01158
Interruptor de parada del motor “ENG. STOP”
Asegúrese de que el interruptor de parada del motor
esté en la posición “RUN” antes de arrancar el mo-
tor. El interruptor de parada del motor controla el en-
cendido y puede utilizarse para parar el motor en
cualquier momento, especialmente en casos de
emergencia. Cuando se gira el interruptor de parada
a la posición “OFF”, el motor no puede ser puesto en
marcha ni funcionar.
SBU00647
Interruptor de arranque “START”
Cuando se pulsa este interruptor el motor de arran-
que hace virar el motor de la máquina.AT E N C I O N :Antes de poner en marcha el motor, vea las ins-
trucciones sobre el arranque en la página 6-4.
U5NF62.book Page 8 Wednesday, May 8, 2002 1:40 PM

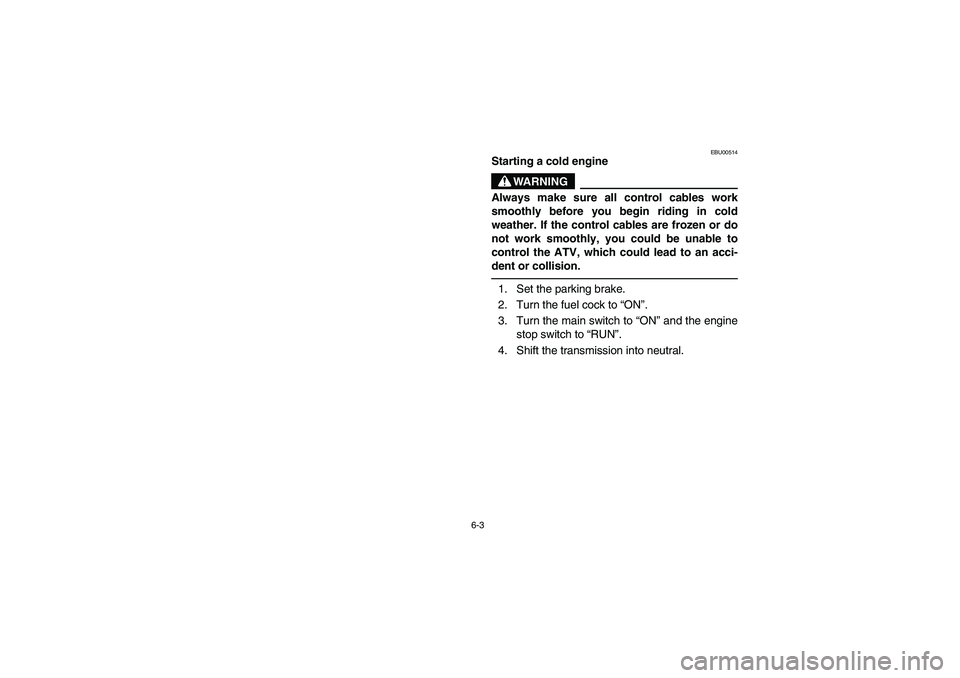

Page 130 of 380
6-3
EBU00514
Starting a cold engine
WARNING
_ Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision. _ 1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “RUN”.
4. Shift the transmission into neutral.
U5NF62.book Page 3 Wednesday, May 8, 2002 1:40 PM

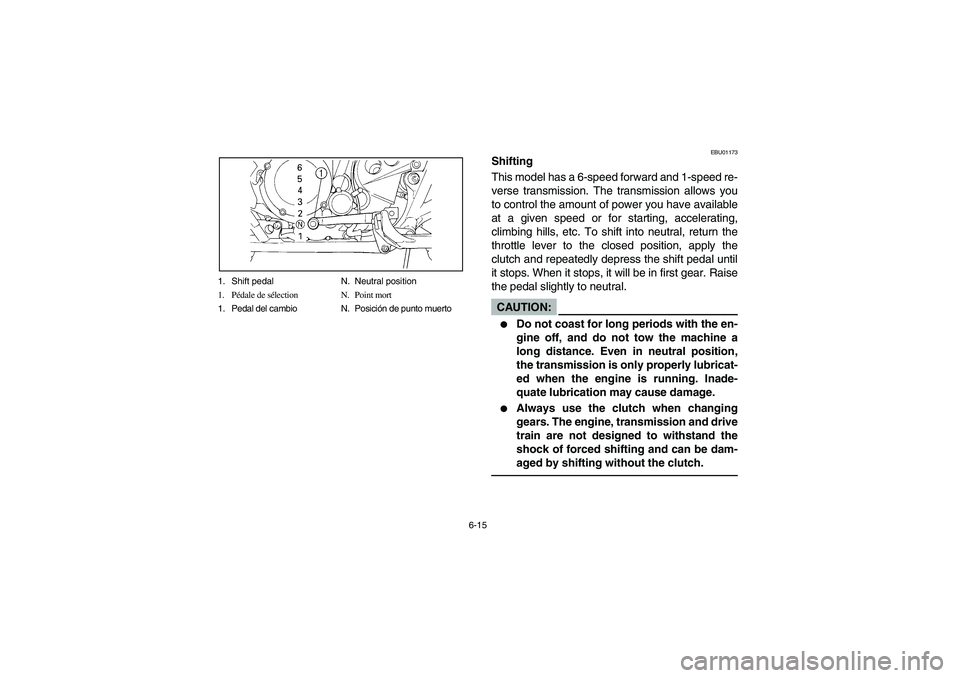

Page 142 of 380
6-15 1. Shift pedal N. Neutral position
1. Pédale de sélection N. Point mort
1. Pedal del cambio N. Posición de punto muerto
EBU01173
Shifting
This model has a 6-speed forward and 1-speed re-
verse transmission. The transmission allows you
to control the amount of power you have available
at a given speed or for starting, accelerating,
climbing hills, etc. To shift into neutral, return the
throttle lever to the closed position, apply the
clutch and repeatedly depress the shift pedal until
it stops. When it stops, it will be in first gear. Raise
the pedal slightly to neutral.CAUTION:_
Do not coast for long periods with the en-
gine off, and do not tow the machine a
long distance. Even in neutral position,
the transmission is only properly lubricat-
ed when the engine is running. Inade-
quate lubrication may cause damage.
Always use the clutch when changing
gears. The engine, transmission and drive
train are not designed to withstand the
shock of forced shifting and can be dam-
aged by shifting without the clutch.
_
U5NF62.book Page 15 Wednesday, May 8, 2002 1:40 PM

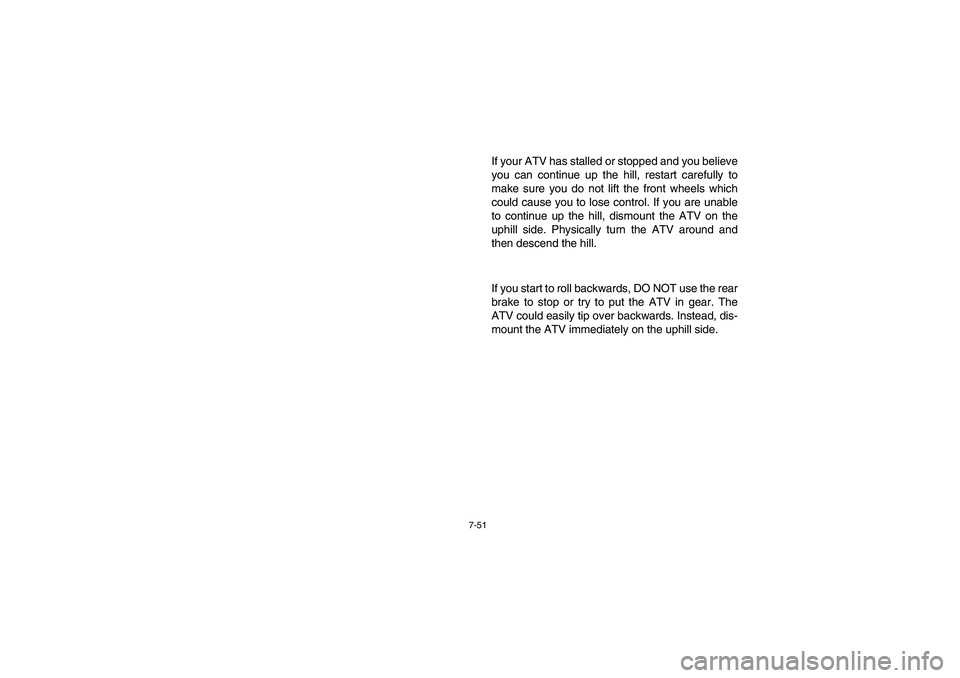

Page 216 of 380
7-51
If your ATV has stalled or stopped and you believe
you can continue up the hill, restart carefully to
make sure you do not lift the front wheels which
could cause you to lose control. If you are unable
to continue up the hill, dismount the ATV on the
uphill side. Physically turn the ATV around and
then descend the hill.
If you start to roll backwards, DO NOT use the rear
brake to stop or try to put the ATV in gear. The
ATV could easily tip over backwards. Instead, dis-
mount the ATV immediately on the uphill side.
U5NF62.book Page 51 Wednesday, May 8, 2002 1:40 PM
Page 238 of 380
7-73
WHAT TO DO IF ...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
WHAT TO DO ...
If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See pages 7-39–7-43.)
If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If nec-
essary, gradually let off the throttle and/or steer to
the outside of the turn. (See pages 7-39–7-43.)
If your ATV starts to slide sideways:
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is
not recommended until you have corrected the
slide. (See pages 7-69–7-71.)
U5NF62.book Page 73 Wednesday, May 8, 2002 1:40 PM

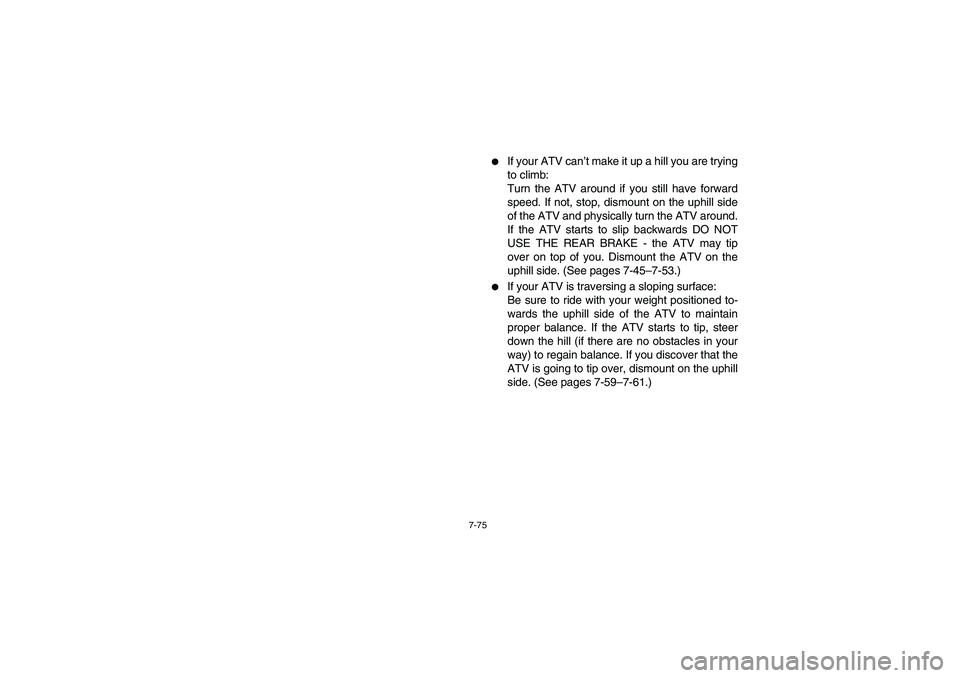

Page 240 of 380
7-75
If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side
of the ATV and physically turn the ATV around.
If the ATV starts to slip backwards DO NOT
USE THE REAR BRAKE - the ATV may tip
over on top of you. Dismount the ATV on the
uphill side. (See pages 7-45–7-53.)
If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See pages 7-59–7-61.)
U5NF62.book Page 75 Wednesday, May 8, 2002 1:40 PM

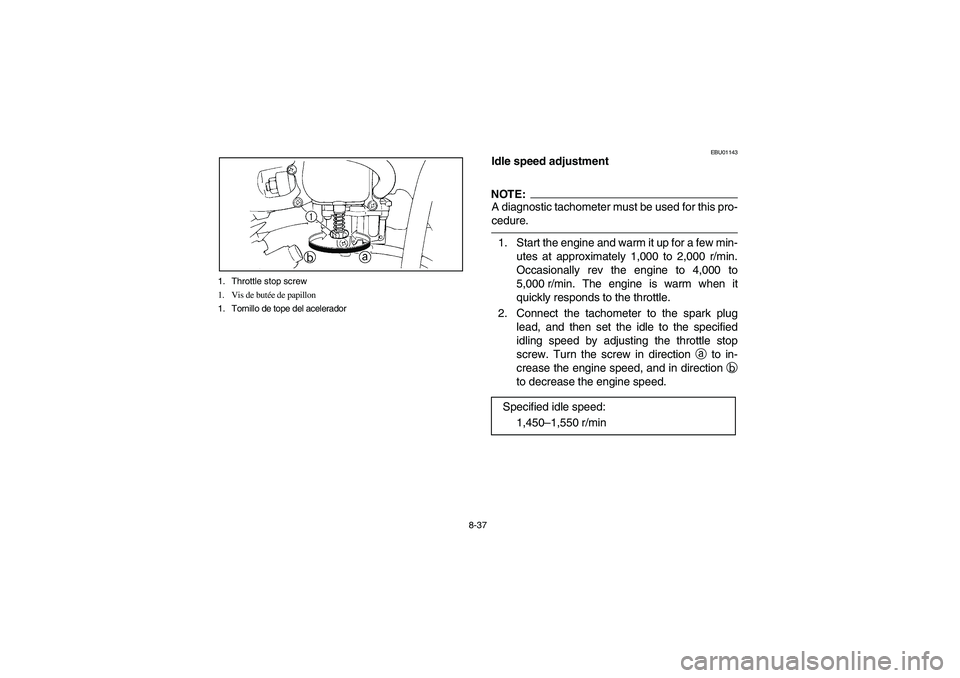

Page 280 of 380
8-37 1. Throttle stop screw
1. Vis de butée de papillon
1. Tornillo de tope del acelerador
EBU01143
Idle speed adjustmentNOTE:_ A diagnostic tachometer must be used for this pro-
cedure. _1. Start the engine and warm it up for a few min-
utes at approximately 1,000 to 2,000 r/min.
Occasionally rev the engine to 4,000 to
5,000 r/min. The engine is warm when it
quickly responds to the throttle.
2. Connect the tachometer to the spark plug
lead, and then set the idle to the specified
idling speed by adjusting the throttle stop
screw. Turn the screw in direction
a to in-
crease the engine speed, and in direction
b
to decrease the engine speed.
Specified idle speed:
1,450–1,550 r/min
U5NF62.book Page 37 Wednesday, May 8, 2002 1:40 PM

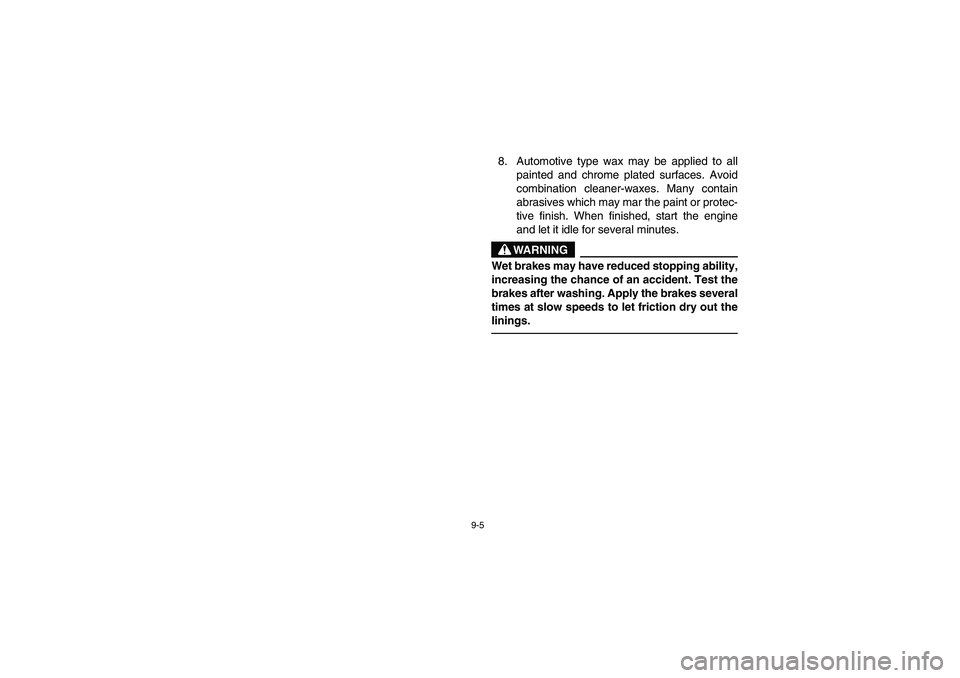

Page 352 of 380
9-5
8. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished, start the engine
and let it idle for several minutes.
WARNING
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the
linings.
U5NF62.book Page 5 Wednesday, May 8, 2002 1:40 PM
