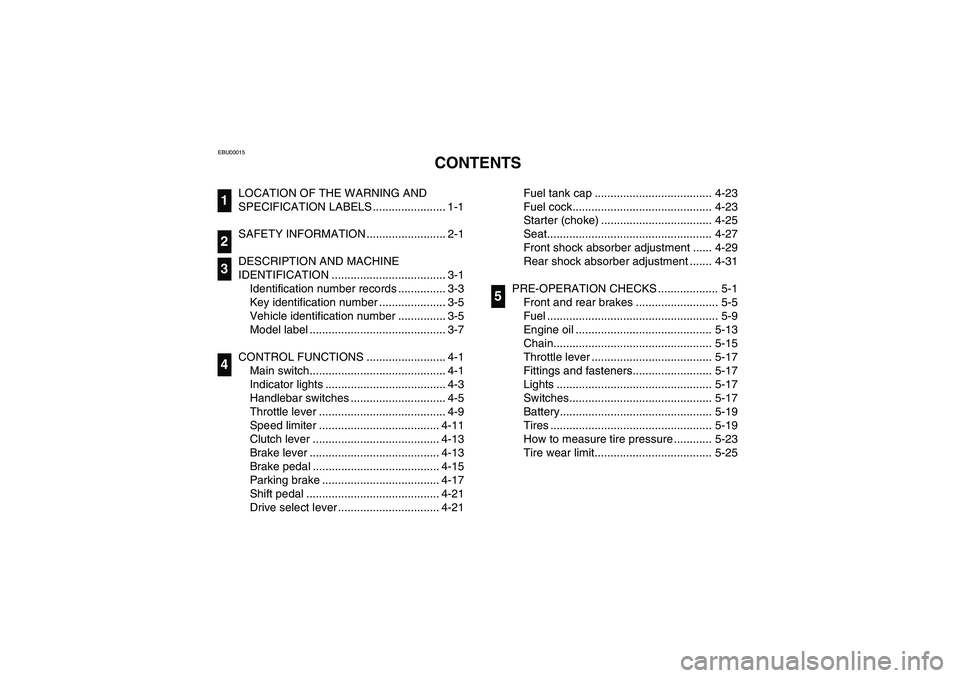

1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-5
Model label ........................................... 3-7
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Handlebar switches .............................. 4-5
Throttle lever ........................................ 4-9
Speed limiter ...................................... 4-11
Clutch lever ........................................ 4-13
Brake lever ......................................... 4-13
Brake pedal ........................................ 4-15
Parking brake ..................................... 4-17
Shift pedal .......................................... 4-21
Drive select lever ................................ 4-21
1234
Fuel tank cap ..................................... 4-23
Fuel cock............................................ 4-23
Starter (choke) ................................... 4-25
Seat.................................................... 4-27
Front shock absorber adjustment ...... 4-29
Rear shock absorber adjustment ....... 4-31
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Chain.................................................. 5-15
Throttle lever ...................................... 5-17
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Battery................................................ 5-19
Tires ................................................... 5-19
How to measure tire pressure ............ 5-23
Tire wear limit..................................... 5-25
5
U5NF62.book Page 1 Wednesday, May 8, 2002 1:40 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-41–8-51
ClutchCheck operation, condition and lever free play. 8-59
Parking brakeCheck operation, condition and cable length. 8-53–8-55
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13–5-15,
8-15–8-23
Drive chainCheck chain slack and condition.
Adjust if necessary.5-15, 8-61–8-65
ThrottleCheck for proper throttle cable operation and free play. 5-17, 8-39
Wheels and tiresCheck tire pressure, wear and damage.5-19–5-25,
8-73–8-75
Fittings and fastenersCheck all fittings and fasteners. 5-17
Lights and switchesCheck for proper operation. 5-17, 8-57, 8-87–8-97
BatteryCheck fluid level.
Fill with distilled water if necessary.5-19, 8-77–8-83
U5NF62.book Page 1 Wednesday, May 8, 2002 1:40 PM
