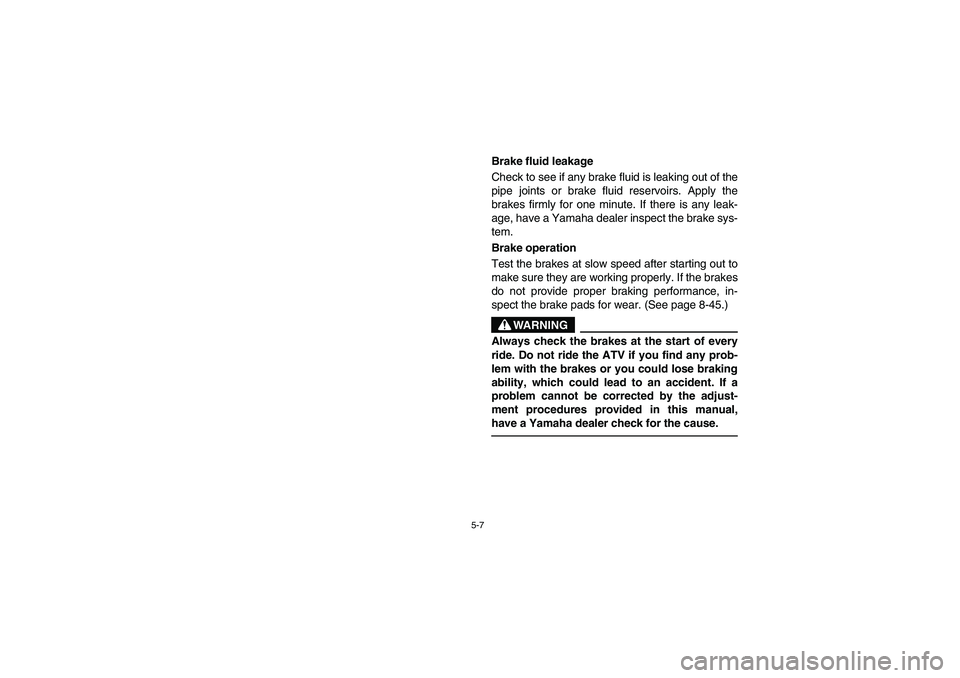

Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer inspect the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, in-
spect the brake pads for wear. (See page 8-45.)
WARNING
_ Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual,
have a Yamaha dealer check for the cause. _
U5YT60.book Page 7 Friday, December 12, 2003 1:55 PM

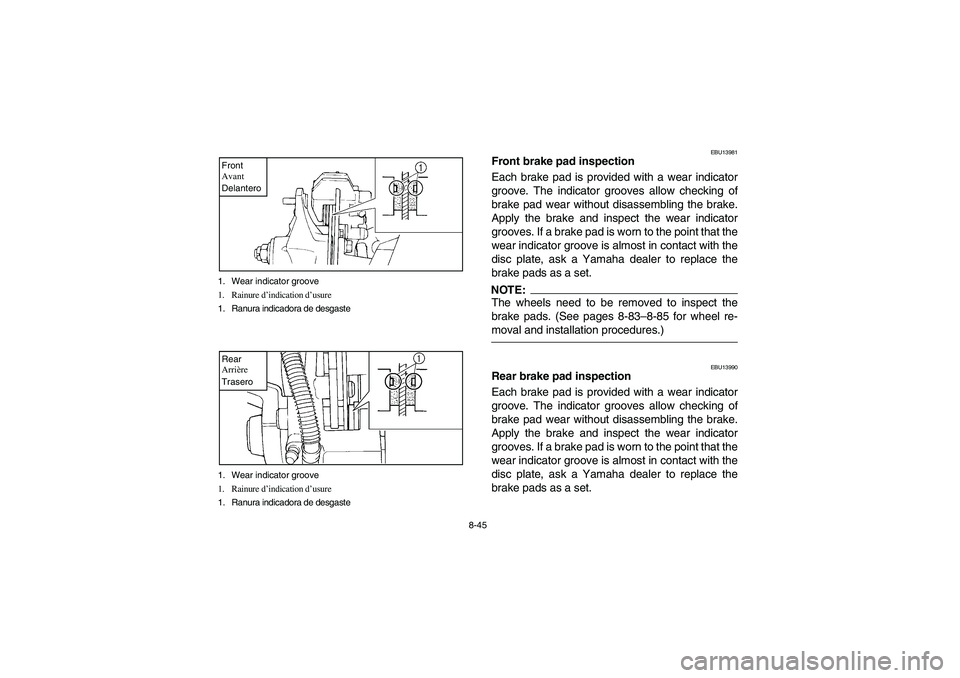

8-45 1. Wear indicator groove
1. Rainure d’indication d’usure
1. Ranura indicadora de desgaste
Front
Avant
Delantero1. Wear indicator groove
1. Rainure d’indication d’usure
1. Ranura indicadora de desgasteRear
Arrière
Trasero
EBU13981
Front brake pad inspection
Each brake pad is provided with a wear indicator
groove. The indicator grooves allow checking of
brake pad wear without disassembling the brake.
Apply the brake and inspect the wear indicator
grooves. If a brake pad is worn to the point that the
wear indicator groove is almost in contact with the
disc plate, ask a Yamaha dealer to replace the
brake pads as a set.NOTE:_ The wheels need to be removed to inspect the
brake pads. (See pages 8-83–8-85 for wheel re-
moval and installation procedures.) _
EBU13990
Rear brake pad inspection
Each brake pad is provided with a wear indicator
groove. The indicator grooves allow checking of
brake pad wear without disassembling the brake.
Apply the brake and inspect the wear indicator
grooves. If a brake pad is worn to the point that the
wear indicator groove is almost in contact with the
disc plate, ask a Yamaha dealer to replace the
brake pads as a set.
U5YT60.book Page 45 Friday, December 12, 2003 1:55 PM

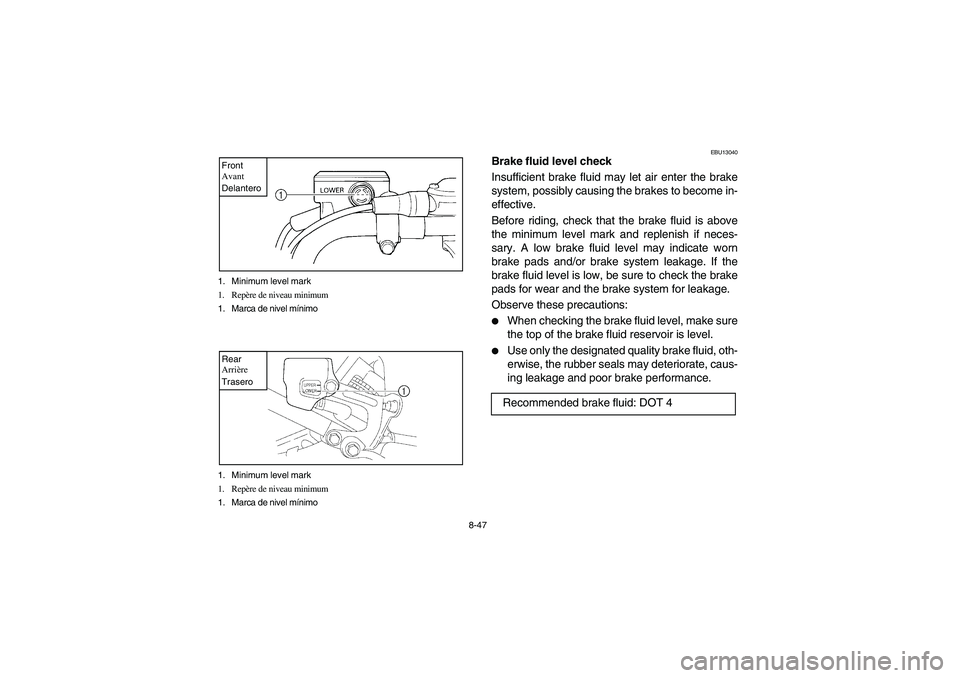

8-47 1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimo
Front
Avant
Delantero1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimoRear
Arrière
Trasero
EBU13040
Brake fluid level check
Insufficient brake fluid may let air enter the brake
system, possibly causing the brakes to become in-
effective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
Observe these precautions:

When checking the brake fluid level, make sure
the top of the brake fluid reservoir is level.


Use only the designated quality brake fluid, oth-
erwise, the rubber seals may deteriorate, caus-
ing leakage and poor brake performance.
Recommended brake fluid: DOT 4
