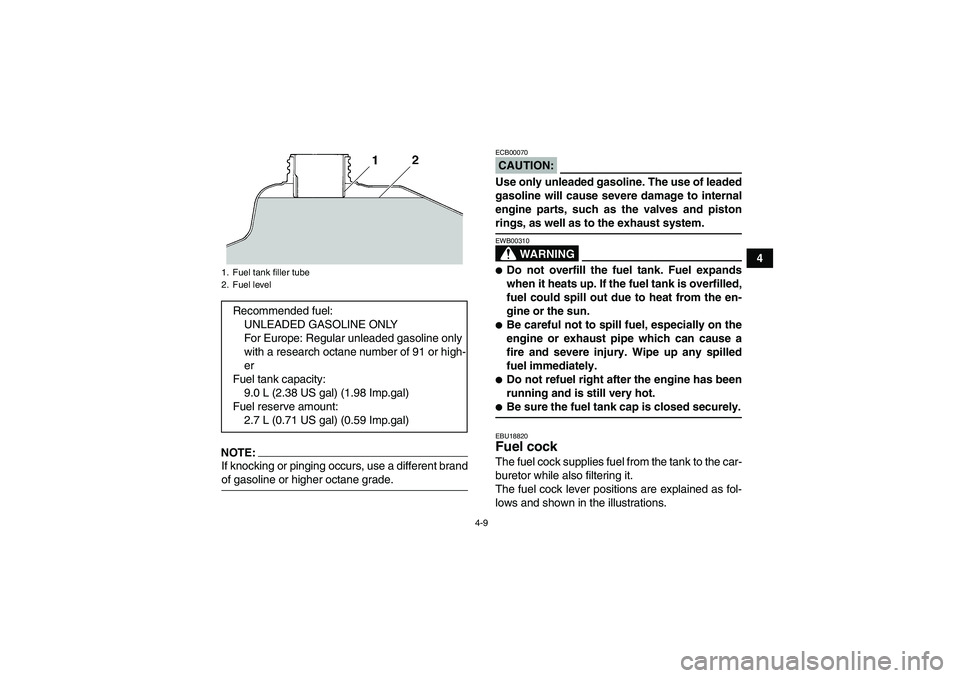

NOTE:If knocking or pinging occurs, use a different brandof gasoline or higher octane grade.
CAUTION:ECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and pistonrings, as well as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.
1. Fuel tank filler tube
2. Fuel levelRecommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or high-
er
Fuel tank capacity:
9.0 L (2.38 US gal) (1.98 Imp.gal)
Fuel reserve amount:
2.7 L (0.71 US gal) (0.59 Imp.gal)
U5YT64E0.book Page 9 Monday, April 9, 2007 1:03 PM

4-10

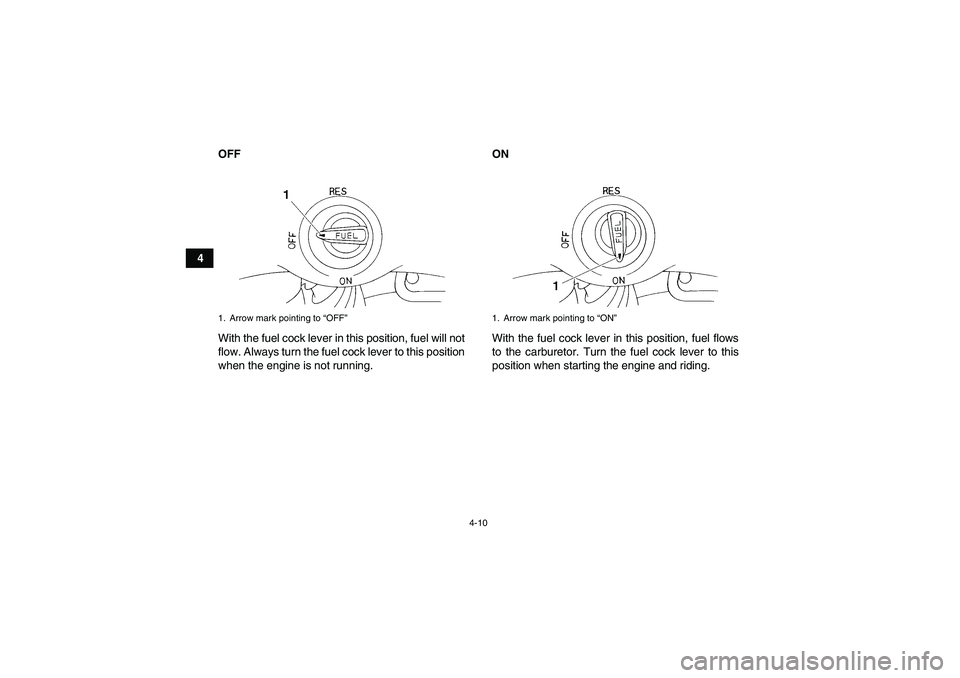

4OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.
1. Arrow mark pointing to “OFF”
1. Arrow mark pointing to “ON”
U5YT64E0.book Page 10 Monday, April 9, 2007 1:03 PM

4-11
4 RES

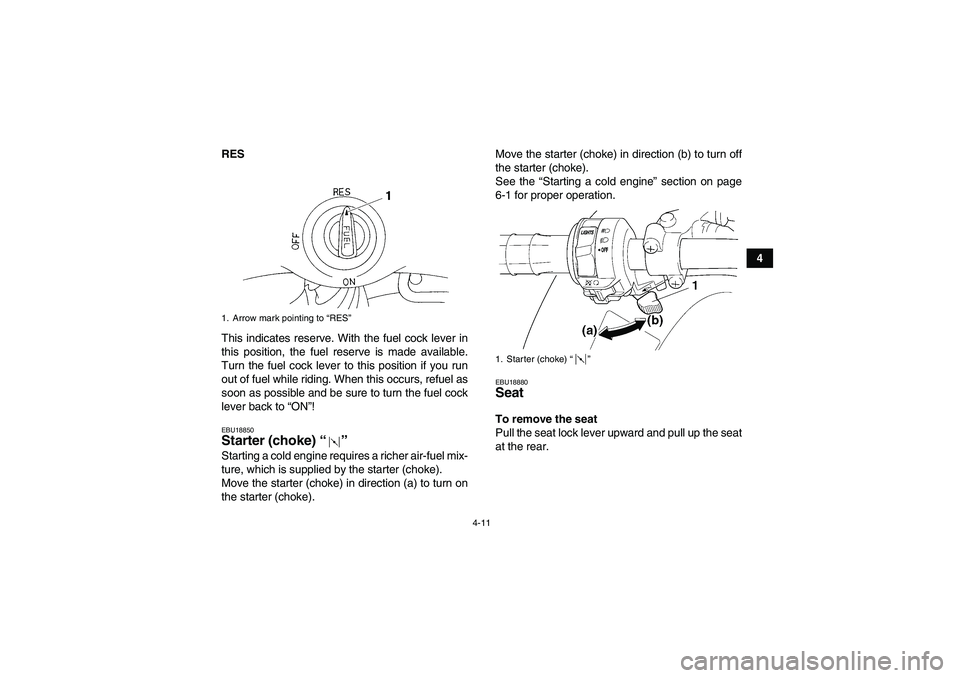

This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke) “” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18880Seat To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.
1. Arrow mark pointing to “RES”
1. Starter (choke) “”
U5YT64E0.book Page 11 Monday, April 9, 2007 1:03 PM

4-12
4

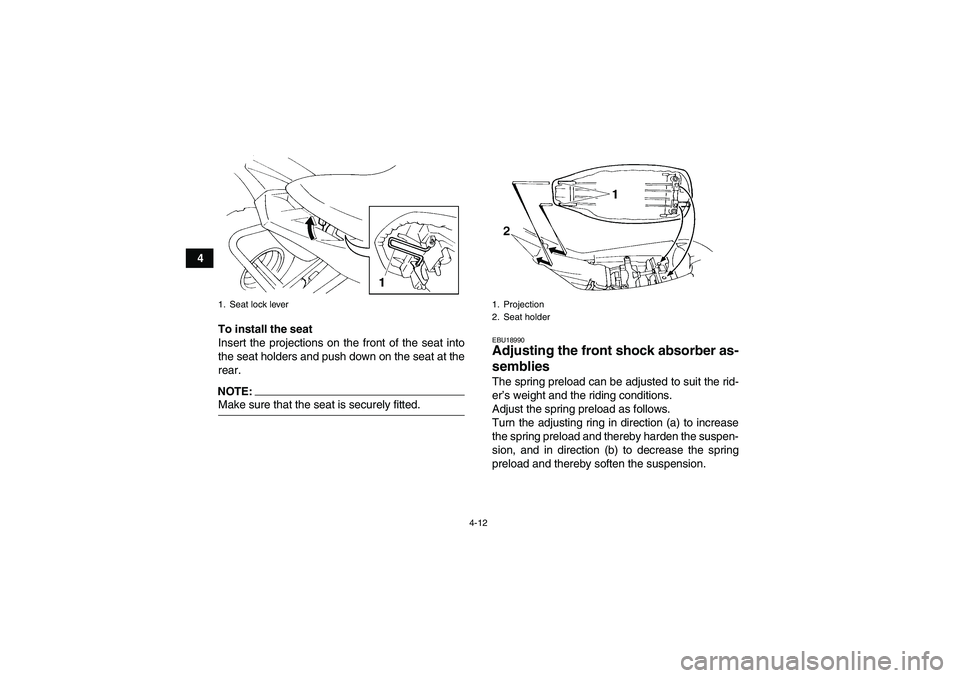

To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear.
NOTE:Make sure that the seat is securely fitted.
EBU18990Adjusting the front shock absorber as-
semblies The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
Adjust the spring preload as follows.
Turn the adjusting ring in direction (a) to increase
the spring preload and thereby harden the suspen-
sion, and in direction (b) to decrease the spring
preload and thereby soften the suspension.
1. Seat lock lever
1. Projection
2. Seat holder
U5YT64E0.book Page 12 Monday, April 9, 2007 1:03 PM

4-13
4

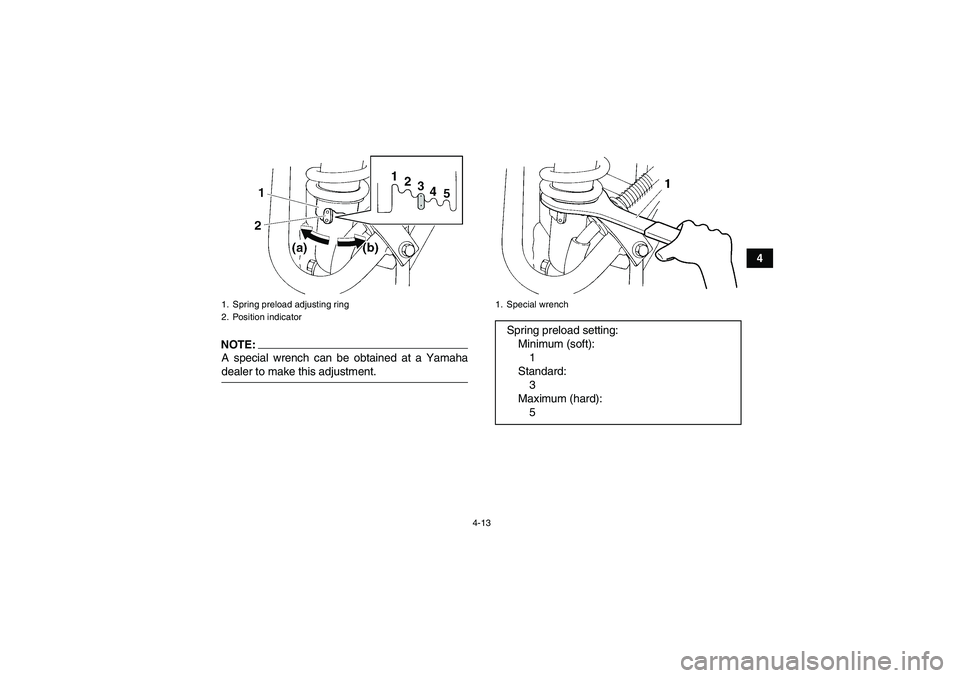

NOTE:A special wrench can be obtained at a Yamahadealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
1. Special wrenchSpring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
5
U5YT64E0.book Page 13 Monday, April 9, 2007 1:03 PM

4-14
4
WARNING
EWB00400Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling

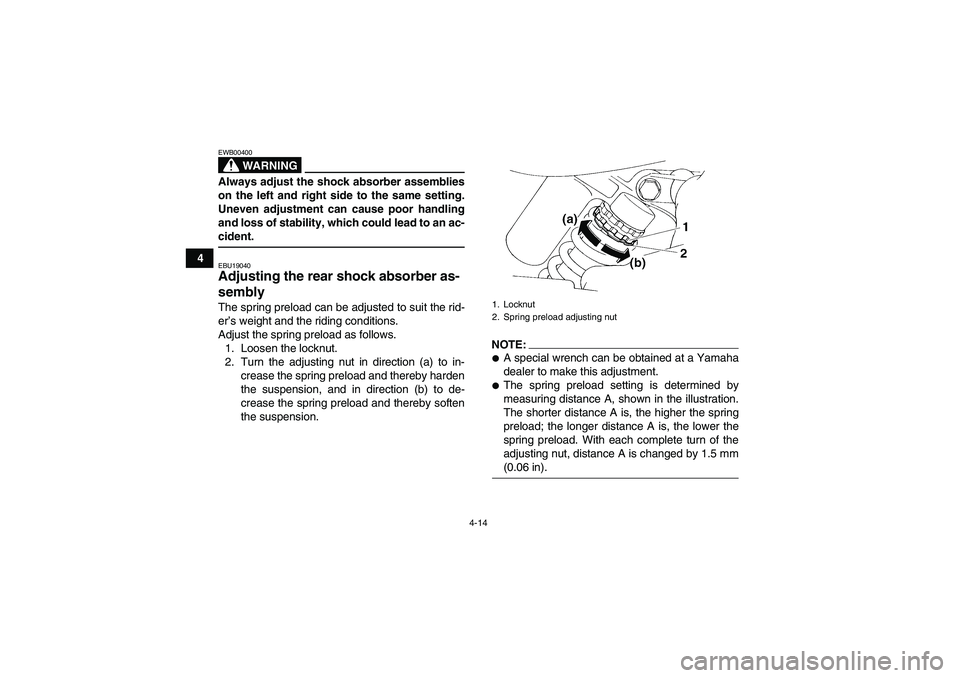

and loss of stability, which could lead to an ac-cident.EBU19040Adjusting the rear shock absorber as-
sembly The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
Adjust the spring preload as follows.
1. Loosen the locknut.
2. Turn the adjusting nut in direction (a) to in-
crease the spring preload and thereby harden
the suspension, and in direction (b) to de-
crease the spring preload and thereby soften
the suspension.
NOTE:
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm(0.06 in).1. Locknut
2. Spring preload adjusting nut
U5YT64E0.book Page 14 Monday, April 9, 2007 1:03 PM

4-15
4

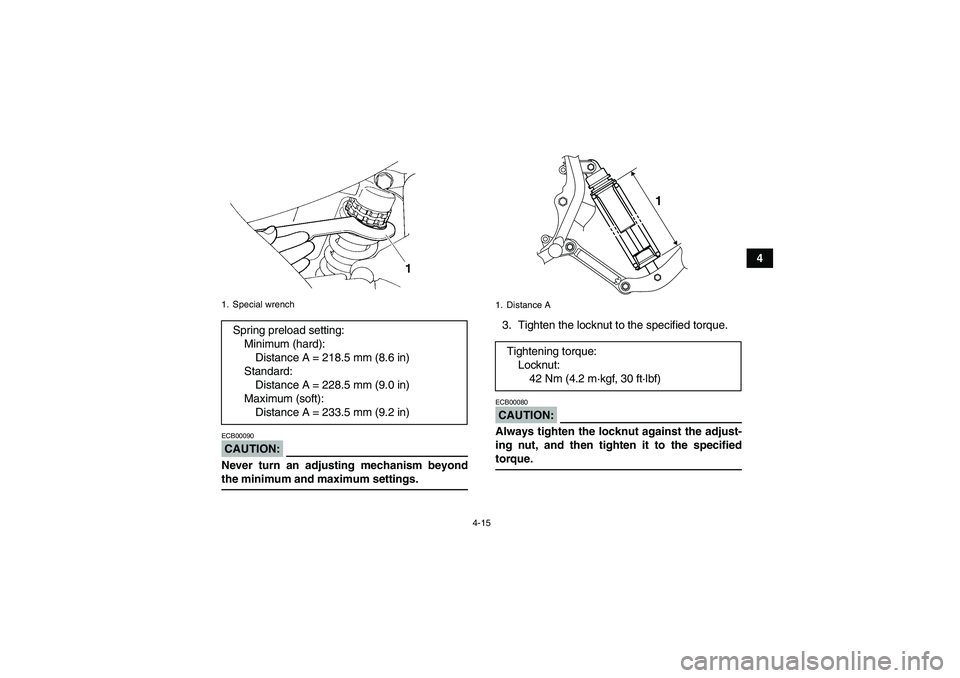

CAUTION:ECB00090Never turn an adjusting mechanism beyondthe minimum and maximum settings.3. Tighten the locknut to the specified torque.
CAUTION:ECB00080Always tighten the locknut against the adjust-
ing nut, and then tighten it to the specifiedtorque.
1. Special wrenchSpring preload setting:
Minimum (hard):
Distance A = 218.5 mm (8.6 in)
Standard:
Distance A = 228.5 mm (9.0 in)
Maximum (soft):
Distance A = 233.5 mm (9.2 in)
1. Distance ATightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
1
U5YT64E0.book Page 15 Monday, April 9, 2007 1:03 PM

4-16
4
WARNING

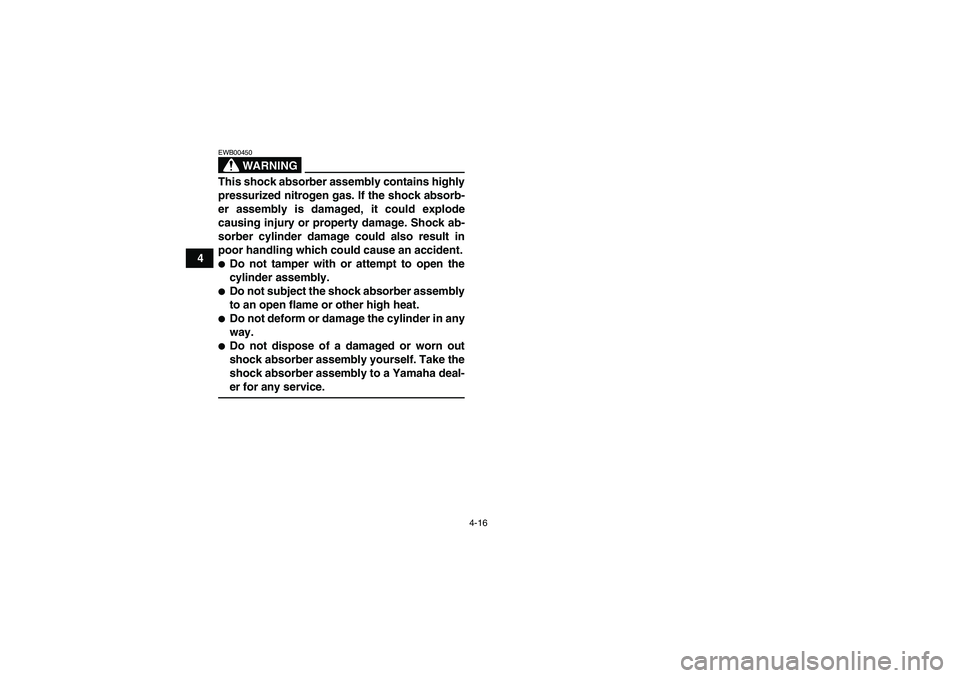

EWB00450This shock absorber assembly contains highly
pressurized nitrogen gas. If the shock absorb-
er assembly is damaged, it could explode
causing injury or property damage. Shock ab-
sorber cylinder damage could also result in
poor handling which could cause an accident.
Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat.
Do not deform or damage the cylinder in any
way.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-er for any service.
U5YT64E0.book Page 16 Monday, April 9, 2007 1:03 PM

5-1
5
EBU19200

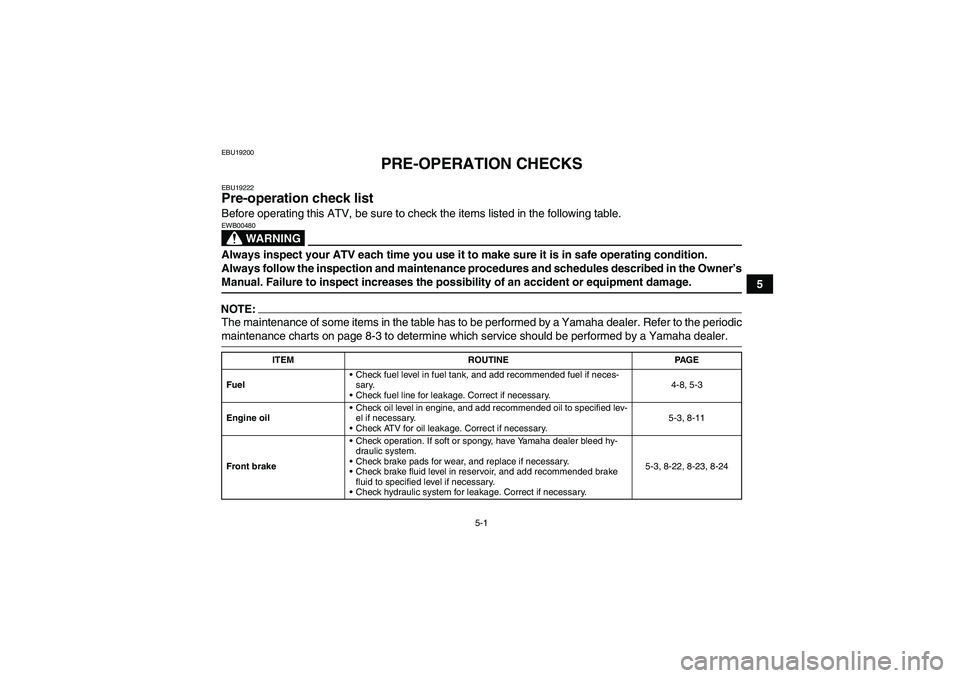

PRE-OPERATION CHECKS
EBU19222Pre-operation check list Before operating this ATV, be sure to check the items listed in the following table.
WARNING
EWB00480Always inspect your ATV each time you use it to make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Owner’sManual. Failure to inspect increases the possibility of an accident or equipment damage.NOTE:The maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the periodicmaintenance charts on page 8-3 to determine which service should be performed by a Yamaha dealer.
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-8, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-11
Front brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-22, 8-23, 8-24
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

5-2
5

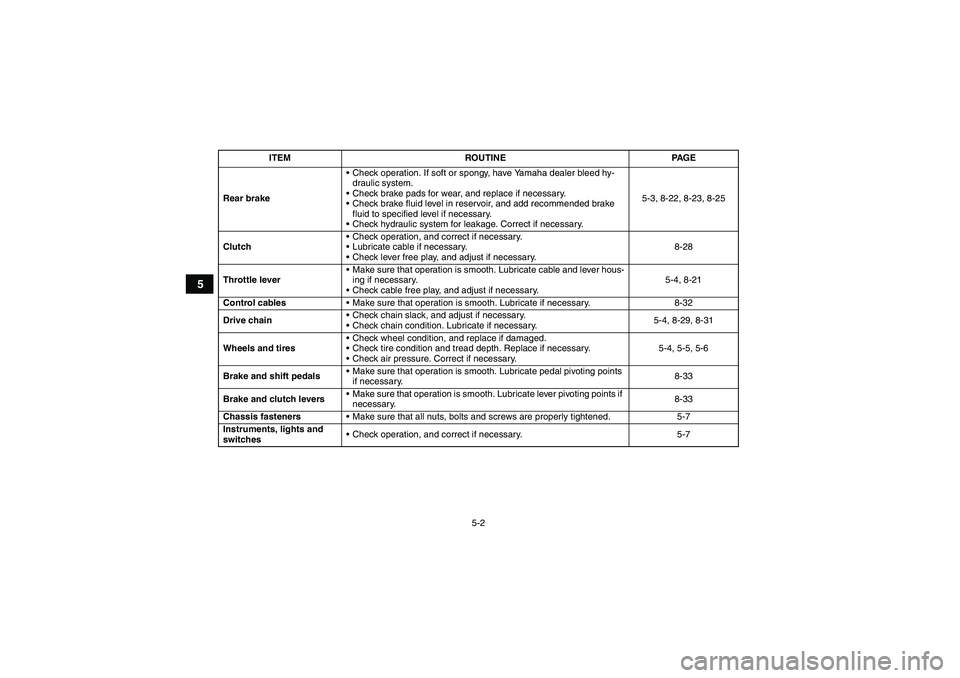

Rear brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-22, 8-23, 8-25
ClutchCheck operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.8-28
Throttle leverMake sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check cable free play, and adjust if necessary.5-4, 8-21
Control cablesMake sure that operation is smooth. Lubricate if necessary. 8-32
Drive chainCheck chain slack, and adjust if necessary.
Check chain condition. Lubricate if necessary.5-4, 8-29, 8-31
Wheels and tiresCheck wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary.5-4, 5-5, 5-6
Brake and shift pedalsMake sure that operation is smooth. Lubricate pedal pivoting points
if necessary.8-33
Brake and clutch leversMake sure that operation is smooth. Lubricate lever pivoting points if
necessary.8-33
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened. 5-7
Instruments, lights and
switchesCheck operation, and correct if necessary. 5-7 ITEM ROUTINE PAGEU5YT64E0.book Page 2 Monday, April 9, 2007 1:03 PM
