TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND
CONTROL FUNCTIONS ................................ 4-1
Main switch ................................................ 4-1
Indicator lights ............................................ 4-2
Handlebar switches .................................... 4-2
Throttle lever .............................................. 4-3
Speed limiter .............................................. 4-4
Clutch lever ................................................ 4-5
Brake lever ................................................. 4-5
Brake pedal ................................................ 4-5
Parking brake lever .................................... 4-6
Shift pedal .................................................. 4-7
Drive select lever ........................................ 4-7
Fuel tank cap .............................................. 4-8Fuel .............................................................4-8
Fuel cock ....................................................4-9
Starter (choke) ..........................................4-11
Seat ..........................................................4-11
Adjusting the front shock
absorber assemblies ...............................4-12
Adjusting the rear shock
absorber assembly .................................4-14
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ..............................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-4
Drive chain ..................................................5-4
Tires ............................................................5-4
Measuring the tire pressure ........................5-5
Tire wear limit .............................................5-6
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1
Starting a cold engine .................................6-1U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

Starting a warm engine .............................. 6-3
Operating the drive select lever and
driving in reverse ...................................... 6-3
Shifting ....................................................... 6-4
Engine break-in .......................................... 6-6
Parking ....................................................... 6-6
Parking on a slope ..................................... 6-7
Accessories and loading ............................ 6-8
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND
GOOD JUDGEMENT ................................ 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-13
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-17
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH
SHALLOW WATER................................. 7-19
RIDING OVER ROUGH TERRAIN ........... 7-21
SLIDING AND SKIDDING ......................... 7-22
WHAT TO DO IF... .................................... 7-23
WHAT TO DO... ........................................ 7-23PERIODIC MAINTENANCE AND
MINOR REPAIR .............................................8-1
Owner’s manual and tool kit .......................8-1
Periodic maintenance chart
for the emission control system ................8-3
General maintenance and
lubrication chart ........................................8-5
Checking the spark plug .............................8-9
Engine oil and oil filter element .................8-11
Cleaning the air filter element ...................8-14
Cleaning the spark arrester ......................8-18
Adjusting the carburetor ............................8-19
Adjusting the engine idling speed .............8-20
Adjusting the throttle cable free play .........8-21
Valve clearance ........................................8-21
Checking the front and rear brake pads ...8-22
Checking the brake fluid level ...................8-23
Changing the brake fluid ...........................8-24
Checking the front brake lever free play ...8-24
Checking the brake pedal position ............8-25
Adjusting the parking brake free play .......8-26
Brake light switches ..................................8-27
Adjusting the clutch lever free play ...........8-28
Drive chain slack .......................................8-29
Lubricating the drive chain ........................8-31
Checking and lubricating the cables .........8-32
U5YT64E0.book Page 2 Monday, April 9, 2007 1:03 PM

4-3
4
EBU18100Start switch “”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU18151Light switch “//OFF”
Set this switch to “” to turn on the low beams
and the taillight. Set the switch to “” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.CAUTION:ECB00040Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery andrecharge it.
EBU18280Throttle lever Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
EWB00250Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-1. Throttle lever
U5YT64E0.book Page 3 Monday, April 9, 2007 1:03 PM

6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU20161Starting a cold engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
CAUTION:ECB00150See the “Engine break-in” section on page 6-6prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “”.
4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.NOTE:This model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.
The transmission is in neutral.
The clutch is disengaged with the shift pedal and
the drive select lever in any position. However, it
is recommended to shift into neutral before start-ing the engine.
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

8-7
8

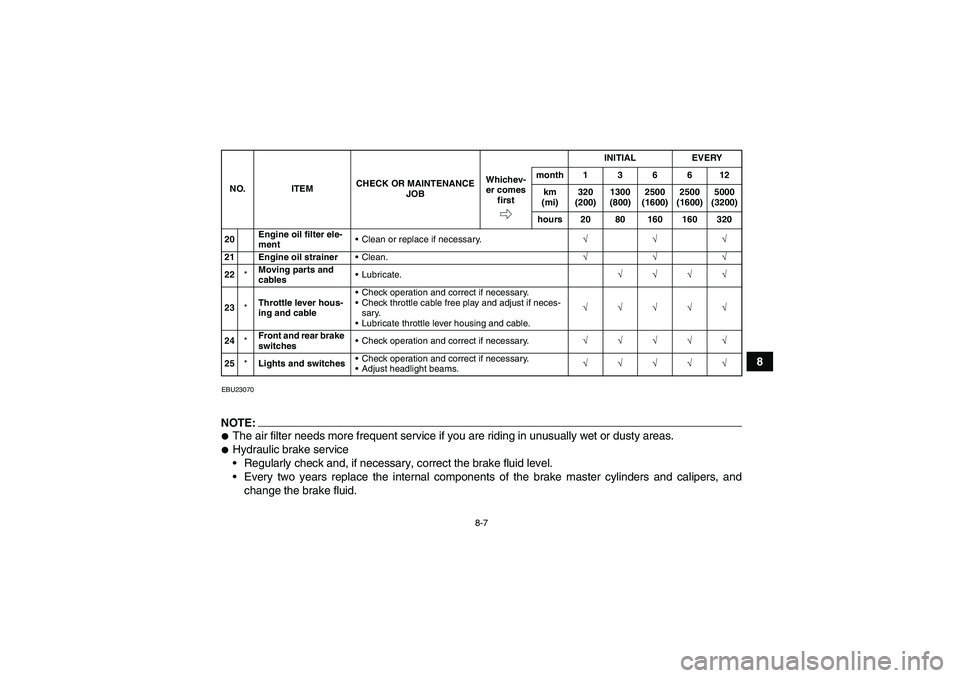

EBU23070NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.20Engine oil filter ele-
mentClean or replace if necessary.√√√
21 Engine oil strainerClean.√√√
22*Moving parts and
cablesLubricate.√√√√
23*Throttle lever hous-
ing and cableCheck operation and correct if necessary.
Check throttle cable free play and adjust if neces-
sary.
Lubricate throttle lever housing and cable.√√√√√
24*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
25*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U5YT64E0.book Page 7 Monday, April 9, 2007 1:03 PM

8-9
8

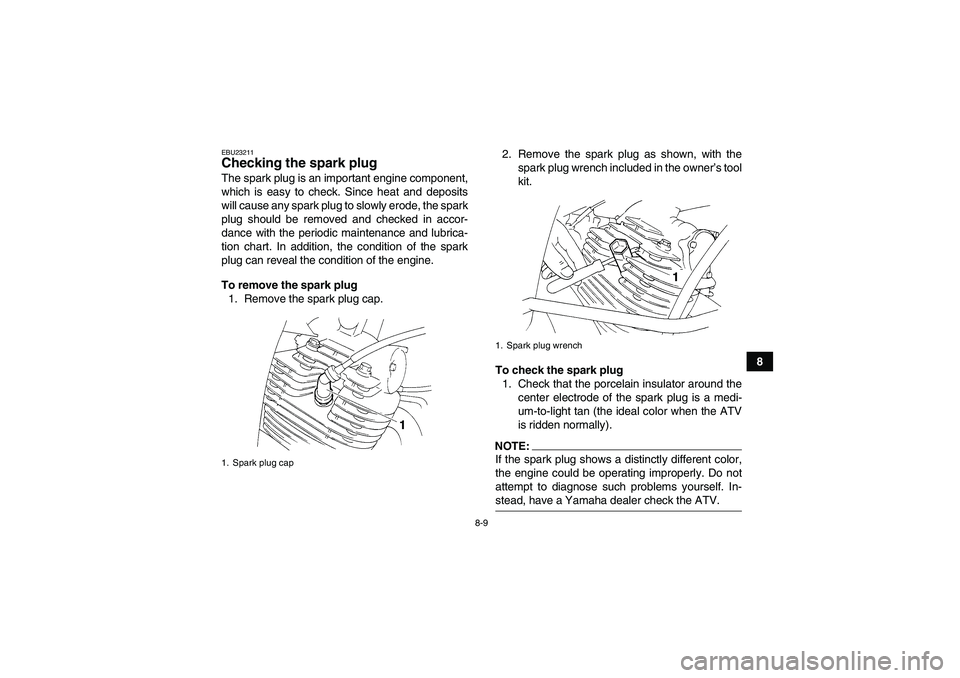

EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U5YT64E0.book Page 9 Monday, April 9, 2007 1:03 PM

INDEX
AAccessories and loading ................................................ 6-8
Air filter element, cleaning ............................................ 8-14BBattery .......................................................................... 8-37
Brake and clutch levers, checking and lubricating ....... 8-33
Brake and shift pedals, checking and lubricating ......... 8-33
Brake fluid, changing .................................................... 8-24
Brake fluid level, checking ............................................ 8-23
Brake lever ..................................................................... 4-5
Brake lever free play, checking the front ...................... 8-24
Brake light switches ..................................................... 8-27
Brake pads, checking the front and rear ...................... 8-22
Brake pedal .................................................................... 4-5
Brake pedal position, checking .................................... 8-25
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-32
Carburetor, adjusting .................................................... 8-19
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-5
Clutch lever free play, adjusting ................................... 8-28DDrive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-31
Drive chain slack .......................................................... 8-29
Drive select lever ............................................................ 4-7Drive select lever and driving in reverse ........................ 6-3
EEngine break-in .............................................................. 6-6
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-20
Engine oil ....................................................................... 5-3
Engine oil and oil filter element .................................... 8-11
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-2FFuel ......................................................................... 4-8, 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap .................................................................. 4-8
Fuse, replacing ............................................................. 8-38HHandlebar switches ........................................................ 4-2
Headlight beam, adjusting ............................................ 8-41
Headlight bulb, replacing .............................................. 8-39IIdentification numbers .................................................. 11-1
Indicator lights ................................................................ 4-2
Instruments, lights and switches .................................... 5-7KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-3
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM
