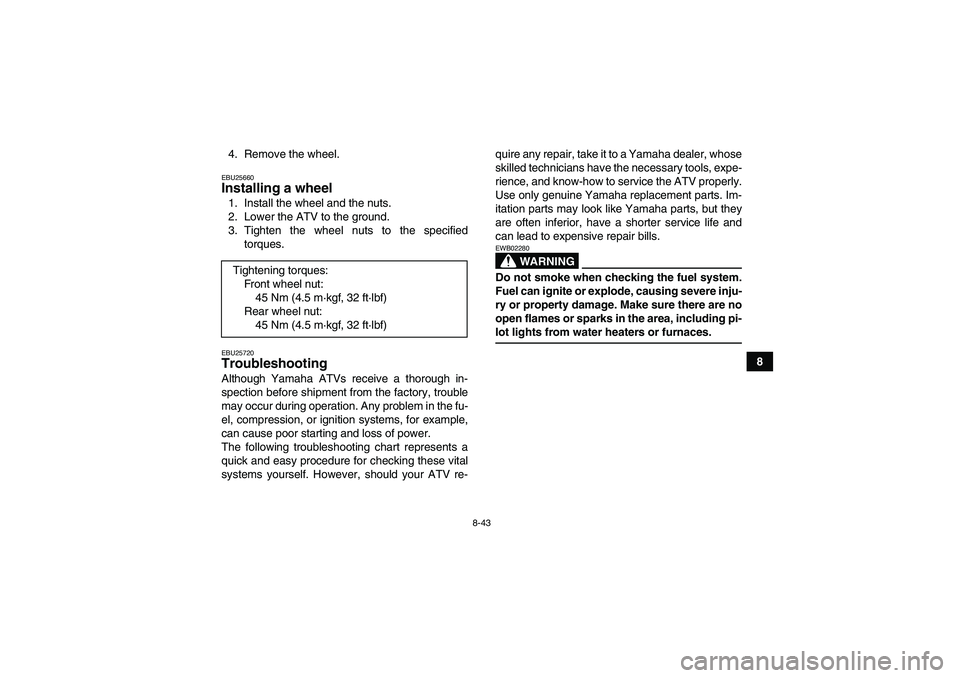

8 4. Remove the wheel.
EBU25660Installing a wheel 1. Install the wheel and the nuts.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.EBU25720Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting chart represents a
quick and easy procedure for checking these vital
systems yourself. However, should your ATV re-quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-lot lights from water heaters or furnaces. Tightening torques:
Front wheel nut:
45 Nm (4.5 m·kgf, 32 ft·lbf)
Rear wheel nut:
45 Nm (4.5 m·kgf, 32 ft·lbf)
U5YT64E0.book Page 43 Monday, April 9, 2007 1:03 PM
10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
1780 mm (70.1 in)
Overall width:
1095 mm (43.1 in)
Overall height:
1080 mm (42.5 in)
Seat height:
820 mm (32.3 in)
Wheelbase:
1210 mm (47.6 in)
Ground clearance:
115 mm (4.5 in)
Minimum turning radius:
3100 mm (122 in)Weight:With oil and fuel:
180.0 kg (397 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
349.0 cm³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)Compression ratio:
9.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
