YAMAHA YFM350R 2010 Owners Manual

10-3
10

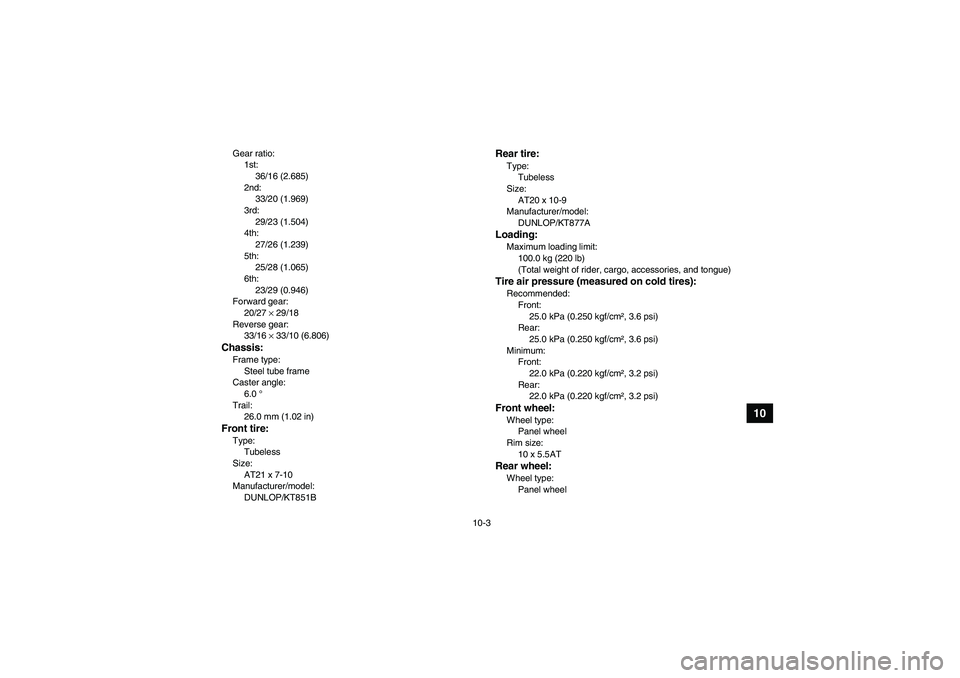

Gear ratio:
1st:
36/16 (2.685)
2nd:
33/20 (1.969)
3rd:
29/23 (1.504)
4th:
27/26 (1.239)
5th:
25/28 (1.065)
6th:
23/29 (0.946)
Forward gear:
20/27 × 29/18
Reverse gear:
33/16 × 33/10 (6.806)Chassis:Frame type:
Steel tube frame
Caster angle:
6.0 °
Trail:
26.0 mm (1.02 in)Front tire:Type:
Tubeless
Size:
AT21 x 7-10
Manufacturer/model:
DUNLOP/KT851B
Rear tire:Type:
Tubeless
Size:
AT20 x 10-9
Manufacturer/model:
DUNLOP/KT877ALoading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:
Panel wheel
Rim size:
10 x 5.5ATRear wheel:Wheel type:
Panel wheel
U1BS60E0.book Page 3 Thursday, April 16, 2009 4:11 PM

10-4
10
Rim size:
9 x 8.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
200 mm (7.9 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
210 mm (8.3 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30/30 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1Fuse:Fuse:
15.0 A
U1BS60E0.book Page 4 Thursday, April 16, 2009 4:11 PM

11-1
11
EBU26000
CONSUMER INFORMATION
EBU26012Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26041Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U1BS60E0.book Page 1 Thursday, April 16, 2009 4:11 PM

11-2

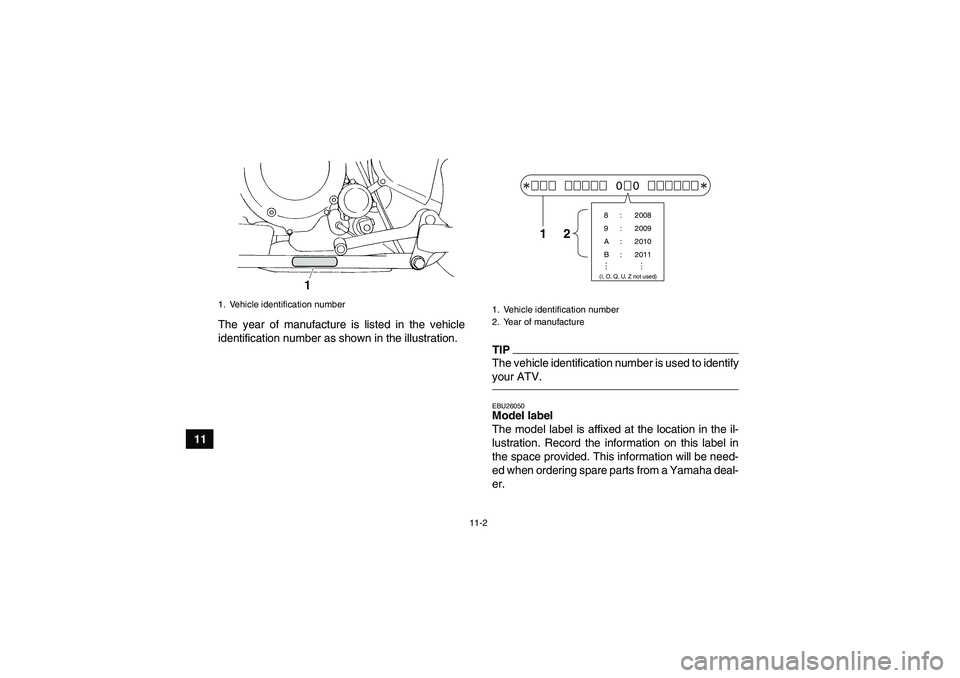

11The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
TIPThe vehicle identification number is used to identify

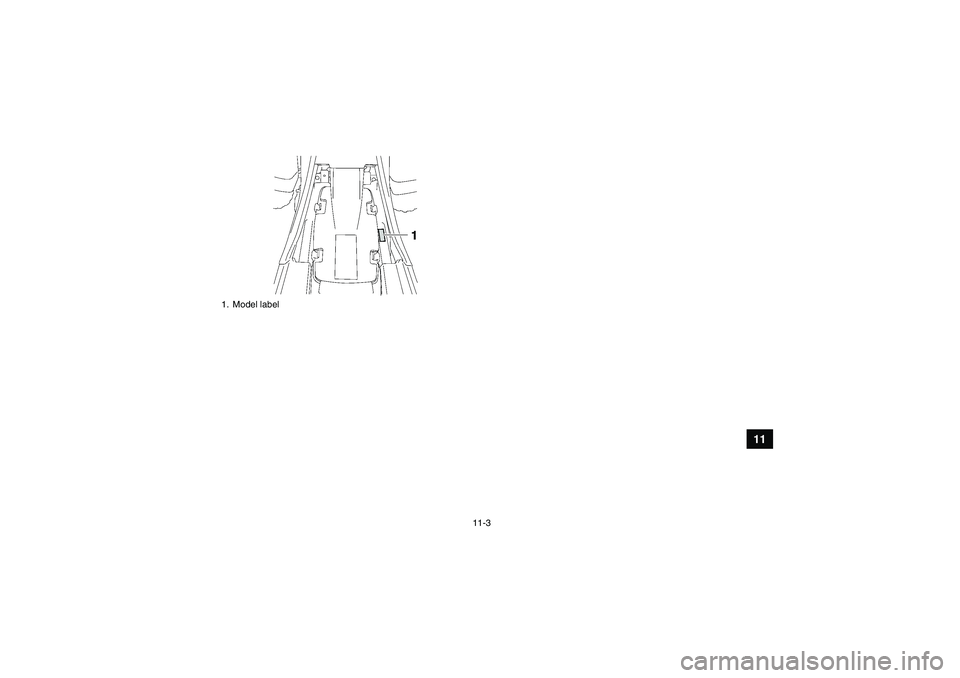

your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
U1BS60E0.book Page 2 Thursday, April 16, 2009 4:11 PM

11-3
11
1. Model labelU1BS60E0.book Page 3 Thursday, April 16, 2009 4:11 PM

INDEX
AAccessories and loading ................................................ 6-8
Air filter element, cleaning ............................................ 8-15BBattery .......................................................................... 8-37
Brake and clutch levers, checking and lubricating ....... 8-32
Brake and shift pedals, checking and lubricating ......... 8-33
Brake fluid, changing .................................................... 8-25
Brake fluid level, checking ............................................ 8-23
Brake lever ..................................................................... 4-5
Brake lever free play, checking the front ...................... 8-25
Brake light switches ..................................................... 8-27
Brake pads, checking the front and rear ...................... 8-22
Brake pedal .................................................................... 4-5
Brake pedal position, checking .................................... 8-25
Brakes .......................................................................... 8-22
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-32
Carburetor, adjusting .................................................... 8-20
Chassis fasteners ........................................................... 5-6
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-4
Clutch lever free play, adjusting ................................... 8-28DDrive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-31
Drive chain slack .......................................................... 8-29Drive select lever ............................................................ 4-7
Drive select lever and driving in reverse ........................ 6-3
EEngine break-in .............................................................. 6-6
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-20
Engine oil ....................................................................... 5-3
Engine oil and oil filter element .................................... 8-11
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-2FFuel ......................................................................... 4-8, 5-3
Fuel cock ...................................................................... 4-10
Fuel tank cap .................................................................. 4-8
Fuse, replacing ............................................................. 8-40HHandlebar switches ........................................................ 4-2
Headlight beam, adjusting ............................................ 8-42
Headlight bulb, replacing .............................................. 8-40IIdentification numbers .................................................. 11-1
Indicator lights ................................................................ 4-2
Instruments, lights and switches .................................... 5-6KKey identification number ............................................. 11-1LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-3
U1BS60E0.book Page 1 Thursday, April 16, 2009 4:11 PM

MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2NNeutral indicator light ..................................................... 4-2OOwner’s manual and tool kit ........................................... 8-1PParking ........................................................................... 6-7
Parking brake free play, adjusting ................................ 8-26
Parking brake lever ........................................................ 4-6
Parking on a slope ......................................................... 6-7
Part locations ................................................................. 3-1RReverse indicator light ................................................... 4-2
Riding your ATV ............................................................. 7-1SSafety information .......................................................... 2-1
Seat .............................................................................. 4-12
Shifting ........................................................................... 6-4
Shift pedal ...................................................................... 4-7
Shock absorber assemblies, adjusting the front .......... 4-13
Shock absorber assembly, adjusting the rear .............. 4-14
Spark arrester, cleaning ............................................... 8-18
Spark plug, checking ...................................................... 8-9
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-3
Starter (choke) ............................................................. 4-11
Start switch .................................................................... 4-3
Steering shaft, lubricating ............................................ 8-37Storage .......................................................................... 9-2
Suspension, lubricating the upper and lower arm
pivots ......................................................................... 8-36
Suspension relay arm and connecting arm pivoting
points, lubricating the rear ......................................... 8-35
Swingarm pivots, lubricating ........................................ 8-34
TTail/brake light bulb, replacing ..................................... 8-43
Throttle cable free play, adjusting ................................ 8-21
Throttle lever ........................................................... 4-3, 5-3
Tires ............................................................................... 5-4
Troubleshooting ........................................................... 8-44
Troubleshooting chart .................................................. 8-46VValve clearance ........................................................... 8-22
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-34
Wheel, installing ........................................................... 8-44
Wheel, removing .......................................................... 8-43
