YAMAHA YFM350R-W 2007 Owner's Manual

4-2
4
EBU17791Indicator lights EBU27970Turn signal indicator light “”
This indicator light flashes when the turn signal
switch is pushed to the left or right.EBU17830Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU17860Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU27980High beam indicator light “”
This indicator light comes on when the high beam
of the headlight is switched on.EBU28050Speedometer The speedometer shows the riding speed. This
speedometer is equipped with an odometer. The
odometer shows the total distance traveled.
1. High beam indicator light “”
2. Turn signal indicator light “”
3. Reverse indicator light “R”
4. Neutral indicator light “N”
1. Speedometer
2. Odometer
U10P60E0.book Page 2 Thursday, June 15, 2006 4:19 PM

4-3
4
EBU18061Handlebar switches
EBU18080Engine stop switch “/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “”.EBU18100Start switch “”
Push this switch to crank the engine with the start-
er.
1. Light switch “//”
2. Hazard switch “”
3. Turn signal switch “/”
4. Horn switch “”
5. Start switch “”
1. Engine stop switch “/”
U10P60E0.book Page 3 Thursday, June 15, 2006 4:19 PM

4-4
4
CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU28061Light switch “//”
Set the switch to “” to turn on the high beam.
Set this switch to “” to turn on the low beam.
Set the switch to “” to turn off the headlight.CAUTION:ECB00030Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-charge it.EBU27990Turn signal switch “/”
To signal a right-hand turn, push this switch to
“”. To signal a left-hand turn, push this switch to
“”. When released, the switch returns to the cen-
ter position. To cancel the turn signal lights, push
the switch in after it has returned to the center po-
sition.
EBU18170Horn switch “”
Press the switch to sound the horn.EBU28000Hazard switch “”
With the key in the “ON” position, turn this switch to
“” to turn on the hazard lights (simultaneous
flashing of all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.CAUTION:ECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-erwise the battery may discharge.EBU18280Throttle lever Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
U10P60E0.book Page 4 Thursday, June 15, 2006 4:19 PM

4-5
4
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
EWB00250Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-
eration of the throttle lever before you start the
engine. If the throttle does not work smoothly,
check for the cause. Correct the problem be-fore riding the ATV or consult a Yamaha dealer.
EBU18321Speed limiter Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).
1. Throttle lever
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
U10P60E0.book Page 5 Thursday, June 15, 2006 4:19 PM

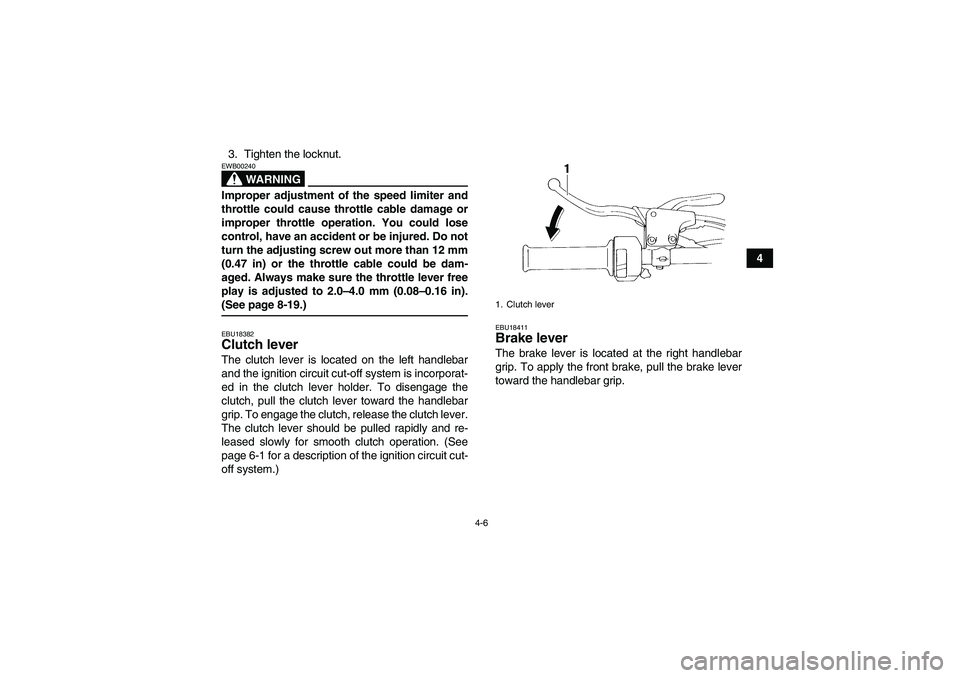

4-6
4 3. Tighten the locknut.
WARNING
EWB00240Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).(See page 8-19.)EBU18382Clutch lever The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. To disengage the
clutch, pull the clutch lever toward the handlebar
grip. To engage the clutch, release the clutch lever.
The clutch lever should be pulled rapidly and re-
leased slowly for smooth clutch operation. (See
page 6-1 for a description of the ignition circuit cut-
off system.)
EBU18411Brake lever The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.1. Clutch lever
U10P60E0.book Page 6 Thursday, June 15, 2006 4:19 PM

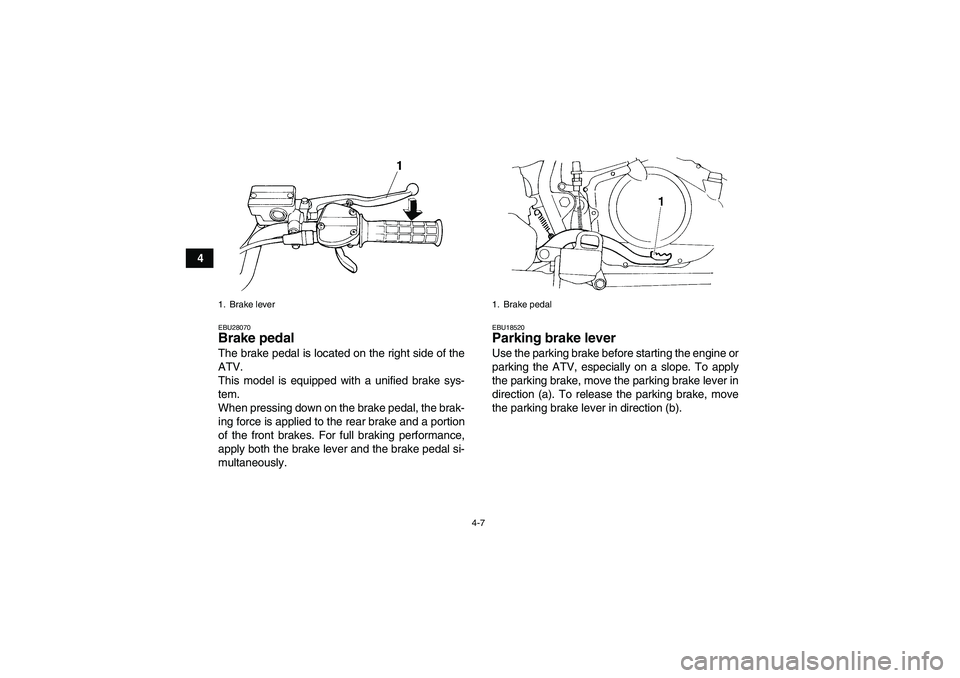

4-7
4
EBU28070Brake pedal The brake pedal is located on the right side of the
ATV.
This model is equipped with a unified brake sys-
tem.
When pressing down on the brake pedal, the brak-
ing force is applied to the rear brake and a portion
of the front brakes. For full braking performance,
apply both the brake lever and the brake pedal si-
multaneously.
EBU18520Parking brake lever Use the parking brake before starting the engine or
parking the ATV, especially on a slope. To apply
the parking brake, move the parking brake lever in
direction (a). To release the parking brake, move
the parking brake lever in direction (b).
1. Brake lever
1. Brake pedal
U10P60E0.book Page 7 Thursday, June 15, 2006 4:19 PM

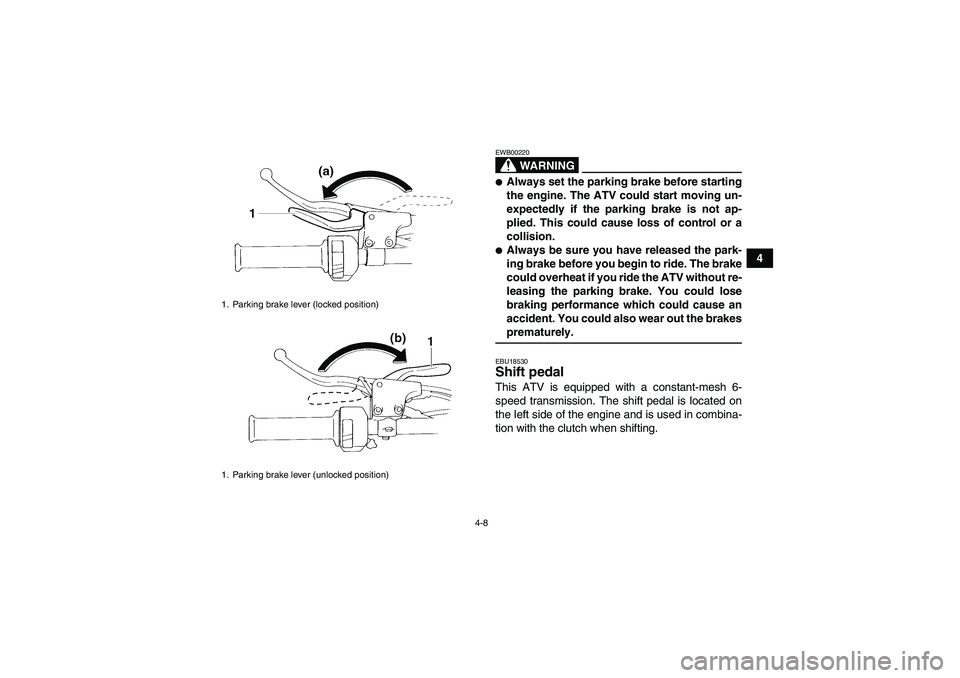

4-8
4
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.
Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakesprematurely.EBU18530Shift pedal This ATV is equipped with a constant-mesh 6-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
1. Parking brake lever (locked position)
1. Parking brake lever (unlocked position)U10P60E0.book Page 8 Thursday, June 15, 2006 4:19 PM

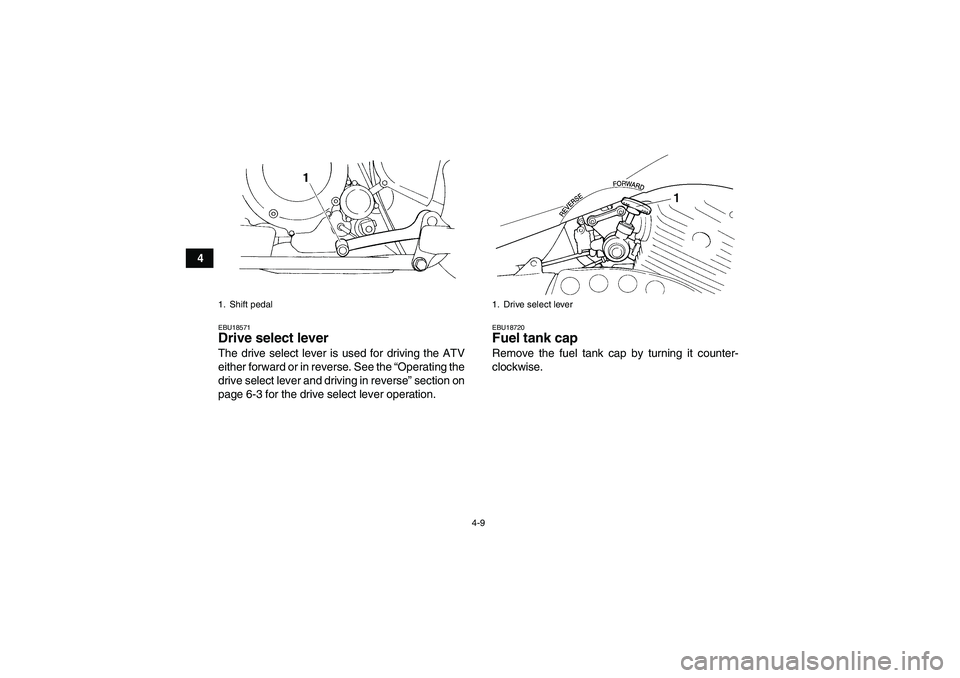

4-9
4
EBU18571Drive select lever The drive select lever is used for driving the ATV
either forward or in reverse. See the “Operating the
drive select lever and driving in reverse” section on
page 6-3 for the drive select lever operation.
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
1. Shift pedal
1. Drive select lever
U10P60E0.book Page 9 Thursday, June 15, 2006 4:19 PM

4-10
4
EBU18750Fuel Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.
NOTE:If knocking or pinging occurs, use a different brandof gasoline or higher octane grade.
1. Fuel tank cap
1. Fuel tank filler tube
2. Fuel levelRecommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or high-
er
Fuel tank capacity:
9.0 L (2.38 US gal) (1.98 Imp.gal)
Fuel reserve amount:
2.7 L (0.71 US gal) (0.59 Imp.gal)
U10P60E0.book Page 10 Thursday, June 15, 2006 4:19 PM

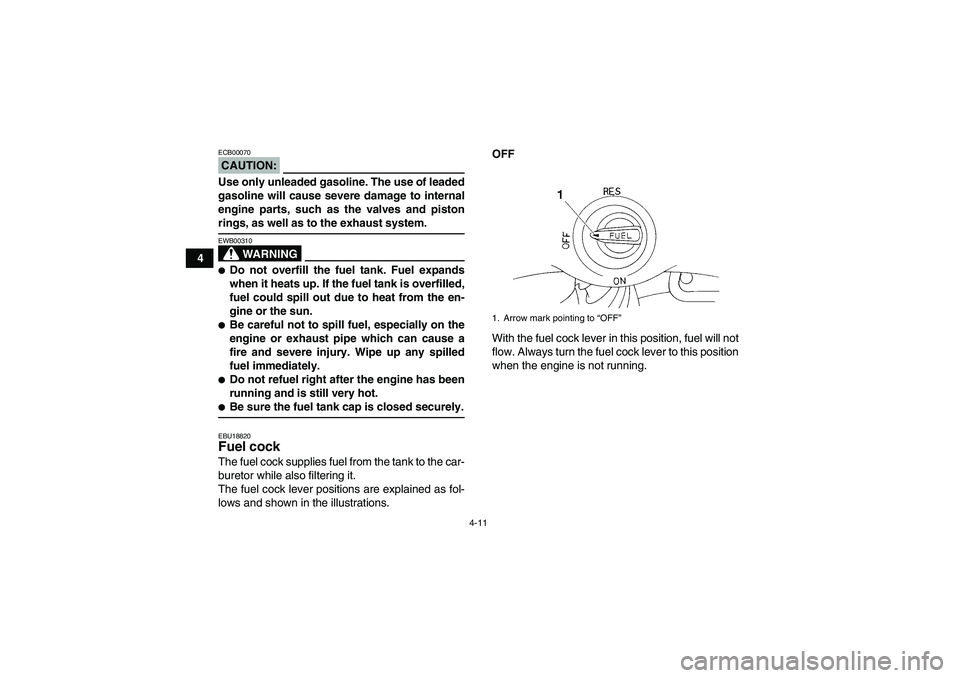

4-11
4
CAUTION:ECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and pistonrings, as well as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark pointing to “OFF”
U10P60E0.book Page 11 Thursday, June 15, 2006 4:19 PM
