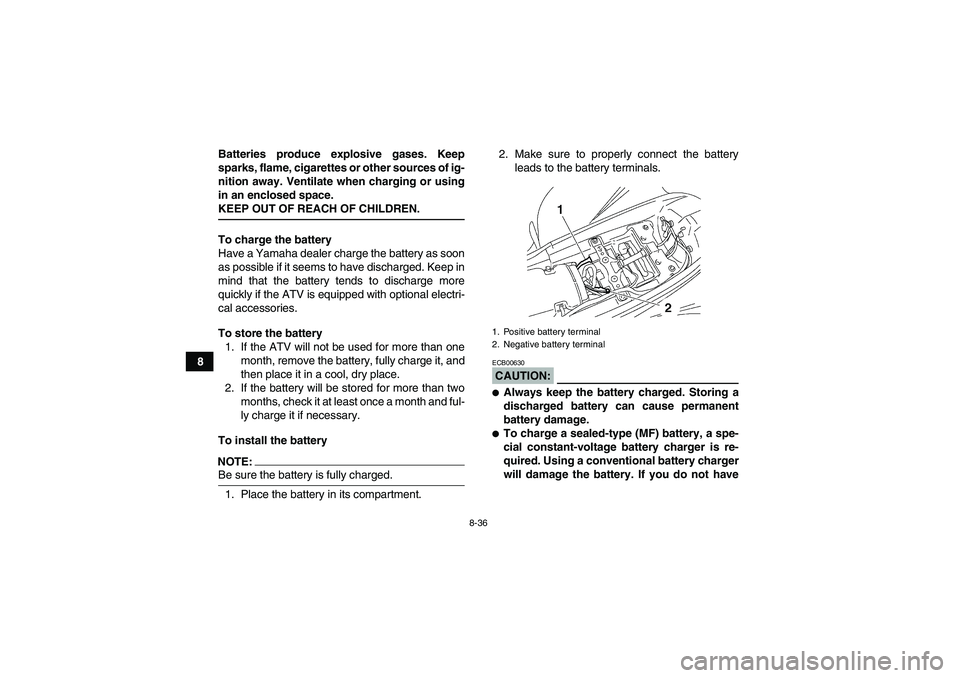

8-36
8Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
To store the battery
1. If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for more than two
months, check it at least once a month and ful-
ly charge it if necessary.
To install the batteryNOTE:Be sure the battery is fully charged.
1. Place the battery in its compartment.2. Make sure to properly connect the battery
leads to the battery terminals.
CAUTION:ECB00630Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.To charge a sealed-type (MF) battery, a spe-
cial constant-voltage battery charger is re-
quired. Using a conventional battery charger
will damage the battery. If you do not have1. Positive battery terminal
2. Negative battery terminal
U10P60E0.book Page 36 Thursday, June 15, 2006 4:19 PM
10-4
10
Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
200 mm (7.9 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
210 mm (8.3 in)Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage x quantity:Headlight:
12 V, 35.0/35.0 W × 1Tail/brake light:
12 V, 5.0/21.0 W × 1
Front turn signal light:
12 V, 10.0 W
Rear turn signal light:
12 V, 10.0 W
Auxiliary light:
12 V, 5.0 W
License plate light:
12 V, 5.0 W
Neutral indicator light:
12 V, 1.7 W × 1
High beam indicator light:
LED
Turn signal indicator light:
LED
Reverse indicator light:
12 V, 1.7 W × 1
Fuses:Main fuse:
15.0 A
Signaling system fuse:
7.5 A
