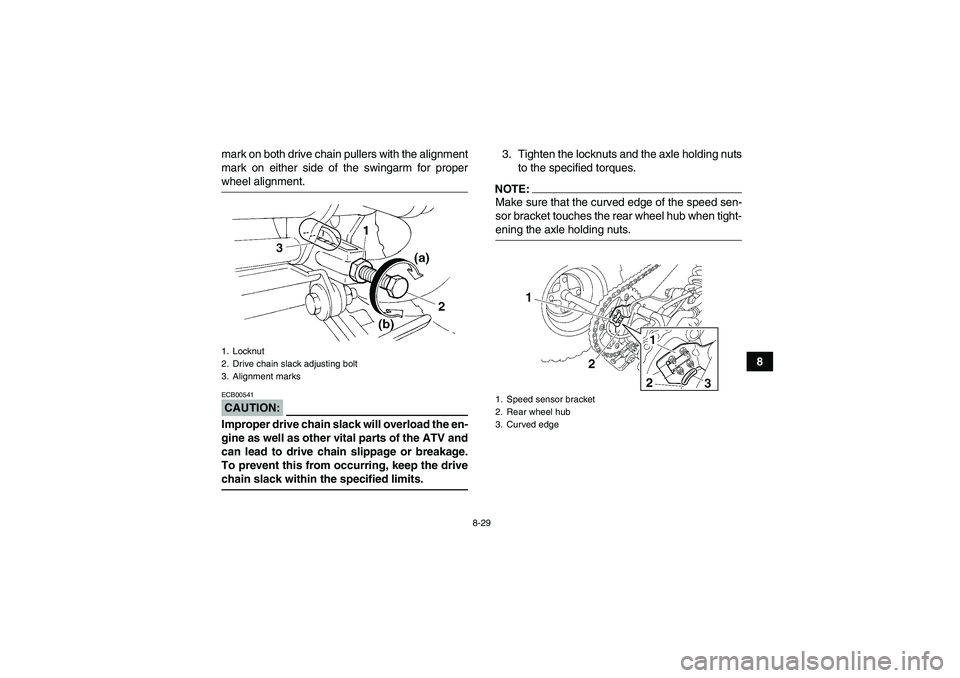

8-29
8 mark on both drive chain pullers with the alignment
mark on either side of the swingarm for proper
wheel alignment.CAUTION:ECB00541Improper drive chain slack will overload the en-
gine as well as other vital parts of the ATV and
can lead to drive chain slippage or breakage.
To prevent this from occurring, keep the drivechain slack within the specified limits.3. Tighten the locknuts and the axle holding nuts
to the specified torques.
NOTE:Make sure that the curved edge of the speed sen-
sor bracket touches the rear wheel hub when tight-ening the axle holding nuts.
1. Locknut
2. Drive chain slack adjusting bolt
3. Alignment marks
1. Speed sensor bracket
2. Rear wheel hub
3. Curved edge
