4-6
4 3. Tighten the locknut.
WARNING
EWB00240Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).(See page 8-19.)EBU18382Clutch lever The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. To disengage the
clutch, pull the clutch lever toward the handlebar
grip. To engage the clutch, release the clutch lever.
The clutch lever should be pulled rapidly and re-
leased slowly for smooth clutch operation. (See
page 6-1 for a description of the ignition circuit cut-
off system.)
EBU18411Brake lever The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.1. Clutch lever
U10P60E0.book Page 6 Thursday, June 15, 2006 4:19 PM

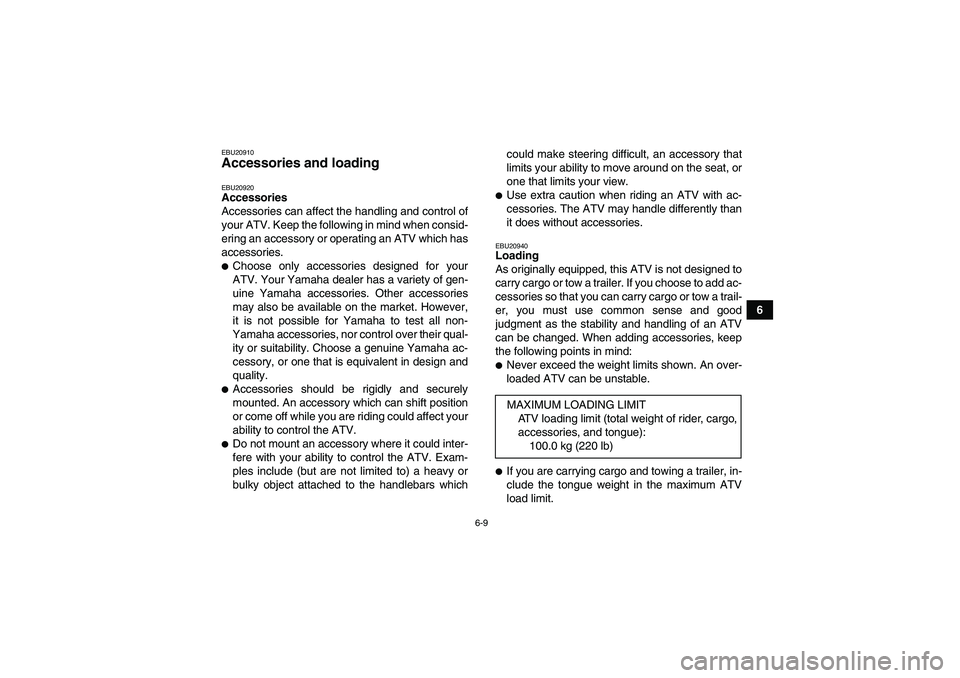

6-9
6
EBU20910Accessories and loading EBU20920Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
accessories.
Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of gen-
uine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all non-
Yamaha accessories, nor control over their qual-
ity or suitability. Choose a genuine Yamaha ac-
cessory, or one that is equivalent in design and
quality.
Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.
Do not mount an accessory where it could inter-
fere with your ability to control the ATV. Exam-
ples include (but are not limited to) a heavy or
bulky object attached to the handlebars whichcould make steering difficult, an accessory that
limits your ability to move around on the seat, or
one that limits your view.

Use extra caution when riding an ATV with ac-
cessories. The ATV may handle differently than
it does without accessories.EBU20940Loading
As originally equipped, this ATV is not designed to
carry cargo or tow a trailer. If you choose to add ac-
cessories so that you can carry cargo or tow a trail-
er, you must use common sense and good
judgment as the stability and handling of an ATV
can be changed. When adding accessories, keep
the following points in mind:
Never exceed the weight limits shown. An over-
loaded ATV can be unstable.
If you are carrying cargo and towing a trailer, in-
clude the tongue weight in the maximum ATV
load limit.MAXIMUM LOADING LIMIT
ATV loading limit (total weight of rider, cargo,
accessories, and tongue):
100.0 kg (220 lb)
