8-31
8

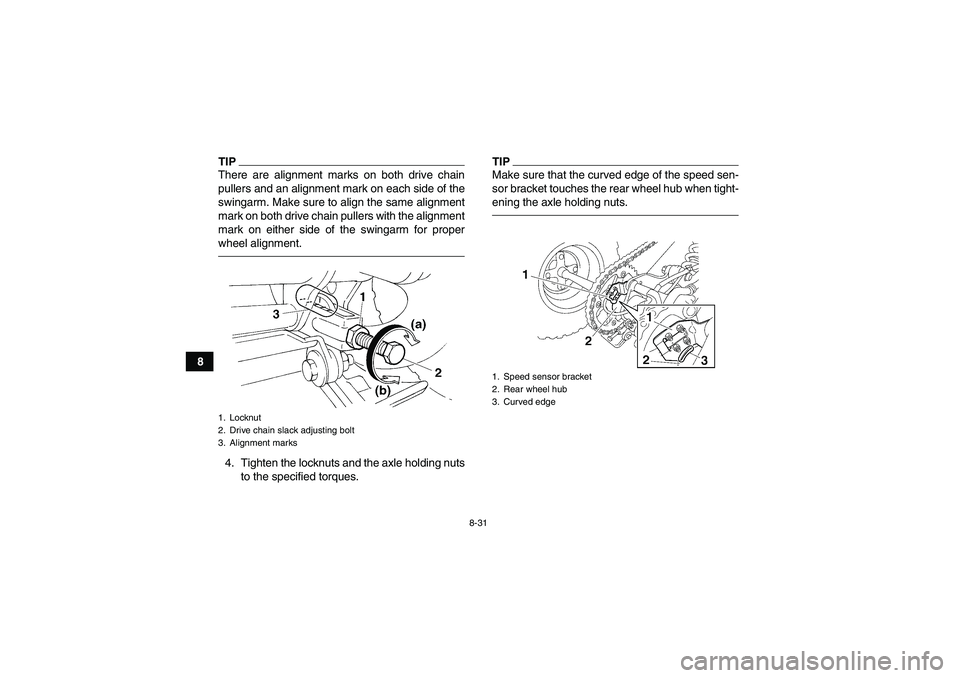

TIPThere are alignment marks on both drive chain
pullers and an alignment mark on each side of the
swingarm. Make sure to align the same alignment
mark on both drive chain pullers with the alignment
mark on either side of the swingarm for proper
wheel alignment.4. Tighten the locknuts and the axle holding nuts
to the specified torques.
TIPMake sure that the curved edge of the speed sen-
sor bracket touches the rear wheel hub when tight-
ening the axle holding nuts.
1. Locknut
2. Drive chain slack adjusting bolt
3. Alignment marks
1. Speed sensor bracket
2. Rear wheel hub
3. Curved edge
