EBU00015
CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ........................ 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ........... 3-3
Key identification number ................. 3-5
Vehicle identification number ........... 3-5
Model label ......................................... 3-7
CONTROL FUNCTIONS ......................... 4-1
Main switch......................................... 4-1
Indicator lights .................................... 4-3
Oil temperature warning light
checking method .............................. 4-5
Speedometer .................................... 4-11
Fuel gauge ........................................ 4-11
Handlebar switches .......................... 4-13
Throttle lever .................................... 4-19
Speed limiter .................................... 4-21
Front brake lever .............................. 4-23Rear brake pedal and lever.............. 4-25
Parking brake .................................... 4-27
Drive select lever .............................. 4-29
Recoil starter..................................... 4-29
Fuel tank cap..................................... 4-31
Fuel cock ........................................... 4-33
Starter (choke) “ ” ........................ 4-35
Seat ................................................... 4-37
Storage box ...................................... 4-39
Front carrier ...................................... 4-39
Rear carrier ....................................... 4-39
Rear shock absorber
adjustment...................................... 4-41
Auxiliary DC connector .................... 4-43
PRE-OPERATION CHECKS .................... 5-1
Front and rear brakes......................... 5-7
Fuel .................................................... 5-11
Engine oil .......................................... 5-15
Final gear oil/Differential
gear oil ............................................ 5-19
Throttle lever .................................... 5-19
Fittings and Fasteners...................... 5-21
Lights................................................. 5-211
2
3
4
5

3-1
EBU00032

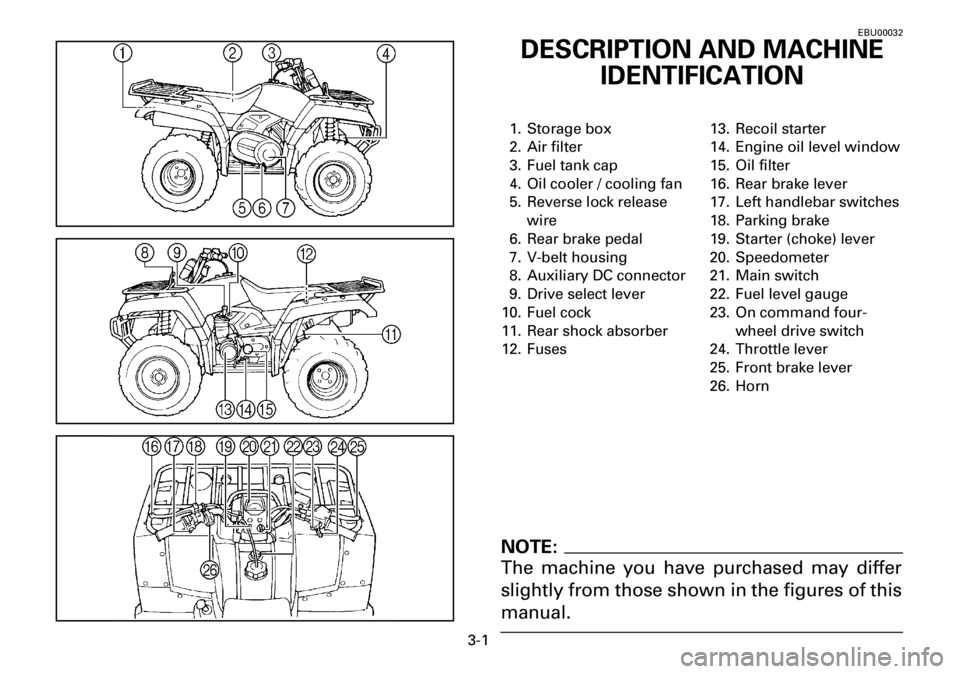

DESCRIPTION AND MACHINE
IDENTIFICATION
1. Storage box
2. Air filter
3. Fuel tank cap
4. Oil cooler / cooling fan
5. Reverse lock release
wire
6. Rear brake pedal
7. V-belt housing
8. Auxiliary DC connector
9. Drive select lever
10. Fuel cock
11. Rear shock absorber
12. Fuses13. Recoil starter
14. Engine oil level window
15. Oil filter
16. Rear brake lever
17. Left handlebar switches
18. Parking brake
19. Starter (choke) lever
20. Speedometer
21. Main switch
22. Fuel level gauge
23. On command four-
wheel drive switch
24. Throttle lever
25. Front brake lever
26. Horn
NOTE:
The machine you have purchased may differ
slightly from those shown in the figures of this
manual.

4-31
EBU00092

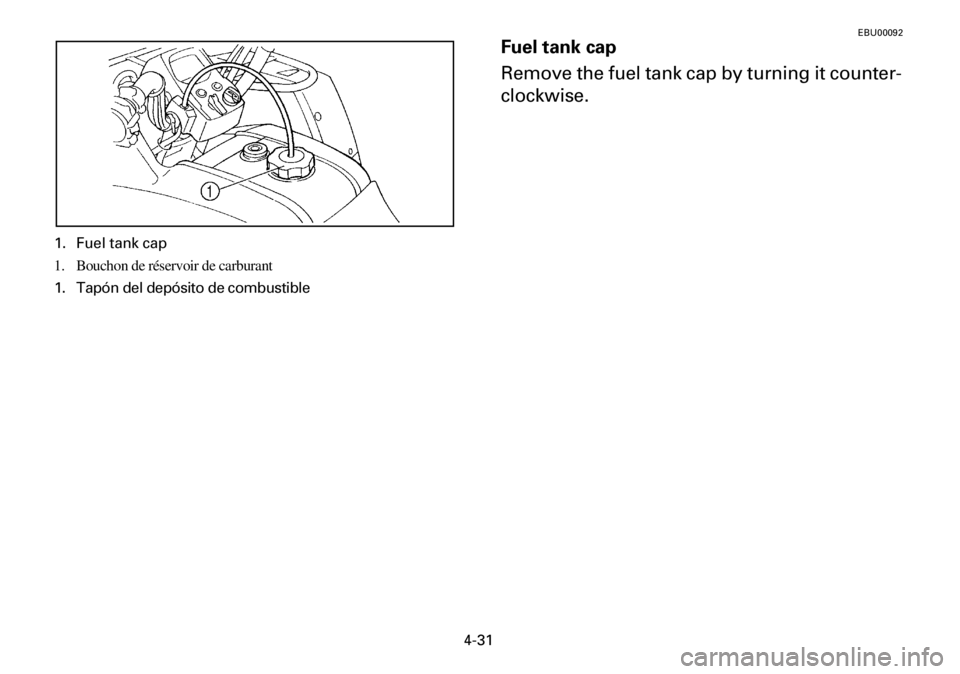

Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
1. Fuel tank cap
1. Bouchon de réservoir de carburant
1. Tapón del depósito de combustible

5-11
EBU00128
Fuel
Make sure there is sufficient gasoline in the
tank.
NOTE:
(for Europe only)
1. If knocking or pinging occurs, use a differ-
ent brand of gasoline or higher octane
grade.
2. If unleaded gasoline is not available, then
leaded gasoline can be used. Recommended fuel: Regular gasoline
For Europe: Regular unleaded gasoline
with a research octane
number of 91 or higher.
For Australia: Unleaded fuel only
Fuel tank capacity:
Total:
19 L
Reserve:
3 L

5-13
1. Fuel level 2. Filler tube
1. Niveau de carburant 2. Tube de remplissage
1. Nivel de combustible 2. Tubo del relleno
WARNING
●Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is over-
filled, fuel could spill out due to heat from
the engine or the sun.
●Be careful not to spill fuel, especially on
the engine or exhaust pipe which can
cause a fire and severe injury. Wipe up
any spilled fuel immediately.
●Do not refuel right after the engine has
been running and is still very hot.
●Be sure the fuel tank cap is closed secure-
ly.

8-87
EBU00440

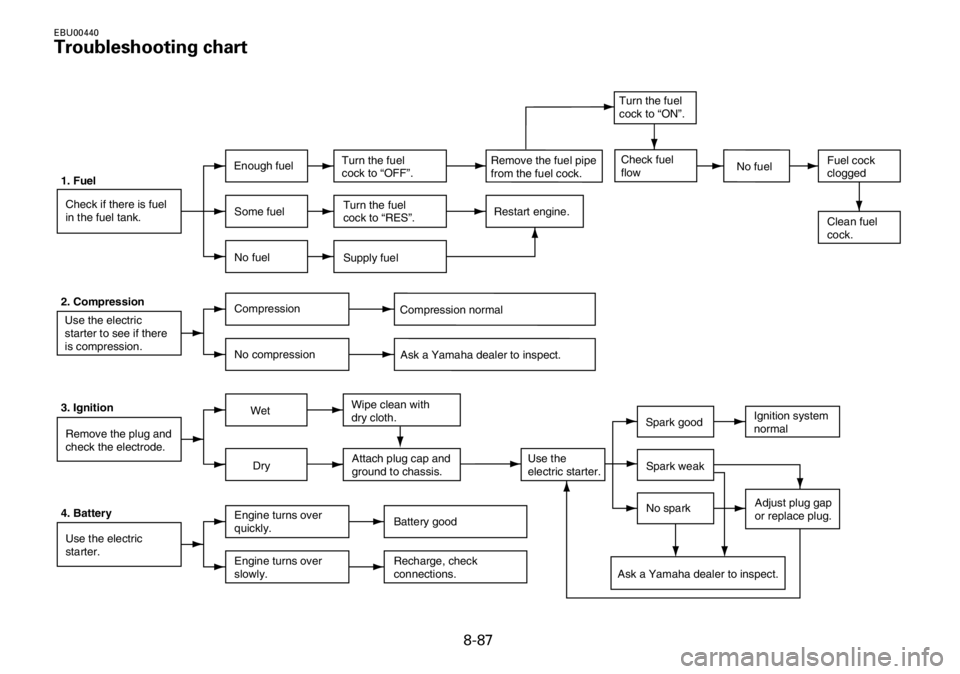

Troubleshooting chart
1. Fuel
Check if there is fuel
in the fuel tank.Enough fuelTurn the fuel
cock to “OFF”.Remove the fuel pipe
from the fuel cock. No fuelFuel cock
clogged
Clean fuel
cock. Some fuelTurn the fuel
cock to “RES”.Restart engine.
No fuel
Supply fuel
2. Compression
Use the electric
starter to see if there
is compression.Compression
Compression normal
No compression
Ask a Yamaha dealer to inspect.
3. Ignition
Remove the plug and
check the electrode.WetWipe clean with
dry cloth.
DryAttach plug cap and
ground to chassis.Use the
electric starter.Spark goodIgnition system
normal
Spark weak
Adjust plug gap
or replace plug. No spark
Ask a Yamaha dealer to inspect. 4. Battery
Use the electric
starter.Engine turns over
quickly.Battery good
Engine turns over
slowly.
Recharge, check
connections.
Check fuel
flow Turn the fuel
cock to “ON”.

10-3
Final gear oil:
Type SAE 80 API “GL-4” Hypoid gear oil
Quantity
Periodic oil change 0.19 L
Total amount 0.22 L
Differential gear oil:
Type SAE 80 API “GL-4” Hypoid gear oil
Quantity
Periodic oil change 0.67 L
Total amount 0.70 L
Air filter: Wet type element
Fuel:
Type Regular gasoline
For Europe: Regular unleaded gasoline
For Oceania and South Africa: Unleaded fuel only
Fuel tank capacity 19 L
Fuel reserve amount 3 L
Carburetor:
Type/quantity BST 40/1
Manufacturer MIKUNIModel YFM600FWA
