check engine YAMAHA YFM660R 2001 User Guide

8-17
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
1. Engine oil tank
2. Engine oil filler cap
3. Maximum level mark
4. Minimum level mark
1. Réservoir d’huile de moteur
2. Bouchon de remplissage de l’huile de moteur
3. Repère de niveau maximum
4. Repère de niveau minimum
1. Depósito de aceite de motor
2. Tapa de relleno de aceite de motor
3. Marca de nivel máximo
4. Marca de nivel mínimo
EBU00812
Engine oil and oil filter cartridge
The engine oil level should be checked before
each ride. In addition, the oil must be changed
and the oil filter cartridge replaced at the inter-
vals specified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up until the en-
gine oil has reached a normal tempera-
ture of 60˚C, let it continue to idle for ten
seconds, and then turn the engine off.
NOTE:
To achieve the proper engine oil temperature
for an accurate oil level reading, the engine
must have first completely cooled down, and
then warmed up again for several minutes to
normal operating temperature.
3. Wait a few minutes until the oil settles, re-
move the engine oil tank filler cap, wipe
the dipstick clean, insert it back into the
filler hole (without screwing it in), and
then remove it again to check the oil level.

8-23
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
1. Engine oil crankcase drain bolt
1. Boulon de vidange du carter d’huile de moteur
1. Perno de drenaje de aceite de motor del cárter
4. Remove the crankcase drain bolt.
5. Check the washer for damage, and re-
place it if necessary.
6. Remove the engine oil tank filler cap and
the drain bolt.
NOTE:
Skip steps 7–8 if the oil filter cartridge is not be-
ing replaced.
1. Engine oil tank drain bolt
1. Boulon de vidange du réservoir d’huile de moteur
1. Perno de drenaje de aceite de motor del motor

8-29
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
11. Start the engine, and then let it idle for
several minutes while checking it for oil
leakage. If oil is leaking, immediately turn
the engine off and check for the cause.
12. Turn the engine off, and then check the oil
level and correct it if necessary.

8-31
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
EBU00783
Cooling system
1. Check the coolant level in the coolant res-
ervoir when the engine is cold as the cool-
ant level will vary with engine temperature.
The coolant level should be between the
maximum and minimum marks.
2. Remove the coolant reservoir cap, and
then add coolant or distilled water to raise
it to the specified level.
CAUTION:
Hard water or salt water is harmful to the en-
gine. You may use soft water if you can’t get
distilled water.
NOTE:
If water is added, have a Yamaha dealer
check the antifreeze content of the coolant
as soon as possible.
The radiator fan operation is completely au-
tomatic. It is switched on or off according to
the coolant temperature in the radiator.
If your ATV overheats, see page 8-120 for details.Coolant reservoir capacity:
0.29 L
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1. Cache du vase d’expansion
2. Repère de niveau maximum
3. Repère de niveau minimum
1. Tapa del depósito de líquido refrigerante
2. Marca de nivel máximo
3. Marca de nivel mínimo

8-39
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
CAUTION:
Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water.
11. Install the radiator cap.
12. Start the engine and let it idle for several
minutes. Stop the engine, and then check
the coolant level in the radiator. If it is low,
add more coolant until it reaches the top
of the radiator.
13. Fill the coolant reservoir with coolant up
to the maximum level.
14. Install the coolant reservoir cap and check
for coolant leakage.
NOTE:
If any leakage is found, have a Yamaha dealer
check the cooling system.
15. Install the panel.

8-45
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL

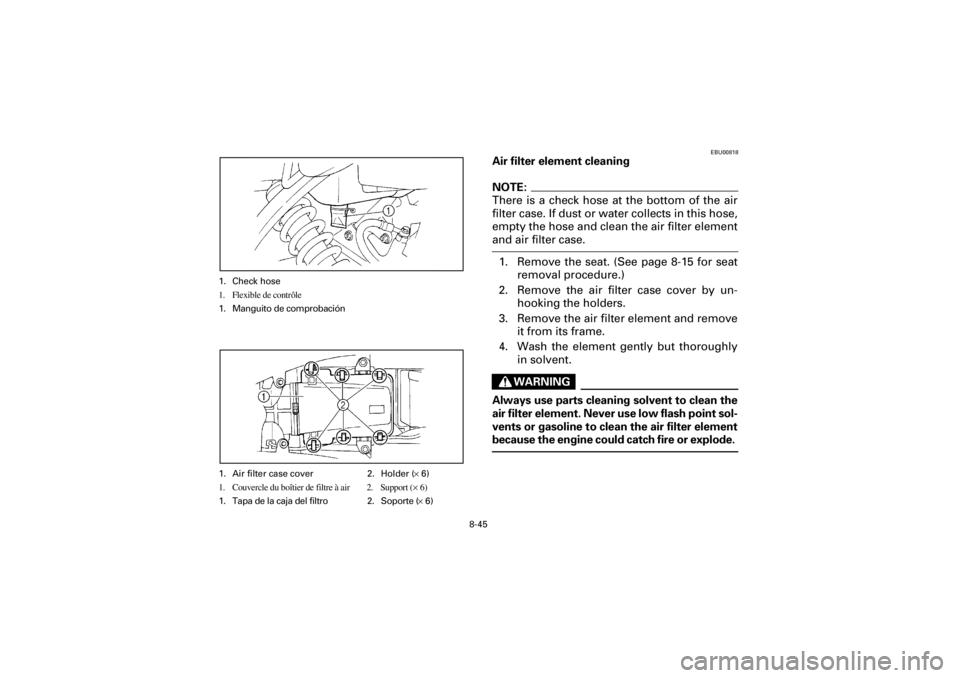

1. Check hose
1. Flexible de contrôle
1. Manguito de comprobación
1. Air filter case cover 2. Holder (× 6)
1. Couvercle du boîtier de filtre à air 2. Support (× 6)
1. Tapa de la caja del filtro 2. Soporte (× 6)
EBU00818
Air filter element cleaning
NOTE:
There is a check hose at the bottom of the air
filter case. If dust or water collects in this hose,
empty the hose and clean the air filter element
and air filter case.
1. Remove the seat. (See page 8-15 for seat
removal procedure.)
2. Remove the air filter case cover by un-
hooking the holders.
3. Remove the air filter element and remove
it from its frame.
4. Wash the element gently but thoroughly
in solvent.
WARNING
Always use parts cleaning solvent to clean the
air filter element. Never use low flash point sol-
vents or gasoline to clean the air filter element
because the engine could catch fire or explode.

8-49
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
NOTE:
The air filter element should be cleaned every
20 ~ 40 hours. It should be cleaned and lubri-
cated more often if the machine is operated in
extremely dusty areas. Each time the filter ele-
ment maintenance is performed, check the air
inlet to the filter case for obstructions. Check
the air cleaner rubber joint to the carburetor
and manifold fittings for an airtight seal. Tight-
en all fittings securely to avoid the possibility
of unfiltered air entering the engine.
CAUTION:
Never operate the engine with the air filter el-
ement removed. This will allow unfiltered air
to enter, causing rapid engine wear and possi-
ble engine damage. Additionally, operation
without the filter element will affect carbure-
tor jetting with subsequent poor performance
and possible engine overheating.
1. Hose
1. Flexible
1. Manguera

8-119
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameEL
EBU00724
Troubleshooting chart
Starting problems or poor engine performance
1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel cock
lever to “OFF”.No fuel.Fuel cock is
clogged.
Clean the
fuel cock. Some fuel.Turn the fuel cock
lever to “RES”.Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the connections.Check the
fuel flow.
Turn the fuel cock
lever to “ON”.
Remove the fuel hose
from the fuel cock.

8-120
Yuki_DATA2:HM00G210_YFM660R-60:YFM350-8.frameER

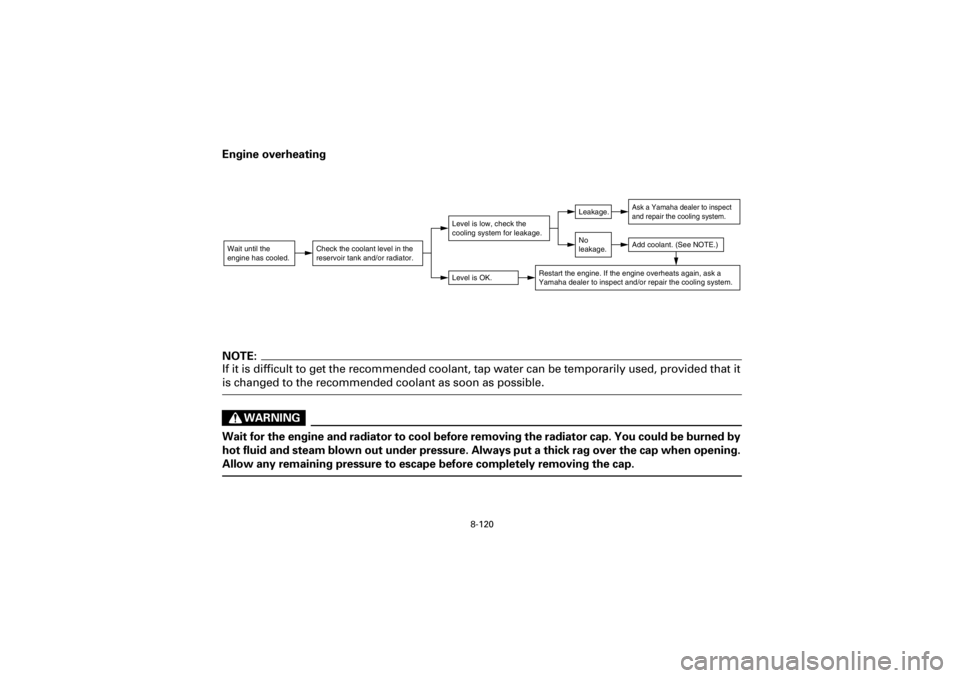

Engine overheating
NOTE:
If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it
is changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.
Wait until the
engine has cooled.Check the coolant level in the
reservoir tank and/or radiator.
Level is OK.
Level is low, check the
cooling system for leakage.
No
leakage.
Leakage.Ask a Yamaha dealer to inspect
and repair the cooling system.
Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
