EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records .............. 3-3
Key identification number .................... 3-5
Vehicle identification number .............. 3-5
Model label .......................................... 3-7
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights ................. 4-3
Handlebar switches ........................... 4-11
Throttle lever ..................................... 4-15
Speed limiter ..................................... 4-17
Clutch lever ....................................... 4-19
Brake lever ......................................... 4-19
Brake pedal ........................................ 4-21
Parking brake .................................... 4-23
Shift pedal ......................................... 4-27
Reverse knob “REV”.......................... 4-27
1234
Fuel tank cap .................................... 4-29
Fuel cock ........................................... 4-29
Starter (choke) .................................. 4-31
Seat.................................................... 4-33
Front shock absorber adjustment ...... 4-35
Rear shock absorber adjustment ....... 4-37
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Coolant .............................................. 5-17
Chain ................................................. 5-19
Throttle lever ..................................... 5-21
Fittings and Fasteners ...................... 5-21
Lights ................................................. 5-21
Switches............................................. 5-21
Tires .................................................. 5-23
How to measure tire pressure ........... 5-27
Tire wear limit .................................... 5-29
5
U5LP61.book Page 1 Monday, August 27, 2001 3:49 PM

OPERATION ...........................................6-1
Starting a cold engine ..........................6-3
Starting a warm engine ........................6-9
Warming up ..........................................6-9
Reverse knob operation and
reverse driving .................................6-11
Shifting ................................................6-15
To start out and accelerate ................6-17
To decelerate .....................................6-21
Engine break-in ..................................6-23
Parking ...............................................6-27
Parking on a slope ..............................6-29
Accessories and loading ....................6-31
Accessories ........................................6-31
Loading ..............................................6-33
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-67
Sliding and skidding ............................7-69
67
What to do if ... ................................... 7-73
What to do ... ...................................... 7-73
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................ 8-3
Periodic maintenance/lubrication ......... 8-7
Panel removal and installation ........... 8-15
Engine oil and oil filter cartridge ......... 8-17
Cooling system ................................... 8-31
Changing the coolant.......................... 8-33
Spark plug inspection ......................... 8-41
Air filter element cleaning .................. 8-45
Carburetor adjustment ....................... 8-51
Idle speed adjustment ....................... 8-53
Throttle lever adjustment ................... 8-55
Valve clearance adjustment .............. 8-57
Front and rear brake pad inspection... 8-59
Inspecting the brake fluid level ........... 8-61
Brake fluid replacement ...................... 8-65
Front brake adjustment ...................... 8-67
Rear brake adjustment ....................... 8-69
Parking brake adjustment ................... 8-71
Adjusting the rear brake light switch ... 8-75
Clutch lever free play adjustment ...... 8-77
Drive chain slack check ..................... 8-79
Drive chain slack adjustment .............. 8-81
8
U5LP61.book Page 2 Monday, August 27, 2001 3:49 PM

4-43
CAUTION:_ Never turn an adjusting mechanism beyond
the minimum and maximum settings. _NOTE:_ Although the total number of clicks of a damping
force adjusting mechanism may not exactly match
the above specifications due to small differences in
production, the actual number of clicks always repre-
sents the entire adjusting range. To obtain a precise
adjustment, it would be advisable to check the num-
ber of clicks of each damping force adjusting mech-
anism and to modify the specifications as necessary. _
WARNING
_ Suspension components become hot during
operation. Never touch the compression
damping adjuster, rebound damping adjuster
or oil reservoir with your bare hand or skin un-
til suspension components have cooled. _
From the fully turned-out position
Minimum (soft): 1 click in
Standard: 7 clicks in
Maximum (hard): 12 clicks in
U5LP61.book Page 43 Monday, August 27, 2001 3:49 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5 ~ 5-7,
8-59 ~ 8-67
Rear brakeCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5 ~ 5-7,
8-59 ~ 8-65, 8-69
ClutchCheck operation, condition and lever free play. 8-77
Parking brakeCheck operation, condition and cable free play. 8-71 ~ 8-73
FuelCheck fuel level.
Fill with fuel if necessary.5-9 ~ 5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13 ~ 5-15,
8-17 ~ 8-29
Coolant reservoirCheck coolant level.
Fill with coolant if necessary.5-17 ~ 5-19,
8-31 ~ 8-39
Drive chainCheck chain slack and condition.
Adjust if necessary.5-19, 8-77 ~ 8-83
ThrottleCheck for proper throttle cable operation and free play. 5-21, 8-55
Wheels and tiresCheck tire pressure, wear and damage.5-23 ~ 5-29,
8-95 ~ 8-97
Fittings and fastenersCheck all fittings and fasteners. 5-21
LightsCheck for proper operation. 5-21, 8-107 ~ 8-117
U5LP61.book Page 1 Monday, August 27, 2001 3:49 PM

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Cooling system•Check coolant leakage.
•Repair if necessary.
•Replace coolant every 24 months.Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter element•Clean.
•Replace if necessary.Every 20~40 hours
(More often in wet or dusty areas.)
Carburetors*•Check starter (choke) operation.
•Adjust engine idling speed and synchronization.Crankcase breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Tighten if necessary.
•Replace gasket if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace (Warm engine before draining.)Engine oil filter cartridge
•Replace if necessary.Drive chain
•Check and adjust slack/alignment/clean/lube.Front brake•Check free play/operation/fluid leakage/
See NOTE Page 8-8.
•Correct if necessary.Rear brake*•Check operation/fluid leakage/See NOTE Page 8-8.
•Correct if necessary.U5LP61.book Page 7 Monday, August 27, 2001 3:49 PM

8-8 * It is recommended that these items be serviced by a Yamaha dealer.
** Lithium-soap-based grease
NOTE:

Recommended brake fluid: DOT4


Brake fluid replacement:
1. When disassembling the master cylinder or caliper, replace the brake fluid. Normally check the brake
fluid level and add fluid as required.
2. On the inner parts of the master cylinder and caliper, replace the oil seals every two years.
3. Replace the brake hoses every four years, or if cracked or damaged.
Clutch*•Check operation.
•Adjust if necessary.Wheels*•Check balance/damage/runout.
•Replace if necessary.Wheel bearings*•Check bearing assembly for looseness/damage.
•Replace if damaged.Steering system*•Check operation.
•Repair if damaged.
•Check toe-in.
•Adjust if necessary.Upper and lower arm
pivot and steering
shaft*•Lubricate every 6 months.**Rear arm pivot*•Lubricate every 6 months.**Fittings and fasteners*•Check all chassis fittings and fasteners.
•Correct if necessary.
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
U5LP61.book Page 8 Monday, August 27, 2001 3:49 PM

8-17 1. Engine oil tank
2. Engine oil tank filler cap
3. Maximum level mark
4. Minimum level mark
1. Réservoir d’huile de moteur
2. Bouchon de remplissage de l’huile de moteur
3. Repère de niveau maximum
4. Repère de niveau minimum
1. Depósito de aceite de motor
2. Tapa de relleno del depósito de aceite de motor
3. Marca de nivel máximo
4. Marca de nivel mínimo
EBU01014
Engine oil and oil filter cartridge
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up until the engine
oil has reached a normal temperature of
60°C, let it continue to idle for ten seconds,
and then turn the engine off.NOTE:_ To achieve the proper engine oil temperature for
an accurate oil level reading, the engine must
have first completely cooled down, and then
warmed up again for several minutes to normal
operating temperature. _3. Wait a few minutes until the oil settles, re-
move the engine oil tank filler cap, wipe the
dipstick clean with a clean rag, insert it back
into the filler hole (without screwing it in), and
then remove it again to check the oil level.
U5LP61.book Page 17 Monday, August 27, 2001 3:49 PM

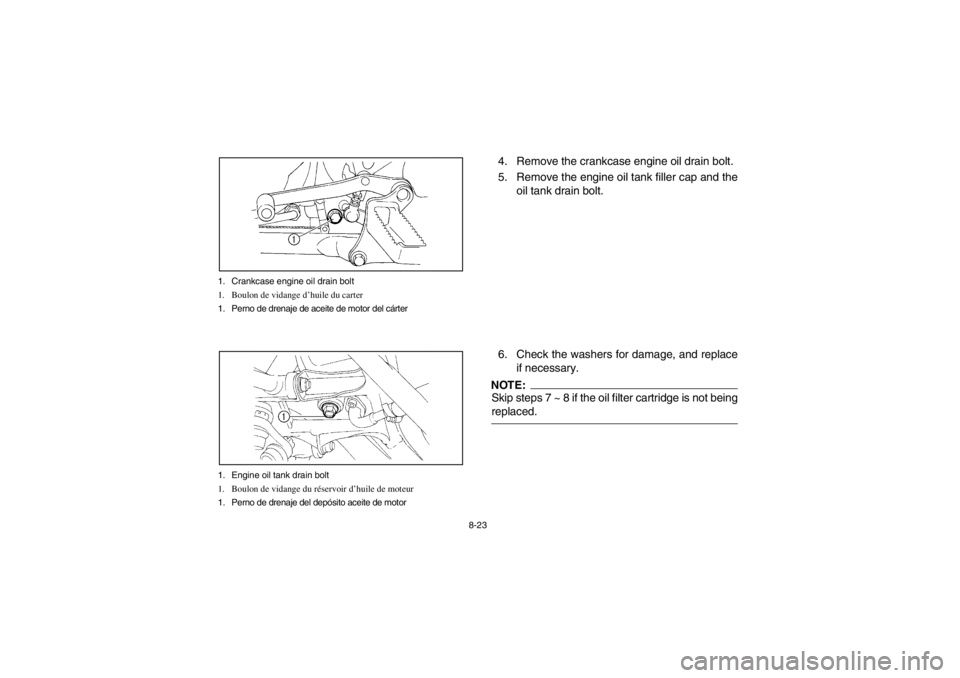

8-23 1. Crankcase engine oil drain bolt
1. Boulon de vidange d’huile du carter
1. Perno de drenaje de aceite de motor del cárter
1. Engine oil tank drain bolt
1. Boulon de vidange du réservoir d’huile de moteur
1. Perno de drenaje del depósito aceite de motor
4. Remove the crankcase engine oil drain bolt.
5. Remove the engine oil tank filler cap and the
oil tank drain bolt.
6. Check the washers for damage, and replace
if necessary.NOTE:_ Skip steps 7 ~ 8 if the oil filter cartridge is not being
replaced. _
U5LP61.book Page 23 Monday, August 27, 2001 3:49 PM

8-29
12. Start the engine, and then let it idle for sever-
al minutes while checking it for oil leakage. If
oil is leaking, immediately turn the engine off
and check for the cause.
13. Turn the engine off, and then check the oil
level and correct it if necessary.
U5LP61.book Page 29 Monday, August 27, 2001 3:49 PM

8-63 1. Brake fluid reservoir cover
2. Bolt (× 2)
1. Couvercle du réservoir de liquide de frein
2. Boulon (× 2)
1. Cubierta del depósito de líquido de frenos
2. Perno (× 2)
Rear
Arrière
Trasero
Observe these precautions:

When checking the fluid level, make sure the
top of the brake fluid reservoir is level.


Use only the designated quality brake fluid.
Otherwise, the rubber seals may deteriorate,
causing leakage and poor brake performance.


Refill with the same type of brake fluid. Mixing
fluids may result in a harmful chemical reaction
and lead to poor brake performance.


Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and
may result in vapor lock.


Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately.


Have a Yamaha dealer check the cause if the
brake fluid level goes down. Recommended brake fluid: DOT 4
U5LP61.book Page 63 Monday, August 27, 2001 3:49 PM
