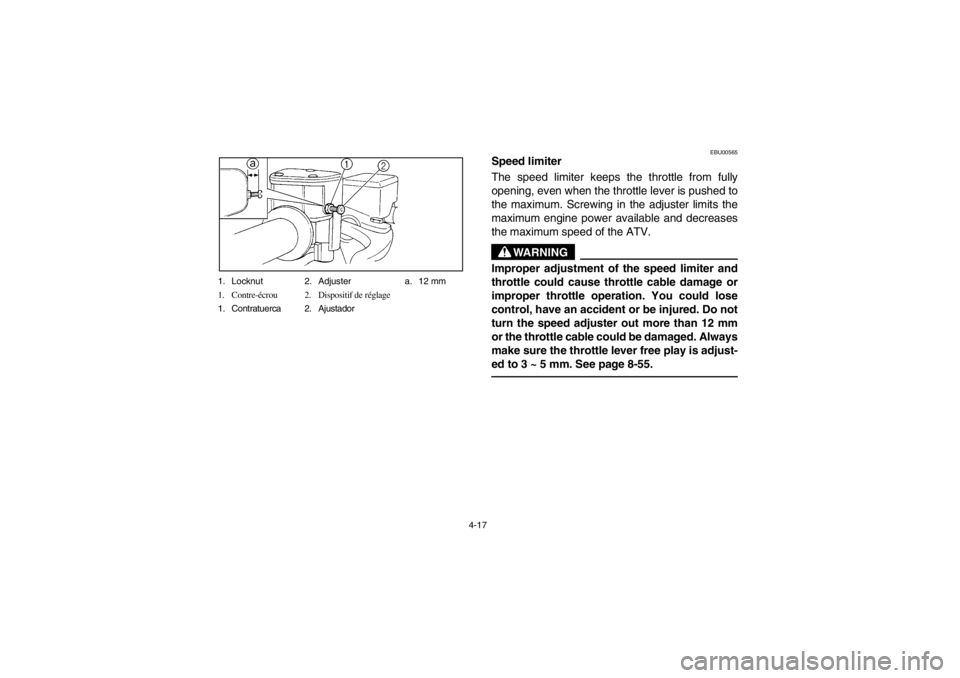

4-17 1. Locknut 2. Adjuster a. 12 mm
1. Contre-écrou 2. Dispositif de réglage
1. Contratuerca 2. Ajustador
EBU00565
Speed limiter
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Screwing in the adjuster limits the
maximum engine power available and decreases
the maximum speed of the ATV.
WARNING
Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the speed adjuster out more than 12 mm
or the throttle cable could be damaged. Always
make sure the throttle lever free play is adjust-
ed to 3 ~ 5 mm. See page 8-55.
U5LP61.book Page 17 Monday, August 27, 2001 3:49 PM

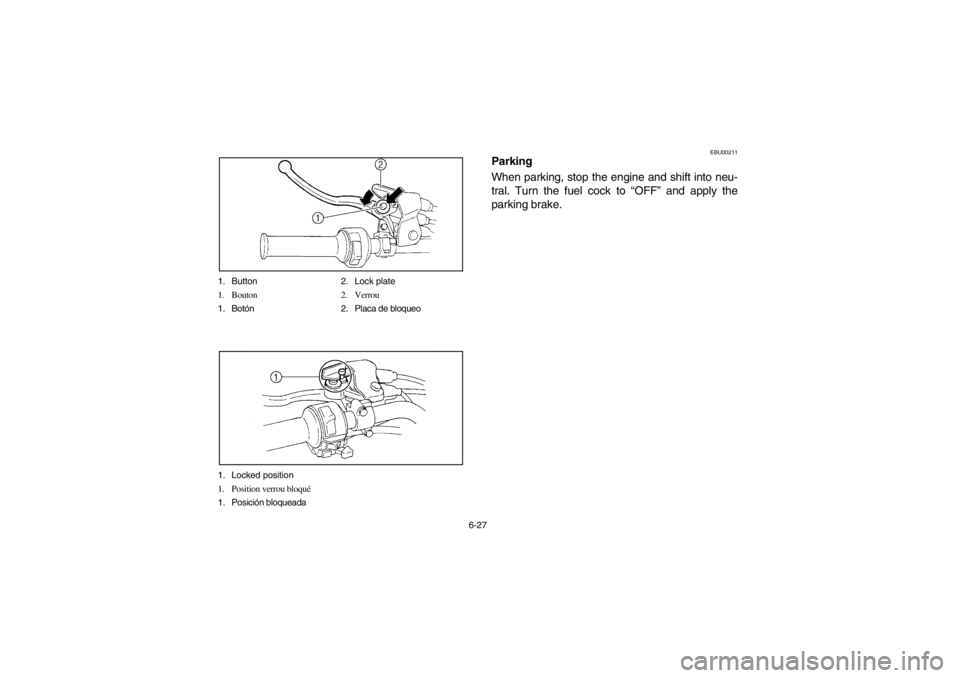

4-23 1. Button 2. Lock plate
1. Bouton 2. Verrou
1. Botón 2. Placa de bloqueo
1. Locked position
1. Position verrou bloqué
1. Posición bloqueada
EBU00081
Parking brake
Use the parking brake when you have to start the
engine or park the machine, especially on a slope.
Squeeze the clutch lever while pushing the button,
then push in the lock plate to apply the parking
brake. Squeeze the clutch lever to release the
parking brake.NOTE:When the parking brake is used, engine speed is
limited to 2,300 r/min. Be sure the parking brake is
released before moving the throttle lever. Other-
wise, the engine will misfire, preventing normal op-
eration.
U5LP61.book Page 23 Monday, August 27, 2001 3:49 PM

4-29 1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EBU00093
Fuel cock
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has three positions.
OFF: With the lever in this position fuel will not
flow. Always turn the lever to this position
when the engine is not running.
ON: With the lever in this position, fuel flows to
the carburetor. Normal riding is done with
the lever in this position.
RES: This indicates reserve. If you run out of fuel
while riding, turn the lever to this position.
THEN FILL THE FUEL TANK AT THE
FIRST OPPORTUNITY. After refuelling, re-
turn the fuel cock lever to the “ON” position.
U5LP61.book Page 29 Monday, August 27, 2001 3:49 PM

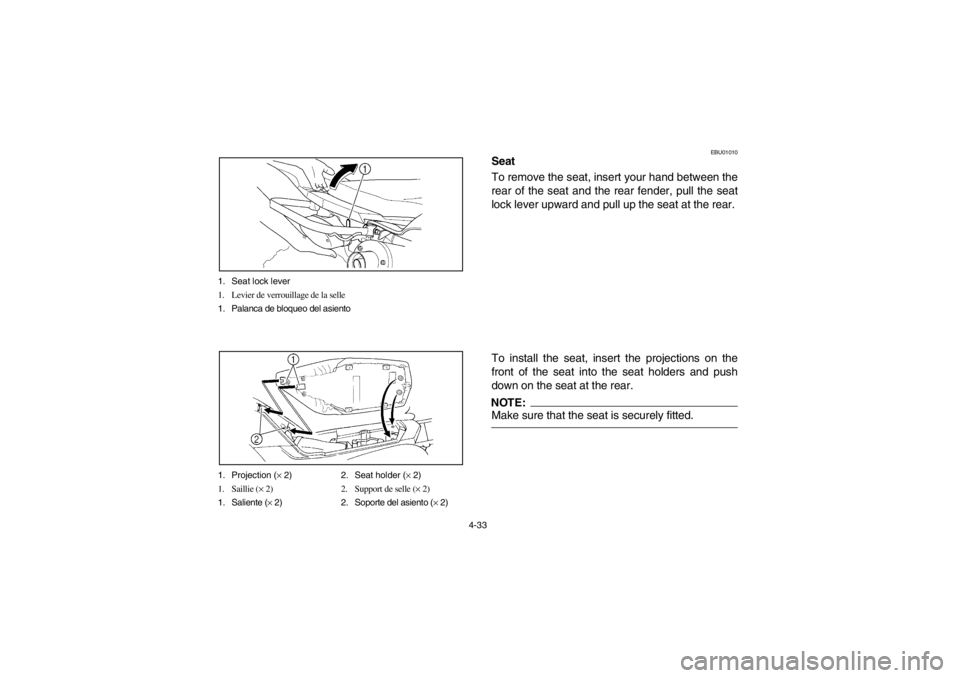

4-33 1. Seat lock lever
1. Levier de verrouillage de la selle
1. Palanca de bloqueo del asiento
1. Projection (× 2) 2. Seat holder (× 2)
1. Saillie (× 2) 2. Support de selle (× 2)
1. Saliente (× 2) 2. Soporte del asiento (× 2)
EBU01010
Seat
To remove the seat, insert your hand between the
rear of the seat and the rear fender, pull the seat
lock lever upward and pull up the seat at the rear.
To install the seat, insert the projections on the
front of the seat into the seat holders and push
down on the seat at the rear.NOTE:_ Make sure that the seat is securely fitted. _
U5LP61.book Page 33 Monday, August 27, 2001 3:49 PM

4-39 1. Adjusting nut 2. Locknut 3. Special wrench
1.Écrou de réglage 2. Contre-écrou 3. Clé spéciale
1. Anillo de ajuste 2. Contratuerca 3. Llave especial
A. Spring length
A. Longueur du ressort
A. Longitud del muelle
Adjust the spring preload as follows.
1. Loosen the locknut.
2. Turn the adjusting nut in direction
a to in-
crease the spring preload and in direction
b
to decrease the spring preload.
3. The length of the spring (installed) changes
1.5 mm per turn of the adjusting nut.NOTE:_ A special wrench can be obtained at a Yamaha
dealer. _4. Tighten the locknut to the specified torque.CAUTION:_ Always tighten the locknut against the adjust-
ing nut, then tighten it to the specified torque. _
Measurement A:
Installed length:
Minimum (hard): 232 mm
Standard: 240 mm
Maximum (soft): 247 mm
Tightening torque:
42 Nm (4.2 m·kgf)
U5LP61.book Page 39 Monday, August 27, 2001 3:49 PM

6-11 1. Reverse knob “REV”
2. Shift pedal
1. Bouton de marche arrière “REV”
2. Pédale de sélection
1. Botón de marcha atrás “REV”
2. Pedal del cambio
EBU00816
Reverse knob operation and reverse drivingCAUTION:
Before shifting, stop the machine and return
the throttle lever to its closed position. Other-
wise the transmission may be damaged. 1. Bring the machine to a complete stop, return
the throttle lever to the closed position, apply
the clutch lever, and shift the transmission
into first gear.
2. While applying the rear brake pedal, turn the
reverse knob clockwise with your right hand.
3. Shift the transmission into reverse by press-
ing down on the shift pedal.NOTE:When in reverse, the reverse indicator light should
be on. If the light does not come on, ask a Yamaha
dealer to inspect the machine.
U5LP61.book Page 11 Monday, August 27, 2001 3:49 PM

6-27 1. Button 2. Lock plate
1. Bouton 2. Verrou
1. Botón 2. Placa de bloqueo
1. Locked position
1. Position verrou bloqué
1. Posición bloqueada
EBU00211
Parking
When parking, stop the engine and shift into neu-
tral. Turn the fuel cock to “OFF” and apply the
parking brake.
U5LP61.book Page 27 Monday, August 27, 2001 3:49 PM

6-29
EBU00993
Parking on a slope
WARNING
_ Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, put the machine in low gear, apply the
parking brake, and block the front and rear
wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily. _1. Bring the machine to a stop by applying the
brakes in low gear.
2. Stop the engine and release the clutch lever.
3. With the front and rear brakes applied, apply
the parking brake and slowly release the
brake pedal.
U5LP61.book Page 29 Monday, August 27, 2001 3:49 PM

7-17 1. Locknut 2. Adjusting screw
1. Contre-écrou 2. Vis de réglage
1. Contratuerca 2. Tornillo de ajuste
Speed limiter
For riders inexperienced with this model, this mod-
el is equipped with a speed limiter in the throttle le-
ver housing. The speed limiter limits the power
and top speed of the ATV. Turning the screw in de-
creases top speed, and turning it out increases top
speed.
Loading and accessories
Use extra caution when riding the ATV with addi-
tional loads, such as accessories or cargo. The
ATV’s handling may be adversely affected. Re-
duce your speed when adding additional loads.
U5LP61.book Page 17 Monday, August 27, 2001 3:49 PM

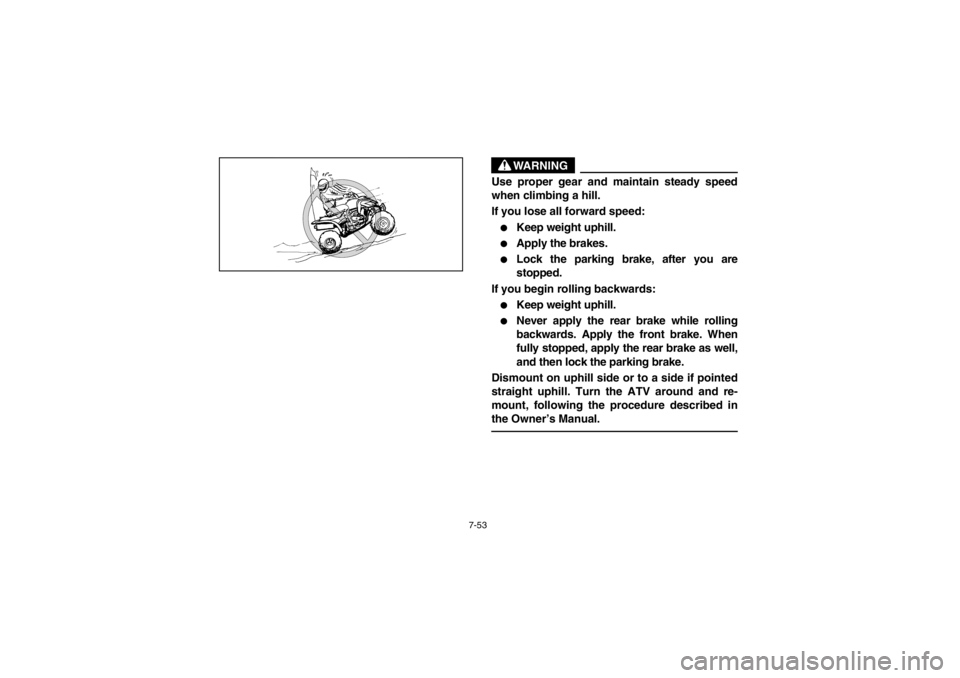

7-53
WARNING
_ Use proper gear and maintain steady speed
when climbing a hill.
If you lose all forward speed:

Keep weight uphill.


Apply the brakes.


Lock the parking brake, after you are
stopped.
If you begin rolling backwards:


Keep weight uphill.


Never apply the rear brake while rolling
backwards. Apply the front brake. When
fully stopped, apply the rear brake as well,
and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and re-
mount, following the procedure described in
the Owner’s Manual.
_
