10-1
EBU00428
SPECIFICATIONS
MODEL YFM660R
Dimension:
Overall length
Overall width
Overall height
Seat height
Wheel base
Ground clearance
Minimum turning radius1,830 mm
1,100 mm
1,150 mm
860 mm
1,245 mm
265 mm
3,300 mm
Basic weight:
With oil and full fuel tank 193 kg
Engine:
Type
Cylinder arrangement
Displacement
Bore
× stroke
Compression ratio
Starting system
Lubrication systemLiquid-cooled, 4-stroke, SOHC
Forward inclined single cylinder
660 cm
3
100
× 84 mm
9.2 : 1
Electric starter
Dry sump
U5LP62.book Page 1 Wednesday, May 8, 2002 11:24 AM

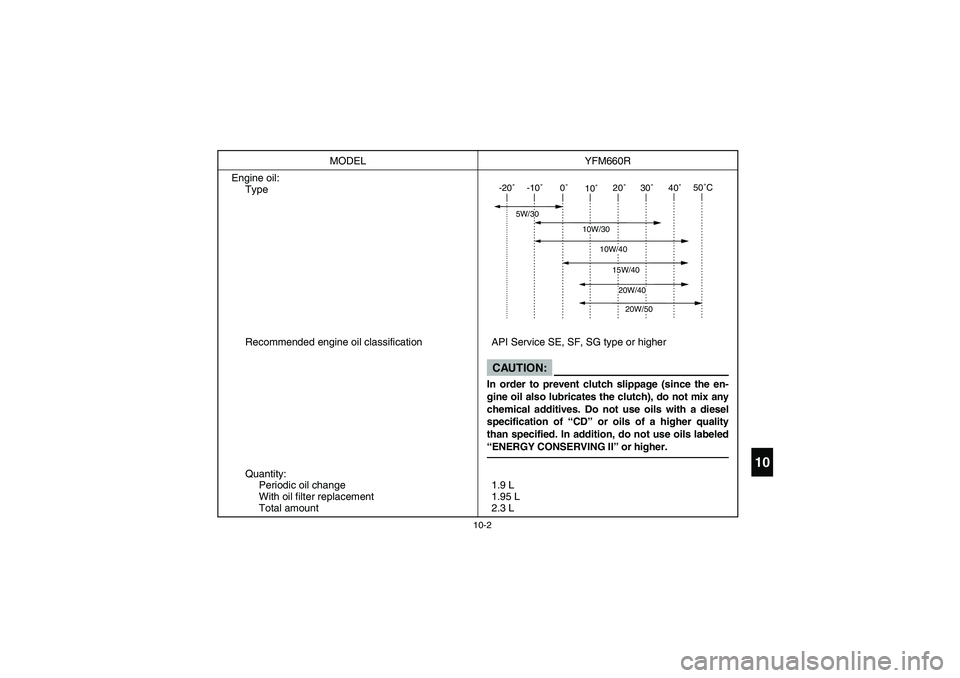

10-2
10
Engine oil:
Type
Recommended engine oil classification API Service SE, SF, SG type or higher
Quantity:
Periodic oil change
With oil filter replacement
Total amount1.9 L
1.95 L
2.3 L MODEL YFM660R
-20˚-10˚0˚
10˚20˚30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
CAUTION:In order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives. Do not use oils with a diesel
specification of “CD” or oils of a higher quality
than specified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or higher.
