EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records .............. 3-3
Key identification number .................... 3-5
Vehicle identification number .............. 3-5
Model label ........................................... 3-7
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights ................. 4-3
Handlebar switches ........................... 4-11
Throttle lever ..................................... 4-15
Speed limiter ...................................... 4-17
Clutch lever ....................................... 4-19
Brake lever ......................................... 4-19
Brake pedal ........................................ 4-21
Parking brake .................................... 4-23
Shift pedal ......................................... 4-27
Reverse knob ..................................... 4-27
1234
Fuel tank cap .................................... 4-29
Fuel cock ........................................... 4-29
Starter (choke) ................................... 4-31
Seat.................................................... 4-33
Front shock absorber adjustment ...... 4-35
Rear shock absorber adjustment ....... 4-37
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Coolant............................................... 5-17
Chain ................................................. 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-21
Lights ................................................. 5-21
Switches............................................. 5-21
Tires .................................................. 5-23
How to measure tire pressure ........... 5-27
Tire wear limit .................................... 5-29
5
U5LP62.book Page 1 Wednesday, May 8, 2002 11:24 AM

OPERATION ...........................................6-1
Starting a cold engine ..........................6-3
Starting a warm engine ........................6-9
Warming up ..........................................6-9
Reverse knob operation and
reverse driving ..................................6-11
Shifting ................................................6-15
To start out and accelerate: ...............6-17
To decelerate: ....................................6-21
Engine break-in ..................................6-23
Parking ...............................................6-27
Parking on a slope ..............................6-29
Accessories and loading ....................6-31
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-67
Sliding and skidding ............................7-69
What to do if .......................................7-73
What to do ..........................................7-73
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication ......... 8-7
Panel removal and installation ........... 8-15
Engine oil and oil filter cartridge ......... 8-17
Cooling system ................................... 8-33

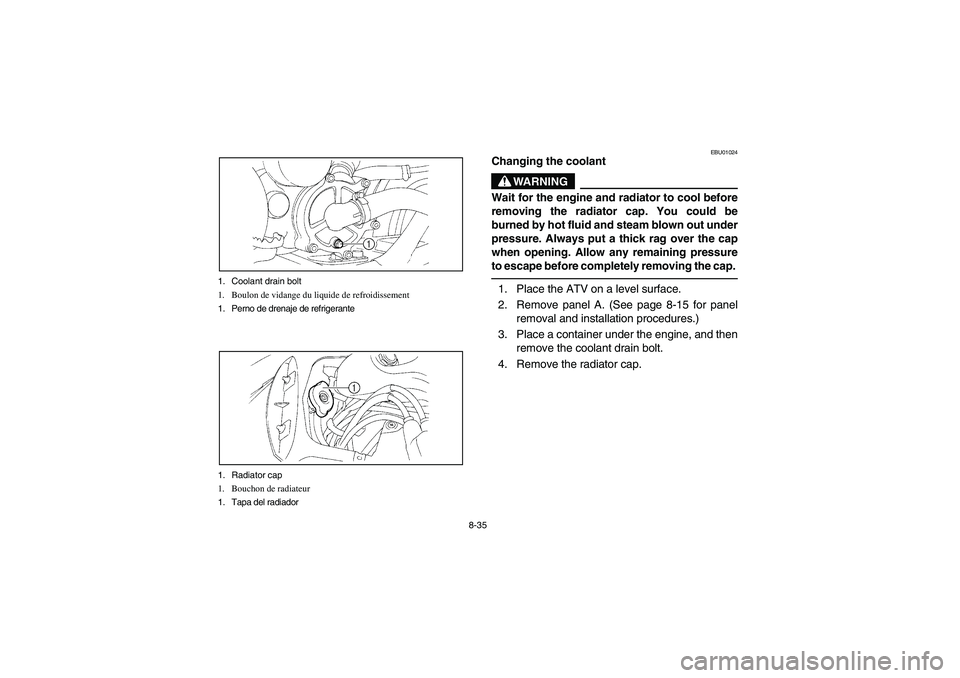

Changing the coolant.......................... 8-35
Spark plug inspection ......................... 8-43
Air filter element cleaning ................... 8-47
Carburetor adjustment ....................... 8-53
Idle speed adjustment ........................ 8-55
Throttle lever adjustment ................... 8-57
Valve clearance adjustment .............. 8-59
Front and rear brake pad inspection... 8-61
Brake fluid level inspection ................. 8-63
Brake fluid replacement ...................... 8-67
Front brake lever free play.................. 8-69
Brake pedal height adjustment ........... 8-71
Parking brake adjustment ................... 8-73
Adjusting the rear brake light switch ... 8-77
Clutch lever free play adjustment ...... 8-79
Drive chain slack check ...................... 8-81
Drive chain slack adjustment .............. 8-83
Lubricating the drive chain ................. 8-85
Cable inspection and lubrication ........ 8-89
8
U5LP62.book Page 2 Wednesday, May 8, 2002 11:24 AM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Seat
2. Fuel tank cap
3. Engine oil tank
4. Brake pedal
5. Headlights
6. Fuel cock
7. Throttle stop screw
8. Coolant reservoir
9. Tail/brake light10. Shift pedal
11. Clutch lever
12. Handlebar switches
13. Parking brake
14. Main switch
15. Reverse knob
16. Throttle lever
17. Brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5LP62.book Page 1 Wednesday, May 8, 2002 11:24 AM

4-5 1. Reverse indicator light “R”
2. Neutral indicator light “N”
3. Coolant temperature warning light “”
1. Témoin de marche arrière “R”
2. Témoin de point mort “N”
3. Témoin d’avertissement de la température du liquide de
refroidissement “”
1. Luz de control de marcha atrás “R”
2. Luz de control de punto muerto “N”
3. Luz de aviso de la temperatura del refrigerante “”
EBU00713
Coolant temperature warning light “”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
The coolant temperature warning light circuit can
be checked according to the procedure on page
4-7.CAUTION:

The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.


Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
U5LP62.book Page 5 Wednesday, May 8, 2002 11:24 AM

4-7
EBU00714
Coolant temperature warning light checking method
ACB-09E
Turn the main switch to “ON” and
the engine stop switch to “”.
Coolant temperature warning
light does not come on.
Coolant temperature
warning light comes on.
Coolant temperature
warning light does not
come on.
Coolant temperature and
electrical circuit are OK. Go
ahead with riding.
Push the start switch with the
transmission in the neutral position.
Ask a Yamaha dealer to
inspect the electrical circuit.
Coolant temperature
warning light comes on
momentarily.
U5LP62.book Page 7 Wednesday, May 8, 2002 11:24 AM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-61–8-69
Rear brakeCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-61–8-67, 8-71
ClutchCheck operation, condition and lever free play. 8-79
Parking brakeCheck operation, condition and cable length. 8-73–8-75
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13–5-15,
8-17–8-31
Coolant reservoirCheck coolant level.
Fill with coolant if necessary.5-17–5-19,
8-33–8-41
Drive chainCheck chain slack and condition.
Adjust if necessary.5-19, 8-81–8-87
ThrottleCheck for proper throttle cable operation and free play. 5-21, 8-57
Wheels and tiresCheck tire pressure, wear and damage.5-23–5-29,
8-97–8-99
Fittings and fastenersCheck all fittings and fasteners. 5-21
Lights and switchesCheck for proper operation.5-21, 8-77,
8-109–8-119
U5LP62.book Page 1 Wednesday, May 8, 2002 11:24 AM

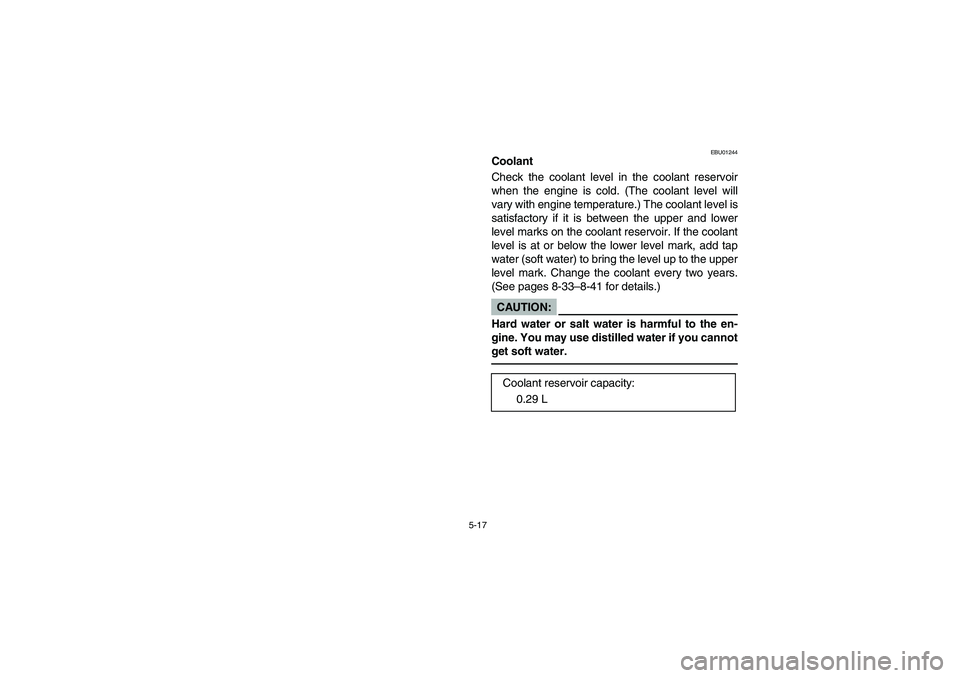

5-17
EBU01244
Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the upper and lower
level marks on the coolant reservoir. If the coolant
level is at or below the lower level mark, add tap
water (soft water) to bring the level up to the upper
level mark. Change the coolant every two years.
(See pages 8-33–8-41 for details.)CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use distilled water if you cannot
get soft water. _
Coolant reservoir capacity:
0.29 L
U5LP62.book Page 17 Wednesday, May 8, 2002 11:24 AM

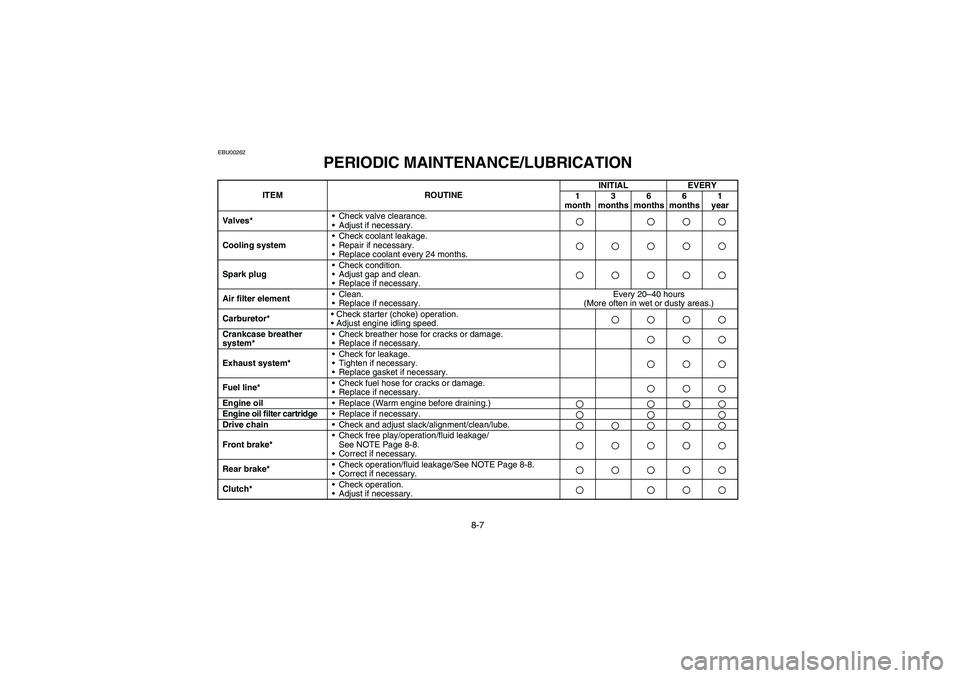

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Cooling system•Check coolant leakage.
•Repair if necessary.
•Replace coolant every 24 months.Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter element•Clean.
•Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*•Check starter (choke) operation.
•Adjust engine idling speed.Crankcase breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Tighten if necessary.
•Replace gasket if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace (Warm engine before draining.)Engine oil filter cartridge
•Replace if necessary.Drive chain
•Check and adjust slack/alignment/clean/lube.Front brake*•Check free play/operation/fluid leakage/
See NOTE Page 8-8.
•Correct if necessary.Rear brake*•Check operation/fluid leakage/See NOTE Page 8-8.
•Correct if necessary.Clutch*•Check operation.
•Adjust if necessary.U5LP62.book Page 7 Wednesday, May 8, 2002 11:24 AM

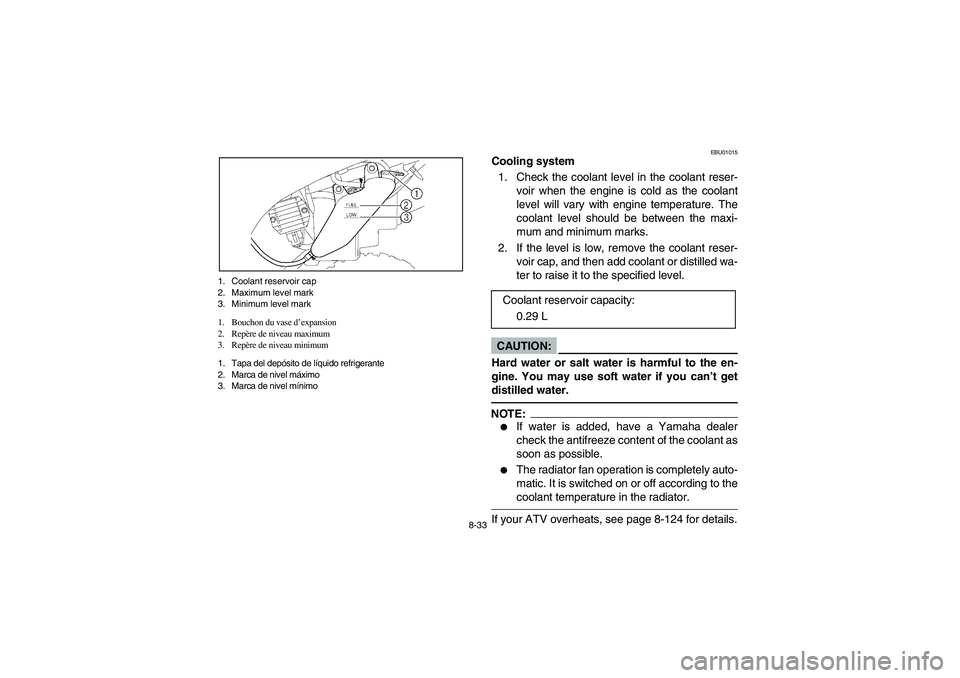

8-33 1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1. Bouchon du vase d’expansion
2. Repère de niveau maximum
3. Repère de niveau minimum
1. Tapa del depósito de líquido refrigerante
2. Marca de nivel máximo
3. Marca de nivel mínimo
EBU01015
Cooling system
1. Check the coolant level in the coolant reser-
voir when the engine is cold as the coolant
level will vary with engine temperature. The
coolant level should be between the maxi-
mum and minimum marks.
2. If the level is low, remove the coolant reser-
voir cap, and then add coolant or distilled wa-
ter to raise it to the specified level.CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you can’t get
distilled water. _NOTE:_

If water is added, have a Yamaha dealer
check the antifreeze content of the coolant as
soon as possible.


The radiator fan operation is completely auto-
matic. It is switched on or off according to the
coolant temperature in the radiator.
_If your ATV overheats, see page 8-124 for details.Coolant reservoir capacity:
0.29 L
U5LP62.book Page 33 Wednesday, May 8, 2002 11:24 AM

8-35 1. Coolant drain bolt
1. Boulon de vidange du liquide de refroidissement
1. Perno de drenaje de refrigerante
1. Radiator cap
1. Bouchon de radiateur
1. Tapa del radiador
EBU01024
Changing the coolant
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _1. Place the ATV on a level surface.
2. Remove panel A. (See page 8-15 for panel
removal and installation procedures.)
3. Place a container under the engine, and then
remove the coolant drain bolt.
4. Remove the radiator cap.
U5LP62.book Page 35 Wednesday, May 8, 2002 11:24 AM
