3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Seat
2. Fuel tank cap
3. Engine oil tank
4. Brake pedal
5. Headlights
6. Fuel cock
7. Throttle stop screw
8. Coolant reservoir
9. Tail/brake light10. Shift pedal
11. Clutch lever
12. Handlebar switches
13. Parking brake
14. Main switch
15. Reverse knob
16. Throttle lever
17. Brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5LP62.book Page 1 Wednesday, May 8, 2002 11:24 AM

4-1
EBU00040
CONTROL FUNCTIONS
EBU00942
Main switch
Functions of the respective switch positions are as
follows:
ON:
The engine can be started only at this position and
the headlights and taillight come on when the light
switch is on.
OFF:
All electrical circuits are switched off. The key can
be removed in this position.
U5LP62.book Page 1 Wednesday, May 8, 2002 11:24 AM

4-11 1. Light switch “OFF/ /”
2. Engine stop switch “/”
3. Start switch “”
1. Contacteur d’éclairage “OFF/ /”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
1. Interruptor de las luces “OFF/ /”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
EBU00053
Handlebar switches
EBU01204
Light switch “OFF/ /”
Set the switch to “” to turn on the low beam and
the taillight.
Set the switch to “” to turn on the high beam
and the taillight.
Set the switch to “OFF” to turn off all the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
U5LP62.book Page 11 Wednesday, May 8, 2002 11:24 AM

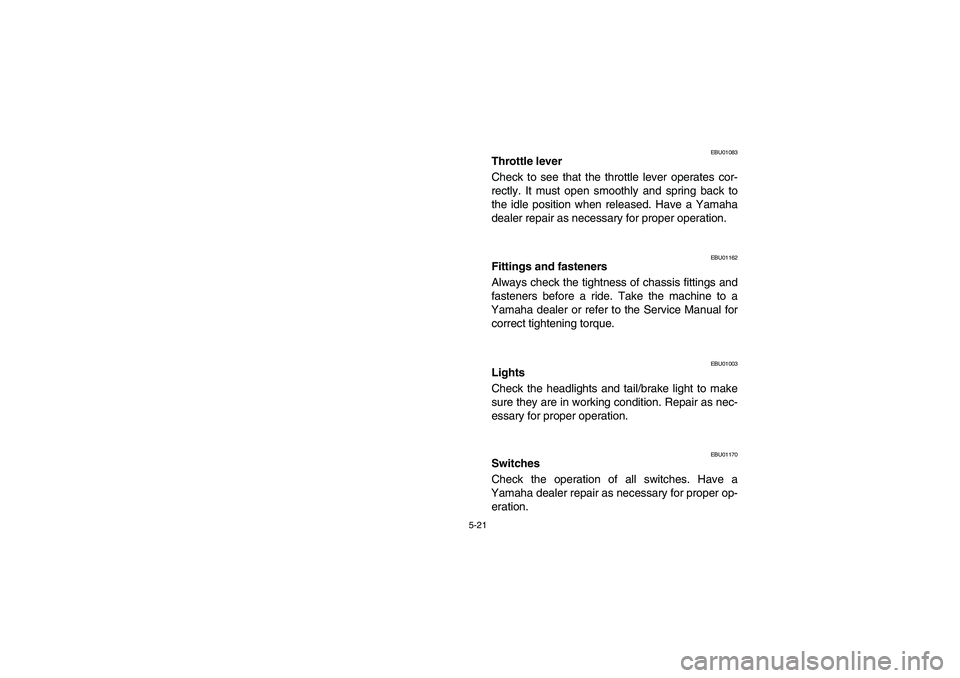

5-21
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.
EBU01162
Fittings and fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the machine to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.
EBU01003
Lights
Check the headlights and tail/brake light to make
sure they are in working condition. Repair as nec-
essary for proper operation.
EBU01170
Switches
Check the operation of all switches. Have a
Yamaha dealer repair as necessary for proper op-
eration.
U5LP62.book Page 21 Wednesday, May 8, 2002 11:24 AM
