4-13 1. Light switch “OFF/ /”
2. Engine stop switch “/”
3. Start switch “”
1. Contacteur d’éclairage “OFF/ /”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
1. Interruptor de las luces “OFF/ /”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
EBU01205
Engine stop switch “/”
Make sure that the engine stop switch is set to
“” before starting the engine. The engine stop
switch controls ignition and can be used at all
times to stop the engine, especially in an emer-
gency. The engine will not start or run when the
engine stop switch is set to “”.
EBU00607
Start switch “”
The starter motor cranks the engine when this
switch is pushed.CAUTION:
See starting instructions prior to starting the
engine. (See page 6-3 for details.)
U5LP64.book Page 13 Thursday, April 1, 2004 4:53 PM

4-15 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
U5LP64.book Page 15 Thursday, April 1, 2004 4:53 PM

4-17 1. Locknut 2. Adjusting screw a. 12 mm
1. Contre-écrou 2. Vis de réglage
1. Contratuerca 2. Tornillo de ajuste
EBU01198
Speed limiter
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and de-
creases the maximum speed of the ATV.
WARNING
_ Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
or the throttle cable could be damaged. Always
make sure the throttle lever free play is adjust-
ed to 3–5 mm. See page 8-63. _
U5LP64.book Page 17 Thursday, April 1, 2004 4:53 PM

4-19 1. Clutch lever
1. Levier d’embrayage
1. Palanca de embrague
1. Brake lever
1. Levier de frein
1. Palanca del freno
EBU00069
Clutch lever
The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. Pull the clutch lever to
the handlebar to disengage the clutch, and release
the lever to engage the clutch. The lever should be
pulled rapidly and released slowly for smooth
clutch operation. (Refer to “Starting a cold engine”
for a description of the ignition circuit cut-off sys-
tem.)
EBU00988
Brake lever
The brake lever is located on the right handlebar.
Pull it toward the handlebar to apply the front
brake.
U5LP64.book Page 19 Thursday, April 1, 2004 4:53 PM

4-23 1. Parking brake lever (Locked position)
1. Levier de frein de stationnement (frein serré)
1. Palanca del freno de estacionamiento
(posición de bloqueo)
1. Parking brake lever (Unlocked position)
1. Levier de frein de stationnement (frein relâché)
1. Palanca del freno de estacionamiento
(posición de desbloqueo)
EBU14072
Parking brake lever
Use the parking brake when you have to start the
engine or park the machine, especially on a slope.
To apply the parking brake, move the parking
brake lever in direction
a. To release the parking
brake, move the parking brake lever in
direction
b.
U5LP64.book Page 23 Thursday, April 1, 2004 4:53 PM

4-25
WARNING
_

Always set the parking brake before start-
ing the engine. The ATV could start mov-
ing unexpectedly if the parking brake is not
applied. This could cause loss of control or
a collision.


Always be sure you have released the
parking brake before you begin to ride. The
brake could overheat if you ride the ATV
without releasing the parking brake. You
could lose braking performance which
could cause an accident. You could also
wear out the brakes prematurely.
_
U5LP64.book Page 25 Thursday, April 1, 2004 4:53 PM

4-27 1. Shift pedal
1. Pédale de sélection
1. Pedal de cambios
1. Reverse knob “REV”
1. Bouton de marche arrière “REV”
1. Botón de marcha atrás “REV”
EBU00788
Shift pedal
This machine is equipped with a constant-mesh
5-speed forward and 1-speed reverse transmis-
sion. The shift pedal is located on the left side of
the engine and is used in combination with the
clutch when shifting.
EBU01028
Reverse knob “REV”
The reverse knob is used to shift into reverse gear.
Refer to the “Reverse knob operation and reverse
driving” section (page 6-11) before operating this
machine in reverse gear.
U5LP64.book Page 27 Thursday, April 1, 2004 4:53 PM

4-29 1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EBU15170
Fuel cock
The fuel cock supplies fuel from the fuel tank to the
carburetors.
The fuel cock has three positions.
OFF: With the lever in this position, fuel will not
flow. Always turn the lever to this position
when the engine is not running.
ON: With the lever in this position, fuel flows to
the carburetors. Normal riding is done with
the lever in this position.
RES: This indicates reserve. If you run out of fuel
while riding, turn the lever to this position.
THEN FILL THE FUEL TANK AT THE
FIRST OPPORTUNITY. After refuelling, re-
turn the fuel cock lever to the “ON” position.
U5LP64.book Page 29 Thursday, April 1, 2004 4:53 PM

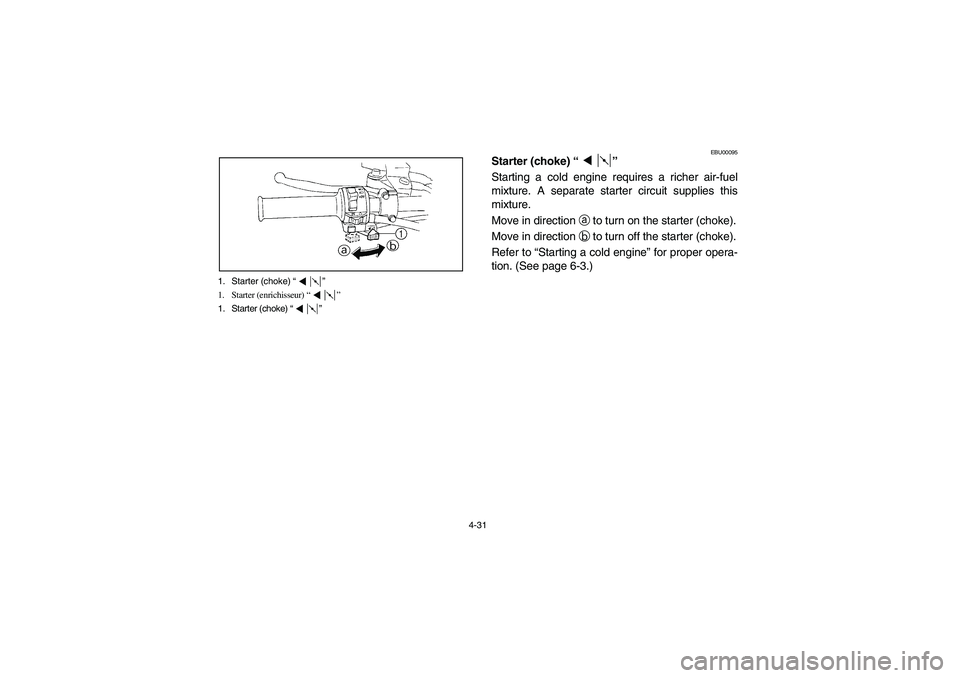

4-31 1. Starter (choke) “”
1. Starter (enrichisseur) “”
1. Starter (choke) “”
EBU00095
Starter (choke) “”
Starting a cold engine requires a richer air-fuel
mixture. A separate starter circuit supplies this
mixture.
Move in direction
a to turn on the starter (choke).
Move in direction
b to turn off the starter (choke).
Refer to “Starting a cold engine” for proper opera-
tion. (See page 6-3.)
U5LP64.book Page 31 Thursday, April 1, 2004 4:53 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, lever free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-67–8-75
Rear brakeCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-67–8-73, 8-77
ClutchCheck operation, condition and lever free play. 8-85
Parking brakeCheck operation, condition and cable length. 8-79–8-81
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-19–8-33
Coolant reservoirCheck coolant level in reservoir.
Fill with coolant if necessary.5-15–5-17,
8-35–8-45
Drive chainCheck chain slack and condition.
Adjust if necessary.5-17, 8-87–8-93
ThrottleCheck for proper throttle cable operation and free play. 5-19, 8-63
Wheels and tiresCheck tire pressure, wear and damage.5-21–5-27,
8-103–8-105
Fittings and fastenersCheck all fittings and fasteners. 5-19
Lights and switchesCheck for proper operation.5-19, 8-83,
8-115–8-125
U5LP64.book Page 1 Thursday, April 1, 2004 4:53 PM
