8-89 1. Upper wheel hub nut 2. Lower wheel hub nut
1.Écrou supérieur de moyeu de roue
2.Écrou inférieur de moyeu de roue
1. Tuerca superior del cubo de la rueda
2. Tuerca inferior del cubo de la rueda
1. Locknut (× 2) 2. Adjusting bolt (× 2)
3. Alignment marks
1. Contre-écrou (× 2) 2. Boulon de réglage (× 2)
3. Repères d’alignement
1. Contratuerca (× 2) 2. Perno de ajuste (× 2)
3. Marcas de alineación
EBU01194
Drive chain slack adjustment
1. Loosen the rear wheel hub upper and lower
nuts.
2. Loosen the locknuts on each side of the swin-
garm. To tighten the drive chain, turn the ad-
justing bolts in direction
a. To loosen the
drive chain, turn the adjusting bolts in direc-
tion
b and push the wheels forward. Turn
each adjusting bolt exactly the same amount
to maintain correct axle alignment.NOTE:_ There are alignment marks on each side of the
swingarm and on the hub. Use them to check for
proper wheel axle alignment. _3. After adjusting, tighten the locknuts and the
wheel hub nuts to the specified torques.
Tightening torques:
Locknut:
16 Nm (1.6 m·kgf)
Upper wheel hub nut:
90 Nm (9.0 m·kgf)
Lower wheel hub nut:
90 Nm (9.0 m·kgf)
U5LP64.book Page 89 Thursday, April 1, 2004 4:53 PM

8-105 1. Arrow mark
1. Flèche
1. Flecha
Front
Avant
Delantera1.“SIDE FACING OUTWARDS”
1. Inscription “SIDE FACING OUTWARDS”
1.“SIDE FACING OUTWARDS”Rear
Arrière
Trasera
EBU00782
Wheel installation
When installing a wheel, reverse the removal pro-
cedure.NOTE:

When installing a front wheel, the arrow mark
on the tire must point toward the rotating
direction of the wheel.


When installing a rear wheel, the wording on
the tire “SIDE FACING OUTWARDS” must be
facing outwards.
Tighten the wheel nuts to the specified torque.
Wheel nut torque:
Front: 45 Nm (4.5 m·kgf)
Rear: 45 Nm (4.5 m·kgf)
U5LP64.book Page 105 Thursday, April 1, 2004 4:53 PM

11-1
EBU01070

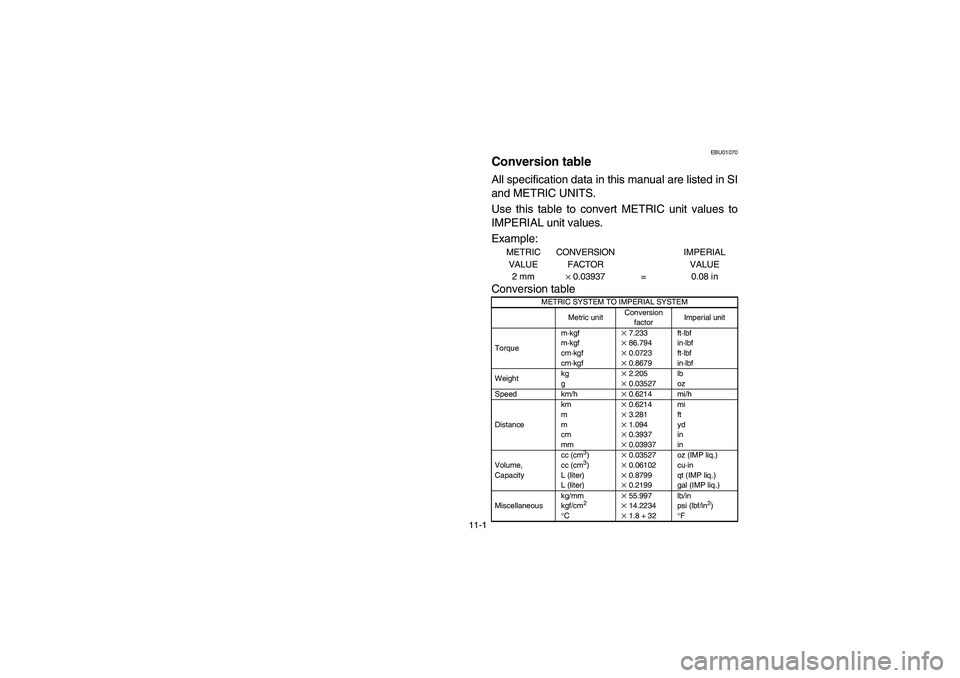

Conversion tableACS-02EAll specification data in this manual are listed in SI
and METRIC UNITS.
Use this table to convert METRIC unit values to
IMPERIAL unit values.
Example:
METRIC
VALUECONVERSION
FACTORIMPERIAL
VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unitConversion
factorImperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lbf
in·lbf
ft·lbf
in·lbf
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lbf/in
2)
°
F
