WARNING
EWB02380Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
Always wear eye protection, and make sure
no one is behind the ATV.
Make sure there are no combustible materi-
als in the area.EBU26811Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.TIPA diagnostic tachometer is needed to make this
adjustment.1. Start the engine and warm it up.
2. Attach the tachometer to the spark plug lead.3. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
idle adjusting screw. To increase the engine
idling speed, turn the idle adjusting screw in
direction (a), and to decrease it, turn the screw
in direction (b).
1. Idle adjusting screwEngine idling speed:
1500–1700 r/min
1
(a)
(b)
U1AS60E0.book Page 26 Friday, February 6, 2009 1:27 PM

8-27
8
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment.EBU24045Adjusting the throttle cable free play The throttle cable free play should be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
The throttle cable free play should measure 2.0–
4.0 mm (0.08–0.16 in) at the throttle lever. Period-
ically check the throttle cable free play and, if nec-
essary, adjust it as follows.TIPThe engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle ca-
ble free play.1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle cable free play, turn
the throttle cable free play adjusting bolt in di-
rection (a). To decrease the throttle cable free
play, turn the adjusting bolt in direction (b).4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
3 2
4 (a)(b)
1
U1AS60E0.book Page 27 Friday, February 6, 2009 1:27 PM

8-28
8
EBU29601Brakes Replacement of brake components requires pro-
fessional knowledge. Brake service should be per-
formed by a Yamaha dealer.
WARNING
EWB02571Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.EBU24110Checking the front and rear brake pads The front and rear brake pads must be checked for
wear at the intervals specified in the periodic main-
tenance and lubrication chart. Each brake pad is
provided with wear indicator grooves, which allow
you to check the brake pad wear without having to
disassemble the brake. If a brake pad has worn to
the point that the wear indicator grooves have al-
most disappeared, have a Yamaha dealer replace
the brake pads as a set.
1. Wear indicator groove
1. Wear indicator groove
11
U1AS60E0.book Page 28 Friday, February 6, 2009 1:27 PM

8-29
8
EBU26822Checking the brake fluid level Insufficient brake fluid may allow air to enter the
brake system, possibly causing it to become inef-
fective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
Front brakeRear brake
TIPTo check the rear brake fluid level, remove the
seat. (See page 4-13.)If the rear brake fluid level is low, replenish as fol-
lows.
1. Remove the cowling bolt and quick fastener
screw.
1. Minimum level mark
1
1. Minimum level mark
1
U1AS60E0.book Page 29 Friday, February 6, 2009 1:27 PM

8-30

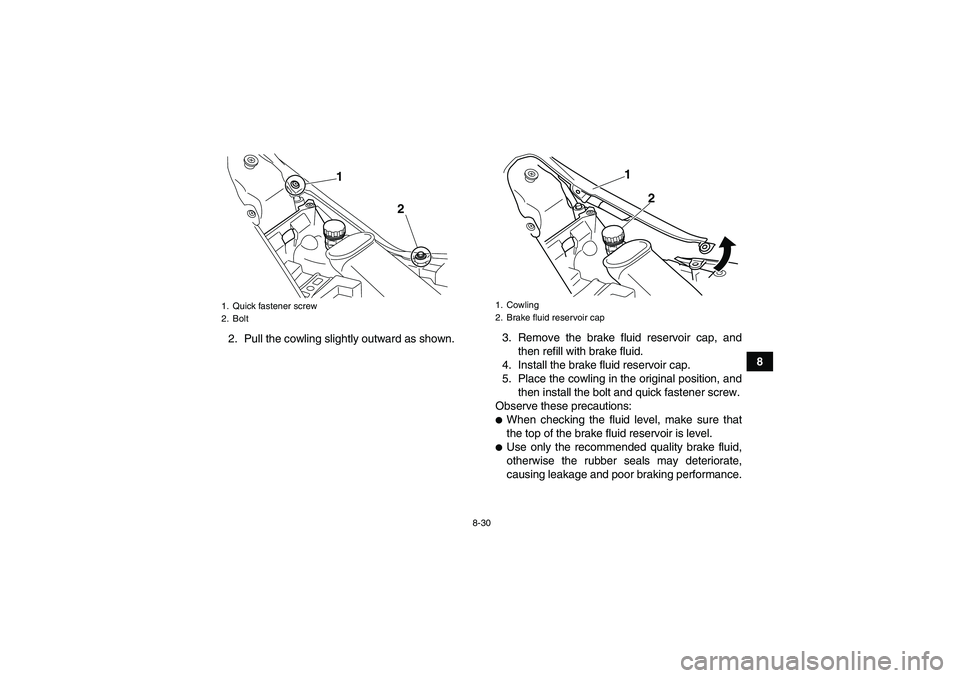

8 2. Pull the cowling slightly outward as shown.3. Remove the brake fluid reservoir cap, and
then refill with brake fluid.
4. Install the brake fluid reservoir cap.
5. Place the cowling in the original position, and
then install the bolt and quick fastener screw.
Observe these precautions:

When checking the fluid level, make sure that
the top of the brake fluid reservoir is level.
Use only the recommended quality brake fluid,
otherwise the rubber seals may deteriorate,
causing leakage and poor braking performance.
1. Quick fastener screw
2. Bolt
1
2
1. Cowling
2. Brake fluid reservoir cap
1
2
U1AS60E0.book Page 30 Friday, February 6, 2009 1:27 PM

8-31
8

Refill with the same type of brake fluid. Mixing
fluids may result in a harmful chemical reaction
and lead to poor braking performance.
Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and may
result in vapor lock.
Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid imme-
diately.
As the brake pads wear, it is normal for the brake
fluid level to gradually go down. However, if the
brake fluid level goes down suddenly, have a

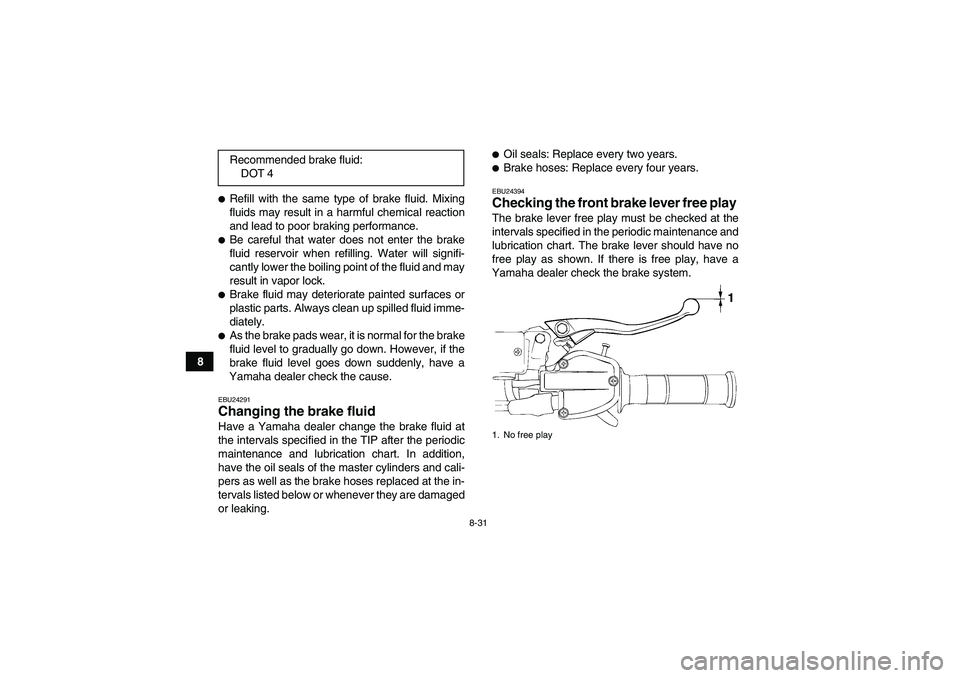

Yamaha dealer check the cause.EBU24291Changing the brake fluid Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.

Oil seals: Replace every two years.
Brake hoses: Replace every four years.EBU24394Checking the front brake lever free play The brake lever free play must be checked at the
intervals specified in the periodic maintenance and
lubrication chart. The brake lever should have no
free play as shown. If there is free play, have a
Yamaha dealer check the brake system. Recommended brake fluid:
DOT 41. No free play
U1AS60E0.book Page 31 Friday, February 6, 2009 1:27 PM

8-32
8

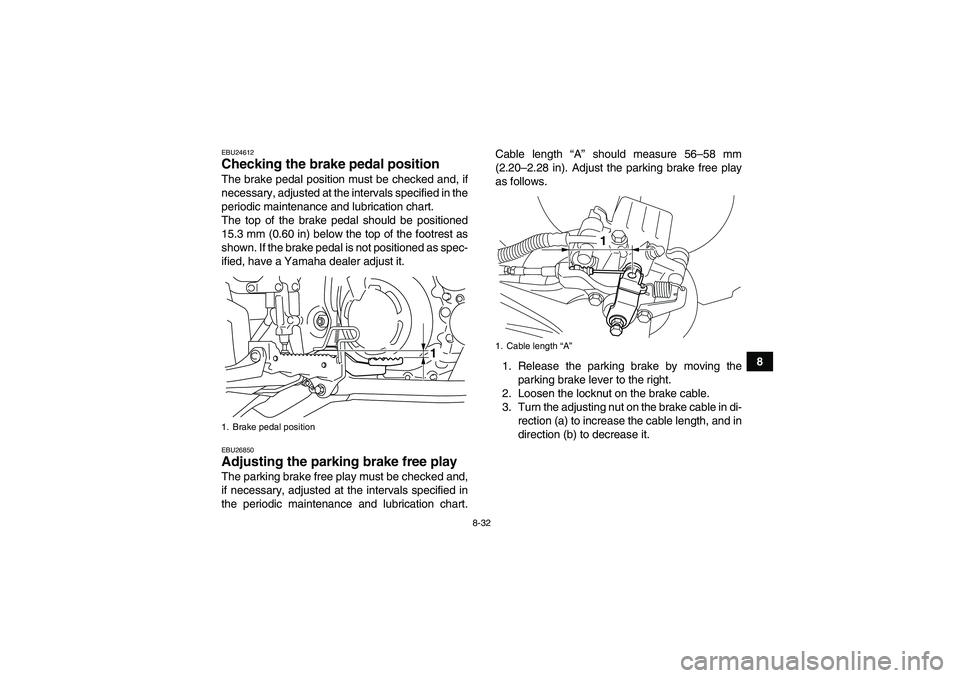

EBU24612Checking the brake pedal position The brake pedal position must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.
The top of the brake pedal should be positioned
15.3 mm (0.60 in) below the top of the footrest as
shown. If the brake pedal is not positioned as spec-
ified, have a Yamaha dealer adjust it.EBU26850Adjusting the parking brake free play The parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.Cable length “A” should measure 56–58 mm
(2.20–2.28 in). Adjust the parking brake free play
as follows.
1. Release the parking brake by moving the
parking brake lever to the right.
2. Loosen the locknut on the brake cable.
3. Turn the adjusting nut on the brake cable in di-
rection (a) to increase the cable length, and in
direction (b) to decrease it.1. Brake pedal position
1
1. Cable length “A”
1
U1AS60E0.book Page 32 Friday, February 6, 2009 1:27 PM

8-33
8
TIPIf the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.4. Tighten the locknut on the brake cable.

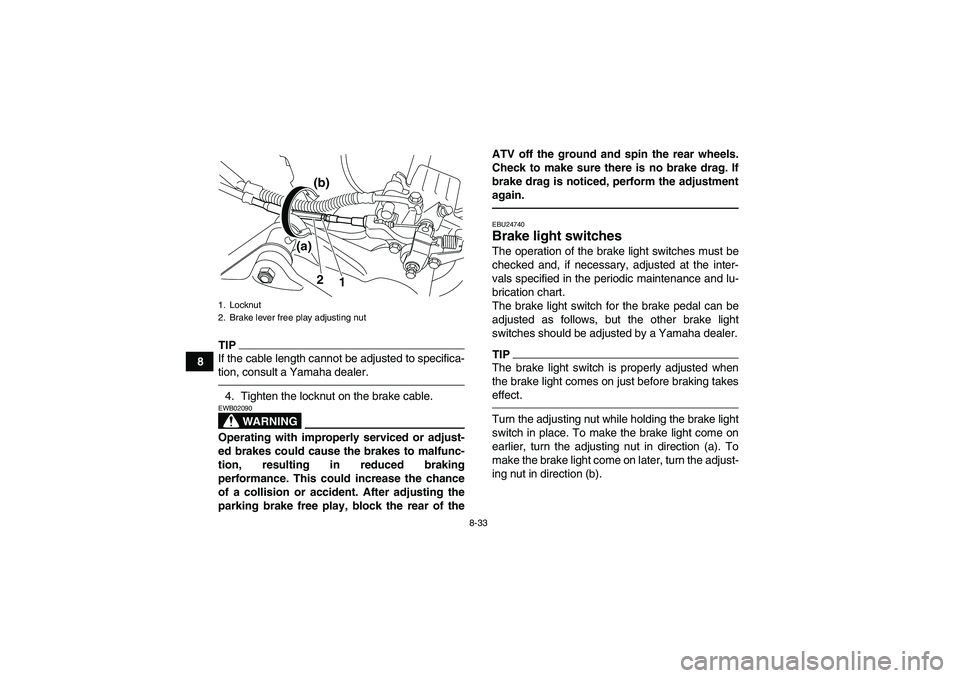

WARNING
EWB02090Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of theATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.
EBU24740Brake light switches The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.TIPThe brake light switch is properly adjusted when
the brake light comes on just before braking takes
effect.Turn the adjusting nut while holding the brake light
switch in place. To make the brake light come on
earlier, turn the adjusting nut in direction (a). To
make the brake light come on later, turn the adjust-
ing nut in direction (b).
1. Locknut
2. Brake lever free play adjusting nut
1 2
(a)(b)
U1AS60E0.book Page 33 Friday, February 6, 2009 1:27 PM

8-34
8

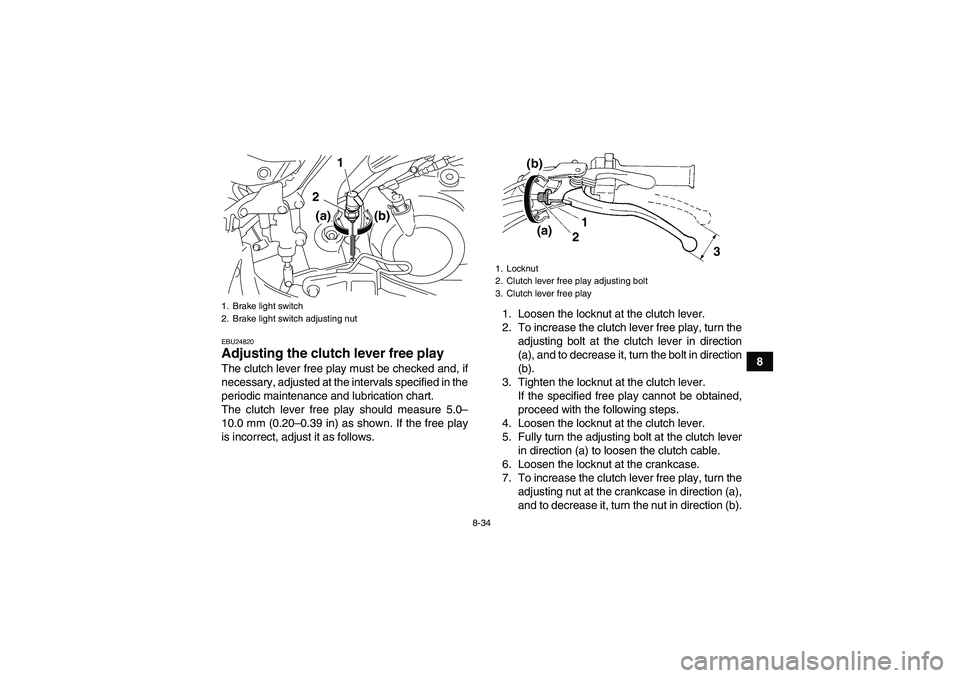

EBU24820Adjusting the clutch lever free play The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.
The clutch lever free play should measure 5.0–
10.0 mm (0.20–0.39 in) as shown. If the free play
is incorrect, adjust it as follows.1. Loosen the locknut at the clutch lever.
2. To increase the clutch lever free play, turn the
adjusting bolt at the clutch lever in direction
(a), and to decrease it, turn the bolt in direction
(b).
3. Tighten the locknut at the clutch lever.
If the specified free play cannot be obtained,
proceed with the following steps.
4. Loosen the locknut at the clutch lever.
5. Fully turn the adjusting bolt at the clutch lever
in direction (a) to loosen the clutch cable.
6. Loosen the locknut at the crankcase.
7. To increase the clutch lever free play, turn the
adjusting nut at the crankcase in direction (a),
and to decrease it, turn the nut in direction (b).1. Brake light switch
2. Brake light switch adjusting nut
1
2
(a)
(b)
1. Locknut
2. Clutch lever free play adjusting bolt
3. Clutch lever free play
1
2 (a) (b)
3
U1AS60E0.book Page 34 Friday, February 6, 2009 1:27 PM

8-35
88. Tighten the locknut at the crankcase and the
clutch lever.
TIPIf the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate cor-
rectly, have a Yamaha dealer check the internal

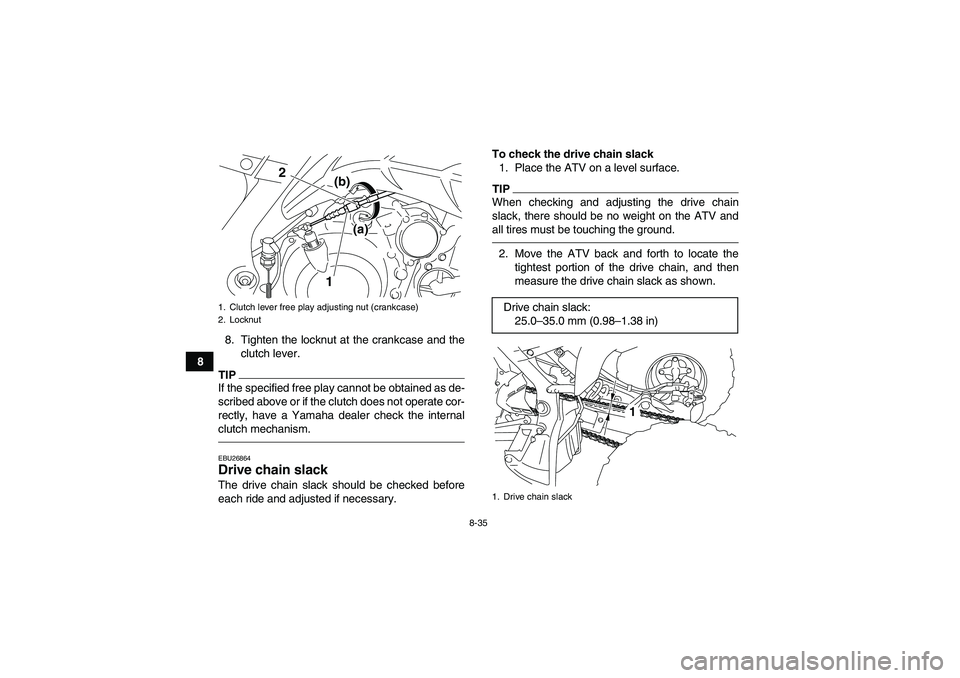

clutch mechanism.EBU26864Drive chain slack The drive chain slack should be checked before
each ride and adjusted if necessary.To check the drive chain slack
1. Place the ATV on a level surface.
TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.
1. Clutch lever free play adjusting nut (crankcase)
2. Locknut
1 2
(a)
(b)
Drive chain slack:
25.0–35.0 mm (0.98–1.38 in)1. Drive chain slack
