dimensions YAMAHA YFM700R 2010 Owners Manual

10-1
10
EBU25960

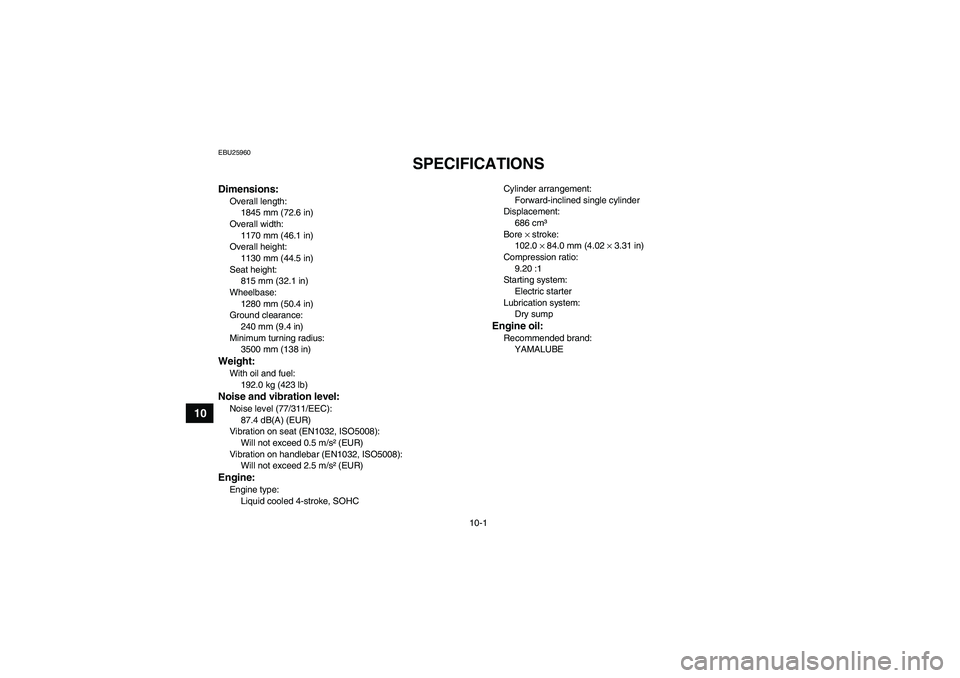

SPECIFICATIONS
Dimensions:Overall length:
1845 mm (72.6 in)
Overall width:
1170 mm (46.1 in)
Overall height:
1130 mm (44.5 in)
Seat height:
815 mm (32.1 in)
Wheelbase:
1280 mm (50.4 in)
Ground clearance:
240 mm (9.4 in)
Minimum turning radius:
3500 mm (138 in)Weight:With oil and fuel:
192.0 kg (423 lb)Noise and vibration level:Noise level (77/311/EEC):
87.4 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s² (EUR)Engine:Engine type:
Liquid cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio:
9.20 :1
Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:
YAMALUBE
U1AS60E0.book Page 1 Friday, February 6, 2009 1:27 PM
