YAMAHA YFM700R 2011 Owner's Manual

2-2
2

Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Al-
ways follow the inspection and maintenance
procedures and schedules described in this
manual.
Always keep both hands on the handlebars and
both feet on the footboards of the ATV during
operation.
Always go slowly and be extra careful when op-
erating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.
Never operate on excessively rough, slippery or
loose terrain until you have learned and prac-
ticed the skills necessary to control the ATV on
such terrain. Always be especially cautious on
these kinds of terrain.
Always follow proper procedures for turning as
described in this manual. Practice turning at low
speeds before attempting to turn at faster
speeds and never turn at excessive speeds.
Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller hills
before attempting larger hills.

Always follow proper procedures for climbing
hills as described in this manual. Check the ter-
rain carefully before you start up any hill. Never
climb hills with excessively slippery or loose sur-
faces. Shift your weight forward. Never open the
throttle suddenly or make sudden gear changes.
Never go over the top of a hill at high speed.
Always follow proper procedures for going down
hills and for braking on hills as described in this
manual. Check the terrain carefully before you
start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going
down a hill at an angle that would cause the ve-
hicle to lean sharply to one side. Go straight
down the hill where possible.
Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose sur-
faces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV around on
any hill until you have mastered the turning tech-
nique described in this manual on level ground.
Avoid crossing the side of a steep hill if possible.
Always use proper procedures if you stall or roll
backwards when climbing a hill. To avoid stall-
ing, use the proper gear and maintain a steady
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

2-3
2speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB00071Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
U1AS61E0.book Page 3 Thursday, February 11, 2010 2:17 PM

2-4
2 and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.

Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.
Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.
Do not run engine outdoors where engine
exhaust can be drawn into a building
through openings such as windows and
doors.
U1AS61E0.book Page 4 Thursday, February 11, 2010 2:17 PM

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view1. Engine oil tank filler cap
2. Coolant reservoir
3. Idle adjusting screw
4. Fuses
5. Rear shock absorber assembly rebound damping force
adjusting screw
6. Rear shock absorber assembly compression damping
force adjusting bolt (for fast compression damping)
7. Rear shock absorber assembly compression damping
force adjusting screw (for slow compression damping)
8. Rear shock absorber assembly spring preload adjusting
nut
9. Shift pedal
12
3
4
4
6,7
8
9
5
10
10.Engine oil tank drain bolt
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

3-2
3
EBU17700Right view1. Spark arrester
2. Air filter case
3. Battery
4. Rear brake fluid reservoir
5. Crankcase engine oil filler cap
6. Oil filter element
7. Spark plug
8. Front shock absorber assembly compression damping
force adjusting bolt (for fast compression damping)
9. Front shock absorber assembly compression damping
force adjusting screw (for slow compression damping)
10.Front shock absorber assembly spring preload adjusting
nut
11.Front shock absorber assembly rebound damping force
adjusting screw
12.Crankcase engine oil drain bolt1
24
3
567 8,9,10
1312
14
11
13.Brake pedal
14.Rear brake light switch
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

3-3
3

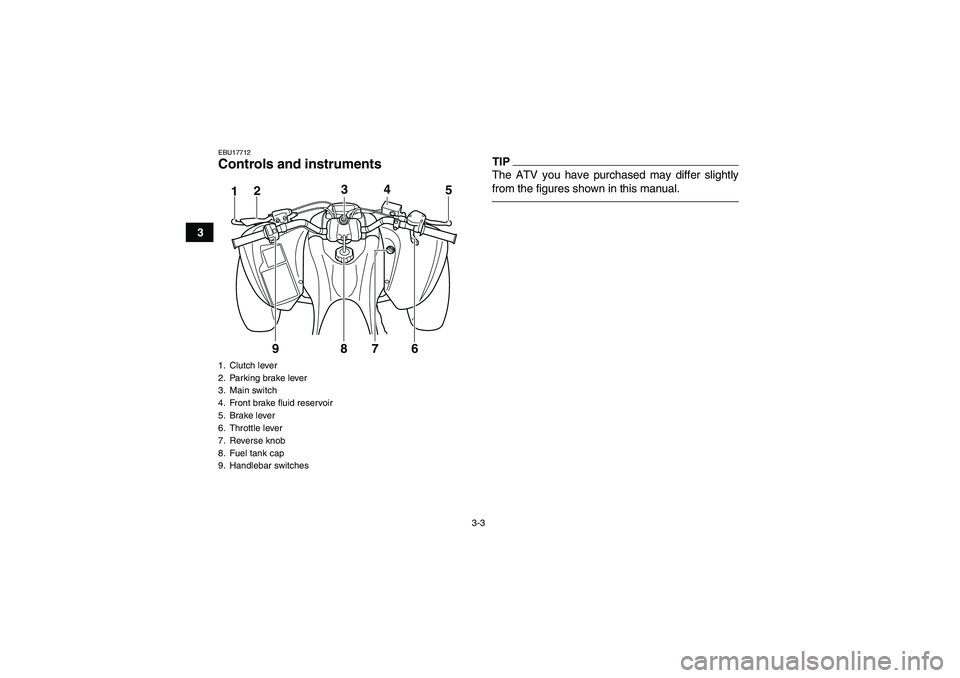

EBU17712Controls and instruments
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Clutch lever
2. Parking brake lever
3. Main switch
4. Front brake fluid reservoir
5. Brake lever
6. Throttle lever
7. Reverse knob
8. Fuel tank cap
9. Handlebar switches
123
4
5
6 7 8 9
U1AS61E0.book Page 3 Thursday, February 11, 2010 2:17 PM

4-1
4
EBU17733
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
OFF ON
1
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

4-2
4
EBU26694Indicator lights and warning lights EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU26702Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Neutral indicator light “N”
2. Reverse indicator light “R”
3. Coolant temperature warning light“”
4. Engine trouble warning light“”
5. Fuel level warning light“”5
412
3
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

4-3
4
EBU29391Fuel level warning light“”
This warning light comes on when the fuel level
drops below approximately 2.6 L (0.69 US gal,
0.57 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to“”
and turning the key to “ON”. The warning light
should come on for a few seconds, and then go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.EBU27284Engine trouble warning light“”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system. (See page
4-5 for an explanation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.
EBU29265Multi-function display The multi-function display is equipped with the fol-
lowing:
a speedometer
an odometer1.“RESET” button
2.“SELECT” button
3. Speedometer
4. Clock/Hour meter
5. Odometer/Tripmeter A/Tripmeter B2
134
5
U1AS61E0.book Page 3 Thursday, February 11, 2010 2:17 PM

4-4
4

two tripmeters (which show the distance trav-
eled since they were last set to zero)
a clock
an hour meter (which shows the total time the
engine has been running)
a self-diagnosis device
Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter modes “A” and “B” in the following order:
ODO → A → B → ODO
To reset a tripmeter, select it by pushing the “SE-
LECT” button, and then push the “RESET” button
for at least three seconds. The tripmeters can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.TIPPushing and holding in the “SELECT” button, and
turning the key to “ON” while the button is pushed,
switches the display between “mph” and “km/h”.
Clock mode
Push and hold “SELECT” button for at least three
seconds to switch the display between the clock
mode “CLOCK” and the hour meter mode “HOUR”
in the following order:
CLOCK → HOUR → CLOCK
To set the clock1. Set the display to the clock mode.
2. Push the “SELECT” button and “RESET” but-
ton together for at least three seconds.
3. When the hour digits start flashing, push the
“RESET” button to set the hours.
4. Push the “SELECT” button, and the minute
digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it
to start the clock.
U1AS61E0.book Page 4 Thursday, February 11, 2010 2:17 PM
