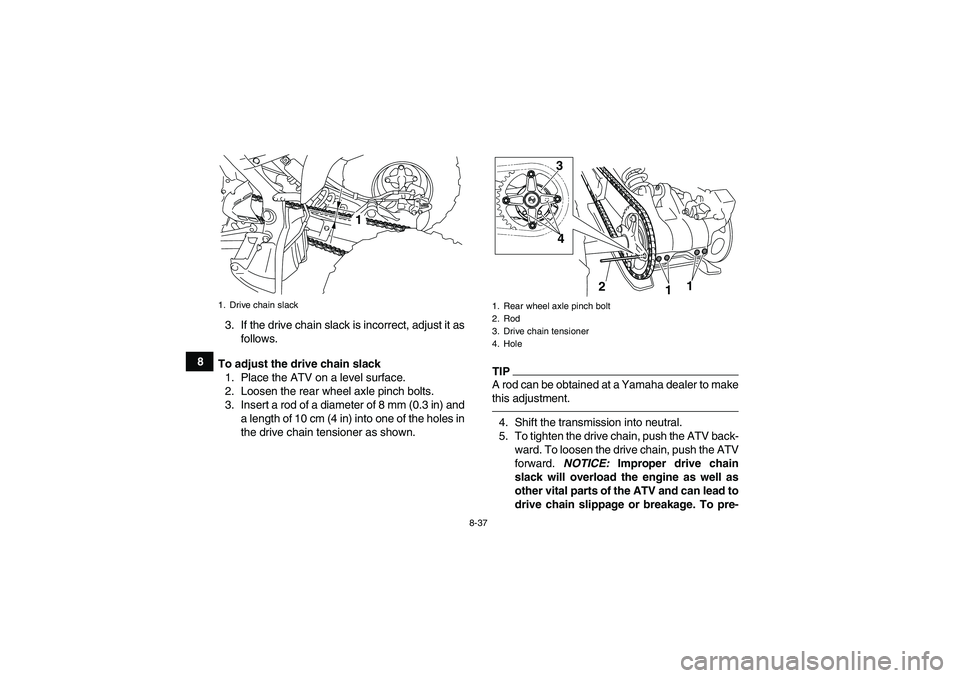

83. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the rear wheel axle pinch bolts.
3. Insert a rod of a diameter of 8 mm (0.3 in) and
a length of 10 cm (4 in) into one of the holes in
the drive chain tensioner as shown.
TIPA rod can be obtained at a Yamaha dealer to make
this adjustment.4. Shift the transmission into neutral.
5. To tighten the drive chain, push the ATV back-
ward. To loosen the drive chain, push the ATV
forward. NOTICE: Improper drive chain
slack will overload the engine as well as
other vital parts of the ATV and can lead to
drive chain slippage or breakage. To pre-
1. Drive chain slack
1
1. Rear wheel axle pinch bolt
2. Rod
3. Drive chain tensioner
4. Hole
4
2
11
3
U1AS61E0.book Page 37 Thursday, February 11, 2010 2:17 PM

8-39
82. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00581]
EBU24901
Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02581
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.
1. O-ring
1
Recommended lubricant:
Engine oil
U1AS61E0.book Page 39 Thursday, February 11, 2010 2:17 PM

8-52
8
EBU27691Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U1AS61E0.book Page 52 Thursday, February 11, 2010 2:17 PM

8-53
8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U1AS61E0.book Page 53 Thursday, February 11, 2010 2:17 PM

9-1
9
EBU25860
CLEANING AND STORAGE
EBU25902Cleaning Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the chain, sprockets or wheel ax-
les.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the job.
WARNING! Wet brakes may have reduced
stopping ability, increasing the chance of
an accident. Test the brakes after washing.
Apply the brakes several times at slow
speeds to let friction dry out the linings.
[EWB02311]
NOTICE: Excessive water pressuremay cause water seepage and deteriora-
tion of wheel bearings, brakes, transmis-
sion seals and electrical devices. Many
expensive repair bills have resulted from
improper high-pressure detergent applica-
tions such as those available in coin-oper-
ated car washers.
[ECB00711]
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Dry the chain and lubricate it to prevent it from
rusting.
7. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
8. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

9-2
9
EBU27261Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover. NOTICE: Storing the ATV in a poorly ven-
tilated room or covering it with a tarp while it is
still wet, will allow water and humidity to seep
in and cause rust. To prevent corrosion, avoid
damp cellars, stables (because of the presence
of ammonia) and areas where strong chemi-
cals are stored.
[ECB00721]
Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.3. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore.
c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
4. Lubricate all control cables and the pivoting
points of all levers and pedals.
5. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot. Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1
oz of stabilizer to each gallon of fuel)U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
1845 mm (72.6 in)
Overall width:
1170 mm (46.1 in)
Overall height:
1130 mm (44.5 in)
Seat height:
815 mm (32.1 in)
Wheelbase:
1280 mm (50.4 in)
Ground clearance:
240 mm (9.4 in)
Minimum turning radius:
3500 mm (138 in)Weight:With oil and fuel:
192.0 kg (423 lb)Noise and vibration level:Noise level (77/311/EEC):
YFM7RA 87.4 dB(A)
YFM7RSEA 87.4 dB(A)
Vibration on seat (EN1032, ISO5008):
YFM7RA Will not exceed 0.5 m/s²
YFM7RSEA Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008):
YFM7RA Will not exceed 2.5 m/s²
YFM7RSEA Will not exceed 2.5 m/s²
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio:
9.20 :1
Starting system:
Electric starter
Lubrication system:
Dry sumpEngine oil:Recommended brand:
YAMALUBE
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

10-2
10

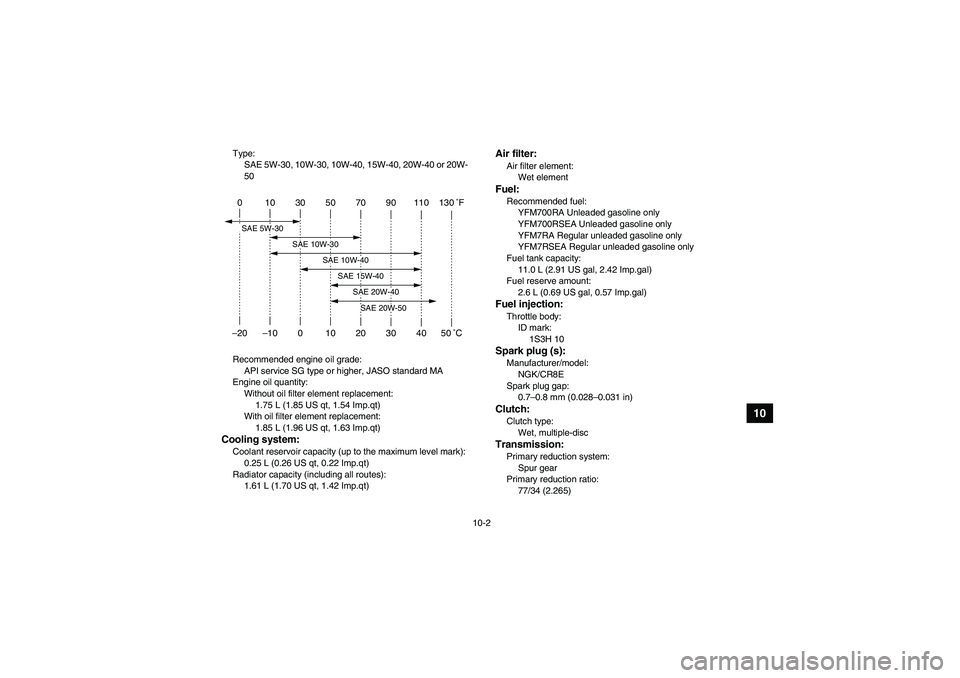

Type:
SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter element replacement:
1.75 L (1.85 US qt, 1.54 Imp.qt)
With oil filter element replacement:
1.85 L (1.96 US qt, 1.63 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.61 L (1.70 US qt, 1.42 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM700RA Unleaded gasoline only
YFM700RSEA Unleaded gasoline only
YFM7RA Regular unleaded gasoline only
YFM7RSEA Regular unleaded gasoline only
Fuel tank capacity:
11.0 L (2.91 US gal, 2.42 Imp.gal)
Fuel reserve amount:
2.6 L (0.69 US gal, 0.57 Imp.gal)Fuel injection:Throttle body:
ID mark:
1S3H 10Spark plug (s):Manufacturer/model:
NGK/CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
77/34 (2.265)
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

10-5
10

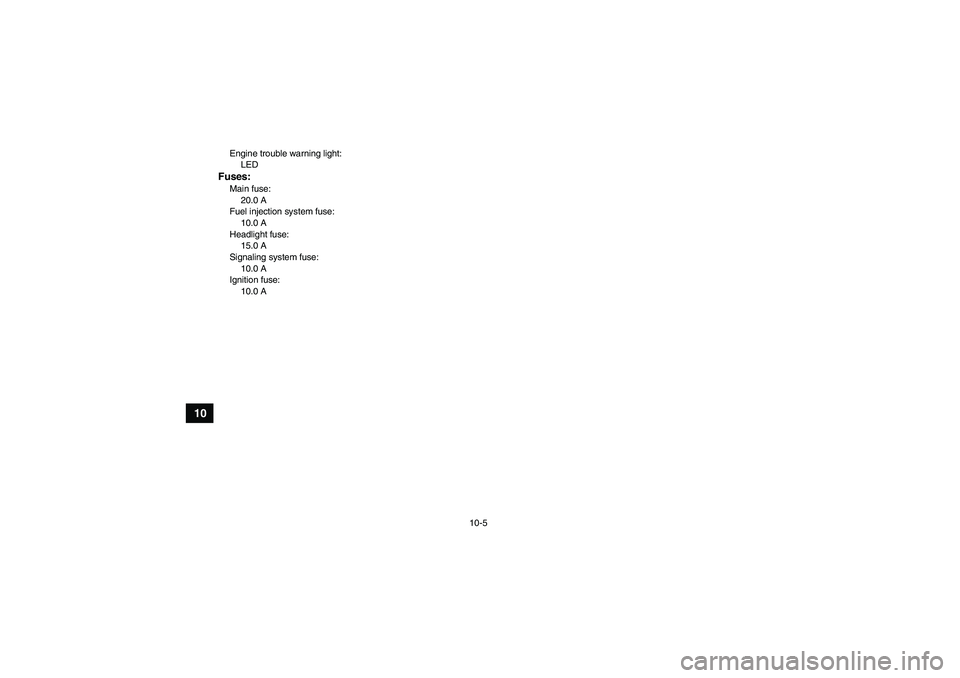

Engine trouble warning light:
LEDFuses:Main fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
U1AS61E0.book Page 5 Thursday, February 11, 2010 2:17 PM

INDEX
AAccessories and loading ................................................ 6-7
Air filter element, cleaning ............................................ 8-20BBattery .......................................................................... 8-43
Brake and clutch levers, checking and lubricating ....... 8-40
Brake fluid, changing ................................................... 8-32
Brake fluid level, checking ........................................... 8-30
Brake lever ..................................................................... 4-8
Brake lever free play, checking the front ...................... 8-32
Brake light switches ..................................................... 8-34
Brake pads, checking the front and rear ...................... 8-29
Brake pedal .................................................................... 4-8
Brake pedal, checking and lubricating ......................... 8-40
Brake pedal position, checking .................................... 8-32
Brakes .......................................................................... 8-28
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-39
Chassis fasteners .......................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-7
Clutch lever free play, adjusting ................................... 8-35
Coolant .................................................................. 5-4, 8-16
Coolant temperature warning light ................................. 4-2DDrive chain ..................................................................... 5-5
Drive chain, lubricating ................................................. 8-38Drive chain slack .......................................................... 8-36
EEngine break-in .............................................................. 6-5
Engine idling speed ..................................................... 8-26
Engine oil ....................................................................... 5-4
Engine oil and oil filter element .................................... 8-12
Engine, start ................................................................... 6-1
Engine stop switch ......................................................... 4-6
Engine trouble warning light .......................................... 4-3FFuel ....................................................................... 4-11, 5-4
Fuel level warning light .................................................. 4-3
Fuel tank cap ............................................................... 4-11
Fuses, replacing .......................................................... 8-46HHandlebar switches ....................................................... 4-5
Headlight beam, adjusting ........................................... 8-49
Headlight bulb, replacing ............................................. 8-48IIdentification numbers .................................................. 11-1
Indicator lights and warning lights .................................. 4-2
Instruments, lights and switches .................................... 5-7LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-6MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM
