engine YAMAHA YFM700R 2014 Service Manual

8-17
8
14. Remove the engine oil tank filler cap, and then
gradually fill the oil tank with the remaining oil
quantity while regularly checking the oil level
on the dipstick.
15. Install and tighten the engine oil tank filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00300●In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
●Make sure that no foreign material enters the
crankcase.16. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
17. Turn the engine off, and then check the oil lev- el and correct it if necessary.EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27942To check the coolant level1. Place the ATV on a level surface.
Recommended oil:
See page 10-1.
Oil quantity: Without oil filter element replacement:1.75 L (1.85 US qt, 1.54 Imp.qt)
With oil filter element replacement: 1.85 L (1.96 US qt, 1.63 Imp.qt)
U1PE61E0.book Page 17 Thursday, April 4, 2013 6:18 PM

8-18
8
TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.2. Check the coolant level in the coolant reser-voir.TIPThe coolant should be between the minimum and
maximum level marks.
3. If the coolant is at or below the minimum levelmark, remove the coolant reservoir cap, add
coolant or distilled water to the maximum level
mark, and then install the reservoir cap.
NOTICE: If coolant is not available, use
distilled water or soft tap water instead. Do
not use hard water or salt water since they
are harmful to the engine. If water has
been used instead of coolant, replace it
with coolant as soon as possible, other-
wise the cooling system will not be pro-
tected against frost and corrosion. If water
has been added to the coolant, have a
Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01011]
1. Maximum level mark
2. Minimum level mark
12
U1PE61E0.book Page 18 Thursday, April 4, 2013 6:18 PM

8-19
8
TIP●The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.●If the engine overheats, see page 8-56 for fur-
ther instructions.
EBU23543To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap.1. Place the ATV on a level surface.
2. Remove panel A. (See page 8-10.)
3. Place a container under the engine, and thenremove the coolant drain bolt and its gasket.
1. Coolant reservoir capCoolant reservoir capacity (up to the maxi-
mum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
1
U1PE61E0.book Page 19 Thursday, April 4, 2013 6:18 PM

8-21
8
9. Connect the coolant reservoir hose.
10. Pour the recommended coolant into the reser- voir to the maximum level mark, and then in-
stall the reservoir cap. NOTICE: Mix
antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft
water may be used for refilling. Do not use
hard water or salt water since they are
harmful to the engine.
[ECB00991]
11. Pour the recommended coolant into the radia- tor until it is full.
12. Install the radiator cap, start the engine, let it idle for several minutes, and then turn it off. 13. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.
14. Start the engine, and then check for coolant leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system.15. Install the panel.EBU26806Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
Antifreeze/water mixture ratio:1:1
Recommended antifreeze: High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity: Radiator capacity (including all routes):1.68 L (1.78 US qt, 1.48 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
U1PE61E0.book Page 21 Thursday, April 4, 2013 6:18 PM

8-23
8
6. Remove the wing bolt and washer from the air
filter element.
7. Remove the sponge material from the air filter element frame. 8. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01941]
9. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do not twist
the sponge material when squeezing it.
[ECB00441]

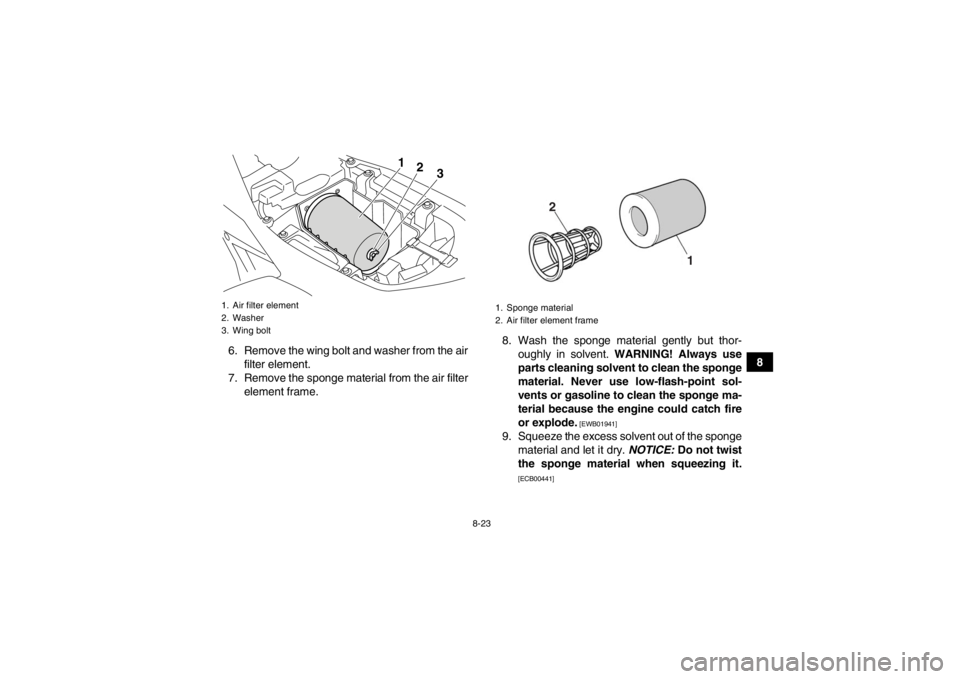

1. Air filter element
2. Washer
3. Wing bolt
3
2
1
1. Sponge material
2. Air filter element frame
2
1
U1PE61E0.book Page 23 Thursday, April 4, 2013 6:18 PM

8-25
8
15. Insert the air filter element into the air filter
case, and then tighten the wing bolt. NOTICE:
Make sure that the air filter element is
properly seated in the air filter case. Never
operate the engine with the air filter ele-
ment removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addi-
tionally, operation without the air filter ele-
ment will affect the fuel injection system
with subsequent poor performance and
possible engine overheating.
[ECB00761]
16. Install the air filter case cover by hooking the holders onto the air filter case. 17. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the throttle body and the rubber joint mani-
fold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air en-
tering the engine.EBU27703Cleaning the spark arrester Select a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
1. Remove the tailpipe bolt.
1. Washer
1
U1PE61E0.book Page 25 Thursday, April 4, 2013 6:18 PM

8-27
8
7. Start the engine and rev it up approximately
twenty times while momentarily creating ex-
haust system back pressure by blocking the
end of the muffler with a shop towel.
8. Stop the engine and allow the exhaust pipe to cool.
9. Check the gasket for damage, and replace it if necessary.
10. Install the gasket and the purging bolt, and then tighten the bolt to the specified torque.
WARNING
EWB02380Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.●Always let the exhaust system cool prior to
touching exhaust components.●Always wear eye protection, and make sure
no one is behind the ATV.●Make sure there are no combustible materi-
als in the area.EBU26811Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
1. Purging bolt
2. Gasket
1
2
Tightening torque:Purging bolt:27 Nm (2.7 m·kgf, 20 ft·lbf)
U1PE61E0.book Page 27 Thursday, April 4, 2013 6:18 PM

8-28
8
TIPA diagnostic tachometer is needed to make this
adjustment.1. Start the engine and warm it up.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-sary, adjust it to specification by turning the
idle adjusting screw. To increase the engine
idling speed, turn the idle adjusting screw in
direction (a), and to decrease it, turn the screw
in direction (b).
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment.EBU24047Adjusting the throttle lever free play The throttle lever free play should be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The throttle lever free play should measure 2.0–
4.0 mm (0.08–0.16 in) as shown. Periodically
check the throttle lever free play and, if necessary,
adjust it as follows.TIPThe engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle le-
ver free play.1. Slide the rubber cover back.
2. Loosen the locknut.
1. Idle adjusting screw
1
(a)
(b)
Engine idling speed: 1500–1700 r/min
U1PE61E0.book Page 28 Thursday, April 4, 2013 6:18 PM

8-29
8
3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU24080Adjusting the reverse lock release ca-
ble The reverse lock release cable stretches with use,
which can result in improper function. Therefore,
the reverse lock release cable should be checked
and adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart.EBU29601Brakes Replacement of brake components requires pro-
fessional knowledge. Brake service should be per-
formed by a Yamaha dealer.
WARNING
EWB02571Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.
1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
32
4
(a)(b)
1
U1PE61E0.book Page 29 Thursday, April 4, 2013 6:18 PM

8-39
8
3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack 1. Place the ATV on a level surface.
2. Loosen the rear wheel axle pinch bolts.
3. Insert a rod of a diameter of 8 mm (0.3 in) and a length of 10 cm (4 in) into one of the holes in
the drive chain tensioner as shown.
TIPA rod can be obtained at a Yamaha dealer to make
this adjustment.4. Shift the transmission into neutral.
5. To tighten the drive chain, push the ATV back-ward. To loosen the drive chain, push the ATV
forward. NOTICE: Improper drive chain
slack will overload the engine as well as
other vital parts of the ATV and can lead to
drive chain slippage or breakage. To pre-

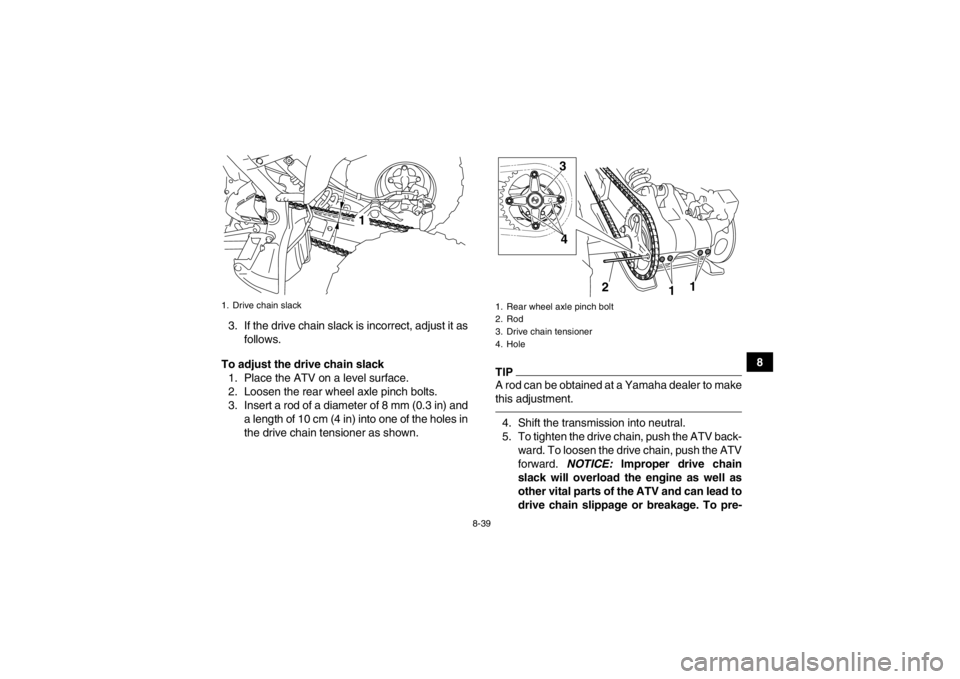

1. Drive chain slack
1
1. Rear wheel axle pinch bolt
2. Rod
3. Drive chain tensioner
4. Hole
4
2
11
3
U1PE61E0.book Page 39 Thursday, April 4, 2013 6:18 PM
