EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1Left view ...................................................... 3-1
Right view.................................................... 3-2
Controls and instruments ............................ 3-3
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1 Main switch ................................................ 4-1
Indicator lights and warning lights .............. 4-2
Self-diagnosis device ................................. 4-3
Handlebar switches .................................... 4-4
Throttle lever .............................................. 4-4
Speed limiter .............................................. 4-5
Clutch lever ................................................ 4-6
Brake lever (YFM700RE) ............................ 4-6
Brake lever (YFM700RSE).......................... 4-7
Brake pedal ................................................ 4-7
Parking brake lever .................................... 4-8
Shift pedal .................................................. 4-9 Reverse knob “REV” ...................................4-9
Fuel tank cap ............................................4-10
Fuel ...........................................................4-10
Seat ..........................................................4-12
Adjusting the front shock absorber
assemblies (YFM700RE) .........................4-13
Adjusting the front shock absorber assemblies (YFM700RSE) ......................4-15
Adjusting the rear shock absorber assembly (YFM700RE)............................4-20
Adjusting the rear shock absorber assembly (YFM700RSE) .........................4-22
PRE-OPERATION CHECKS ..........................5-1 Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7U1PE61E0.book Page 1 Thursday, April 4, 2013 6:18 PM

OPERATION .................................................. 6-1Starting the engine ..................................... 6-1
Shifting ....................................................... 6-2
Operating the reverse knob and driving in reverse ..................................................... 6-4
Engine break-in .......................................... 6-5
Parking ....................................................... 6-6
Parking on a slope ..................................... 6-6
Accessories and loading ............................ 6-7
RIDING YOUR ATV ...................................... 7-1 GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22 PERIODIC MAINTENANCE AND
ADJUSTMENT................................................8-1
Owner’s manual and tool kit .......................8-2
Periodic maintenance chart for the emission control system ...........................8-3
General maintenance and lubrication chart ..........................................................8-5
Removing and installing the panel ............8-10
Checking the spark plug ...........................8-10
Engine oil and oil filter element .................8-13
Coolant .....................................................8-17
Cleaning the air filter element ...................8-21
Cleaning the spark arrester ......................8-25
Adjusting the engine idling speed .............8-27
Adjusting the throttle lever free play .........8-28
Valve clearance ........................................8-29
Adjusting the reverse lock release cable .......................................................8-29
Brakes .......................................................8-29
Checking the front and rear brake pads ...8-30
Checking the brake fluid level ...................8-31
Changing the brake fluid ...........................8-34
Checking the front brake lever free play ...8-34
Checking the brake pedal height ..............8-34
Adjusting the parking brake free play .......8-35
Brake light switches ..................................8-36
Adjusting the clutch lever free play ...........8-37U1PE61E0.book Page 2 Thursday, April 4, 2013 6:18 PM

2-4
2
In the event of an accident
1. If serious injuries are incurred, you may be safer staying next to your vehicle; it may
shield you from oncoming riders. Depending
on your injuries and position in the trail; you
must make a judgment call as to whether you
should move to a position off the trail. If you
have sustained head, neck, or back injuries,
or cannot feel your limbs, you should not
move. Keep your helmet on and remain mo-
tionless. Lie down next to your vehicle and
wait for help.
2. If less serious injuries are incurred and you can walk, then move to a position off the trail.
Check yourself for injuries and apply first aid
as needed.
3. If your injuries are light, when safe to do so, move your vehicle off the trail to avoid colli-
sions with oncoming riders. Check for injuries
and apply first aid as necessary. If you can
physically operate your vehicle, inspect your
vehicle. If the vehicle is in safe operating con-
dition and you can safely operate it, restart it
and ride gently back to camp or other known
location where you can receive medical atten- tion. If necessary, contact your riding party or
local authorities to let them know where you
are and what has happened.
In the event of a breakdown 1. If your vehicle will not restart or is not in safe operating condition, turn off the main switch
and engine stop switch. If the breakdown oc-
curs at twilight or night, leave the main switch
on so that your lights may warn other riders of
your stopped vehicle.
2. Get out of danger. Check for oncoming vehi- cles and when safe, push your vehicle to the
side of the trail or even off the main trail to
avoid any possible collisions with oncoming
riders. If you cannot move your vehicle by
yourself, when safe, walk to the nearest van-
tage point and signal an oncoming rider to
help you push your vehicle to a safe place off
the trail.
3. Inspect your vehicle for any immediate haz- ardous conditions. The most obvious hazard-
ous conditions are leaking fuel and
ungrounded or broken wiring. Visually check
for broken wiring and leaking fuel. Leaking
fuel can be confirmed by the odor of gasoline.
U1PE61E0.book Page 4 Thursday, April 4, 2013 6:18 PM

2-5
24. Once immediate safety hazards are con-
firmed not to exist, you may remove your hel-
met to more closely inspect your vehicle.
Check for external signs of wear, broken
parts, fluid leaks, cracks in the frame, suspen-
sion damage, wheel damage, and so on. Fuel,
oil, and coolant usually give off a noticeable
odor.
5. If your vehicle will not restart or if it is unsafe to ride, then turn off all vehicle systems (en-
gine stop switch, main switch, and fuel cock),
and then signal or go for help.
Aftermarket Parts, Accessories, and Modifica-
tions
While you may find aftermarket products similar in
design and quality to genuine Yamaha accesso-
ries, recognize that some aftermarket accessories
or modifications are not suitable because of poten-
tial safety hazards to you or others. Installing after-
market products or having other modifications
performed to your vehicle that change any of the
vehicle’s design or operation characteristics can
put you and others at greater risk of serious injury
or death. You are responsible for injuries related to changes in the vehicle. Keep the following guide-
lines in mind, as well as those provided under
“Loading” when mounting accessories.
●Never install accessories that would impair the
performance of your ATV. Carefully inspect the
accessory before using it to make sure that it
does not in any way reduce ground clearance,
limit suspension travel, steering travel or control
operation.●Accessories fitted to the ATV can create instabil-
ity due to improper weight distribution.●Bulky or large accessories may seriously affect
the stability of the ATV.●Certain accessories can displace the operator
from his or her normal riding position. This im-
proper position limits the freedom of movement
of the operator and may limit control ability,
therefore, such accessories are not recom-
mended.●Use caution when adding electrical accessories.
If electrical accessories exceed the capacity of
the ATV’s electrical system, an electric failure
could result, which could cause a dangerous
loss of lights or engine power.
U1PE61E0.book Page 5 Thursday, April 4, 2013 6:18 PM

4-2
4
EBU26695Indicator lights and warning lights EBU17860Neutral indicator light “ ”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17830Reverse indicator light “ ”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU29921Coolant temperature warning light “ ”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The warn-
ing light should come on for a few seconds, and
then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning light
remains on, have a Yamaha dealer check the elec-
trical circuit.NOTICEECB00010●The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.●Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Fuel level warning light “ ”
2. Engine trouble warning light “ ”
3. Coolant temperature warning light “ ”
4. Reverse indicator light “R”
5. Neutral indicator light “N”
12 34
5
U1PE61E0.book Page 2 Thursday, April 4, 2013 6:18 PM

4-3
4
EBU29931Fuel level warning light “ ”
This warning light comes on when the fuel level
drops below approximately 2.9 L (0.77 US gal,
0.64 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to “ ”
and turning the key to “ ” (on). The warning light
should come on for a few seconds, and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning light
remains on, have a Yamaha dealer check the elec-
trical circuit.EBU29942Engine trouble warning light “ ”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The warn-
ing light should come on for a few seconds, and
then go off.If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning light
remains on, have a Yamaha dealer check the elec-
trical circuit.
EBU30760Self-diagnosis device This model is equipped with a self-diagnosis de-
vice for various electrical circuits.
If a problem is detected in any of those circuits, the
engine trouble warning light will come on or flash.
If this occurs, have a Yamaha dealer check the ve-
hicle.NOTICEECB01180To prevent engine damage, be sure to consult
a Yamaha dealer as soon as possible if this oc-
curs.
U1PE61E0.book Page 3 Thursday, April 4, 2013 6:18 PM

4-5
4
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail- able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).
(See page 8-28.) WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]

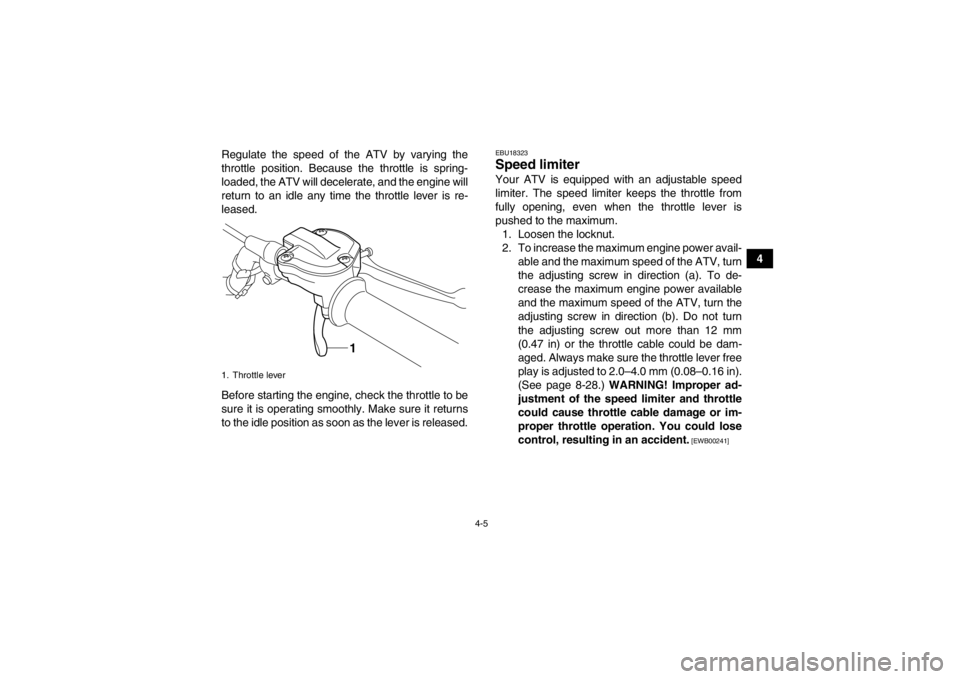

1. Throttle lever
1
U1PE61E0.book Page 5 Thursday, April 4, 2013 6:18 PM

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel Check fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary. 4-10, 5-4
Engine oil Check oil level in engine oil tank, and add recommended oil to spec-
ified level if necessary.
Check ATV for oil leakage. Correct if necessary. 5-4, 8-13
Coolant Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
Check cooling system for leakage. Correct if necessary. 5-4, 8-17
U1PE61E0.book Page 1 Thursday, April 4, 2013 6:18 PM

5-4
5
EBU19541Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-10.)EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-13.)EBU19631Coolant Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-17.)TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.EBU19712Front and rear brakes Brake lever and brake pedal●Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system.
●Check for correct brake pedal height. (See page
8-34.) If the pedal height is incorrect, have a
Yamaha dealer adjust it.●Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-31.)
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer check the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-30.) Specified brake fluid:
DOT 4
U1PE61E0.book Page 4 Thursday, April 4, 2013 6:18 PM

6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU29952Starting the engine NOTICEECB00150See the “Engine break-in” section on page 6-5
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the key to “ ” (on) and the engine stopswitch to “ ”.
The following warning lights should come on
for a few seconds, then go off.
●Coolant temperature warning light●Fuel level warning light●Engine trouble warning light
NOTICEECB00824If a warning light does not go off, see page 4-2
for the corresponding warning light circuit
check. To avoid possible damage, do not oper-
ate the ATV if a warning light stays on.3. Shift the transmission into neutral. The neutralindicator light should come on, if it does not
come on, have a Yamaha dealer check the
electrical circuit.TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.●The transmission is in neutral.●The clutch is disengaged with the transmission
in gear. However, it is recommended to shift into
neutral before starting the engine.
U1PE61E0.book Page 1 Thursday, April 4, 2013 6:18 PM
