YAMAHA YFM700R 2015 Owners Manual

8-29
8
4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24061Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU24081Adjusting the reverse lock release ca-
bleThe reverse lock release cable stretches with use,
which can result in improper function. Therefore,
the reverse lock release cable should be checked
and adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart.EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident. EBU24131Checking the front and rear brake padsThe front and rear brake pads must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart.

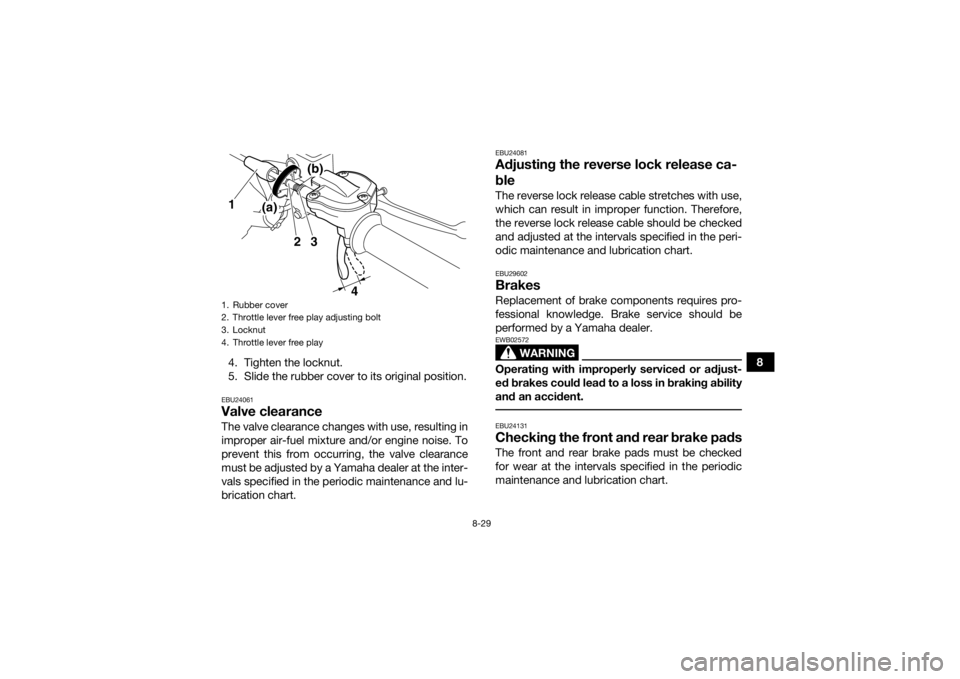

1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
32
4
(a)(b)
1
U2LS60E0.book Page 29 Wednesday, June 18, 2014 11:12 AM

8-30
8
EBU29561Front brake pads
Each brake pad is provided with wear indicator
grooves, which allow you to check the brake pad
wear without having to disassemble the brake. To
check the brake pad wear, check the wear indica-
tor grooves. If a brake pad has worn to the point
that the wear indicator grooves have almost dis-
appeared, have a Yamaha dealer replace the
brake pads as a set.TIPThe wheels need to be removed to check the
brake pads. (See page 8-52.)
EBU29832Rear brake pads
Each brake pad is provided with wear indicator
grooves, which allow you to check the brake pad
wear without having to disassemble the brake. To
check the brake pad wear, check the wear indica-
tor grooves. If a brake pad has worn to the point
that the wear indicator grooves have almost dis-
appeared, have a Yamaha dealer replace the
brake pads as a set.

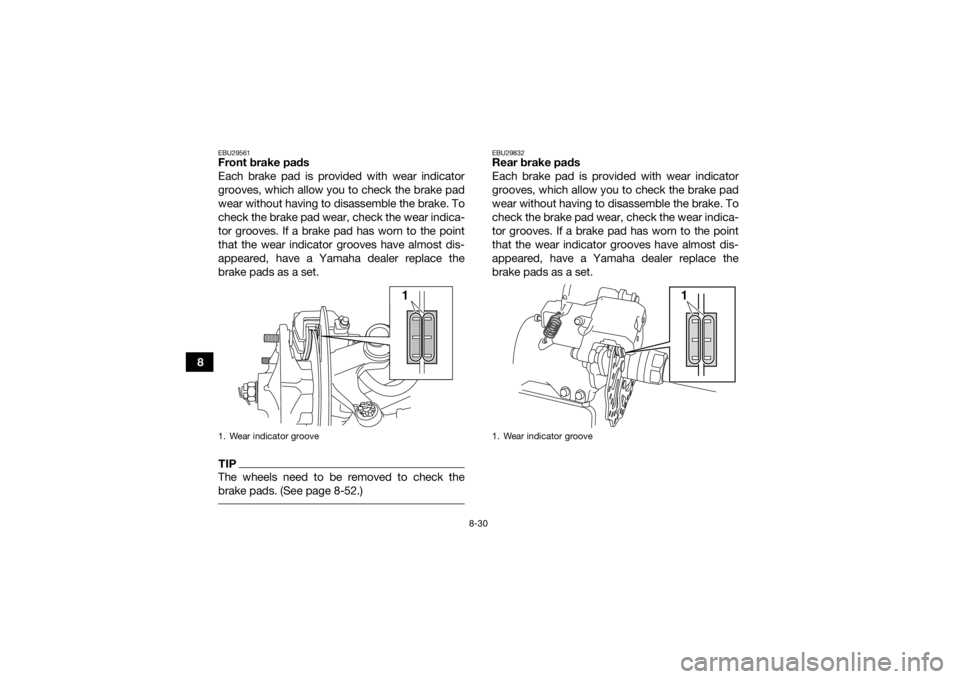

1. Wear indicator groove
1
1. Wear indicator groove
1
U2LS60E0.book Page 30 Wednesday, June 18, 2014 11:12 AM

8-31
8
EBU26828Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Check the brake fluid lev-
el with the top of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
(YFM700RF)(YFM700RSF)
Rear brake1. Minimum level mark
1
1. Minimum level mark
1. Minimum level mark
11
U2LS60E0.book Page 31 Wednesday, June 18, 2014 11:12 AM

8-32
8
TIPTo check the rear brake fluid level, remove the
seat. (See page 4-12.) To access the rear brake fluid reservoir for replen-
ishing:1. Remove the bolt and quick fastener screw.
2. Pull the cowling slightly outward as shown. 3. After replenishing, place the cowling in the
original position, and then install the bolt and
quick fastener screw.
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precautions:
1. Quick fastener screw
2. Bolt
1
2
1. Cowling
2. Brake fluid reservoir capSpecified brake fluid:DOT 4
1
2
U2LS60E0.book Page 32 Wednesday, June 18, 2014 11:12 AM

8-33
8

Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
 Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
 Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the brake pads for wear and the brake system for
leakage. If the brake fluid level goes down sud-
denly, have a Yamaha dealer check the cause be-
fore further riding.
EBU24293Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the master cylinders and calipers as well as the
brake hoses replaced at the intervals listed below
or whenever they are damaged or leaking.

Oil seals: Replace every two years.
 Brake hoses: Replace every four years.EBU24395Checking the front brake lever free
playThe brake lever free play must be checked at the
intervals specified in the periodic maintenance
and lubrication chart. The brake lever should have
no free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
U2LS60E0.book Page 33 Wednesday, June 18, 2014 11:12 AM

8-34
8
EBU24614Checking the brake pedal heightThe brake pedal height must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The top of the brake pedal should be positioned
15.3 mm (0.60 in) below the top of the footrest as
shown. If the brake pedal is not positioned as
specified, have a Yamaha dealer adjust it.
EBU24716Adjusting the parking brake free playThe parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
Cable length “A” should measure 47–51 mm
(1.85–2.01 in). Adjust the parking brake free play
as follows.
1. No brake lever free play
1. Brake pedal height
1
U2LS60E0.book Page 34 Wednesday, June 18, 2014 11:12 AM

8-35
8
1. Release the parking brake by moving the
parking brake lever to the right.
2. Fully loosen the locknut and the adjusting bolt at the rear brake caliper.
3. Slide the rubber cover back at the brake ca- ble.
4. Loosen the locknut.
5. Turn the parking brake free play adjusting nut in direction (a) to increase the cable length,
and in direction (b) to decrease it.
TIPIf the cable length cannot be adjusted to specifi-
cation, consult a Yamaha dealer. 6. Tighten the locknut on the brake cable.
7. Slide the rubber cover to its original position.
8. Turn in the adjusting bolt at the rear brake cal-iper until it feels tight, then turn it out 1/8 turn
and tighten its locknut to the specified torque.
NOTICE: When tightening the locknut,

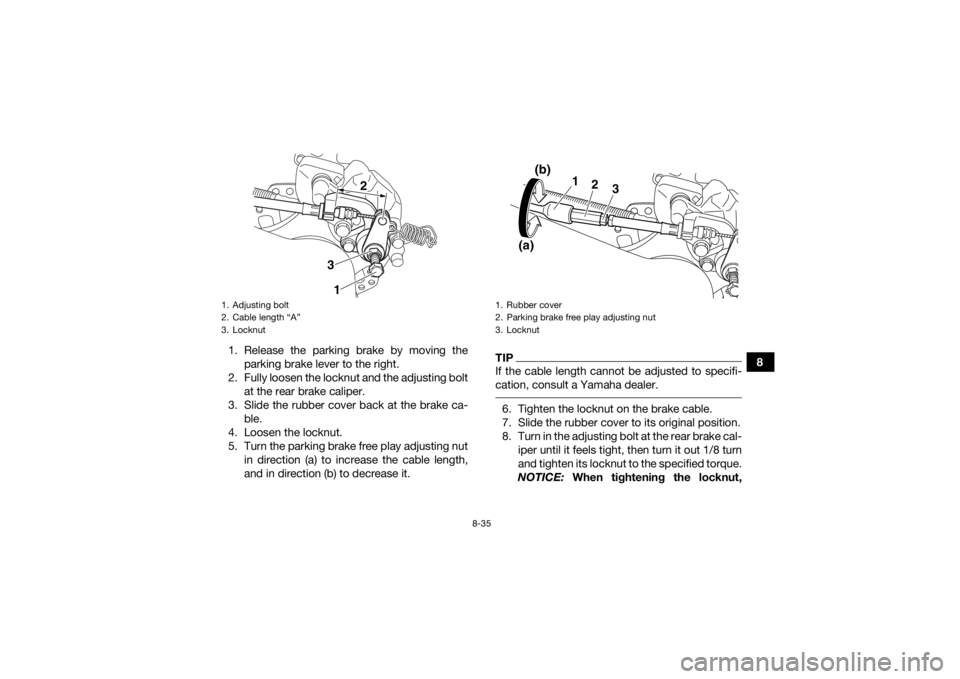

1. Adjusting bolt
2. Cable length “A”
3. Locknut
1
2
3
1. Rubber cover
2. Parking brake free play adjusting nut
3. Locknut
1
(b)
(a) 2
3
U2LS60E0.book Page 35 Wednesday, June 18, 2014 11:12 AM

8-36
8hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00522]
WARNING
EWB02091Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again. EBU24744Brake light switchesThe brake light, which is activated by the brake
pedal and brake lever, should come on just before
braking takes effect. The brake light switch for the brake pedal can be
adjusted as follows, but the front brake light
switch should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make
the brake light come on earlier, turn the adjusting
nut in direction (a). To make the brake light come
on later, turn the adjusting nut in direction (b).
EBU29752Adjusting the clutch lever free playThe clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
Tightening torque:
Locknut (rear brake caliper):16 Nm (1.6 m·kgf, 12 ft·lbf)1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2
(a)
(b)
U2LS60E0.book Page 36 Wednesday, June 18, 2014 11:12 AM

8-37
8
The clutch lever free play should measure 8.0–
13.0 mm (0.31–0.51 in) as shown. If the free play is
incorrect, adjust it as follows.
1. Slide the rubber cover back.
2. Loosen the locknut at the clutch lever.
3. To increase the clutch lever free play, turn the adjusting bolt at the clutch lever in direction
(a), and to decrease it, turn the bolt in direc-
tion (b).
TIPIf the specified clutch lever free play could be ob-
tained as described above, skip steps 4–7. 4. Fully turn the adjusting bolt at the clutch leverin direction (a) to loosen the clutch cable.
5. Loosen the locknut at the crankcase.
6. To increase the clutch lever free play, turn the adjusting nut at the crankcase in direction (a),
and to decrease it, turn the nut in direction (b).
7. Tighten the locknut at the crankcase.
1. Rubber cover
2. Clutch lever free play adjusting bolt
3. Locknut
4. Clutch lever free play
3
1
2
(a)
(b)
4
1. Locknut
2. Clutch lever free play adjusting nut
1
2
(a)
(b)
U2LS60E0.book Page 37 Wednesday, June 18, 2014 11:12 AM

8-38
88. Tighten the locknut at the clutch lever, and
then slide the rubber cover to its original po-
sition.
TIPIf the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate
correctly, have a Yamaha dealer check the internal
clutch mechanism. EBU26865Drive chain slackThe drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack1. Place the ATV on a level surface.TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground. 2. Move the ATV back and forth to locate the tightest portion of the drive chain, and then
measure the drive chain slack as shown. 3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack 1. Place the ATV on a level surface.
2. Loosen the rear wheel axle pinch bolts.
3. Insert a rod of a diameter of 8 mm (0.3 in) and a length of 10 cm (4 in) into one of the holes in
the drive chain tensioner as shown.
Drive chain slack:
25.0–35.0 mm (0.98–1.38 in)

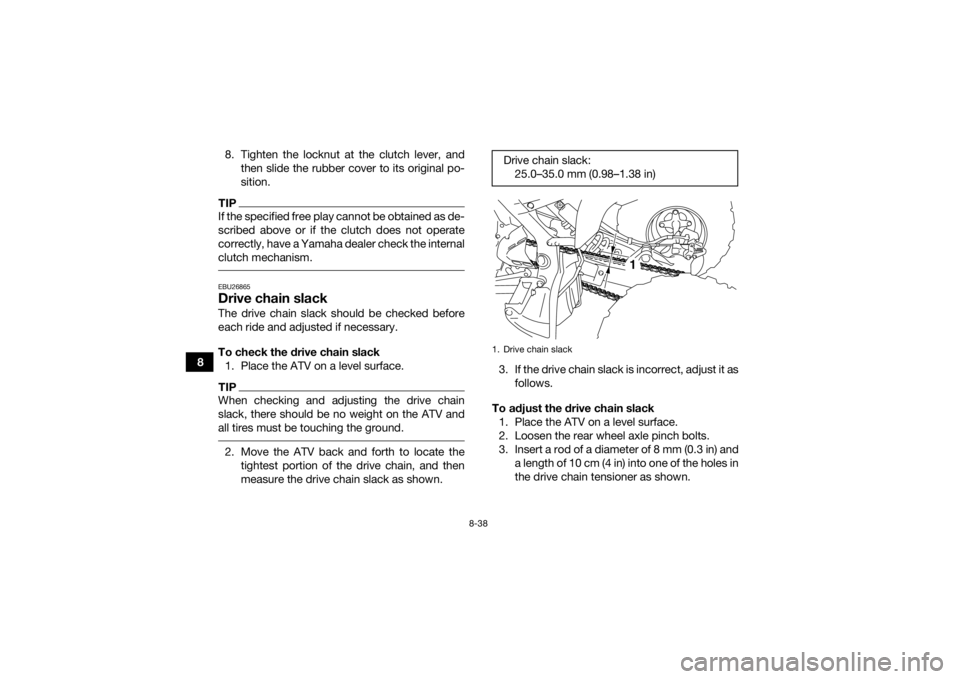

1. Drive chain slack
1
