oil level YAMAHA YFM700R 2016 Owners Manual

OPERATION ................................................... 6-1Starting the engine ...................................... 6-1
Shifting ........................................................ 6-2
Operating the reverse knob and driving in reverse ...................................................... 6-4
Engine break-in ........................................... 6-5
Parking ........................................................ 6-6
Parking on a slope ...................................... 6-6
Accessories and loading ............................. 6-7
RIDING YOUR ATV ........................................ 7-1 GETTING TO KNOW YOUR ATV ................ 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............... 7-8
TURNING YOUR ATV................................ 7-11
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL .................................. 7-16
CROSSING A SLOPE................................ 7-17
CROSSING THROUGH SHALLOW WATER .................................................... 7-18
RIDING OVER ROUGH TERRAIN ............. 7-20
SLIDING AND SKIDDING.......................... 7-20
WHAT TO DO IF... ..................................... 7-21
WHAT TO DO... ......................................... 7-22 PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for the emission control system ........................... 8-3
General maintenance and lubrication chart.......................................................... 8-5
Removing and installing the panel............ 8-10
Checking the spark plug........................... 8-10
Engine oil and oil filter element................. 8-13
Coolant ..................................................... 8-17
Cleaning the air filter element ................... 8-21
Cleaning the spark arrester ...................... 8-25
Adjusting the engine idling speed ............ 8-27
Adjusting the throttle lever free play ......... 8-28
Valve clearance......................................... 8-29
Adjusting the reverse lock release cable ....................................................... 8-29
Brakes....................................................... 8-29
Checking the front and rear brake pads... 8-29
Checking the brake fluid level .................. 8-31
Changing the brake fluid .......................... 8-33
Checking the front brake lever free play... 8-33
Checking the brake pedal height.............. 8-34
Adjusting the parking brake free play ....... 8-34
Brake light switches ................................. 8-36
Adjusting the clutch lever free play .......... 8-36U2LS61E0.book Page 2 Friday, April 17, 2015 8:25 AM

5-1
5
EBU19203
PRE-OPERATION CHECKS
EBU19226Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel • Check fuel level in fuel tank,
and add recommended fuel if neces-
sary.
• Check fuel line for leakage. Correct if necessary. 4-10, 5-4
Engine oil • Check oil level in engine oil tank, and add recommended oil to
specified level if necessary.
• Check ATV for oil leakage. Correct if necessary. 5-4, 8-13
Coolant • Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
• Check cooling system for leakage. Correct if necessary. 5-4, 8-17
U2LS61E0.book Page 1 Friday, April 17, 2015 8:25 AM

5-4
5
EBU19542FuelMake sure that there is sufficient fuel in the tank.
(See page 4-10.)EBU19561Engine oilMake sure that the engine oil is at the specified
level. Add oil as necessary. (See page 8-13.)EBU19632CoolantMake sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-17.)TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. EBU19713Front and rear brakesBrake lever and brake pedal
Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system. 
Check for correct brake pedal height. (See page
8-34.) If the pedal height is incorrect, have a
Yamaha dealer adjust it.
 Check the operation of the lever and pedal.
They should move smoothly and there should
be a firm feeling when the brakes are applied. If
not, have a Yamaha dealer check the brake sys-
tem.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-31.)
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer check the brake sys-
tem. Specified brake fluid:
DOT 4U2LS61E0.book Page 4 Friday, April 17, 2015 8:25 AM

8-13
8
EBU26788Engine oil and oil filter elementThe engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level1. Place the ATV on a level surface.
2. Start the engine, warm it up until the engine oil has reached a normal temperature of 60
°C (140 °F), let it continue to idle for ten sec-
onds or more, and then turn the engine off.TIPTo achieve the proper engine oil temperature for
an accurate oil level reading, the engine must have
first completely cooled down, and then warmed
up again for several minutes to normal operating
temperature. 3. Remove the engine oil tank filler cap, andthen wipe the engine oil dipstick off with a
clean rag.
4. Insert the dipstick in the filler hole (without screwing it in), and then remove it again to
check the oil level.
TIPThe engine oil should be between the minimum
and maximum level marks. 5. If the engine oil is at or below the minimumlevel mark, add sufficient oil of the recom-
mended type through the engine oil tank filler
hole to raise it to the correct level. NOTICE:1. Engine oil tank
2. Engine oil tank filler cap
3. Engine oil dipstick
4. Maximum level mark
5. Minimum level mark
2
3
4
5 1
U2LS61E0.book Page 13 Friday, April 17, 2015 8:25 AM

8-14
8Be sure the engine oil is at the correct lev-
el, otherwise engine damage may result.
[ECB00852]
TIPWhen adding oil, be careful not to overfill the en-
gine oil tank; the oil level rises faster starting from
the half-level-portion on the dipstick. 6. Insert the dipstick into the engine oil tank filler
hole, and then tighten the engine oil tank filler
cap. NOTICE: Make sure that the engine oil
tank filler cap is securely tightened; other-
wise, oil may seep out when the engine is
running.
[ECB00363]
To change the engine oil (with or without oil fil-
ter element replacement) 1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min- utes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the crankcase engine oil filler bolt and its O-ring, and then remove the crank-
case engine oil drain bolt and its gasket.
1. Crankcase engine oil filler bolt
2. O-ring
1. Crankcase engine oil drain bolt
2. Gasket
2112
U2LS61E0.book Page 14 Friday, April 17, 2015 8:25 AM

8-17
8
14. Remove the engine oil tank filler cap, and
then gradually fill the oil tank with the remain-
ing oil quantity while regularly checking the oil
level on the dipstick.
15. Install and tighten the engine oil tank filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
 Make sure that no foreign material enters the
crankcase.
16. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
17. Turn the engine off, and then check the oil level and correct it if necessary.EBU23471CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27945To check the coolant level1. Place the ATV on a level surface.
Recommended oil:
See page 10-1.
Oil quantity: Without oil filter element replacement:1.75 L (1.85 US qt, 1.54 Imp.qt)
With oil filter element replacement: 1.85 L (1.96 US qt, 1.63 Imp.qt)
U2LS61E0.book Page 17 Friday, April 17, 2015 8:25 AM

8-33
8

Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
 Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
 Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the brake pads for wear and the brake system for
leakage. If the brake fluid level goes down sud-
denly, have a Yamaha dealer check the cause be-
fore further riding.
EBU24293Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the master cylinders and calipers as well as the
brake hoses replaced at the intervals listed below
or whenever they are damaged or leaking.

Oil seals: Replace every two years.
 Brake hoses: Replace every four years.EBU24395Checking the front brake lever free
playThe brake lever free play must be checked at the
intervals specified in the periodic maintenance
and lubrication chart. The brake lever should have
no free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
U2LS61E0.book Page 33 Friday, April 17, 2015 8:25 AM

10-2
10

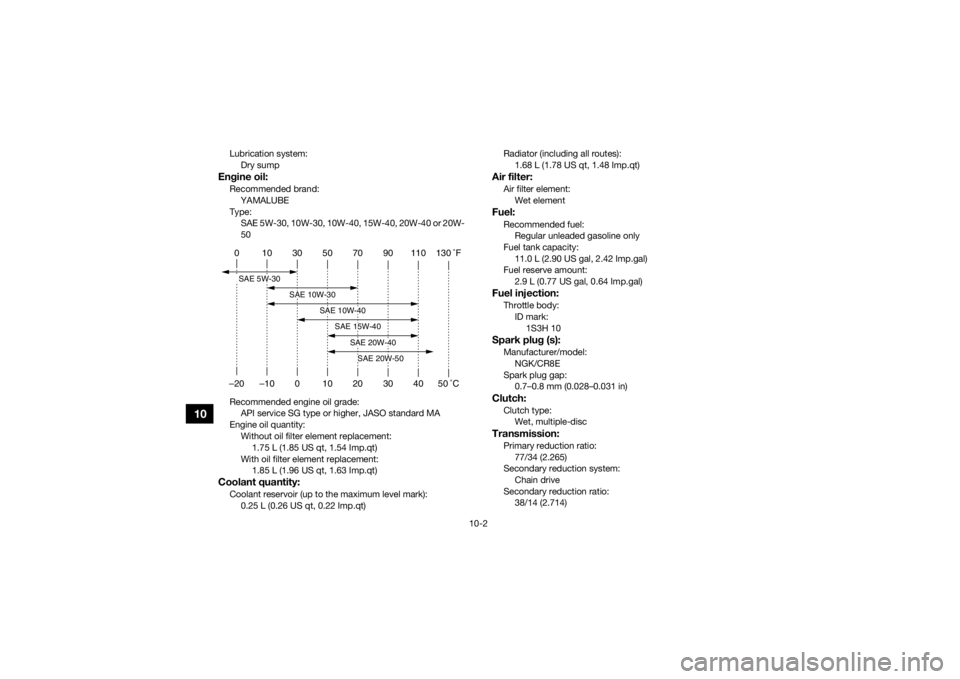

Lubrication system:Dry sumpEngine oil:Recommended brand:
YAMALUBE
Type: SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter element replacement: 1.75 L (1.85 US qt, 1.54 Imp.qt)
With oil filter element replacement: 1.85 L (1.96 US qt, 1.63 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt) Radiator (including all routes):
1.68 L (1.78 US qt, 1.48 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity:
11.0 L (2.90 US gal, 2.42 Imp.gal)
Fuel reserve amount: 2.9 L (0.77 US gal, 0.64 Imp.gal)Fuel injection:Throttle body:
ID mark: 1S3H 10Spark plug (s):Manufacturer/model:NGK/CR8E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:
77/34 (2.265)
Secondary reduction system: Chain drive
Secondary reduction ratio: 38/14 (2.714)
0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U2LS61E0.book Page 2 Friday, April 17, 2015 8:25 AM

10-4
10
Rim size:9 x 8.0ATFront brake:Type:
Disc brake
Operation: Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:Disc brake
Operation: Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:Double wishbone
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 230 mm (9.1 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 256 mm (10.1 in)
Electrical system:Ignition system:TCI
Charging system:
AC magnetoBattery:Model:GT9B-4
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light: LED
Neutral indicator light:
LED
Fuel level warning light: LED
Reverse indicator light: LED
Coolant temperature warning light:
LED
Engine trouble warning light: LEDFuses:Main fuse:
30.0 A
U2LS61E0.book Page 4 Friday, April 17, 2015 8:25 AM

12-1
12
INDEX
AAccessories and loading ................................................ 6-7
Air filter element, cleaning ............................................ 8-21BBattery .......................................................................... 8-45
Brake and clutch levers, checking and lubricating ...... 8-41
Brake fluid, changing ...................................................8-33
Brake fluid level, checking ........................................... 8-31
Brake lever ..................................................................... 4-6
Brake lever free play, checking the front ..................... 8-33
Brake light switches ..................................................... 8-36
Brake pads, checking the front and rear ..................... 8-29
Brake pedal .................................................................... 4-7
Brake pedal, checking and lubricating ........................ 8-41
Brake pedal height, checking ...................................... 8-34
Brakes .......................................................................... 8-29
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-40
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-6
Clutch lever free play, adjusting ................................... 8-36
Coolant ................................................................. 5-4, 8-17
Coolant temperature warning light ................................. 4-2DDrive chain ..................................................................... 5-5
Drive chain, lubricating ................................................ 8-40
Drive chain slack .......................................................... 8-38
EEngine break-in .............................................................. 6-5
Engine idling speed ...................................................... 8-27
Engine oil ....................................................................... 5-4
Engine oil and oil filter element .................................... 8-13
Engine, start ................................................................... 6-1
Engine stop switch ......................................................... 4-4
Engine trouble warning light .......................................... 4-3FFuel ...................................................................... 4-10, 5-4
Fuel level warning light ................................................... 4-3
Fuel tank cap ............................................................... 4-10
Fuses, replacing ........................................................... 8-48HHandlebar switches ....................................................... 4-4
Headlight beam, adjusting ........................................... 8-51
Headlight bulb, replacing ............................................. 8-50IIdentification numbers ................................................. 11-1
Indicator lights and warning lights ................................. 4-2
Instruments, lights and switches ................................... 5-8LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-4MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................ 8-5
Maintenance chart, emission control system ................ 8-3
Model label .................................................................. 11-1
U2LS61E0.book Page 1 Friday, April 17, 2015 8:25 AM
