4-15
4

Do not tamper with or attempt to open the
cylinder assemblies.
 Do not subject the shock absorber assem-
blies to an open flame or other high heat
source. This may cause the unit to explode
due to excessive gas pressure.
 Do not deform or damage the cylinders in
any way. Cylinder damage will result in poor
damping performance.
 Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
EBU30981Adjusting the front shock absorber as-
semblies (YFM70RSSH/YFM70RSXH)These shock absorber assemblies are equipped
with a spring preload adjusting nut, a rebound
damping force adjusting screw, with a compres-
sion damping force adjusting bolt (for fast com-
pression damping), and a compression damping
force adjusting screw (for slow compression
damping).
WARNING
EWB02492Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or
the oil reservoir with your bare hand or skin
until suspension components have cooled.
 Always adjust the shock absorber assem-
blies on the left and right side to the same
setting. Uneven adjustment can cause poor
handling and loss of stability, which could
lead to an accident. NOTICEECB00091Never turn an adjusting mechanism beyond
the minimum and maximum settings. TIPAlthough the total number of clicks or turns of a
damping force adjusting mechanism may not ex-
actly match the following specifications due to
small differences in production, the actual number
of clicks or turns always represents the entire ad-
justing range. To obtain a precise adjustment, it
U2LS62E0.book Page 15 Thursday, February 25, 2016 8:44 AM

4-22
4
EBU30991Adjusting the rear shock absorber as-
sembly (YFM70RSSH/YFM70RSXH)This shock absorber assembly is equipped with a
spring preload adjusting nut, a rebound damping
force adjusting screw, with a compression damp-
ing force adjusting bolt (for fast compression
damping), and a compression damping force ad-
justing screw (for slow compression damping).
WARNING
EWB02681Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or the
oil reservoir with your bare hand or skin until
the suspension components have cooled. NOTICEECB00091Never turn an adjusting mechanism beyond
the minimum and maximum settings.
TIPAlthough the total number of clicks or turns of a
damping force adjusting mechanism may not ex-
actly match the following specifications due to
small differences in production, the actual number
of clicks or turns always represents the entire ad-
justing range. To obtain a precise adjustment, it
would be advisable to check the number of clicks
or turns of each damping force adjusting mecha-
nism and to modify the specifications as neces-
sary. Spring preload1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direc- tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.
U2LS62E0.book Page 22 Thursday, February 25, 2016 8:44 AM

8-53
8
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.

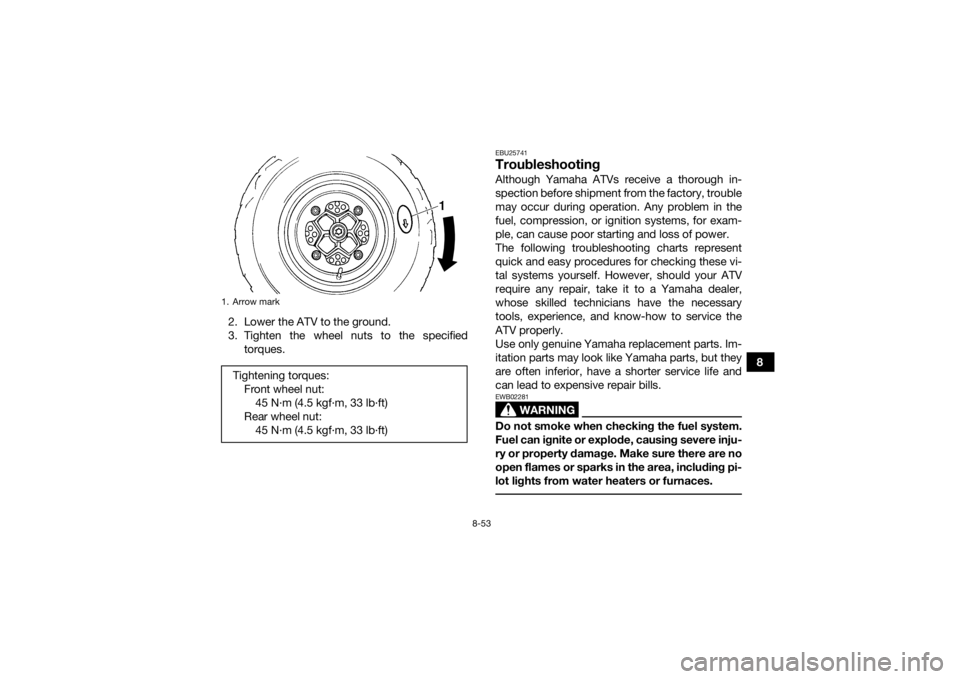

1. Arrow markTightening torques:Front wheel nut:45 N·m (4.5 kgf·m, 33 lb·ft)
Rear wheel nut: 45 N·m (4.5 kgf·m, 33 lb·ft)
U2LS62E0.book Page 53 Thursday, February 25, 2016 8:44 AM

10-1
10
EBU25962
SPECIFICATIONS
Dimensions:Overall length:1845 mm (72.6 in)
Overall width: 1155 mm (45.5 in)
Overall height:
1115 mm (43.9 in)
Seat height: 830 mm (32.7 in)
Wheelbase: 1280 mm (50.4 in)
Ground clearance:
240 mm (9.4 in)
Minimum turning radius: 3500 mm (138 in)Weight:Curb weight:
192.0 kg (423 lb)Noise and vibration level:Noise level (77/311/EEC):84.0 dB(A) at 3125 r/min (YFM70RSBH, YFM70RSSH)
Uncertainty of measurement:
3.0 dB(A) (YFM70RSBH, YFM70RSSH)
A-weighted sound power level: 97.0 dB(A) at 3125 r/min (YFM70RSBH, YFM70RSSH)
Uncertainty of measurement: 3.0 dB(A) (YFM70RSBH, YFM70RSSH) Vibration on seat (EN1032, ISO5008):
0.7 m/s² (YFM70RSBH, YFM70RSSH)
Uncertainty of measurement: 0.6 m/s² (YFM70RSBH, YFM70RSSH)
Vibration on handle (EN1032, ISO5008): 4.7 m/s² (YFM70RSBH, YFM70RSSH)
Uncertainty of measurement:
0.5 m/s² (YFM70RSBH, YFM70RSSH)
Engine:Engine type:Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Single cylinder
Displacement: 686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio:
10.0 : 1
Starting system: Electric starter
Lubrication system: Dry sumpEngine oil:Recommended brand:YAMALUBE
