YAMAHA YFM700R 2018 Owners Manual

8-43
8
EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
EBU24996Lubricating the swingarm pivotsThe swingarm pivots must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.
Recommended lubricant:
Lithium-soap-based greaseRecommended lubricant:Lithium-soap-based grease
U2LS63E0.book Page 43 Friday, March 31, 2017 8:42 AM

8-44
8
EBU25006Lubricating the rear suspension relay
arm and connecting arm pivoting
pointsThe rear suspension relay arm and connecting
arm pivoting points must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.Recommended lubricant:Lithium-soap-based grease1. Grease nipple
1
1. Grease nipple
1. Grease nipple
1
1
U2LS63E0.book Page 44 Friday, March 31, 2017 8:42 AM

8-45
8
TIPFor parts equipped with a grease nipple, use a

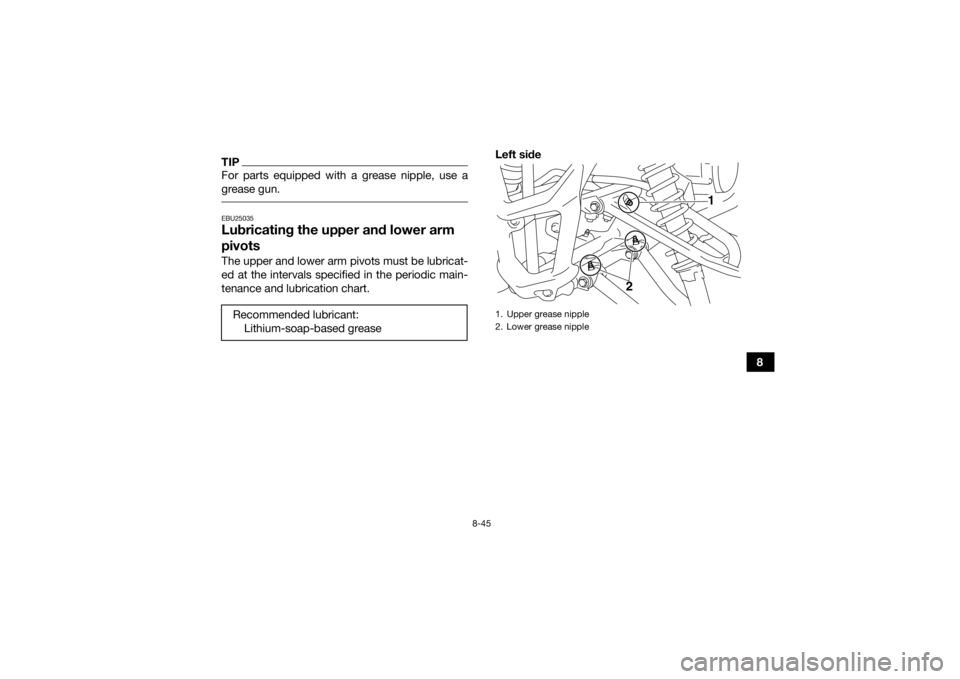

grease gun. EBU25035Lubricating the upper and lower arm
pivotsThe upper and lower arm pivots must be lubricat-
ed at the intervals specified in the periodic main-
tenance and lubrication chart.Left side
Recommended lubricant: Lithium-soap-based grease
1. Upper grease nipple
2. Lower grease nipple
1
2
U2LS63E0.book Page 45 Friday, March 31, 2017 8:42 AM

8-46

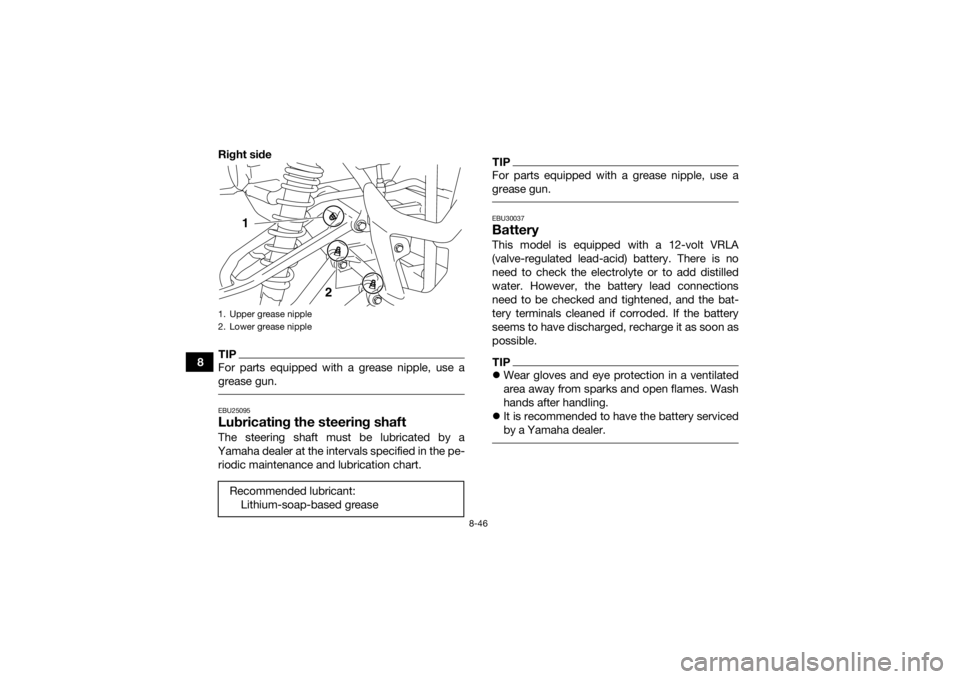

8Right side
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU25095Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU30037BatteryThis model is equipped with a 12-volt VRLA
(valve-regulated lead-acid) battery. There is no
need to check the electrolyte or to add distilled
water. However, the battery lead connections
need to be checked and tightened, and the bat-
tery terminals cleaned if corroded. If the battery
seems to have discharged, recharge it as soon as
possible.TIP Wear gloves and eye protection in a ventilated
area away from sparks and open flames. Wash
hands after handling.
 It is recommended to have the battery serviced
by a Yamaha dealer.
1. Upper grease nipple
2. Lower grease nippleRecommended lubricant:
Lithium-soap-based grease
1
2
U2LS63E0.book Page 46 Friday, March 31, 2017 8:42 AM

8-47
8
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.

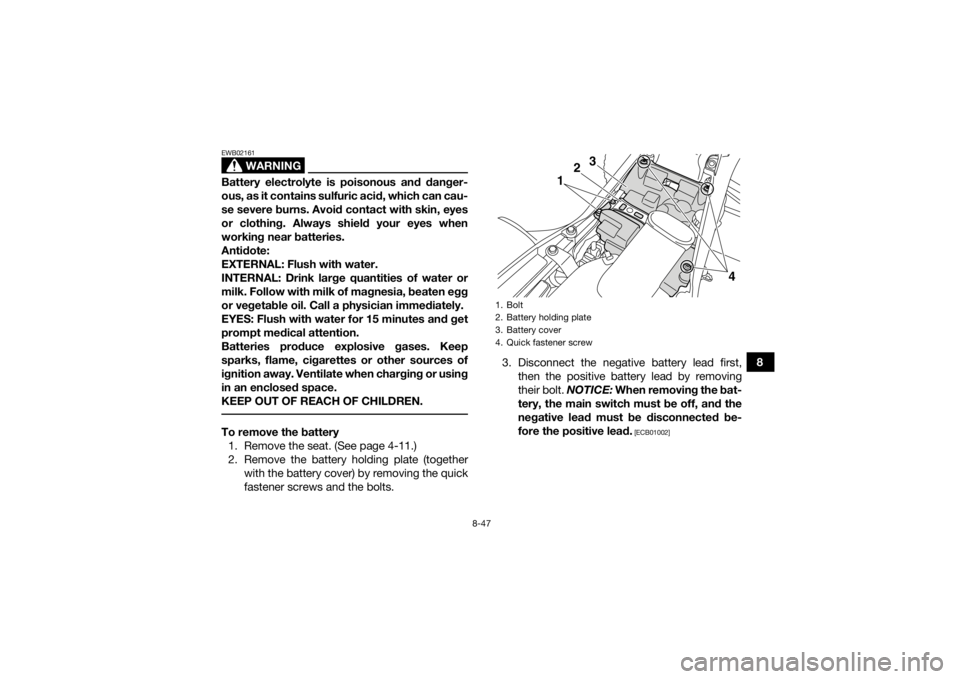

KEEP OUT OF REACH OF CHILDREN. To remove the battery1. Remove the seat. (See page 4-11.)
2. Remove the battery holding plate (together with the battery cover) by removing the quick
fastener screws and the bolts. 3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
1. Bolt
2. Battery holding plate
3. Battery cover
4. Quick fastener screw
1 2
4
3
U2LS63E0.book Page 47 Friday, March 31, 2017 8:42 AM

8-48
84. Pull the battery out of its compartment.
NOTICEECB00622Never attempt to open the battery or remove
the battery cell seals, as this would permanent-
ly damage the battery. To charge the battery

Confirm the recommended charging rate as
specified on the battery itself.
 Select a suitable charger and follow the manu-
facturer’s instructions.
NOTICEECB00933To charge a VRLA (valve-regulated lead-acid)
battery, a special battery charger is required.
Using a conventional battery charger will dam-
age the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
 If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00942Always keep the battery charged. Storing the
battery in a discharged state for an extended
period of time will cause permanent battery
damage.
 Do not store the battery in an excessively
cold or warm place [below freezing or above
30 °C (90 °F)]. To install the battery
1. Place the battery in its compartment.
1. Negative battery lead (black)
2. Battery
3. Positive battery lead (red)
1 3
2
U2LS63E0.book Page 48 Friday, March 31, 2017 8:42 AM

8-49
8
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Hook the battery holding plate onto the bat- tery box. 4. Install the battery holding plate with the bat-
tery cover by installing the bolts and the quick
fastener screws.
5. Install the seat. (See page 4-11.)
TIP Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it.
1. Positive battery lead (red)
2. Negative battery lead (black)
2 1
1. Battery holding plate
2. Battery box
2
1
U2LS63E0.book Page 49 Friday, March 31, 2017 8:42 AM

8-50
8

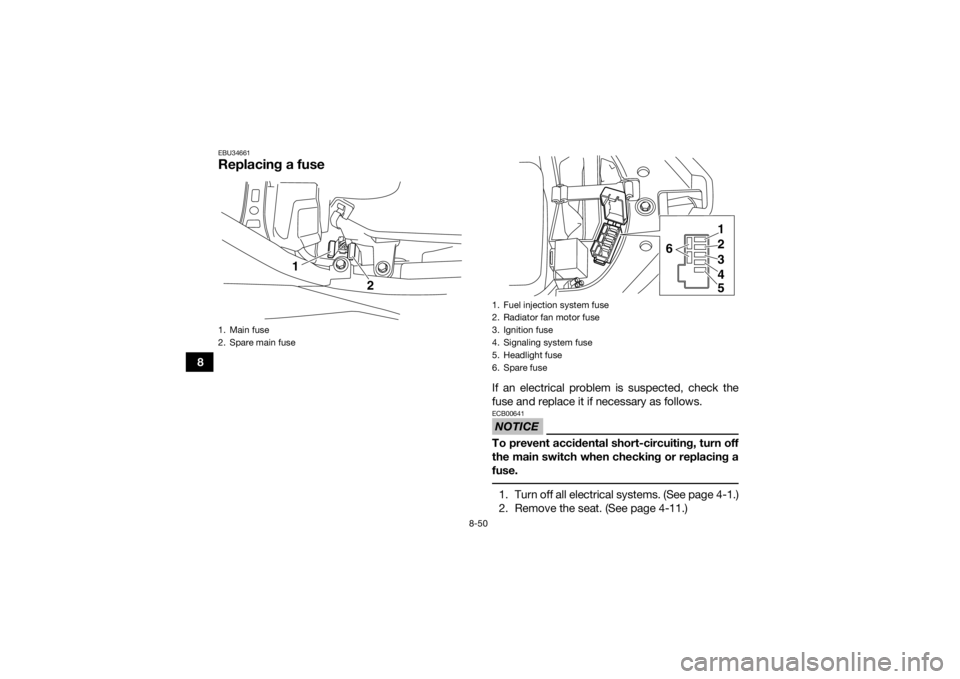

EBU34661Replacing a fuse
If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. 1. Turn off all electrical systems. (See page 4-1.)
2. Remove the seat. (See page 4-11.)
1. Main fuse
2. Spare main fuse
12
1. Fuel injection system fuse
2. Radiator fan motor fuse
3. Ignition fuse
4. Signaling system fuse
5. Headlight fuse
6. Spare fuse
1
2
3
45
6
U2LS63E0.book Page 50 Friday, March 31, 2017 8:42 AM

8-51
8
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
4. Turn on the main switch and start the engine.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
6. Install the seat.
EBU30165Replacing a headlight bulbIf a headlight bulb burns out, replace it as follows. 1. Remove the headlight unit by removing the bolt and pulling the headlight unit outward as
shown.
2. Remove the bulb cover.
Specified fuses:
Main fuse:30.0 A
Headlight fuse: 10.0 A
Ignition fuse: 10.0 A
Signaling system fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse: 10.0 A1. Bolt
2. Headlight unit
2
1
U2LS63E0.book Page 51 Friday, March 31, 2017 8:42 AM

8-52

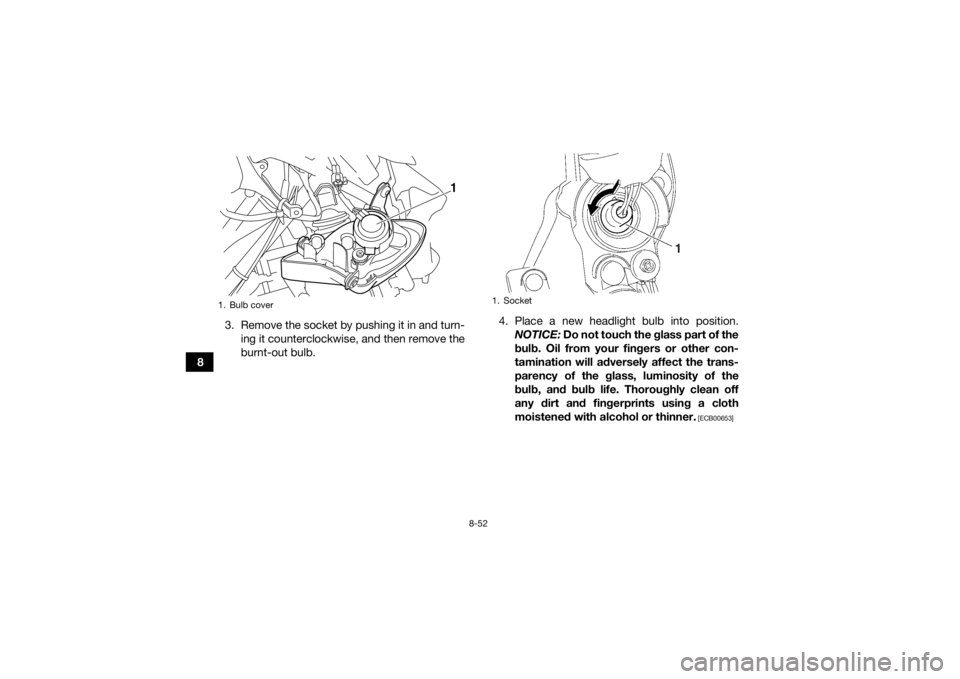

83. Remove the socket by pushing it in and turn-
ing it counterclockwise, and then remove the
burnt-out bulb. 4. Place a new headlight bulb into position.
NOTICE: Do not touch the glass part of the
bulb. Oil from your fingers or other con-
tamination will adversely affect the trans-
parency of the glass, luminosity of the
bulb, and bulb life. Thoroughly clean off
any dirt and fingerprints using a cloth
moistened with alcohol or thinner.
[ECB00653]
1. Bulb cover
1
1. Socket
1
U2LS63E0.book Page 52 Friday, March 31, 2017 8:42 AM
