YAMAHA YFM700R 2019 Owner's Guide
Manufacturer: YAMAHA, Model Year: 2019, Model line: YFM700R, Model: YAMAHA YFM700R 2019Pages: 166, PDF Size: 5.6 MB
Page 31 of 166
4-1
4
EBU17739
INSTRUMENT AND CONTROL FUNCTIONS
EBU29913Main switch“” (on)
All electrical systems are supplied with power. The
engine can be started. The key cannot be re-
moved.
“ ” (off)
All electrical systems are off. The key can be re-
moved.
EBU26697Indicator lights and warning lights
OFF ON
1. Neutral indicator light “N”
2. Reverse indicator light “R”
3. Park indicator light “P”
4. Coolant temperature warning light “ ”
5. Electric Power Steering warning light “EPS” (for EPS model)
6. Engine trouble warning light “ ”
7. Four-wheel drive indicator light “ ”1
2
3 4
6
7
5
UBB561E0.book Page 1 Monday, March 26, 2018 11:15 AM
Page 32 of 166
4-2
4
EBU17861Neutral indicator light “ ”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17831Reverse indicator light “ ”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17971Park indicator light “ ”
This indicator light comes on when the transmis-
sion is in the park position.EBU34562Coolant temperature warning light “ ”
This warning light comes on when the engine
overheats. When this occurs during operation,
stop the engine as soon as it is safe to do so and
allow it to cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
electrical circuit.
TIPThe radiator fan turns on or off automatically ac-
cording to the coolant temperature. NOTICEECB02401The engine may overheat if the ATV is over-
loaded. Reduce the load to specification.
The engine may overheat if mud or dirt has
accumulated on the radiator. Gently clean
the radiator. (See page 9-1.)
Continuous use while the warning light is on
will damage the engine. EBU29943Engine trouble warning light “ ”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
UBB561E0.book Page 2 Monday, March 26, 2018 11:15 AM
Page 33 of 166
4-3
4
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
electrical circuit.
EBU30571Electric Power Steering warning light “EPS”
(for EPS model)
This warning light comes on when the key is
turned to “ ” (on), and then goes off once the
engine is started. If the warning light remains on or
comes on after the engine is started, the EPS sys-
tem may not be working correctly. When this oc-
curs, have a Yamaha dealer check the EPS
system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). If the
warning light does not come on, have a Yamaha
dealer check the electrical circuit.TIP
If the engine is stopped using the engine stop
switch and the key is in the “ ” (on) position,
the EPS warning light comes on to indicate that
the power assistance for the steering is not
functioning.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating.
EBU17955Four-wheel drive indicator light “ ”
This indicator light comes on when the drivetrain
is set to “4WD” (four-wheel drive).TIPDue to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving.
UBB561E0.book Page 3 Monday, March 26, 2018 11:15 AM
Page 34 of 166
4-4
4

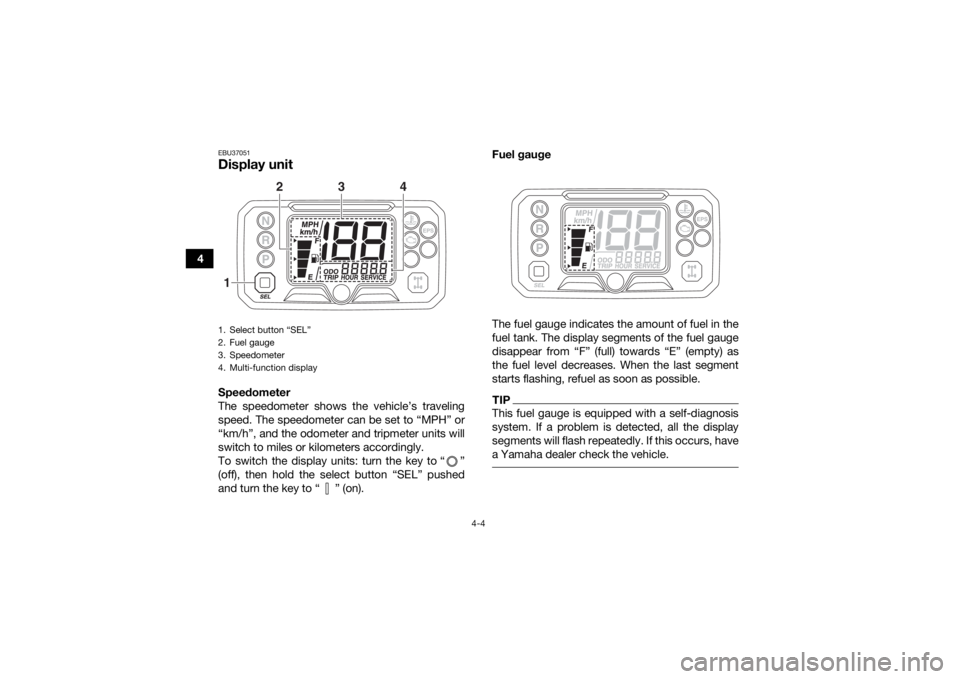

EBU37051Display unit Speedometer
The speedometer shows the vehicle’s traveling
speed. The speedometer can be set to “MPH” or
“km/h”, and the odometer and tripmeter units will
switch to miles or kilometers accordingly.
To switch the display units: turn the key to “ ”
(off), then hold the select button “SEL” pushed
and turn the key to “ ” (on).Fuel gauge
The fuel gauge indicates the amount of fuel in the
fuel tank. The display segments of the fuel gauge
disappear from “F” (full) towards “E” (empty) as
the fuel level decreases. When the last segment
starts flashing, refuel as soon as possible.
TIPThis fuel gauge is equipped with a self-diagnosis
system. If a problem is detected, all the display
segments will flash repeatedly. If this occurs, have
a Yamaha dealer check the vehicle.
1. Select button “SEL”
2. Fuel gauge
3. Speedometer
4. Multi-function display1
2
4
3
UBB561E0.book Page 4 Monday, March 26, 2018 11:15 AM
Page 35 of 166
4-5
4
Multi-function display
Push the select button “SEL” to switch the display
between the odometer “ODO”, the tripmeter
“TRIP”, the service tripmeter “SERVICE”, and the
hour meter “HOUR” in the following order:
ODO
→ TRIP → SERVICE → HOUR → ODO
Odometer and tripmeter
The odometer shows the total distance traveled
by the vehicle.
The tripmeter shows the distance traveled since it
was last reset.
To reset the tripmeter, push the select button
“SEL” for one second.
TIP The odometer will lock at 99999.
The tripmeter will reset and continue counting
after 9999.9 is reached. Service tripmeter
The service tripmeter shows the distance traveled
since it was reset at the last maintenance.
To reset the service tripmeter, push the select but-
ton “SEL” for one second.TIPThe service tripmeter will reset and continue
counting after 9999.9 is reached. Hour meter
The hour meter shows the total time the engine
has been running.EBU30761Self-diagnosis deviceThis model is equipped with a self-diagnosis de-
vice for various electrical circuits.
UBB561E0.book Page 5 Monday, March 26, 2018 11:15 AM
Page 36 of 166
4-6
4If a problem is detected in any of those circuits,
the engine trouble warning light will come on or
flash. If this occurs, have a Yamaha dealer check
the vehicle.
NOTICEECB01181To prevent engine damage, be sure to consult
a Yamaha dealer as soon as possible if this oc-
curs. EBU18067Handlebar switches
EBU18081Engine stop switch “ / ”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this
switch to stop the engine in an emergency situa-
tion. The engine will not start or run when this
switch is set to “ ”.EBU18102Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.
1. Light switch “ / /OFF”
2. Engine stop switch “ / ”
3. Start switch “ ”
4. Horn switch “ ”
3421
1. On-Command drive switch “2WD/4WD”
UBB561E0.book Page 6 Monday, March 26, 2018 11:15 AM
Page 37 of 166
4-7
4
EBU34123Light switch “ / /OFF”
Set this switch to “ ” to turn on the left and right
headlights (low beams) and the taillight. Set the
switch to “ ” to turn on the left and right head-
lights (high beams), the handlebar-mounted light
(YFM45KPXK / YFM45KPHK / YFM45KPLK), and
the taillight. Set the switch to “OFF” to turn off all
the lights.NOTICEECB00046Do not use the headlights with the engine
turned off for an extended period of time. The
battery may discharge to the point that the
starter will not have enough power to crank the
engine. If this should happen, remove the bat-
tery and recharge it. (See page 8-52.) EBU18171Horn switch “ ”
Press the switch to sound the horn.EBU28434On-Command drive switch “2WD/4WD”
Stop the ATV and push this switch to change from
two-wheel drive to four-wheel drive or vice versa.
Select the appropriate drive according to the ter-
rain and riding conditions.
“2WD” (two-wheel drive): power is supplied to
the rear wheels only, giving a smooth ride and
fuel economy.
“4WD” (four-wheel drive): power is supplied to
the front and rear wheels, giving maximum trac-
tion.
WARNING
EWB00164Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly
handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.
UBB561E0.book Page 7 Monday, March 26, 2018 11:15 AM
Page 38 of 166
4-8
4
EBU18285Throttle leverPush the throttle lever to increase engine speed.
Spring tension returns the lever to the rest position
when released. Always check that the throttle le-
ver returns normally before starting the engine.
EBU18325Speed limiterThe speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum.
Adjusting the speed limiter1. Loosen the locknut.
2. To increase the maximum engine poweravailable and the maximum speed of the ATV,
turn the adjusting screw in direction (a). To
decrease the maximum engine power avail-
able and the maximum speed of the ATV, turn
1. Throttle lever
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
UBB561E0.book Page 8 Monday, March 26, 2018 11:15 AM
Page 39 of 166
4-9
4
the adjusting screw in direction (b). Do not
turn the adjusting screw out more than 12
mm (0.47 in) or the throttle cable could be
damaged. Always make sure the throttle lever
free play is adjusted to 3.0–5.0 mm (0.12–
0.20 in). (See page 8-38.)
WARNING! Im-
proper adjustment of the speed limiter and
throttle could cause throttle cable damage
or improper throttle operation. You could
lose control, resulting in an accident.
[EWB00242]
3. Tighten the locknut.EBU18393Front brake lever
The front brake lever is located on the right han-
dlebar. To apply the front brake, pull the brake le-
ver toward the handlebar grip.EBU18444Brake pedal and rear brake lever
1. Front brake lever
1. Brake pedal
1
UBB561E0.book Page 9 Monday, March 26, 2018 11:15 AM
Page 40 of 166
4-10
4The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
handlebar grip.
EBU18614Drive select leverThe drive select lever is used to shift the transmis-
sion into the low-range, high-range, neutral, re-
verse and park positions. See page 6-2 for drive
select lever operation.

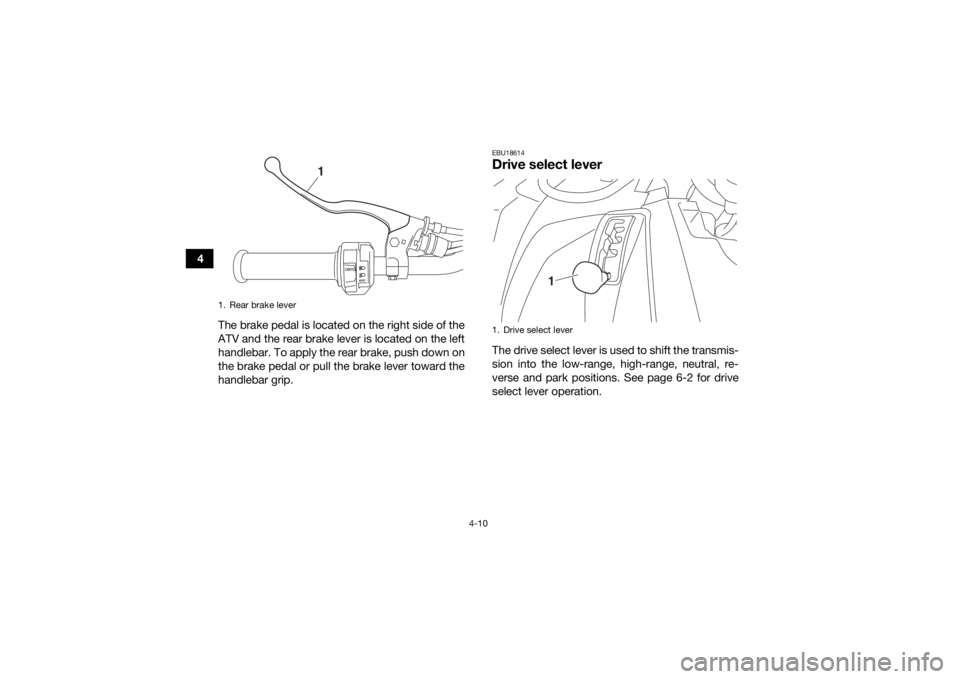

1. Rear brake lever
1
1. Drive select lever
1
UBB561E0.book Page 10 Monday, March 26, 2018 11:15 AM
