83. Install the battery holding plate by installing
the bolts.
4. Install the seat. (See page 4-13.)
TIP Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it.

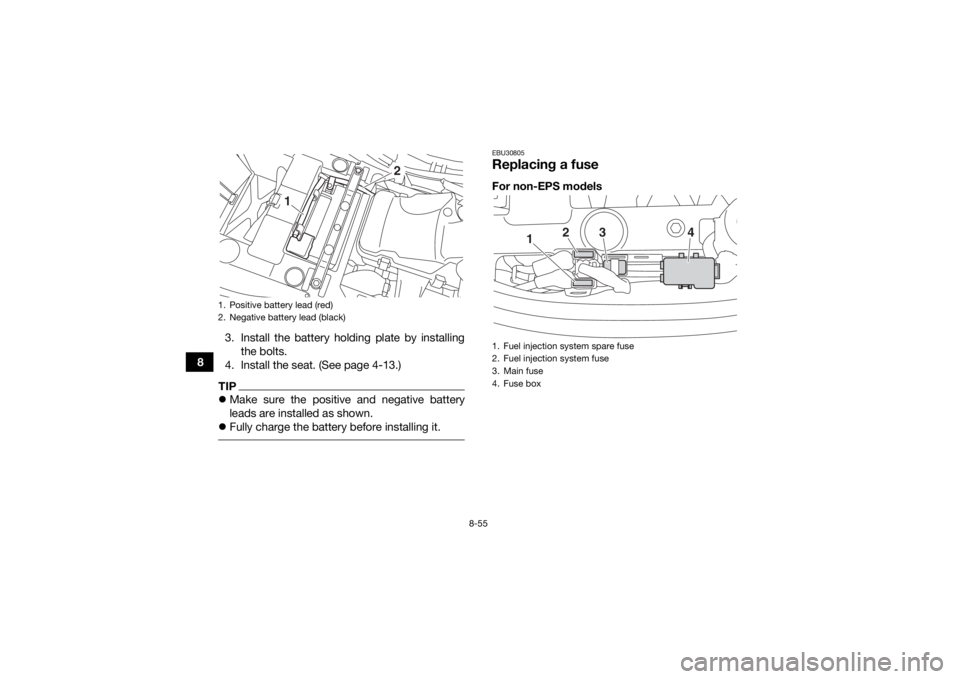

EBU30805Replacing a fuseFor non-EPS models
1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. Fuse box
1
2
3
4
UBB561E0.book Page 55 Monday, March 26, 2018 11:15 AM

8-56
8

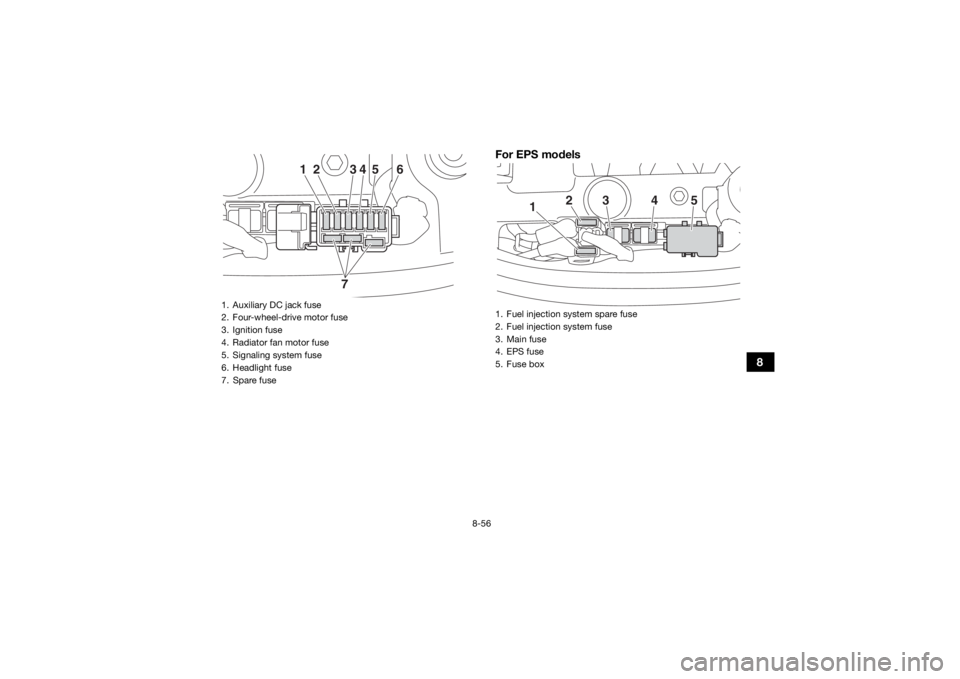

For EPS models
1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. EPS fuse
5. Fuse box
1
2
3
4
5
