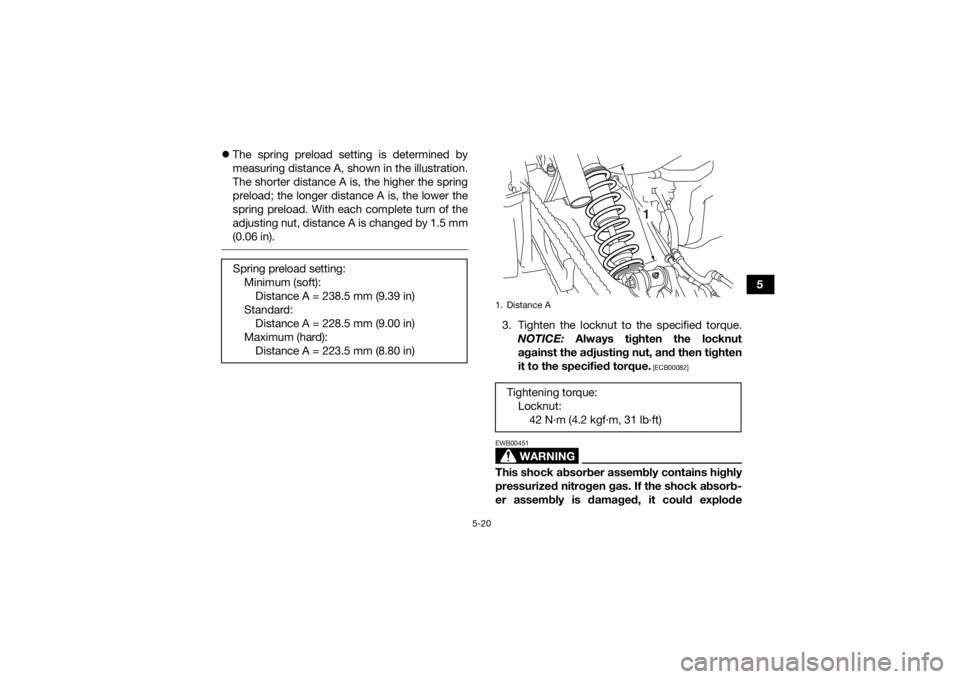

TIPThe spring preload setting is determined by
measuring distance A, shown in the illustration.
 The shorter distance A is, the greater the spring
preload. The longer distance A is, the lesser the
spring preload.
 Each complete turn of the adjusting nut chang-
es distance A by 1.5 mm (0.06 in).
3. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00082]

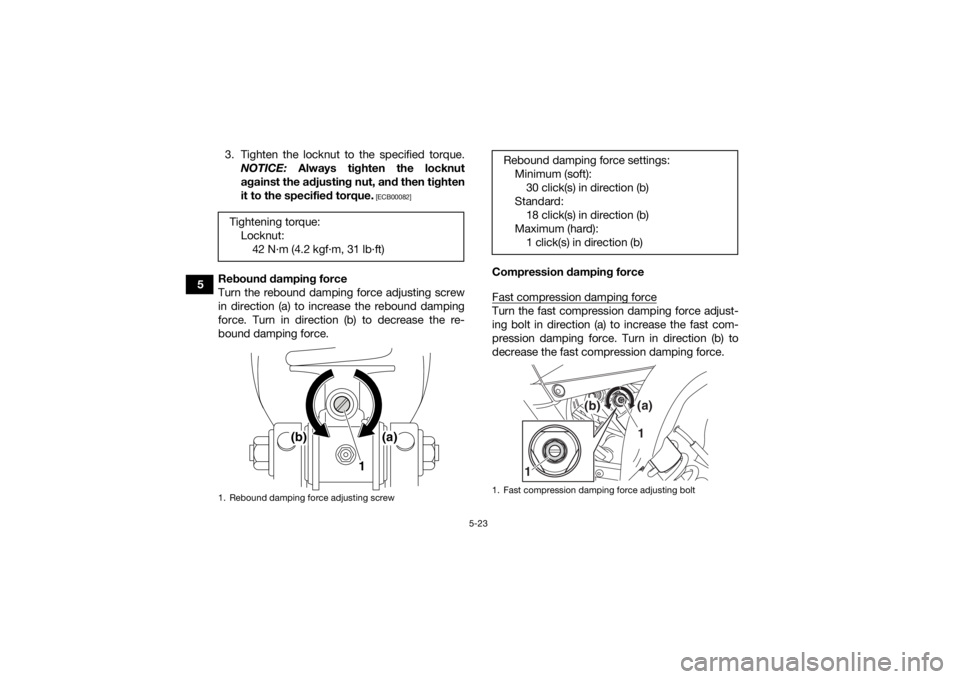

Rebound damping force
Turn the rebound damping force adjusting screw
in direction (a) to increase the rebound damping
force. Turn in direction (b) to decrease the re-
bound damping force.
Spring preload setting:
Minimum (soft):Distance A = 268.0 mm (10.55 in)
Standard: Distance A = 262.0 mm (10.31 in)
Maximum (hard): Distance A = 253.0 mm (9.96 in)1. Distance ATightening torque: Locknut:42 N·m (4.2 kgf·m, 31 lb·ft)
1
UBCX60E0.book Page 16 Friday, April 19, 2019 9:09 AM

5-17

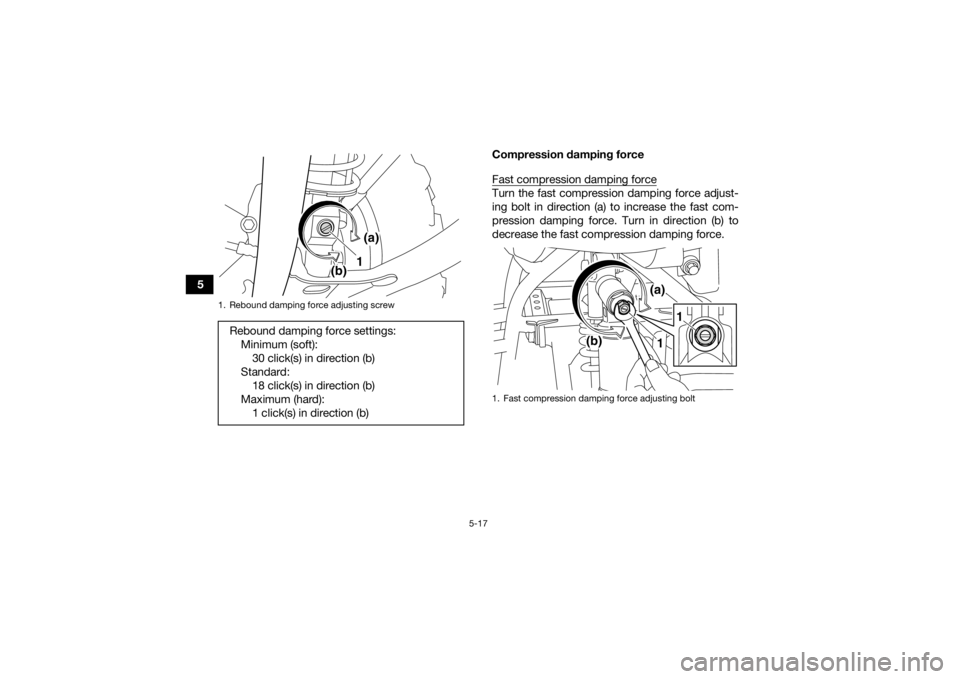

5Compression damping force

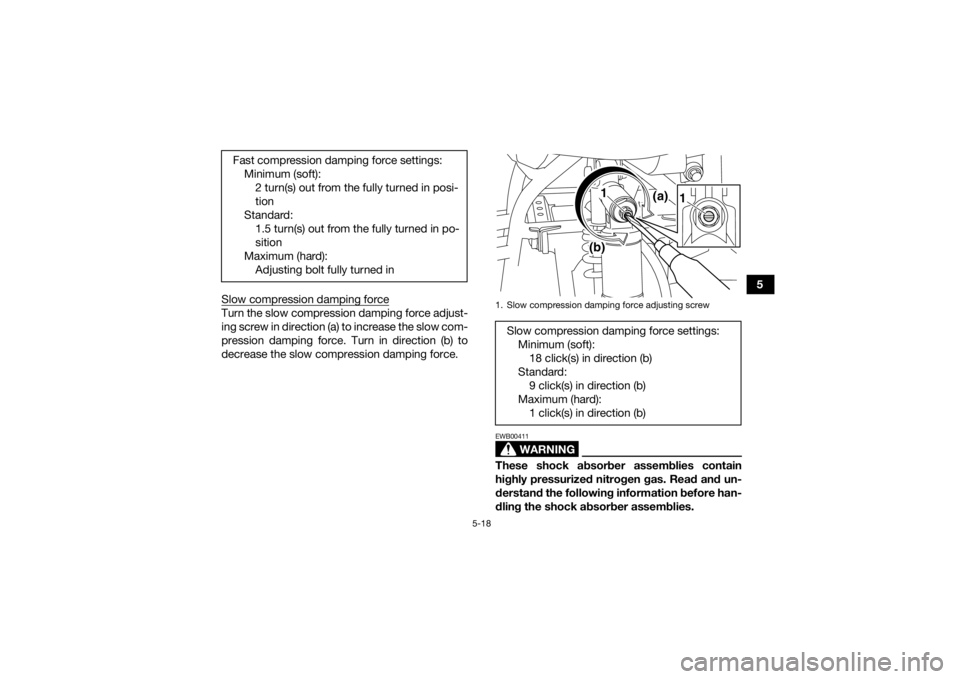

Fast compression damping force
Turn the fast compression damping force adjust-
ing bolt in direction (a) to increase the fast com-
pression damping force. Turn in direction (b) to
decrease the fast compression damping force.
1. Rebound damping force adjusting screwRebound damping force settings:
Minimum (soft):30 click(s) in direction (b)
Standard: 18 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
1(a)
(b)
1. Fast compression damping force adjusting bolt
1
(a)
(b) 1
UBCX60E0.book Page 17 Friday, April 19, 2019 9:09 AM

5-18
5

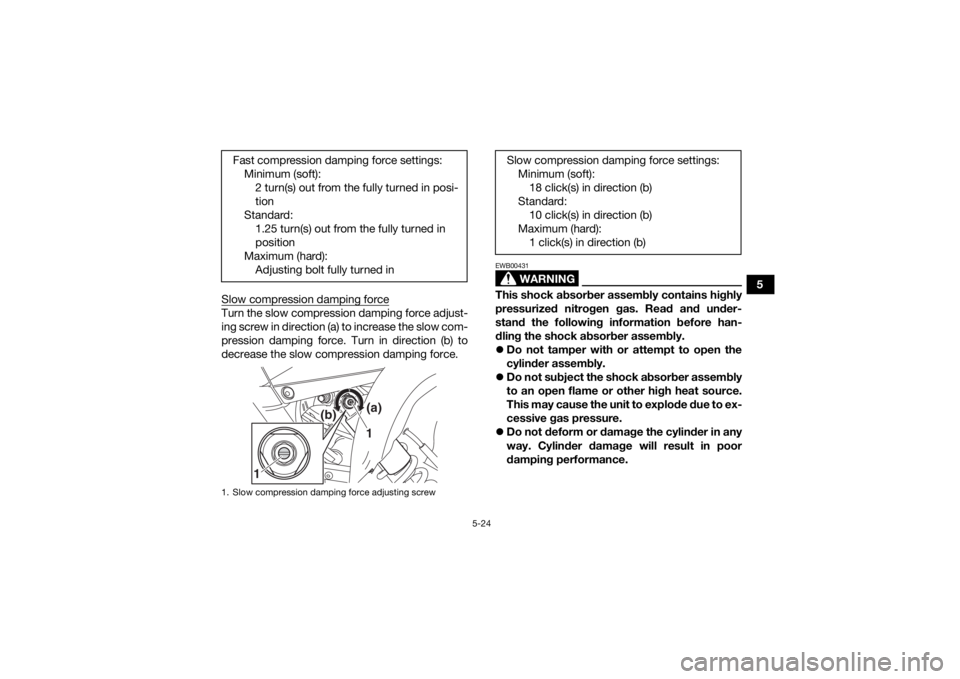

Slow compression damping force
Turn the slow compression damping force adjust-
ing screw in direction (a) to increase the slow com-
pression damping force. Turn in direction (b) to
decrease the slow compression damping force.
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and un-
derstand the following information before han-
dling the shock absorber assemblies.
Fast compression damping force settings:
Minimum (soft):2 turn(s) out from the fully turned in posi-
tion
Standard: 1.5 turn(s) out from the fully turned in po-
sition
Maximum (hard): Adjusting bolt fully turned in1. Slow compression damping force adjusting screwSlow compression damping force settings: Minimum (soft):18 click(s) in direction (b)
Standard: 9 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
1 (a)
(b)
1
UBCX60E0.book Page 18 Friday, April 19, 2019 9:09 AM

5-19
5
Do not tamper with or attempt to open the
cylinder assemblies.
 Do not subject the shock absorber assem-
blies to an open flame or other high heat
source. This may cause the unit to explode
due to excessive gas pressure.
 Do not deform or damage the cylinders in
any way. Cylinder damage will result in poor
damping performance.
 Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
EBU1904BRear shock absorber (For models
equipped with only adjustable spring
preload)The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.NOTICEECB01091Never turn the adjusting mechanism beyond
the minimum and maximum settings. Adjust the spring preload as follows. 1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direc-
tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.

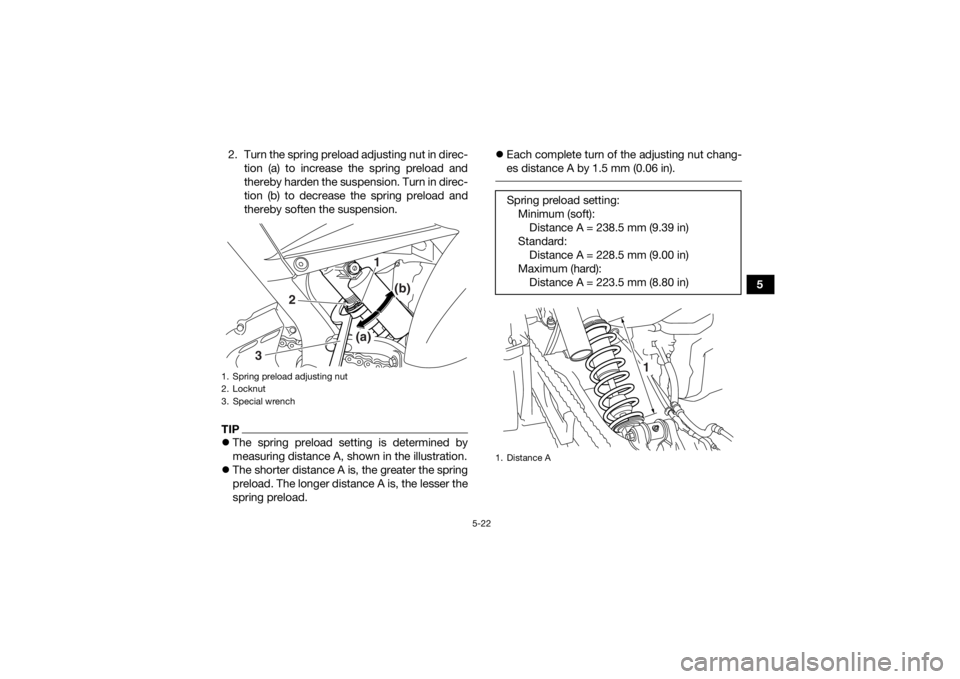

TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.1. Spring preload adjusting nut
2. Locknut
3. Special wrench
1
(b)
(a)
2
3
UBCX60E0.book Page 19 Friday, April 19, 2019 9:09 AM

5-20
5

The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).

3. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00082]
WARNING
EWB00451This shock absorber assembly contains highly
pressurized nitrogen gas. If the shock absorb-
er assembly is damaged, it could explode
Spring preload setting:
Minimum (soft):Distance A = 238.5 mm (9.39 in)
Standard: Distance A = 228.5 mm (9.00 in)
Maximum (hard): Distance A = 223.5 mm (8.80 in)1. Distance ATightening torque: Locknut:42 N·m (4.2 kgf·m, 31 lb·ft)
1
UBCX60E0.book Page 20 Friday, April 19, 2019 9:09 AM

5-21
5causing injury or property damage. Shock ab-
sorber cylinder damage could also result in
poor handling which could cause an accident.

Do not tamper with or attempt to open the
cylinder assembly.
 Do not subject the shock absorber assembly
to an open flame or other high heat.
 Do not deform or damage the cylinder in any
way.
 Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
EBU30996Rear shock absorber (For models
equipped with adjustable spring pre-
load and damping force)The shock absorber spring preload, rebound
damping force, and compression damping force
(fast and slow compression damping) can be ad-
justed.
WARNING
EWB02681Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or the
oil reservoir with your bare hand or skin until
the suspension components have cooled. Notes on adjusting the suspension
A special wrench can be obtained at a Yamaha
dealer to make the spring preload adjustment.
 When adjusting the damping force settings, turn
the adjuster in direction (a) until it stops, and
then count the turns or clicks in direction (b).
 Although a damping force adjuster may turn or
click beyond the stated minimum settings, such
adjustments are ineffective and may damage
the suspension.NOTICEECB00091Never turn an adjusting mechanism beyond
the minimum and maximum settings. Spring preload

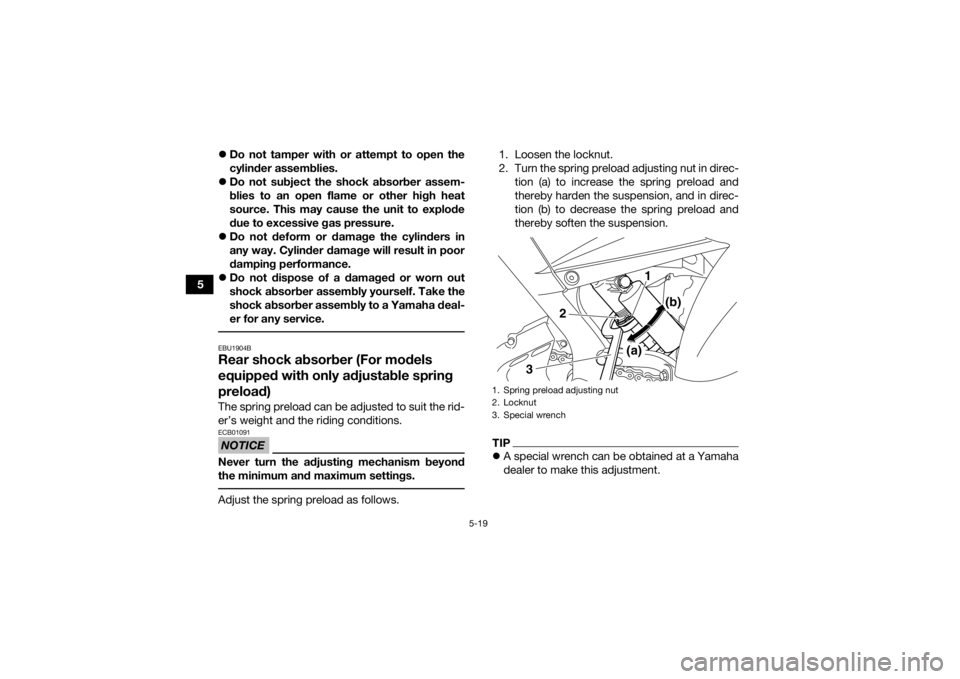

1. Loosen the locknut.
UBCX60E0.book Page 21 Friday, April 19, 2019 9:09 AM

5-22
5
2. Turn the spring preload adjusting nut in direc-
tion (a) to increase the spring preload and
thereby harden the suspension. Turn in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.
TIPThe spring preload setting is determined by
measuring distance A, shown in the illustration.
 The shorter distance A is, the greater the spring
preload. The longer distance A is, the lesser the
spring preload. 
Each complete turn of the adjusting nut chang-
es distance A by 1.5 mm (0.06 in).

1. Spring preload adjusting nut
2. Locknut
3. Special wrench
1
(b)
(a)
2
3
Spring preload setting: Minimum (soft):Distance A = 238.5 mm (9.39 in)
Standard: Distance A = 228.5 mm (9.00 in)
Maximum (hard): Distance A = 223.5 mm (8.80 in)1. Distance A
1
UBCX60E0.book Page 22 Friday, April 19, 2019 9:09 AM

5-23
53. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00082]
Rebound damping force
Turn the rebound damping force adjusting screw
in direction (a) to increase the rebound damping
force. Turn in direction (b) to decrease the re-
bound damping force. Compression damping force
Fast compression damping force
Turn the fast compression damping force adjust-
ing bolt in direction (a) to increase the fast com-
pression damping force. Turn in direction (b) to
decrease the fast compression damping force.
Tightening torque:
Locknut:42 N·m (4.2 kgf·m, 31 lb·ft)
1. Rebound damping force adjusting screw
1
(b) (a)
Rebound damping force settings:
Minimum (soft):30 click(s) in direction (b)
Standard: 18 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)1. Fast compression damping force adjusting bolt
1
(b)
(a)
1
UBCX60E0.book Page 23 Friday, April 19, 2019 9:09 AM

5-24
5
Slow compression damping force
Turn the slow compression damping force adjust-
ing screw in direction (a) to increase the slow com-
pression damping force. Turn in direction (b) to
decrease the slow compression damping force.
WARNING
EWB00431This shock absorber assembly contains highly
pressurized nitrogen gas. Read and under-
stand the following information before han-
dling the shock absorber assembly.
 Do not tamper with or attempt to open the
cylinder assembly.
 Do not subject the shock absorber assembly
to an open flame or other high heat source.
This may cause the unit to explode due to ex-
cessive gas pressure.
 Do not deform or damage the cylinder in any
way. Cylinder damage will result in poor
damping performance.
Fast compression damping force settings:
Minimum (soft):2 turn(s) out from the fully turned in posi-
tion
Standard: 1.25 turn(s) out from the fully turned in
position
Maximum (hard): Adjusting bolt fully turned in
1. Slow compression damping force adjusting screw
1
(b)
(a)
1
Slow compression damping force settings:
Minimum (soft):18 click(s) in direction (b)
Standard: 10 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
UBCX60E0.book Page 24 Friday, April 19, 2019 9:09 AM

5-25
5
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
