oils have their own distinct characters and value.
Yamaha’s experience gained over many years of research and development into oil since the
1960’s helps make Yamalube the best choice for
your Yamaha engine.
EBU23473CoolantThe coolant level should be checked regularly. In
addition, the coolant must be changed at the in-
tervals specified in the periodic maintenance
chart.
TIPIf genuine Yamaha coolant is not available, use an
ethylene glycol antifreeze containing corrosion in-
hibitors for aluminum engines and mix with dis-
tilled water at a 1:1 ratio. NOTICEECB02190Mix antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft water
may be used for refilling. Do not use hard water
or salt water since they are harmful to the en-
gine. EBU27947To check the coolant level 1. Park the ATV on a level surface.Recommended coolant: YAMALUBE coolant
Coolant quantity: Coolant reservoir (up to full level):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.68 L (1.78 US qt, 1.48 Imp.qt)
UBCX61E0.book Page 18 Friday, January 22, 2021 1:54 PM
Page 102 of 150

9-19
92. Wait for the engine to cool for an accurate
reading.
3. Look at the coolant level in the coolant reser- voir.
4. If the coolant is at or below the minimum level mark, remove the coolant reservoir cap.
WARNING! Remove only the coolant res-
ervoir cap. Never attempt to remove the
radiator cap when the engine is hot.
[EWB02672]
5. Add coolant to the maximum level mark, andthen install the reservoir cap. NOTICE: If
coolant is not available, use distilled water
or soft tap water instead. Do not use hard
water or salt water since they are harmful
to the engine. If water has been used in-
stead of coolant, replace it with coolant as
soon as possible, otherwise the cooling
system will not be protected against frost
and corrosion. If water has been added to
the coolant, have a Yamaha dealer check
the antifreeze content of the coolant as
soon as possible, otherwise the effective-
ness of the coolant will be reduced.
[ECB01012]
1. Maximum level mark
2. Minimum level mark
12
1. Coolant reservoir cap
1
UBCX61E0.book Page 19 Friday, January 22, 2021 1:54 PM
Page 103 of 150

9-20
9
EBU23546To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Park the ATV on a level surface.
2. Remove panel A. (See page 9-10.)
3. Place a container under the engine, and thenremove the coolant drain bolt and its gasket. 4. Remove the radiator cap.
1. Coolant drain bolt
2. Gasket
1. Radiator cap
1
2
1
UBCX61E0.book Page 20 Friday, January 22, 2021 1:54 PM
Page 104 of 150

9-21
95. Remove the coolant reservoir cap.
6. Disconnect the coolant reservoir hose on the
coolant reservoir side, and then drain the
coolant from the coolant reservoir.
7. After draining the coolant, thoroughly flush the cooling system with clean tap water.
8. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque. 9. Connect the coolant reservoir hose.
10. Pour the recommended coolant into the res- ervoir to the maximum level mark, and then
install the reservoir cap.
11. Pour the recommended coolant into the radi- ator until it is full, and then install the radiator
cap.
12. Start the engine, let it idle for several minutes, and then turn it off.
TIPWhile the engine is idling, check the cooling sys-
tem for leaks. 13. When the engine is cool, remove the radiatorcap to check the coolant level in the radiator.
If it is low, add sufficient coolant until it reach-
es the top of the radiator, and then install the
radiator cap.
14. Install the panel.EBU2680BCleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance
chart. Clean or, if necessary, replace the air filter
element more frequently if you are riding in unusu-
ally wet or dusty areas.
1. Coolant reservoir cap
2. Coolant reservoir hoseTightening torque: Coolant drain bolt:11 N·m (1.1 kgf·m, 8.1 lb·ft)
1
2
UBCX61E0.book Page 21 Friday, January 22, 2021 1:54 PM
Page 105 of 150

9-22
9

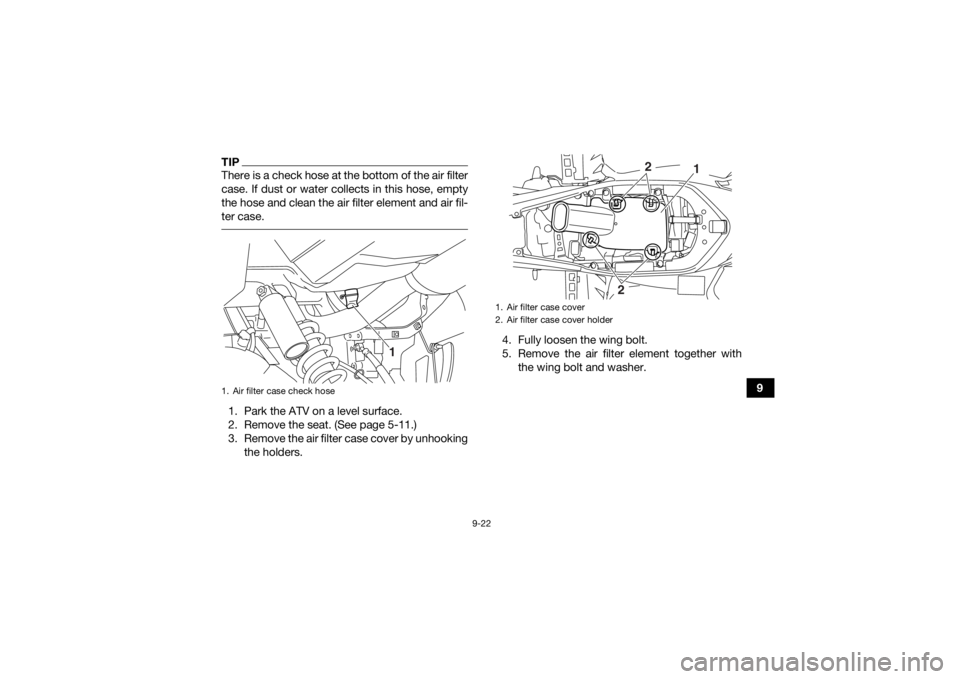

TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. 1. Park the ATV on a level surface.
2. Remove the seat. (See page 5-11.)
3. Remove the air filter case cover by unhookingthe holders. 4. Fully loosen the wing bolt.
5. Remove the air filter element together with
the wing bolt and washer.1. Air filter case check hose
1
1. Air filter case cover
2. Air filter case cover holder
2 1
2
UBCX61E0.book Page 22 Friday, January 22, 2021 1:54 PM
Page 106 of 150

9-23
96. Remove the wing bolt and washer from the air
filter element.
7. Remove the sponge material from the air filter element frame. 8. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent. Never use low-
flash-point solvents or gasoline because
the engine could catch fire or explode.
[EWB01943]

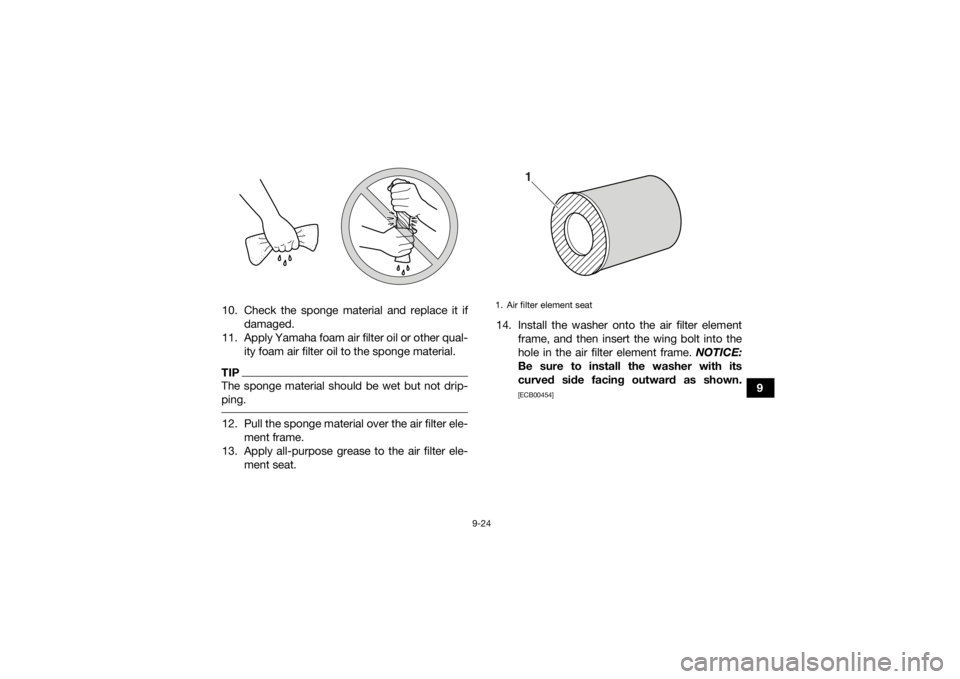

9. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
1. Air filter element
2. Washer
3. Wing bolt
3
2
1
1. Sponge material
2. Air filter element frame
2
1
UBCX61E0.book Page 23 Friday, January 22, 2021 1:54 PM
Page 107 of 150

9-24
9
10. Check the sponge material and replace it if
damaged.
11. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.
TIPThe sponge material should be wet but not drip-
ping. 12. Pull the sponge material over the air filter ele-ment frame.
13. Apply all-purpose grease to the air filter ele- ment seat. 14. Install the washer onto the air filter element
frame, and then insert the wing bolt into the
hole in the air filter element frame. NOTICE:
Be sure to install the washer with its
curved side facing outward as shown.
[ECB00454]
1. Air filter element seat
1
UBCX61E0.book Page 24 Friday, January 22, 2021 1:54 PM
Page 108 of 150

9-25
915. Insert the air filter element into the air filter
case, and then tighten the wing bolt.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. Doing so would al-
low unfiltered air to enter the engine, caus-
ing rapid engine wear and possible engine
damage. Additionally, the fuel injection
system would be affected resulting in poor
engine performance and possible over-
heating.
[ECB00763]
16. Install the air filter case cover by hooking the holders onto the air filter case. 17. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely
dusty areas. Each time the air filter element main-
tenance is performed, check the air inlet of the air
filter case for obstructions. Check the air filter
case rubber joint to the throttle body and the rub-
ber joint manifold fittings for an air-tight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. EBU30863Cleaning the spark arresterSelect a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
WARNING
EWB02342Always let the exhaust system cool prior to
touching exhaust components.
Do not start the engine with the spark arrester
removed. Sparks or exhaust particulate can
cause eye injury, burns, or start a fire.
1. Washer
1
UBCX61E0.book Page 25 Friday, January 22, 2021 1:54 PM
Page 109 of 150

9-26
9

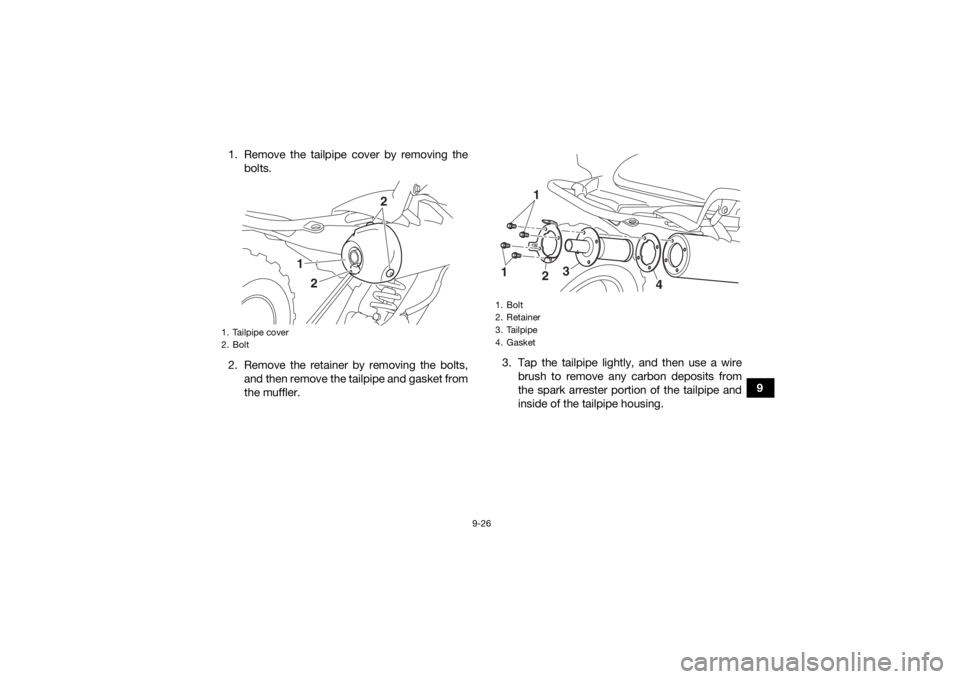

1. Remove the tailpipe cover by removing the
bolts.
2. Remove the retainer by removing the bolts, and then remove the tailpipe and gasket from
the muffler. 3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.
1. Tailpipe cover
2. Bolt
2
2
1
1. Bolt
2. Retainer
3. Tailpipe
4. Gasket1
2
3
4
1
UBCX61E0.book Page 26 Friday, January 22, 2021 1:54 PM
Page 110 of 150

9-27
94. Install the gasket, tailpipe, and retainer and
align the bolt holes.
5. Install the bolts and tighten them to the spec- ified torque.
6. Install the tailpipe cover and align the bolt holes.
7. Install the bolts and tighten them to the spec- ified torque.
EBU26813Adjusting the engine idling speedThe engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance chart.TIPA diagnostic tachometer is needed to make this
adjustment. 1. Start the engine and warm it up.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-sary, adjust it to specification by turning the
idle adjusting screw. To increase the engine
idling speed, turn the idle adjusting screw in
direction (a), and to decrease it, turn the
screw in direction (b).
1. Tailpipe
2. Spark arresterTightening torque:Retainer bolt:10 N
