compression ratio YAMAHA YFM700R 2021 Owners Manual

5-12
5
To install the seat
Fit the slot in the seat onto the projection on the
fuel tank, insert the projection on the front of the
seat into the seat holder, and then push on the
seat at the rear. Make sure that the seat is securely
fitted.
EBU30055Front shock absorbers The shock absorber spring preload, rebound
damping force, and compression damping force
(fast and slow compression damping) can be ad-
justed.
WARNING
EWB02492
Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or
the oil reservoir with your bare hand or skin
until suspension components have cooled.
 Always adjust the shock absorber assem-
blies on the left and right side to the same
setting. Uneven adjustment can cause poor
handling and loss of stability, which could
lead to an accident. Notes on adjusting the suspension
A special wrench can be obtained at a Yamaha
dealer to make the spring preload adjustment.
 When adjusting the damping force settings, turn
the adjuster in direction (a) until it stops, and
then count the turns or clicks in direction (b).
 Although a damping force adjuster may turn or
click beyond the stated minimum settings, such
adjustments are ineffective and may damage
the suspension.
1. Slot
2. Projection
3. Seat holder
1
2
3
2
UBCX61E0.book Page 12 Friday, January 22, 2021 1:54 PM

5-17
5
WARNING
EWB02681Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or the
oil reservoir with your bare hand or skin until
the suspension components have cooled. Notes on adjusting the suspension
A special wrench can be obtained at a Yamaha
dealer to make the spring preload adjustment.
 When adjusting the damping force settings, turn
the adjuster in direction (a) until it stops, and
then count the turns or clicks in direction (b).
 Although a damping force adjuster may turn or
click beyond the stated minimum settings, such
adjustments are ineffective and may damage
the suspension.NOTICEECB00091Never turn an adjusting mechanism beyond
the minimum and maximum settings.

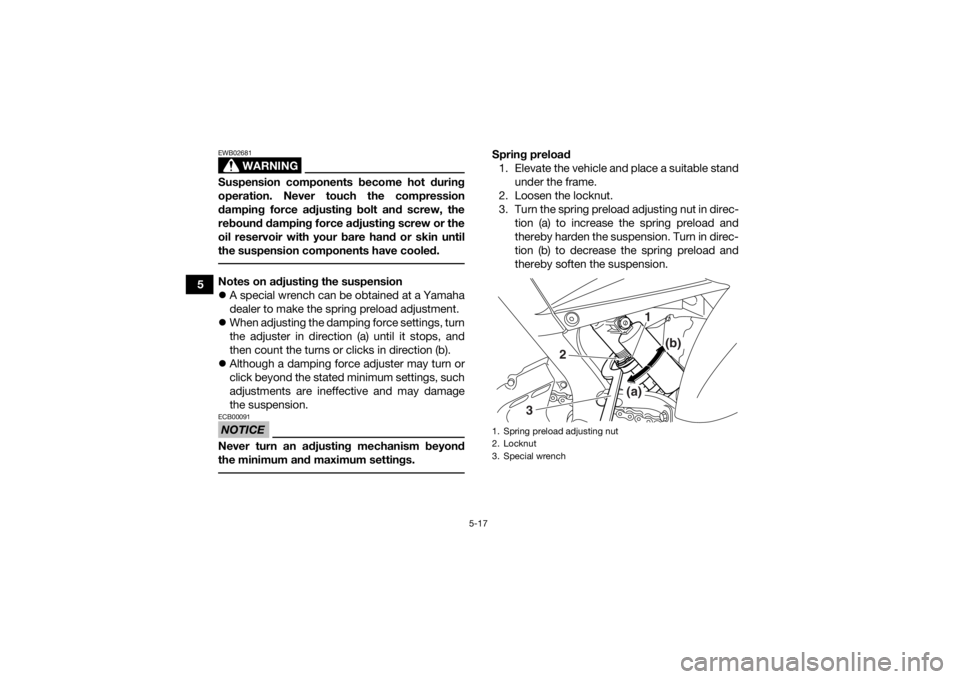

Spring preload
1. Elevate the vehicle and place a suitable stand under the frame.
2. Loosen the locknut.
3. Turn the spring preload adjusting nut in direc- tion (a) to increase the spring preload and
thereby harden the suspension. Turn in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.1. Spring preload adjusting nut
2. Locknut
3. Special wrench
1
(b)
(a)
2
3
UBCX61E0.book Page 17 Friday, January 22, 2021 1:54 PM

9-54
9
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces. UBCX61E0.book Page 54 Friday, January 22, 2021 1:54 PM

11-1
11
EBU25964
SPECIFICATIONS
Dimensions:Overall length:1845 mm (72.6 in)
Overall width: 1155 mm (45.5 in)
Overall height:
1115 mm (43.9 in)
Seat height: 830 mm (32.7 in)
Wheelbase: 1280 mm (50.4 in)
Ground clearance:
240 mm (9.4 in)
Minimum turning radius: 3.5 m (11.48 ft)
Maximum water depth: 35 cm (14 in)Weight:Curb weight:192.0 kg (423 lb)Loading:Maximum load:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Noise and vibration level:Noise level (77/311/EEC):84.0 dB(A) at 3125 r/min Uncertainty of measurement:
3.0 dB(A)
A-weighted sound power level: 97.0 dB(A) at 3125 r/min
Uncertainty of measurement: 3.0 dB(A)
Vibration on seat (EN1032, ISO5008):
0.7 m/s²
Uncertainty of measurement: 0.6 m/s²
Vibration on handle (EN1032, ISO5008): 4.7 m/s²
Uncertainty of measurement:
1.1 m/s²
Engine:Combustion cycle:4-stroke
Cooling system:
Liquid cooled
Valve train: SOHC
Number of cylinders: Single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio: 10.0 : 1
