4-17
EBU00075

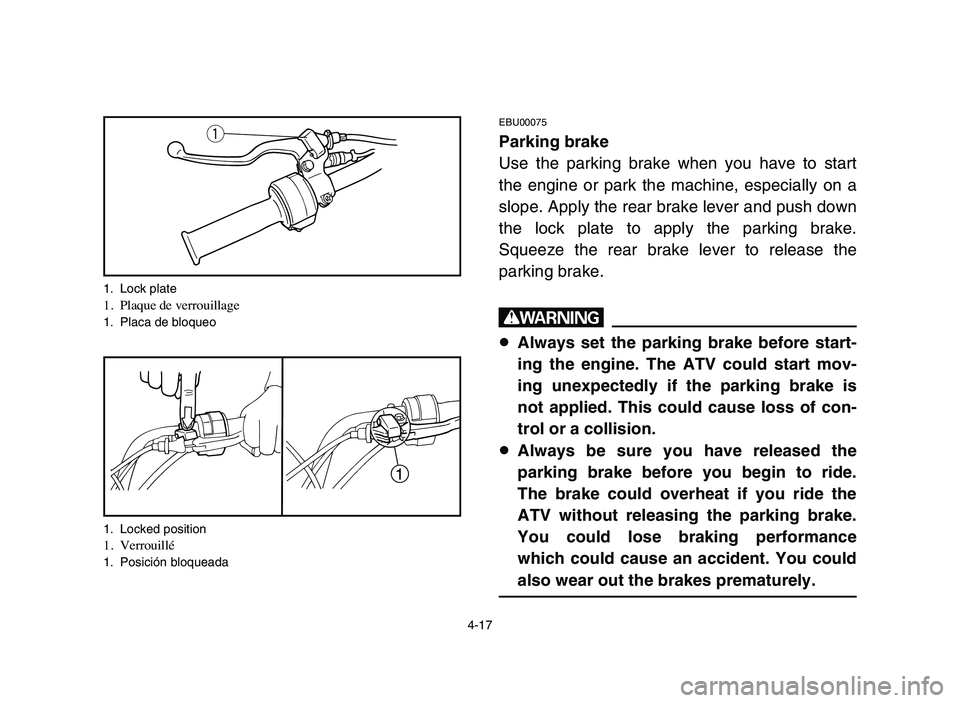

Parking brake
Use the parking brake when you have to start
the engine or park the machine, especially on a
slope. Apply the rear brake lever and push down
the lock plate to apply the parking brake.
Squeeze the rear brake lever to release the
parking brake.
w
8Always set the parking brake before start-
ing the engine. The ATV could start mov-
ing unexpectedly if the parking brake is
not applied. This could cause loss of con-
trol or a collision.
8Always be sure you have released the
parking brake before you begin to ride.
The brake could overheat if you ride the
ATV without releasing the parking brake.
You could lose braking performance
which could cause an accident. You could
also wear out the brakes prematurely.
q
1
1. Lock plate1. Plaque de verrouillage1. Placa de bloqueo
1. Locked position
1. Verrouillé1. Posición bloqueada
5TH-9-64 4~5 2/16/05 2:42 PM Page 16

8-33
cC
Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter the engine, causing rapid engine wear
and possible engine damage. Additionally,
operation without the filter element will affect
carburetor jetting with subsequent poor per-
formance and possible engine overheating.
EBU01035

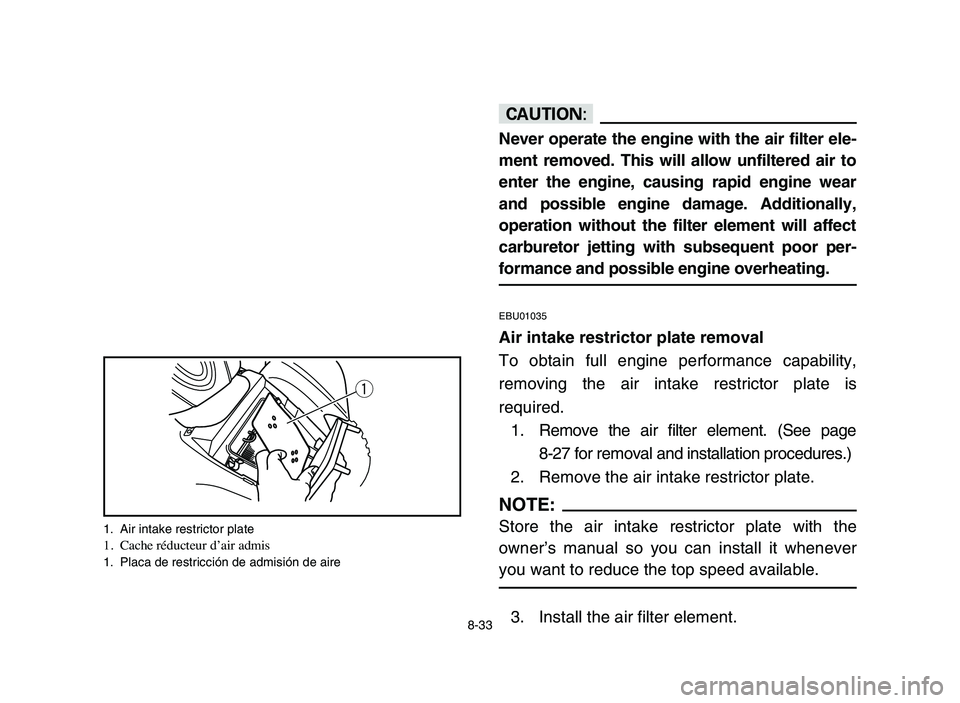

Air intake restrictor plate removal
To obtain full engine performance capability,
removing the air intake restrictor plate is
required.
1. Remove the air filter element. (See page
8-27 for removal and installation procedures.)
2. Remove the air intake restrictor plate.
NOTE:
Store the air intake restrictor plate with the
owner’s manual so you can install it whenever
you want to reduce the top speed available.
3. Install the air filter element.
q
1. Air intake restrictor plate1. Cache réducteur d’air admis1. Placa de restricción de admisión de aire
5TH-9-64 8 2/16/05 2:45 PM Page 8-33
