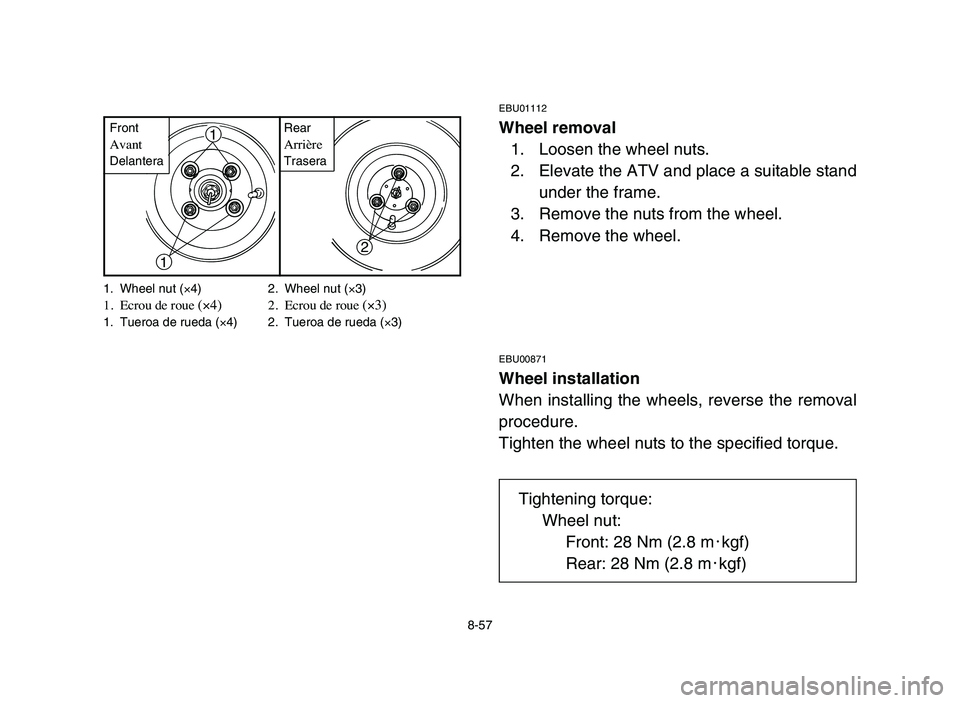

1. Wheel nut (×4) 2. Wheel nut (×3)1. Ecrou de roue (×4)2. Ecrou de roue (×3)1. Tueroa de rueda (×4) 2. Tueroa de rueda (×3)
8-57
EBU01112
Wheel removal
1. Loosen the wheel nuts.
2. Elevate the ATV and place a suitable stand
under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
EBU00871
Wheel installation
When installing the wheels, reverse the removal
procedure.
Tighten the wheel nuts to the specified torque.
Tightening torque:
Wheel nut:
Front: 28 Nm (2.8 m0kgf)
Rear: 28 Nm (2.8 m0kgf)
1
12
FrontAvantDelantera
RearArrièreTrasera
5TH-9-64 8 2/16/05 2:45 PM Page 8-57
