5-1
5
EBU19203
PRE-OPERATION CHECKS
EBU19226Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel • Check fuel level in fuel tank,
and add recommended fuel if neces-
sary.
• Check fuel line for leakage. Correct if necessary. 4-9, 5-3
Engine oil • Check oil level in engine, and add recommended oil to specified
level if necessary.
• Check ATV for oil leakage. Correct if necessary. 5-3, 8-10
Transmission • Check transmission case for leakage. 5-3, 8-14
Front brake • Check operation, and correct if necessary.
• Lubricate cable if necessary.
• Check lever free play, and adjust if necessary. 5-3, 8-21, 8-23
Rear brake • Check operation, and correct if necessary.
• Lubricate cable if necessary.
• Check lever free play, and adjust if necessary. 5-3, 8-21, 8-24
UBD364E0.book Page 1 Monday, January 28, 2019 9:30 AM

5-3
5
EBU38000FuelMake sure there is sufficient gasoline in the tank
before starting off. Refuel if necessary. (See page
4-9.)EBU19561Engine oilMake sure that the engine oil is at the specified
level. Add oil as necessary. (See page 8-10.)EBU38541TransmissionMake sure there is no oil leaking from the trans-
mission case.EBU19653Front and rear brakesBrake levers
Check for correct free play in the brake levers. If
the free play is incorrect, adjust it. (See pages
8-23 and 8-24.)
 Check operation of the levers. They should
move smoothly and there should be a firm feel-
ing when the brake is applied. If not, have the
ATV checked by a Yamaha dealer. Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance,
check the brake shoes for wear. (See page 8-21.)
EBU19762Throttle leverCheck the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.EBU19771Drive chainCheck the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-25.)EBU19799TiresCheck tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
UBD364E0.book Page 3 Monday, January 28, 2019 9:30 AM

8-10
8
2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification. To install the spark plug
1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU37001Engine oilThe engine oil level should be checked before
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
chart.
Specified spark plug:
NGK/CR6HSA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
Tightening torque:Spark plug:12 N·m (1.2 kgf·m, 8.9 lb·ft)
UBD364E0.book Page 10 Monday, January 28, 2019 9:30 AM

8-11
8To check the engine oil level
1. Park the ATV on a level surface.
2. Wait for the engine to cool.
TIPIf the engine was started before checking the oil
level, wait 10 minutes. This will allow oil to settle
into the crankcase for an accurate reading. 3. Remove the engine oil filler cap and wipe the dipstick with a clean rag.
4. Insert the dipstick into the filler hole, screw it in, and then remove it again to check the oil
level. 5. If the engine oil is at or below the minimum
level mark, add sufficient quantity of the rec-
ommended engine oil. NOTICE: Be sure the
engine oil is at the correct level, otherwise
engine damage may result.
[ECB00852]
6. Check the O-ring for damage, and then insert the dipstick and tighten the engine oil filler
cap.
To change the engine oil 1. Park the ATV on a level surface.

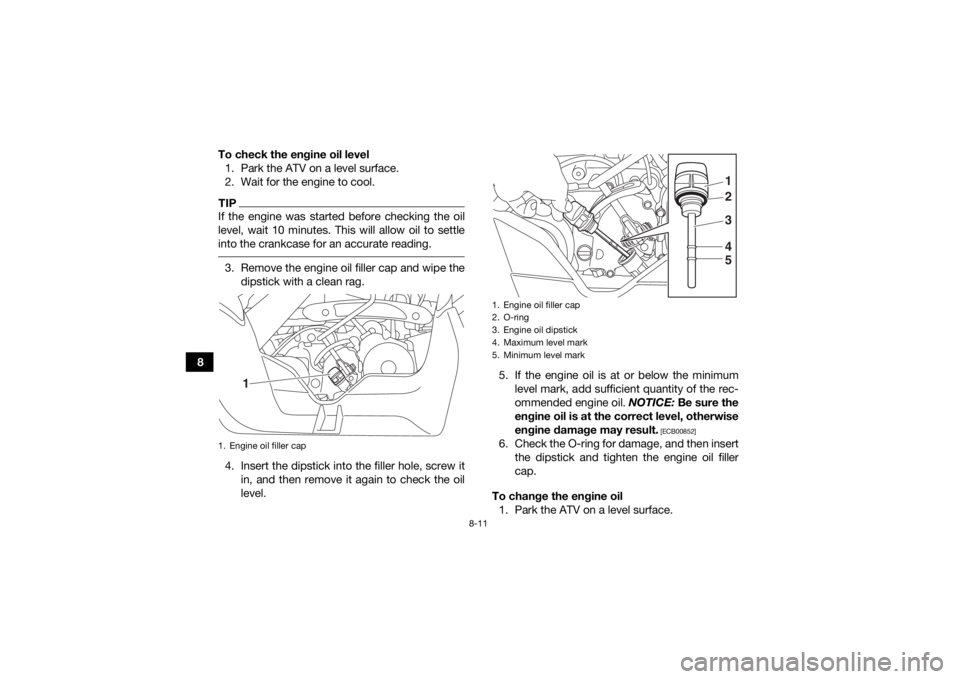

1. Engine oil filler cap
1
1. Engine oil filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Minimum level mark
1
4
5 3 2
UBD364E0.book Page 11 Monday, January 28, 2019 9:30 AM

8-13
8
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00331Do not use oils with a diesel specification of
“CD” or oils of a higher quality than speci-
fied. In addition, do not use oils labeled “EN-
ERGY CONSERVING II” or higher.
 Make sure that no foreign material enters the
crankcase. 9. Check the engine oil filler cap O-ring for dam-
age, and then install and tighten the engine oil
filler cap.
10. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
11. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.
EBU38620Why YamalubeYAMALUBE oil is a Genuine YAMAHA Part born ofthe engineers’ passion and belief that engine oil is
an important liquid engine component. We form
teams of specialists in the fields of mechanical en-
gineering, chemistry, electronics and track test-
ing, and have them develop the engine together
with the oil it will use. Yamalube oils take full ad-
vantage of the base oil’s qualities and blend in the
ideal balance of additives to make sure the final oil
clears our performance standards. Thus,
Yamalube mineral, semi synthetic and synthetic
oils have their own distinct characters and value.
Yamaha’s experience gained over many years of research and development into oil since the
1960’s helps make Yamalube the best choice for
your Yamaha engine.
UBD364E0.book Page 13 Monday, January 28, 2019 9:30 AM

8-14
8
EBU34472Transmission oilThe transmission case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the transmission oil must be changed
at the intervals specified in the periodic mainte-
nance and lubrication chart.
To change the transmission oil1. Place the ATV on a level surface.
2. Place an oil pan under the transmission case to collect the used oil.
3. Remove the transmission oil filler cap and its O-ring from the transmission case. 4. Remove the transmission oil drain bolt and its
gasket to drain the oil from the transmission
case.
1. Transmission oil filler cap
2. O-ring12
