engine coolant YAMAHA YFZ450 2006 Owners Manual

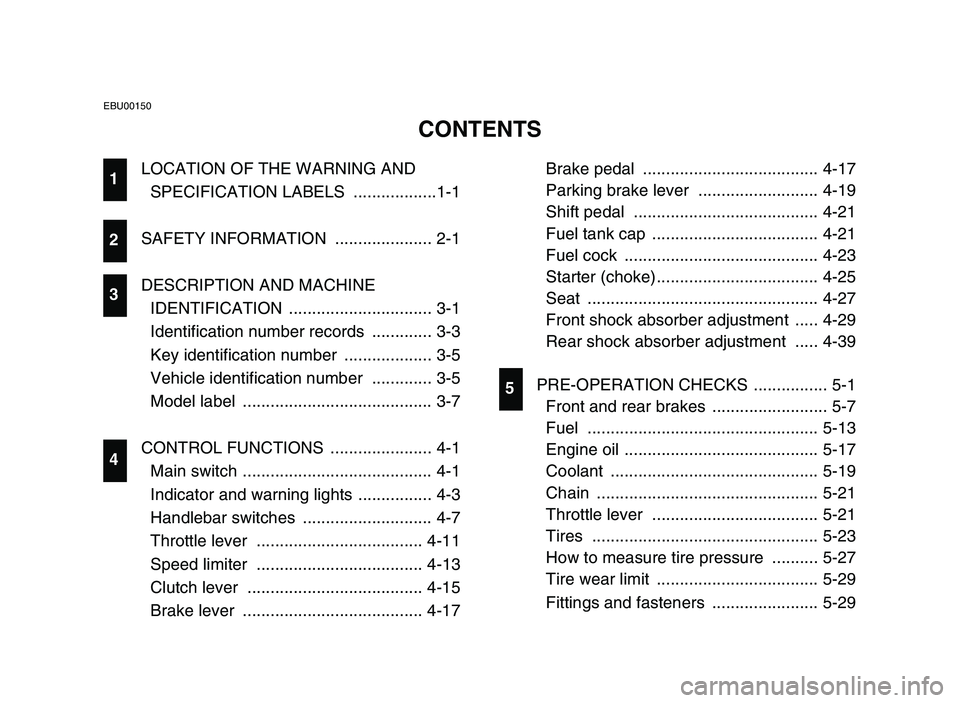

LOCATION OF THE WARNING AND
SPECIFICATION LABELS ..................1-1
SAFETY INFORMATION ..................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ............................... 3-1
Identification number records ............. 3-3
Key identification number ................... 3-5
Vehicle identification number ............. 3-5
Model label ......................................... 3-7
CONTROL FUNCTIONS ...................... 4-1
Main switch ......................................... 4-1
Indicator and warning lights ................ 4-3
Handlebar switches ............................ 4-7
Throttle lever .................................... 4-11
Speed limiter .................................... 4-13
Clutch lever ...................................... 4-15
Brake lever ....................................... 4-17Brake pedal ...................................... 4-17
Parking brake lever .......................... 4-19
Shift pedal ........................................ 4-21
Fuel tank cap .................................... 4-21
Fuel cock .......................................... 4-23
Starter (choke) ................................... 4-25
Seat .................................................. 4-27
Front shock absorber adjustment ..... 4-29
Rear shock absorber adjustment ..... 4-39
PRE-OPERATION CHECKS ................ 5-1
Front and rear brakes ......................... 5-7
Fuel .................................................. 5-13
Engine oil .......................................... 5-17
Coolant ............................................. 5-19
Chain ................................................ 5-21
Throttle lever .................................... 5-21
Tires ................................................. 5-23
How to measure tire pressure .......... 5-27
Tire wear limit ................................... 5-29
Fittings and fasteners ....................... 5-29
EBU00150
CONTENTS
1
2
3
4
5
5TG-9-62 1-3 5/13/05 10:06 AM Page 12

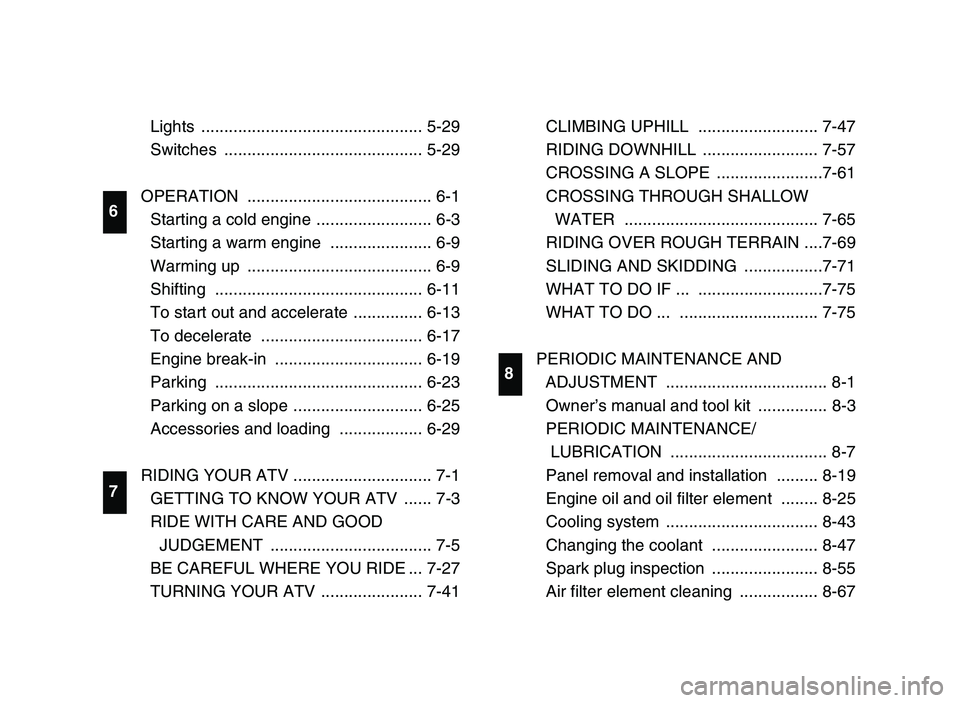

Lights ................................................ 5-29
Switches ........................................... 5-29
OPERATION ........................................ 6-1
Starting a cold engine ......................... 6-3
Starting a warm engine ...................... 6-9
Warming up ........................................ 6-9
Shifting ............................................. 6-11
To start out and accelerate ............... 6-13
To decelerate ................................... 6-17
Engine break-in ................................ 6-19
Parking ............................................. 6-23
Parking on a slope ............................ 6-25
Accessories and loading .................. 6-29
RIDING YOUR ATV .............................. 7-1
GETTING TO KNOW YOUR ATV ...... 7-3
RIDE WITH CARE AND GOOD
JUDGEMENT ................................... 7-5
BE CAREFUL WHERE YOU RIDE ... 7-27
TURNING YOUR ATV ...................... 7-41CLIMBING UPHILL .......................... 7-47
RIDING DOWNHILL ......................... 7-57
CROSSING A SLOPE .......................7-61
CROSSING THROUGH SHALLOW
WATER .......................................... 7-65
RIDING OVER ROUGH TERRAIN ....7-69
SLIDING AND SKIDDING .................7-71
WHAT TO DO IF ... ...........................7-75
WHAT TO DO ... .............................. 7-75
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 8-1
Owner’s manual and tool kit ............... 8-3
PERIODIC MAINTENANCE/
LUBRICATION .................................. 8-7
Panel removal and installation ......... 8-19
Engine oil and oil filter element ........ 8-25
Cooling system ................................. 8-43
Changing the coolant ....................... 8-47
Spark plug inspection ....................... 8-55
Air filter element cleaning ................. 8-67
6
7
8
5TG-9-62 1-3 5/13/05 10:06 AM Page 13

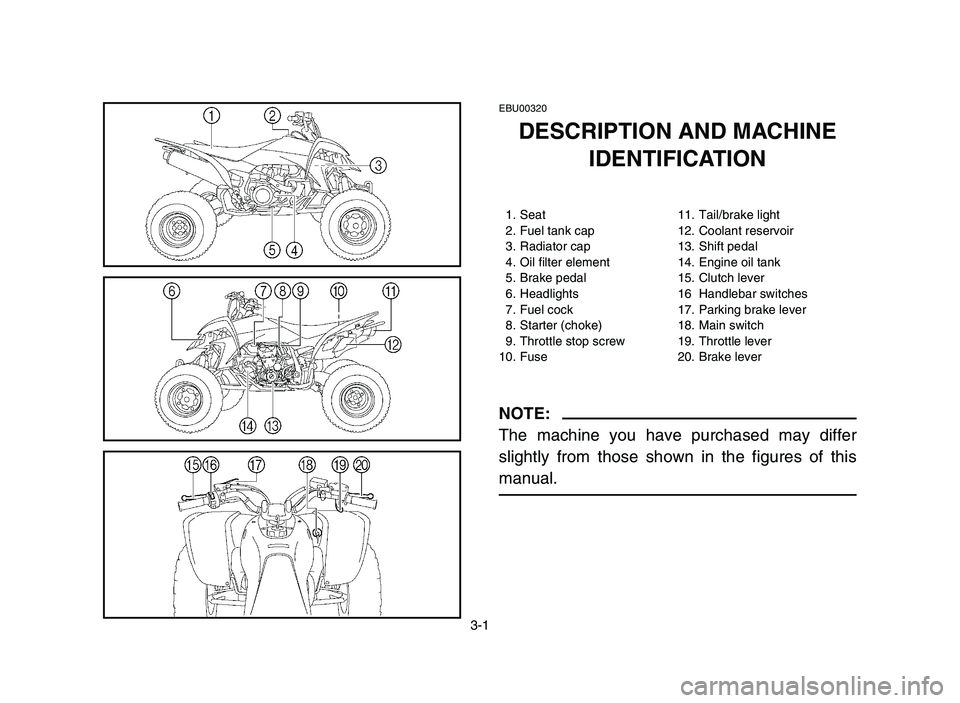

3-1
EBU00320
DESCRIPTION AND MACHINE
IDENTIFICATION
1. Seat 11. Tail/brake light
2. Fuel tank cap 12. Coolant reservoir
3. Radiator cap 13. Shift pedal
4. Oil filter element 14. Engine oil tank
5. Brake pedal 15. Clutch lever
6. Headlights 16 Handlebar switches
7. Fuel cock 17. Parking brake lever
8. Starter (choke) 18. Main switch
9. Throttle stop screw 19. Throttle lever
10. Fuse 20. Brake lever
NOTE:
The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
5TG-9-62 1-3 5/13/05 10:06 AM Page 3-1

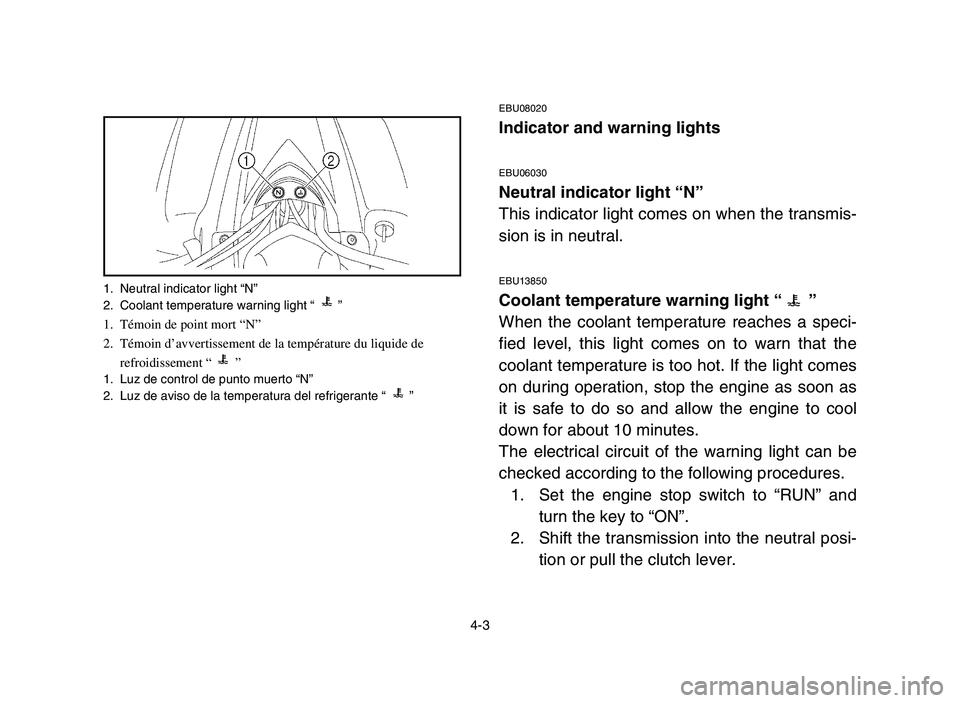

4-3
1. Neutral indicator light “N”
2. Coolant temperature warning light “ ”
1. Témoin de point mort “N”
2. Témoin d’avvertissement de la température du liquide de
refroidissement “ ”
1. Luz de control de punto muerto “N”
2. Luz de aviso de la temperatura del refrigerante “ ”
EBU08020
Indicator and warning lights
EBU06030
Neutral indicator light “N”
This indicator light comes on when the transmis-
sion is in neutral.
EBU13850
Coolant temperature warning light “ ”
When the coolant temperature reaches a speci-
fied level, this light comes on to warn that the
coolant temperature is too hot. If the light comes
on during operation, stop the engine as soon as
it is safe to do so and allow the engine to cool
down for about 10 minutes.
The electrical circuit of the warning light can be
checked according to the following procedures.
1. Set the engine stop switch to “RUN” and
turn the key to “ON”.
2. Shift the transmission into the neutral posi-
tion or pull the clutch lever.
5TG-9-62 4 5/12/05 5:18 PM Page 4-3

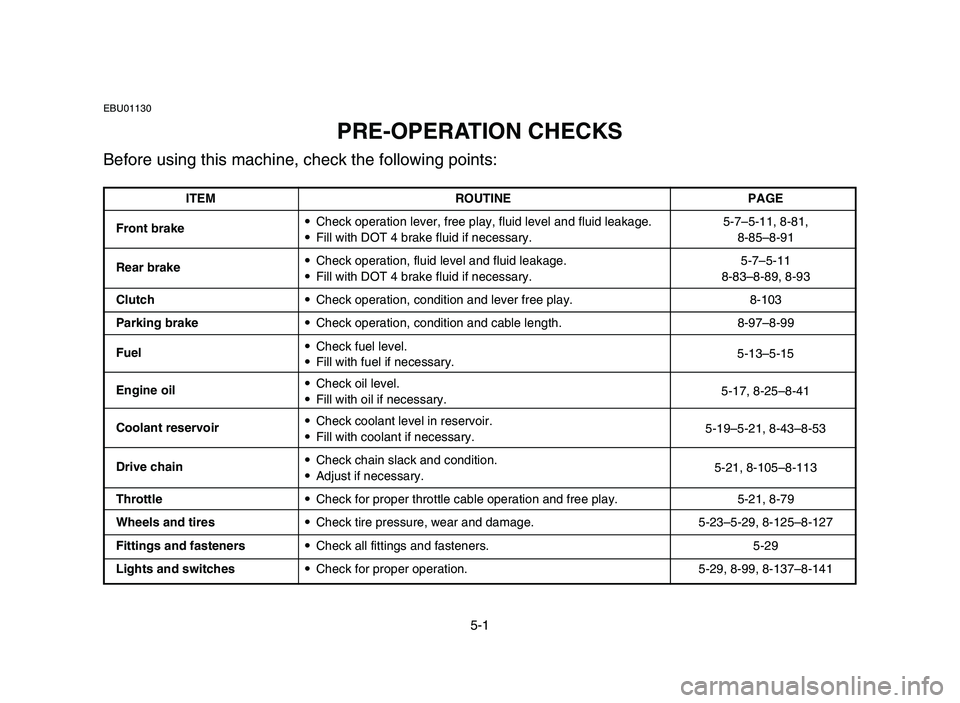

5-1
EBU01130
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brake9Check operation lever, free play, fluid level and fluid leakage. 5-7–5-11, 8-81,
9Fill with DOT 4 brake fluid if necessary. 8-85–8-91
Rear brake9Check operation, fluid level and fluid leakage. 5-7–5-11
9Fill with DOT 4 brake fluid if necessary. 8-83–8-89, 8-93
Clutch9Check operation, condition and lever free play. 8-103
Parking brake9Check operation, condition and cable length. 8-97–8-99
Fuel 9Check fuel level.
9Fill with fuel if necessary.5-13–5-15
Engine oil9Check oil level.
9Fill with oil if necessary.5-17, 8-25–8-41
Coolant reservoir 9Check coolant level in reservoir.
9Fill with coolant if necessary.5-19–5-21, 8-43–8-53
Drive chain9Check chain slack and condition.
9Adjust if necessary.5-21, 8-105–8-113
Throttle9Check for proper throttle cable operation and free play. 5-21, 8-79
Wheels and tires9Check tire pressure, wear and damage. 5-23–5-29, 8-125–8-127
Fittings and fasteners9Check all fittings and fasteners. 5-29
Lights and switches9Check for proper operation. 5-29, 8-99, 8-137–8-141
5TG-9-62 5-6 5/13/05 1:45 PM Page 5-1

5-19
EBU13160

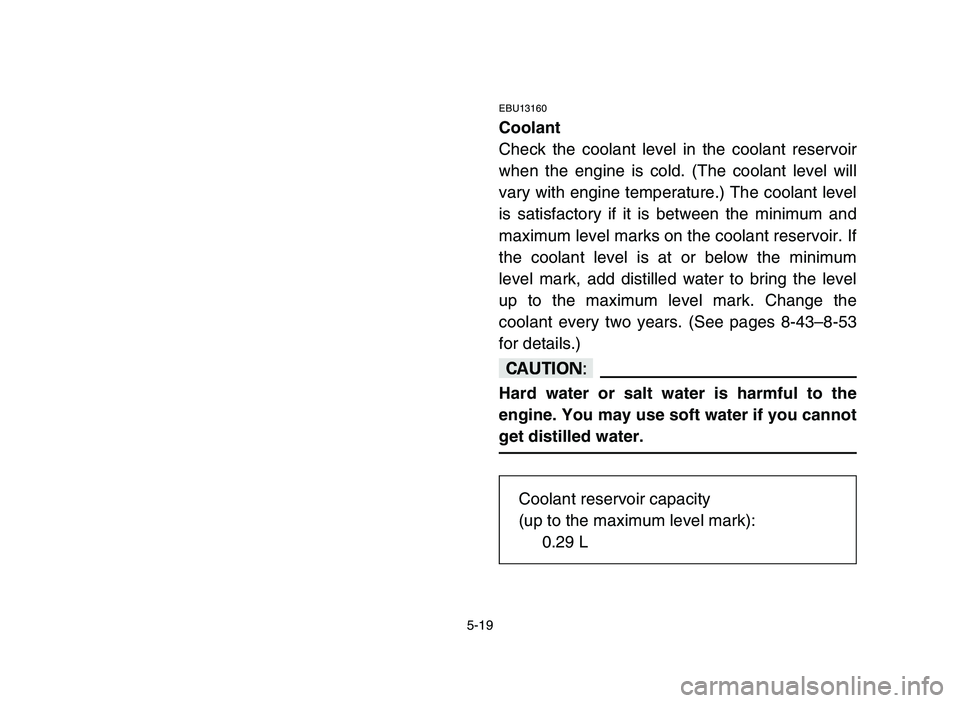

Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level
is satisfactory if it is between the minimum and
maximum level marks on the coolant reservoir. If
the coolant level is at or below the minimum
level mark, add distilled water to bring the level
up to the maximum level mark. Change the
coolant every two years. (See pages 8-43–8-53
for details.)
cC
Hard water or salt water is harmful to the
engine. You may use soft water if you cannot
get distilled water.
Coolant reservoir capacity
(up to the maximum level mark):
0.29 L
5TG-9-62 5-6 5/13/05 1:45 PM Page 5-19

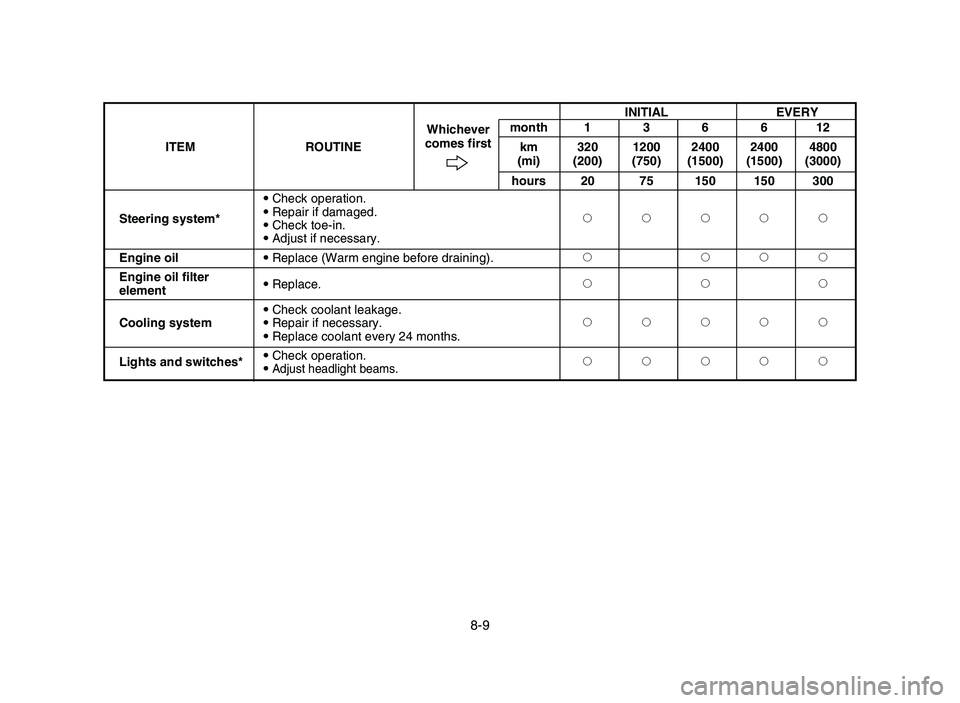

8-9
INITIAL EVERY
month 1 3 6 6 12
ITEM ROUTINEWhichever
km 320 1200 2400 2400 4800 comes first
(mi) (200) (750) (1500) (1500) (3000)
hours 20 75 150 150 300
9Check operation.
Steering system*9Repair if damaged.
22222
9Check toe-in.
9Adjust if necessary.
Engine oil9Replace (Warm engine before draining).2 222
Engine oil filter
9Replace.222
element
9Check coolant leakage.
Cooling system9Repair if necessary.22222
9Replace coolant every 24 months.
9Check operation.
Lights and switches*
9
Adjust headlight beams.22222
5TG-9-62 8 5/13/05 1:48 PM Page 8-9

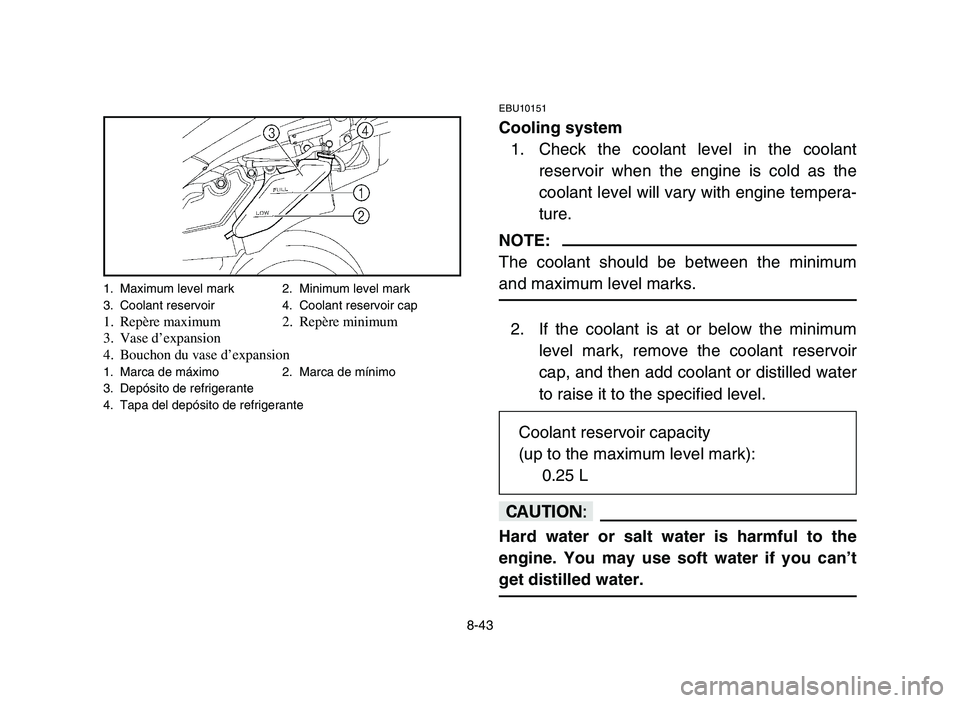

8-43
EBU10151
Cooling system
1. Check the coolant level in the coolant
reservoir when the engine is cold as the
coolant level will vary with engine tempera-
ture.
NOTE:
The coolant should be between the minimum
and maximum level marks.
2. If the coolant is at or below the minimum
level mark, remove the coolant reservoir
cap, and then add coolant or distilled water
to raise it to the specified level.
cC
Hard water or salt water is harmful to the
engine. You may use soft water if you can’t
get distilled water.
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
1. Maximum level mark 2. Minimum level mark
3. Coolant reservoir 4. Coolant reservoir cap
1. Repère maximum 2. Repère minimum
3. Vase d’expansion
4. Bouchon du vase d’expansion
1. Marca de máximo 2. Marca de mínimo
3. Depósito de refrigerante
4. Tapa del depósito de refrigerante
5TG-9-62 8 5/13/05 1:48 PM Page 8-43

8-47
EBU14130

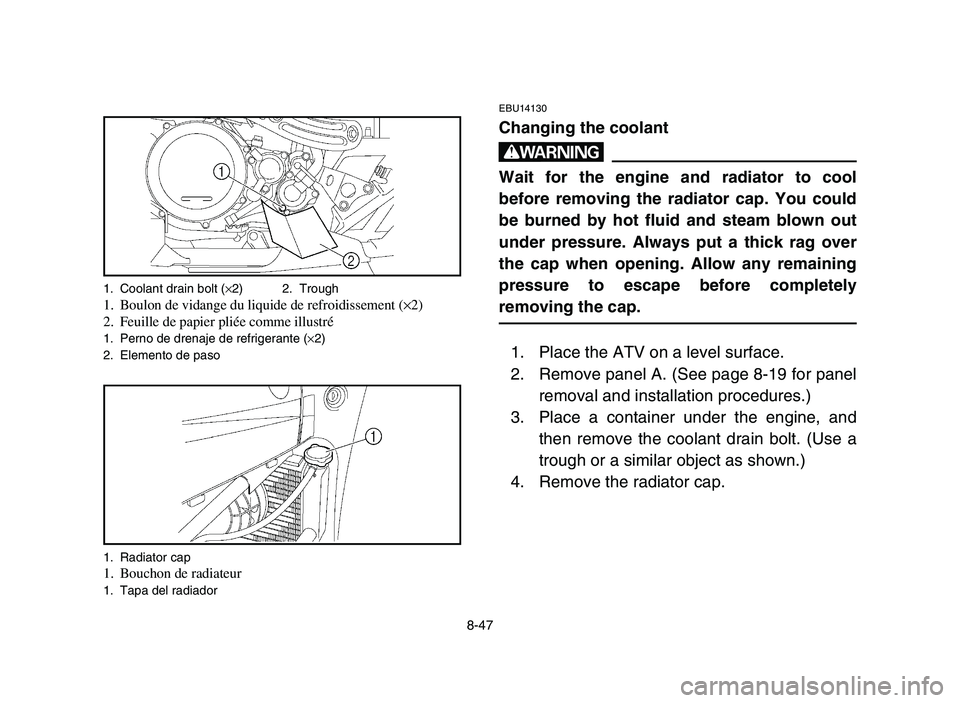

Changing the coolant
w
Wait for the engine and radiator to cool
before removing the radiator cap. You could
be burned by hot fluid and steam blown out
under pressure. Always put a thick rag over
the cap when opening. Allow any remaining
pressure to escape before completely
removing the cap.
1. Place the ATV on a level surface.
2. Remove panel A. (See page 8-19 for panel
removal and installation procedures.)
3. Place a container under the engine, and
then remove the coolant drain bolt. (Use a
trough or a similar object as shown.)
4. Remove the radiator cap.
1. Coolant drain bolt (×2) 2. Trough1. Boulon de vidange du liquide de refroidissement (×2)
2. Feuille de papier pliée comme illustré
1. Perno de drenaje de refrigerante (×2)
2. Elemento de paso
1. Radiator cap
1. Bouchon de radiateur1. Tapa del radiador
5TG-9-62 8 5/13/05 1:48 PM Page 8-47

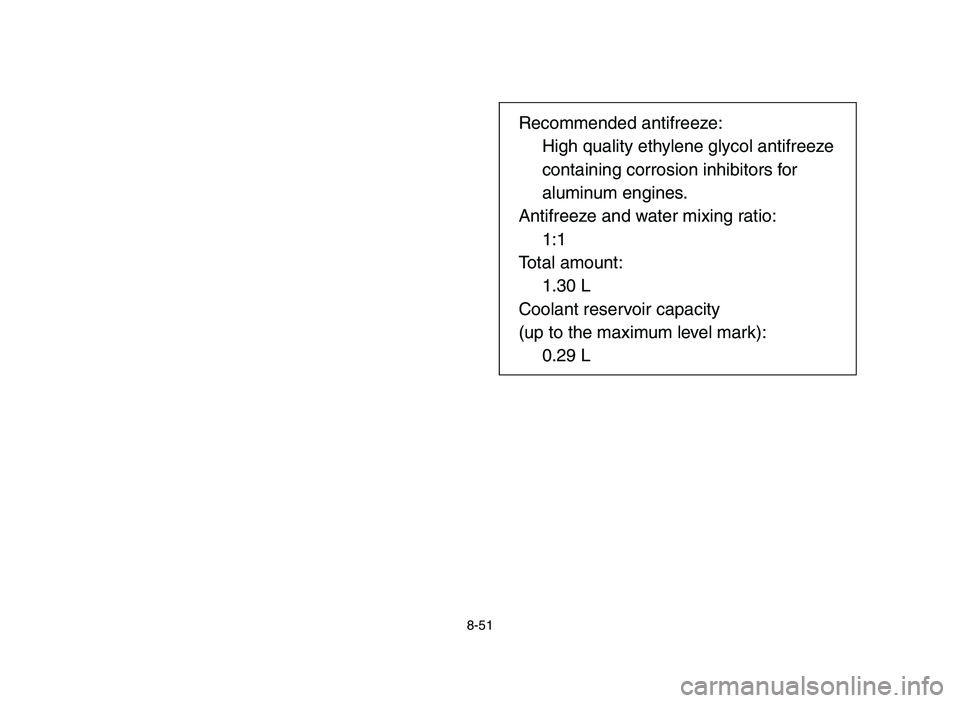

8-51
Recommended antifreeze:
High quality ethylene glycol antifreeze
containing corrosion inhibitors for
aluminum engines.
Antifreeze and water mixing ratio:
1:1
Total amount:
1.30 L
Coolant reservoir capacity
(up to the maximum level mark):
0.29 L
5TG-9-62 8 5/13/05 1:48 PM Page 8-51
