YAMAHA YFZ450R 2011 Owners Manual

10-1
10
EBU25960

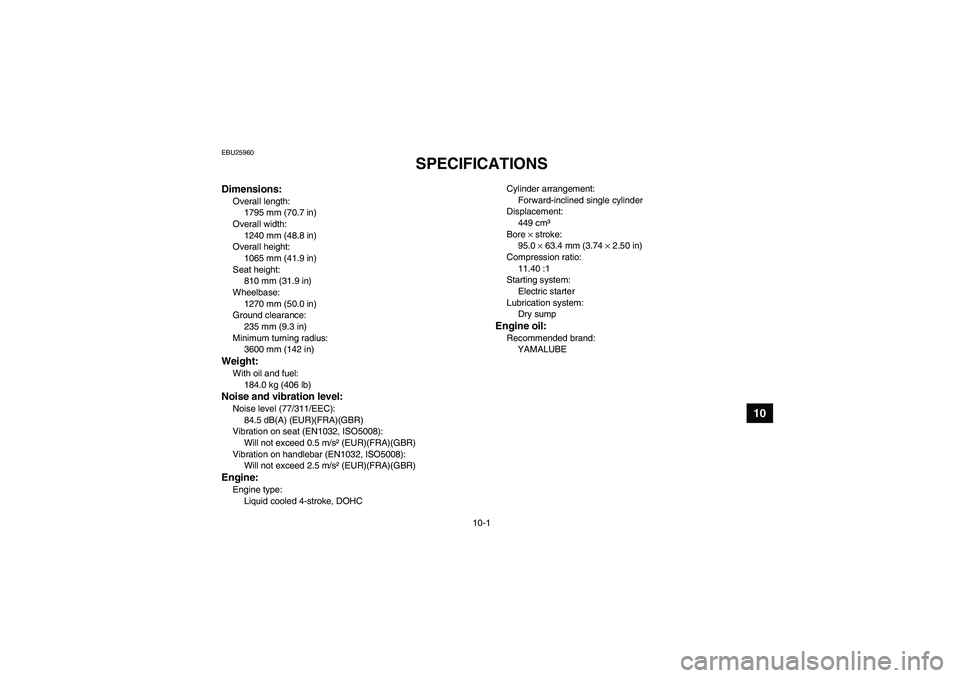

SPECIFICATIONS
Dimensions:Overall length:
1795 mm (70.7 in)
Overall width:
1240 mm (48.8 in)
Overall height:
1065 mm (41.9 in)
Seat height:
810 mm (31.9 in)
Wheelbase:
1270 mm (50.0 in)
Ground clearance:
235 mm (9.3 in)
Minimum turning radius:
3600 mm (142 in)Weight:With oil and fuel:
184.0 kg (406 lb)Noise and vibration level:Noise level (77/311/EEC):
84.5 dB(A) (EUR)(FRA)(GBR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)Engine:Engine type:
Liquid cooled 4-stroke, DOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
449 cm³
Bore × stroke:
95.0 × 63.4 mm (3.74 × 2.50 in)
Compression ratio:
11.40 :1
Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:
YAMALUBE
U18P64E0.book Page 1 Thursday, May 13, 2010 6:00 PM

10-2
10
Type:
SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)
With oil filter element replacement:
1.45 L (1.53 US qt, 1.28 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.25 L (1.32 US qt, 1.10 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
10.0 L (2.64 US gal, 2.20 Imp.gal)
Fuel reserve amount:
3.4 L (0.90 US gal, 0.75 Imp.gal)Fuel injection:Throttle body:
ID mark:
18P1 00Spark plug (s):Manufacturer/model:
NGK/CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
61/23 (2.652)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
38/14 (2.714)
-20 -10 0
1020 304050 ˚C
SAE 15W-40
SAE 20W-40SAE 20W-50
SAE 10W-40
SAE 5W-30
SAE 10W-30
U18P64E0.book Page 2 Thursday, May 13, 2010 6:00 PM

10-3
10

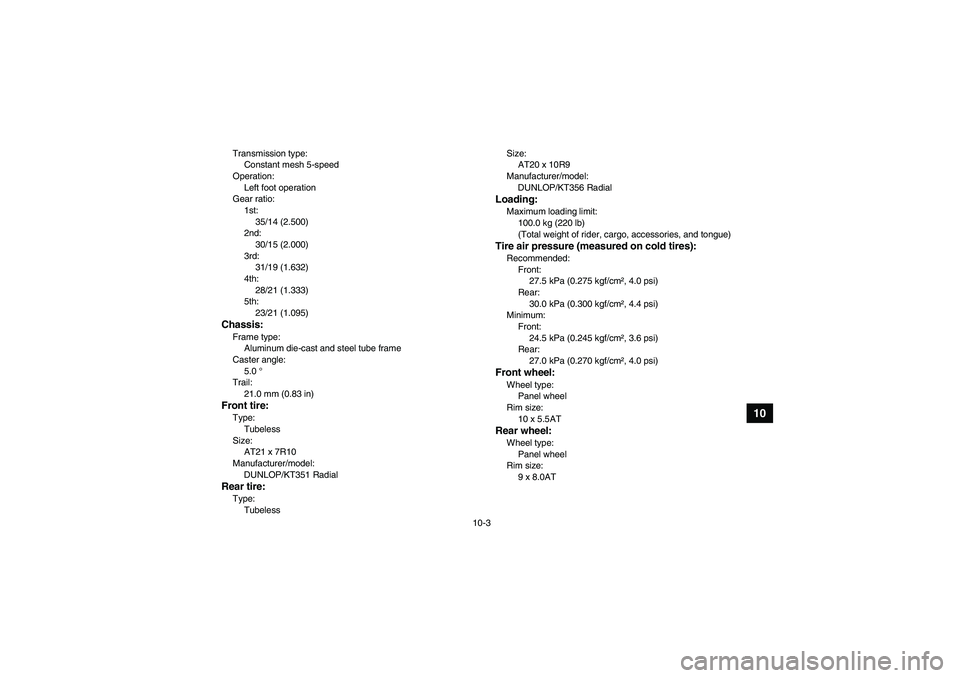

Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
35/14 (2.500)
2nd:
30/15 (2.000)
3rd:
31/19 (1.632)
4th:
28/21 (1.333)
5th:
23/21 (1.095)Chassis:Frame type:
Aluminum die-cast and steel tube frame
Caster angle:
5.0 °
Trail:
21.0 mm (0.83 in)Front tire:Type:
Tubeless
Size:
AT21 x 7R10
Manufacturer/model:
DUNLOP/KT351 RadialRear tire:Type:
TubelessSize:
AT20 x 10R9
Manufacturer/model:
DUNLOP/KT356 Radial
Loading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
27.5 kPa (0.275 kgf/cm², 4.0 psi)
Rear:
30.0 kPa (0.300 kgf/cm², 4.4 psi)
Minimum:
Front:
24.5 kPa (0.245 kgf/cm², 3.6 psi)
Rear:
27.0 kPa (0.270 kgf/cm², 4.0 psi)Front wheel:Wheel type:
Panel wheel
Rim size:
10 x 5.5ATRear wheel:Wheel type:
Panel wheel
Rim size:
9 x 8.0AT
U18P64E0.book Page 3 Thursday, May 13, 2010 6:00 PM

10-4
10

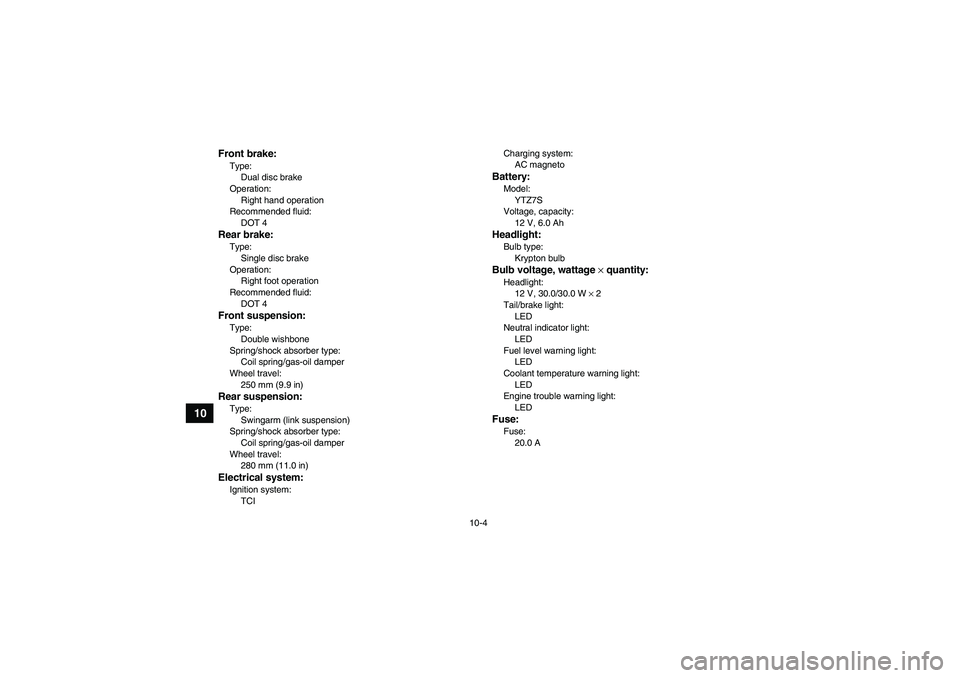

Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
250 mm (9.9 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
280 mm (11.0 in)Electrical system:Ignition system:
TCICharging system:
AC magneto
Battery:Model:
YTZ7S
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
LED
Neutral indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LEDFuse:Fuse:
20.0 A
U18P64E0.book Page 4 Thursday, May 13, 2010 6:00 PM

11-1
11
EBU26000

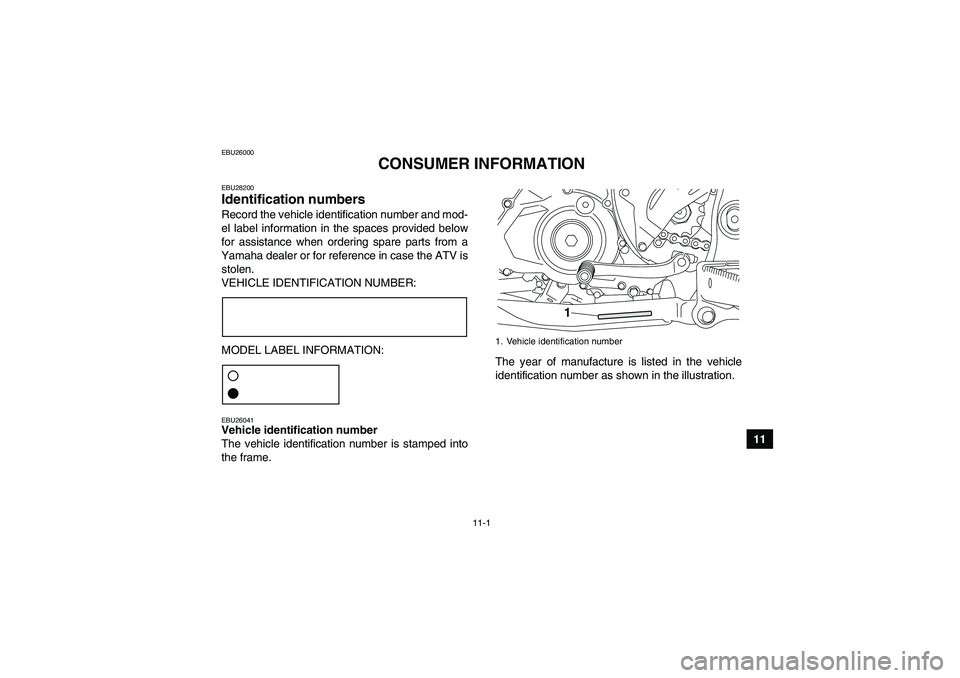

CONSUMER INFORMATION
EBU28200Identification numbers Record the vehicle identification number and mod-
el label information in the spaces provided below
for assistance when ordering spare parts from a
Yamaha dealer or for reference in case the ATV is
stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26041Vehicle identification number
The vehicle identification number is stamped into
the frame.The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
1. Vehicle identification number
1
U18P64E0.book Page 1 Thursday, May 13, 2010 6:00 PM

11-2
11

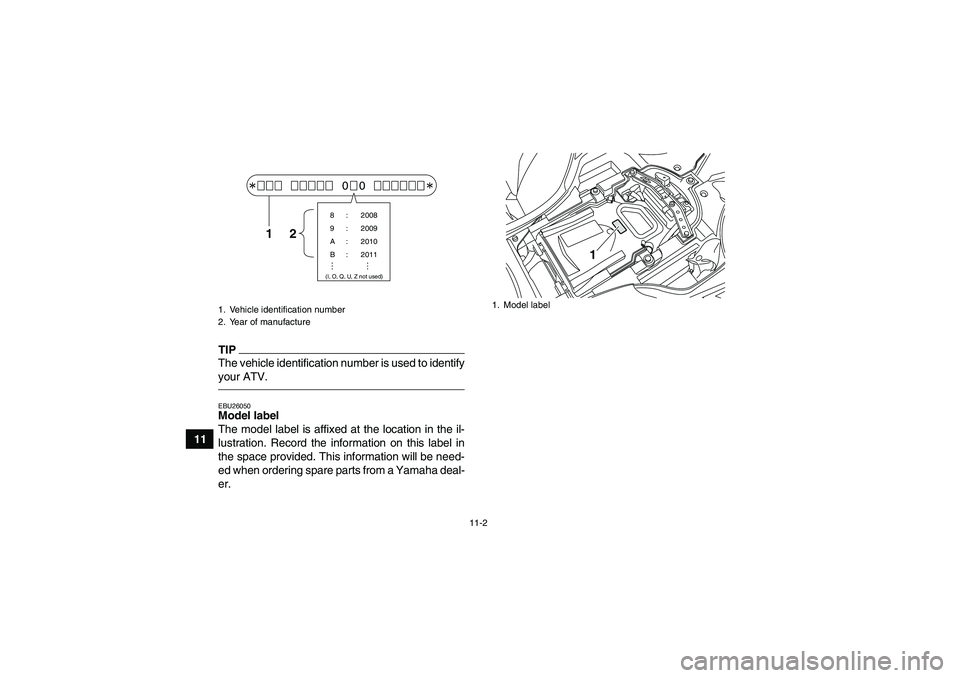

TIPThe vehicle identification number is used to identify
your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
1. Model label
1
U18P64E0.book Page 2 Thursday, May 13, 2010 6:00 PM

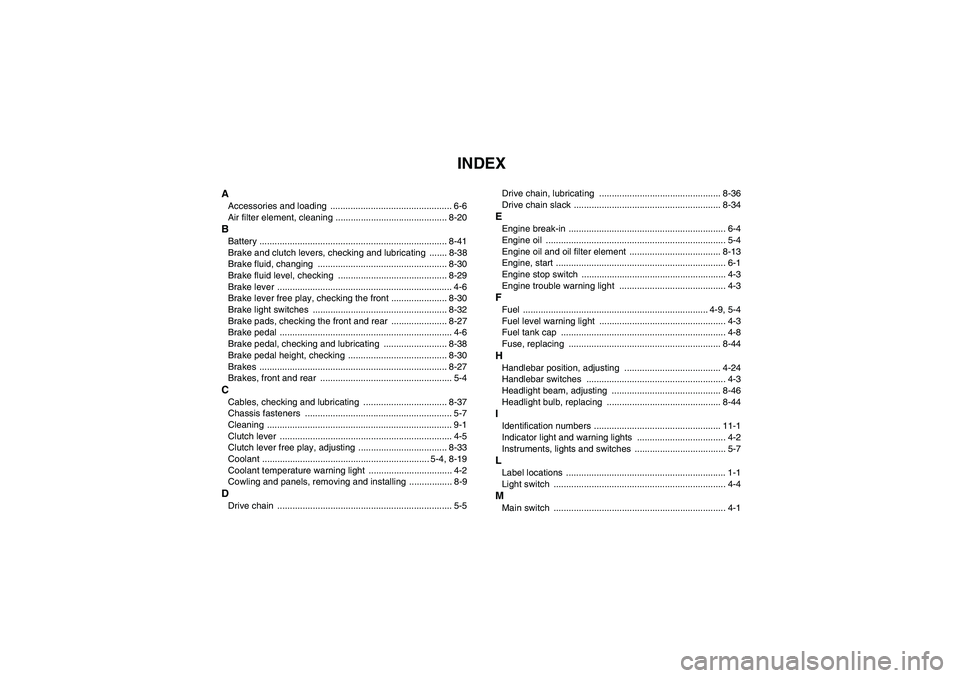

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-20BBattery .......................................................................... 8-41
Brake and clutch levers, checking and lubricating ....... 8-38
Brake fluid, changing ................................................... 8-30
Brake fluid level, checking ........................................... 8-29
Brake lever ..................................................................... 4-6
Brake lever free play, checking the front ...................... 8-30
Brake light switches ..................................................... 8-32
Brake pads, checking the front and rear ...................... 8-27
Brake pedal .................................................................... 4-6
Brake pedal, checking and lubricating ......................... 8-38
Brake pedal height, checking ....................................... 8-30
Brakes .......................................................................... 8-27
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-37
Chassis fasteners .......................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-5
Clutch lever free play, adjusting ................................... 8-33
Coolant .................................................................. 5-4, 8-19
Coolant temperature warning light ................................. 4-2
Cowling and panels, removing and installing ................. 8-9DDrive chain ..................................................................... 5-5Drive chain, lubricating ................................................ 8-36
Drive chain slack .......................................................... 8-34
EEngine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-4
Engine oil and oil filter element .................................... 8-13
Engine, start ................................................................... 6-1
Engine stop switch ......................................................... 4-3
Engine trouble warning light .......................................... 4-3FFuel ......................................................................... 4-9, 5-4
Fuel level warning light .................................................. 4-3
Fuel tank cap ................................................................. 4-8
Fuse, replacing ............................................................ 8-44HHandlebar position, adjusting ...................................... 4-24
Handlebar switches ....................................................... 4-3
Headlight beam, adjusting ........................................... 8-46
Headlight bulb, replacing ............................................. 8-44IIdentification numbers .................................................. 11-1
Indicator light and warning lights ................................... 4-2
Instruments, lights and switches .................................... 5-7LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-4MMain switch .................................................................... 4-1
U18P64E0.book Page 1 Thursday, May 13, 2010 6:00 PM

Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2NNeutral indicator light ..................................................... 4-2OOwner’s manual and tool kit ........................................... 8-2PParking ........................................................................... 6-4
Parking brake free play, adjusting ................................ 8-31
Parking brake lever ........................................................ 4-7
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1RRiding your ATV ............................................................. 7-1SSafety information .......................................................... 2-1
Seat .............................................................................. 4-10
Shifting ........................................................................... 6-2
Shift pedal ...................................................................... 4-8
Shift pedal, checking .................................................... 8-38
Shock absorber assemblies, adjusting the front .......... 4-11
Shock absorber assembly, adjusting the rear .............. 4-16
Spark arrester, cleaning ............................................... 8-24
Spark plug, checking .................................................... 8-12
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-5
Start switch ..................................................................... 4-4
Steering shaft, lubricating ............................................. 8-41
Storage ........................................................................... 9-2
Suspension, lubricating the upper and lower arm
pivots .......................................................................... 8-40Swingarm pivots, lubricating ........................................ 8-39
TTail/brake light .............................................................. 8-47
Throttle lever ........................................................... 4-4, 5-5
Throttle lever free play, adjusting ................................. 8-26
Tires ............................................................................... 5-5
Troubleshooting ........................................................... 8-49
Troubleshooting charts ................................................. 8-50VValve clearance ............................................................ 8-27
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-39
Wheel, installing ........................................................... 8-48
Wheel, removing .......................................................... 8-47
U18P64E0.book Page 2 Thursday, May 13, 2010 6:00 PM

U18P64E0.book Page 3 Thursday, May 13, 2010 6:00 PM

YAMAHA MOTOR CO., LTD.
PRINTED ON RECYCLED PAPER PRINTED IN JAPAN
2010.05-0.3×1 CR
(E)
U18P64E0.book Page 1 Thursday, May 13, 2010 7:21 PM
