TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator light and warning lights ................ 4-2
Handlebar switches .................................... 4-3
Throttle lever .............................................. 4-4
Speed limiter .............................................. 4-5
Clutch lever ................................................ 4-5
Brake lever ................................................. 4-6
Brake pedal ................................................ 4-6
Parking brake lever .................................... 4-7
Shift pedal .................................................. 4-8
Fuel tank cap .............................................. 4-8
Fuel ............................................................ 4-9Seat ..........................................................4-10
Adjusting the front shock absorber
assemblies ..............................................4-11
Adjusting the rear shock absorber
assembly .................................................4-16
Handlebar position ....................................4-24
PRE-OPERATION CHECKS ..........................5-1
Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1
Starting the engine ......................................6-1
Shifting ........................................................6-2
Engine break-in ...........................................6-4
Parking ........................................................6-4
Parking on a slope ......................................6-5U18P64E0.book Page 1 Thursday, May 13, 2010 6:00 PM

Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW
WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for
the emission control system ..................... 8-3
General maintenance and
lubrication chart ........................................ 8-5
Removing and installing the cowling and
panels ....................................................... 8-9Checking the spark plug ...........................8-12
Engine oil and oil filter element .................8-13
Coolant .....................................................8-19
Cleaning the air filter element ...................8-20
Cleaning the spark arrester ......................8-24
Adjusting the throttle lever free play .........8-26
Valve clearance ........................................8-27
Brakes .......................................................8-27
Checking the front and rear brake pads ...8-27
Checking the brake fluid level ...................8-29
Changing the brake fluid ...........................8-30
Checking the front brake lever free play ...8-30
Checking the brake pedal height ..............8-30
Adjusting the parking brake free play .......8-31
Brake light switches ..................................8-32
Adjusting the clutch lever free play ...........8-33
Drive chain slack .......................................8-34
Lubricating the drive chain ........................8-36
Checking and lubricating the cables .........8-37
Checking and lubricating the brake and
clutch levers ............................................8-38
Checking the shift pedal ...........................8-38
Checking and lubricating the brake
pedal .......................................................8-38
Checking the wheel hub bearings .............8-39
Lubricating the swingarm pivots ...............8-39
U18P64E0.book Page 2 Thursday, May 13, 2010 6:00 PM

4-2
4
EBU29382Indicator light and warning lights EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.
EBU29920Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to“”. The warning
light should come on for a few seconds, and then
go off.
If the warning light does not come on initially when
the key is turned to“”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Fuel level warning light“”
2. Engine trouble warning light“”
3. Coolant temperature warning light“”
4. Neutral indicator light “N”
12 3 4
U18P64E0.book Page 2 Thursday, May 13, 2010 6:00 PM

4-3
4
EBU29930Fuel level warning light“”
This warning light comes on when the fuel level
drops below approximately 3.4 L (0.90 US gal,
0.75 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to“”
and turning the key to“”. The warning light
should come on for a few seconds, and then go off.
If the warning light does not come on initially when
the key is turned to“”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.EBU29941Engine trouble warning light“”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to“”. The warning
light should come on for a few seconds, and then
go off.If the warning light does not come on initially when
the key is turned to“”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.
EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch1. Light switch“/ /OFF”
2. Engine stop switch“/”
3. Start switch“”
1
2
3
U18P64E0.book Page 3 Thursday, May 13, 2010 6:00 PM

4-4
4 to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.
EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18152Light switch“//OFF”
Set this switch to“” to turn on the low beams
and the taillight. Set the switch to“” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICEECB00041Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. See page 8-41 for battery charging
information.
EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.1. Throttle lever
1
U18P64E0.book Page 4 Thursday, May 13, 2010 6:00 PM

6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU29951Starting the engine NOTICEECB00150See the “Engine break-in” section on page 6-4
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the key to“” and the engine stop
switch to“”.
The following warning lights should come on
for a few seconds, then go off.

Coolant temperature warning light
Fuel level warning light
Engine trouble warning light
NOTICEECB00824If a warning light does not go off, see page 4-2
for the corresponding warning light circuit
check. To avoid possible damage, do not oper-
ate the ATV if a warning light stays on.3. Shift the transmission into neutral. The neutral
indicator light should come on, if it does not
come on, have a Yamaha dealer check the
electrical circuit.TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.
The transmission is in neutral.
The clutch is disengaged with the transmission
in gear. However, it is recommended to shift into
neutral before starting the engine.
U18P64E0.book Page 1 Thursday, May 13, 2010 6:00 PM

8-12

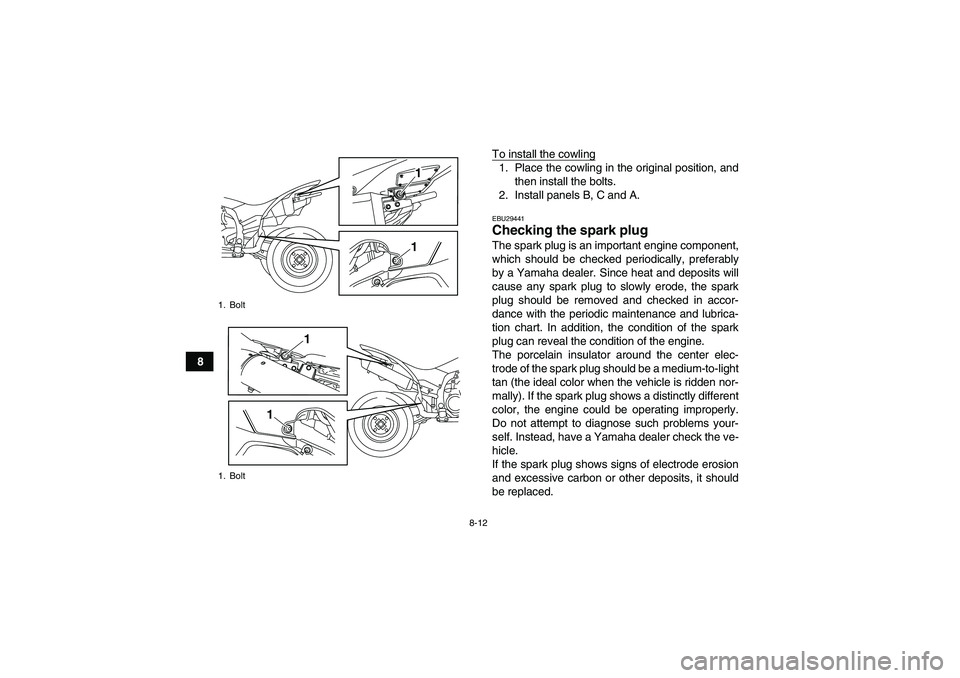

8To install the cowling
1. Place the cowling in the original position, and
then install the bolts.
2. Install panels B, C and A.EBU29441Checking the spark plug The spark plug is an important engine component,
which should be checked periodically, preferably
by a Yamaha dealer. Since heat and deposits will
cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
The porcelain insulator around the center elec-
trode of the spark plug should be a medium-to-light
tan (the ideal color when the vehicle is ridden nor-
mally). If the spark plug shows a distinctly different
color, the engine could be operating improperly.
Do not attempt to diagnose such problems your-
self. Instead, have a Yamaha dealer check the ve-
hicle.
If the spark plug shows signs of electrode erosion
and excessive carbon or other deposits, it should
be replaced.
1. Bolt
1. Bolt
11
1
1
U18P64E0.book Page 12 Thursday, May 13, 2010 6:00 PM

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-20BBattery .......................................................................... 8-41
Brake and clutch levers, checking and lubricating ....... 8-38
Brake fluid, changing ................................................... 8-30
Brake fluid level, checking ........................................... 8-29
Brake lever ..................................................................... 4-6
Brake lever free play, checking the front ...................... 8-30
Brake light switches ..................................................... 8-32
Brake pads, checking the front and rear ...................... 8-27
Brake pedal .................................................................... 4-6
Brake pedal, checking and lubricating ......................... 8-38
Brake pedal height, checking ....................................... 8-30
Brakes .......................................................................... 8-27
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-37
Chassis fasteners .......................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-5
Clutch lever free play, adjusting ................................... 8-33
Coolant .................................................................. 5-4, 8-19
Coolant temperature warning light ................................. 4-2
Cowling and panels, removing and installing ................. 8-9DDrive chain ..................................................................... 5-5Drive chain, lubricating ................................................ 8-36
Drive chain slack .......................................................... 8-34
EEngine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-4
Engine oil and oil filter element .................................... 8-13
Engine, start ................................................................... 6-1
Engine stop switch ......................................................... 4-3
Engine trouble warning light .......................................... 4-3FFuel ......................................................................... 4-9, 5-4
Fuel level warning light .................................................. 4-3
Fuel tank cap ................................................................. 4-8
Fuse, replacing ............................................................ 8-44HHandlebar position, adjusting ...................................... 4-24
Handlebar switches ....................................................... 4-3
Headlight beam, adjusting ........................................... 8-46
Headlight bulb, replacing ............................................. 8-44IIdentification numbers .................................................. 11-1
Indicator light and warning lights ................................... 4-2
Instruments, lights and switches .................................... 5-7LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-4MMain switch .................................................................... 4-1
U18P64E0.book Page 1 Thursday, May 13, 2010 6:00 PM
