4-12
4
WARNING
EWB02491
Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or
the oil reservoir with your bare hand or skin
until suspension components have cooled.
Always adjust the shock absorber assem-
blies on the left and right side to the same
setting. Uneven adjustment can cause poor
handling and loss of stability, which could
lead to an accident.NOTICEECB00090Never turn an adjusting mechanism beyond
the minimum and maximum settings.TIPAlthough the total number of clicks or turns of a
damping force adjusting mechanism may not ex-
actly match the following specifications due to
small differences in production, the actual number
of clicks or turns always represents the entire ad-
justing range. To obtain a precise adjustment, itwould be advisable to check the number of clicks
or turns of each damping force adjusting mecha-
nism and to modify the specifications as neces-
sary.
Spring preload
1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direc-
tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.1. Locknut
2. Spring preload adjusting nut
3. Special wrench
(a)
(b)2 1
3
U18P64E0.book Page 12 Thursday, May 13, 2010 6:00 PM

4-16
4
WARNING
EWB00410These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and un-
derstand the following information before han-
dling the shock absorber assemblies.
Do not tamper with or attempt to open the
cylinder assemblies.
Do not subject the shock absorber assem-
blies to an open flame or other high heat
source. This may cause the unit to explode
due to excessive gas pressure.
Do not deform or damage the cylinders in
any way. Cylinder damage will result in poor
damping performance.

Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-

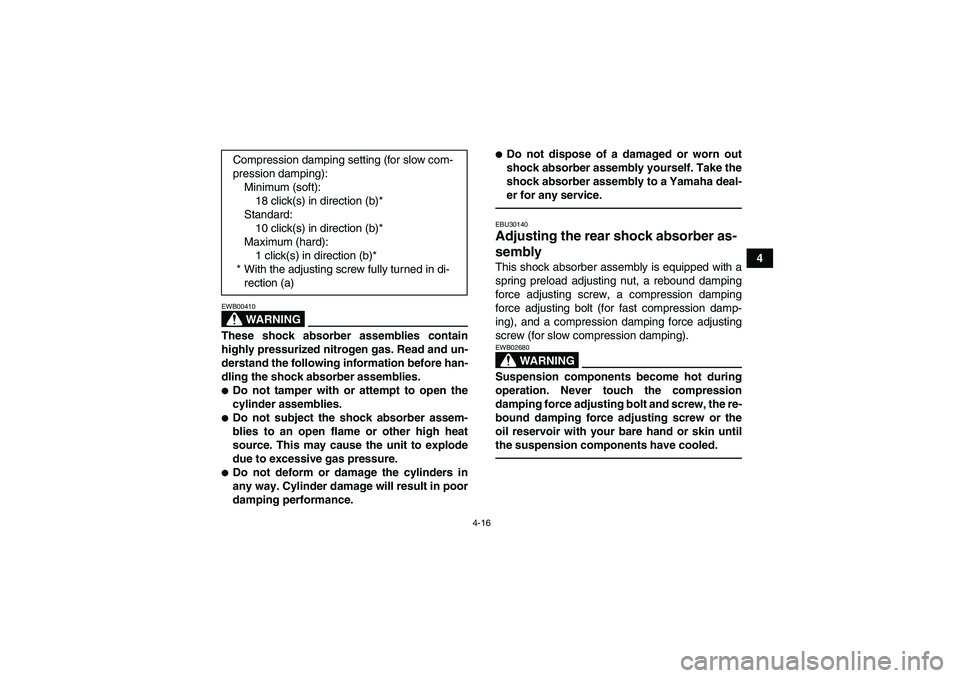

er for any service.EBU30140Adjusting the rear shock absorber as-
sembly This shock absorber assembly is equipped with a
spring preload adjusting nut, a rebound damping
force adjusting screw, a compression damping
force adjusting bolt (for fast compression damp-
ing), and a compression damping force adjusting
screw (for slow compression damping).
WARNING
EWB02680Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the re-
bound damping force adjusting screw or the
oil reservoir with your bare hand or skin until
the suspension components have cooled.
Compression damping setting (for slow com-
pression damping):
Minimum (soft):
18 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned in di-
rection (a)
U18P64E0.book Page 16 Thursday, May 13, 2010 6:00 PM

8-49
8 3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.

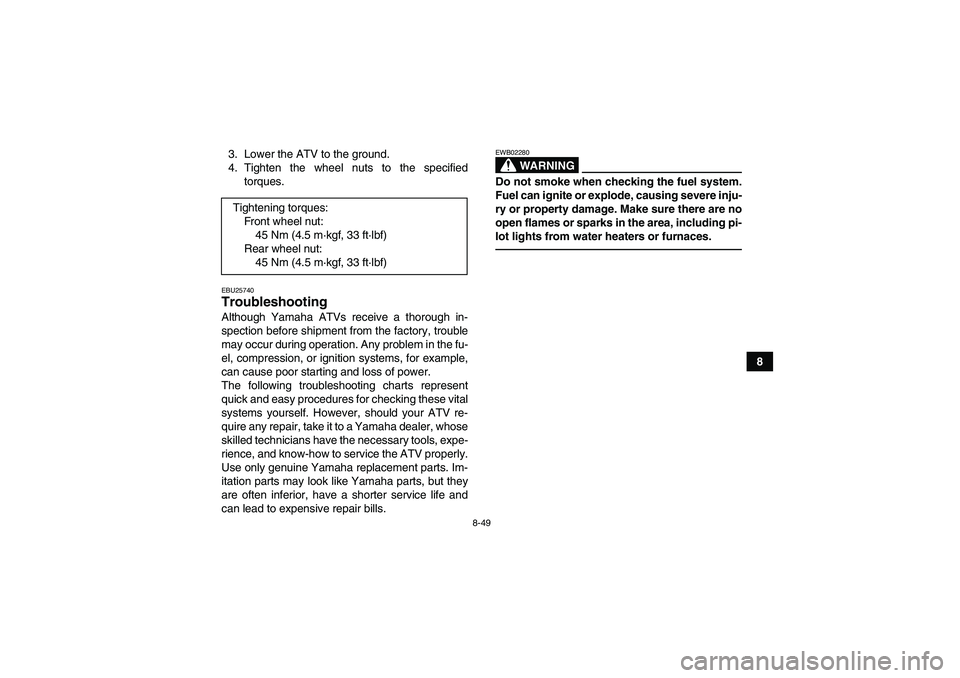

EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
Tightening torques:
Front wheel nut:
45 Nm (4.5 m·kgf, 33 ft·lbf)
Rear wheel nut:
45 Nm (4.5 m·kgf, 33 ft·lbf)
U18P64E0.book Page 49 Thursday, May 13, 2010 6:00 PM

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
1795 mm (70.7 in)
Overall width:
1240 mm (48.8 in)
Overall height:
1065 mm (41.9 in)
Seat height:
810 mm (31.9 in)
Wheelbase:
1270 mm (50.0 in)
Ground clearance:
235 mm (9.3 in)
Minimum turning radius:
3600 mm (142 in)Weight:With oil and fuel:
184.0 kg (406 lb)Noise and vibration level:Noise level (77/311/EEC):
84.5 dB(A) (EUR)(FRA)(GBR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)Engine:Engine type:
Liquid cooled 4-stroke, DOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
449 cm³
Bore × stroke:
95.0 × 63.4 mm (3.74 × 2.50 in)
Compression ratio:
11.40 :1
Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:
YAMALUBE
