YAMAHA YFZ450R 2014 Owners Manual

8-32
8

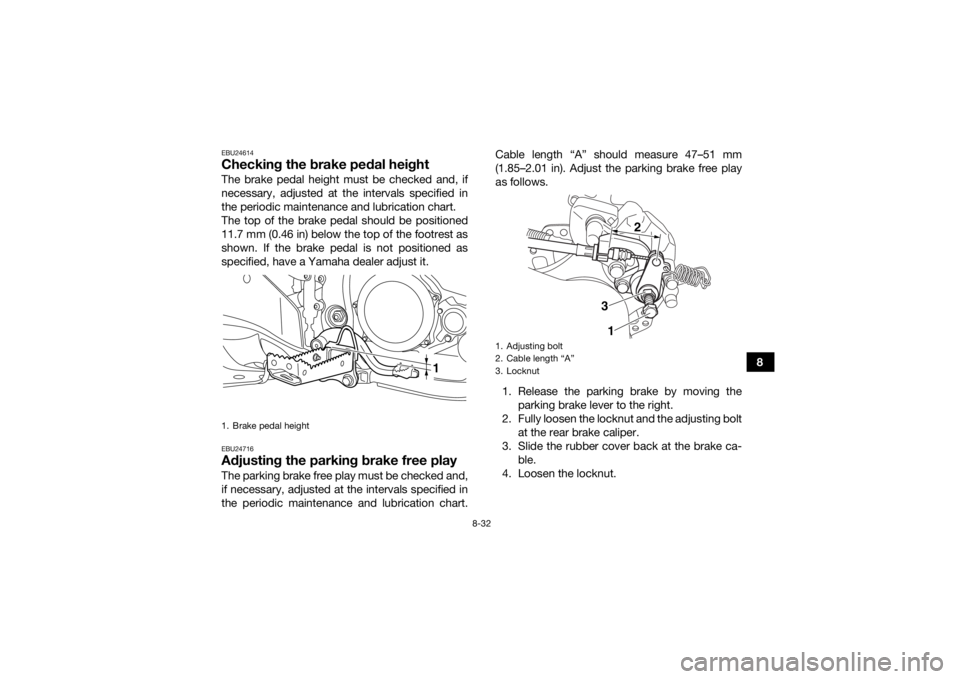

EBU24614Checking the brake pedal heightThe brake pedal height must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The top of the brake pedal should be positioned
11.7 mm (0.46 in) below the top of the footrest as
shown. If the brake pedal is not positioned as
specified, have a Yamaha dealer adjust it.EBU24716Adjusting the parking brake free playThe parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.Cable length “A” should measure 47–51 mm
(1.85–2.01 in). Adjust the parking brake free play
as follows.
1. Release the parking brake by moving the parking brake lever to the right.
2. Fully loosen the locknut and the adjusting bolt at the rear brake caliper.
3. Slide the rubber cover back at the brake ca- ble.
4. Loosen the locknut.1. Brake pedal height
1
1. Adjusting bolt
2. Cable length “A”
3. Locknut
1
2
3
U1TD6AE0.book Page 32 Wednesday, January 8, 2014 8:46 AM

8-33
85. Turn the parking brake free play adjusting nut
in direction (a) to increase the cable length,
and in direction (b) to decrease it.
TIPIf the cable length cannot be adjusted to specifi-
cation, consult a Yamaha dealer. 6. Tighten the locknut on the brake cable.
7. Slide the rubber cover to its original position.
8. Turn in the adjusting bolt at the rear brake cal-iper until it feels tight, then turn it out 1/8 turn
and tighten its locknut to the specified torque. NOTICE:
When tightening the locknut,
hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00522]
WARNING
EWB02091Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again. EBU24744Brake light switchesThe brake light, which is activated by the brake
pedal and brake lever, should come on just before
braking takes effect.
1. Locknut
2. Parking brake free play adjusting nut
3. Rubber cover
1
2
3
(b)
(a)
Tightening torque: Locknut (rear brake caliper):16 Nm (1.6 m·kgf, 12 ft·lbf)
U1TD6AE0.book Page 33 Wednesday, January 8, 2014 8:46 AM

8-34
8

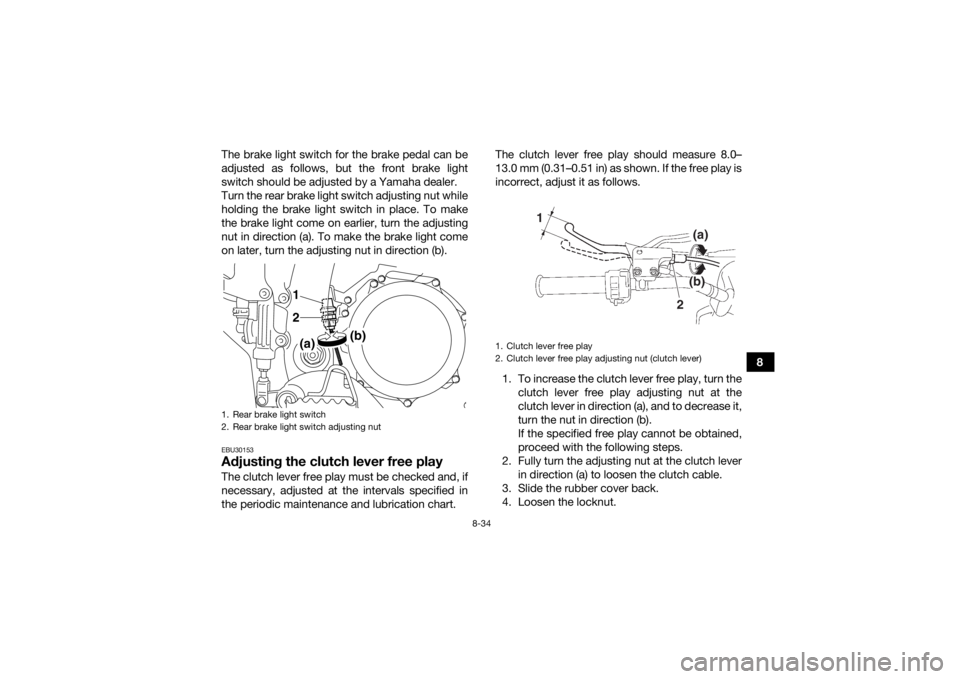

The brake light switch for the brake pedal can be
adjusted as follows, but the front brake light
switch should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make
the brake light come on earlier, turn the adjusting
nut in direction (a). To make the brake light come
on later, turn the adjusting nut in direction (b).
EBU30153Adjusting the clutch lever free playThe clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart. The clutch lever free play should measure 8.0–
13.0 mm (0.31–0.51 in) as shown. If the free play is
incorrect, adjust it as follows.
1. To increase the clutch lever free play, turn the clutch lever free play adjusting nut at the
clutch lever in direction (a), and to decrease it,
turn the nut in direction (b).
If the specified free play cannot be obtained,
proceed with the following steps.
2. Fully turn the adjusting nut at the clutch lever in direction (a) to loosen the clutch cable.
3. Slide the rubber cover back.
4. Loosen the locknut.1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2(a) (b)
1. Clutch lever free play
2. Clutch lever free play adjusting nut (clutch lever)
1
(a)
(b)
2
U1TD6AE0.book Page 34 Wednesday, January 8, 2014 8:46 AM

8-35

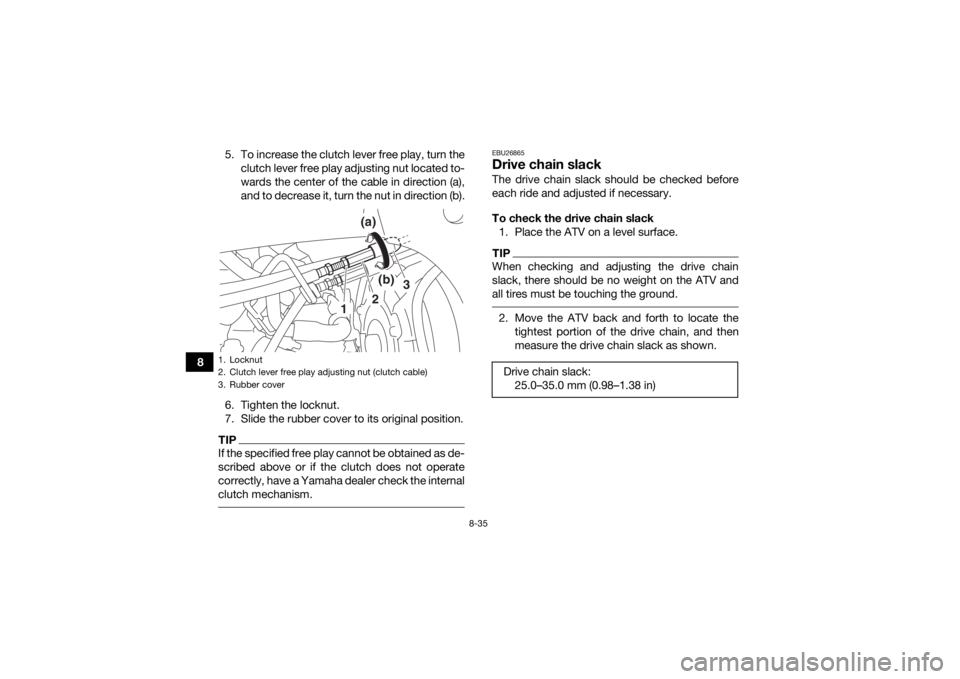

85. To increase the clutch lever free play, turn the
clutch lever free play adjusting nut located to-
wards the center of the cable in direction (a),
and to decrease it, turn the nut in direction (b).
6. Tighten the locknut.
7. Slide the rubber cover to its original position.
TIPIf the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate
correctly, have a Yamaha dealer check the internal
clutch mechanism.
EBU26865Drive chain slackThe drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack 1. Place the ATV on a level surface.TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground. 2. Move the ATV back and forth to locate the tightest portion of the drive chain, and then
measure the drive chain slack as shown.
1. Locknut
2. Clutch lever free play adjusting nut (clutch cable)
3. Rubber cover
1
2
3
(b)
(a)
Drive chain slack:25.0–35.0 mm (0.98–1.38 in)
U1TD6AE0.book Page 35 Wednesday, January 8, 2014 8:46 AM

8-36
8
3. If the drive chain slack is incorrect, adjust it as
follows.

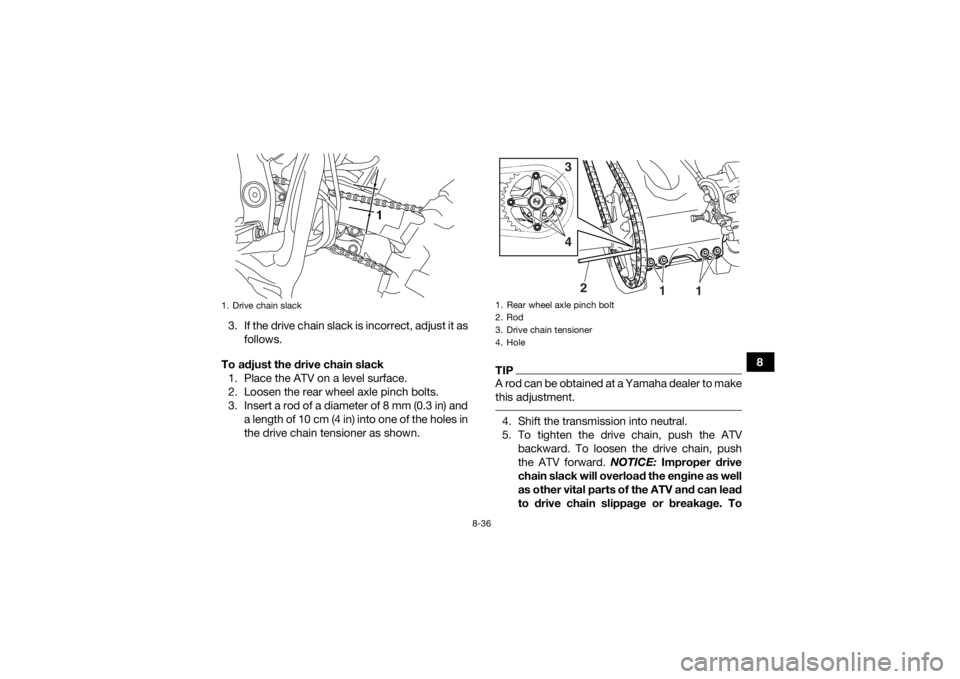

To adjust the drive chain slack 1. Place the ATV on a level surface.
2. Loosen the rear wheel axle pinch bolts.
3. Insert a rod of a diameter of 8 mm (0.3 in) and a length of 10 cm (4 in) into one of the holes in
the drive chain tensioner as shown.
TIPA rod can be obtained at a Yamaha dealer to make
this adjustment. 4. Shift the transmission into neutral.
5. To tighten the drive chain, push the ATVbackward. To loosen the drive chain, push
the ATV forward. NOTICE: Improper drive
chain slack will overload the engine as well
as other vital parts of the ATV and can lead
to drive chain slippage or breakage. To
1. Drive chain slack
1
1. Rear wheel axle pinch bolt
2. Rod
3. Drive chain tensioner
4. Hole
3
4
2 11
U1TD6AE0.book Page 36 Wednesday, January 8, 2014 8:46 AM

8-37
8prevent this from occurring, keep the drive
chain slack within the specified limits.
[ECB00543]

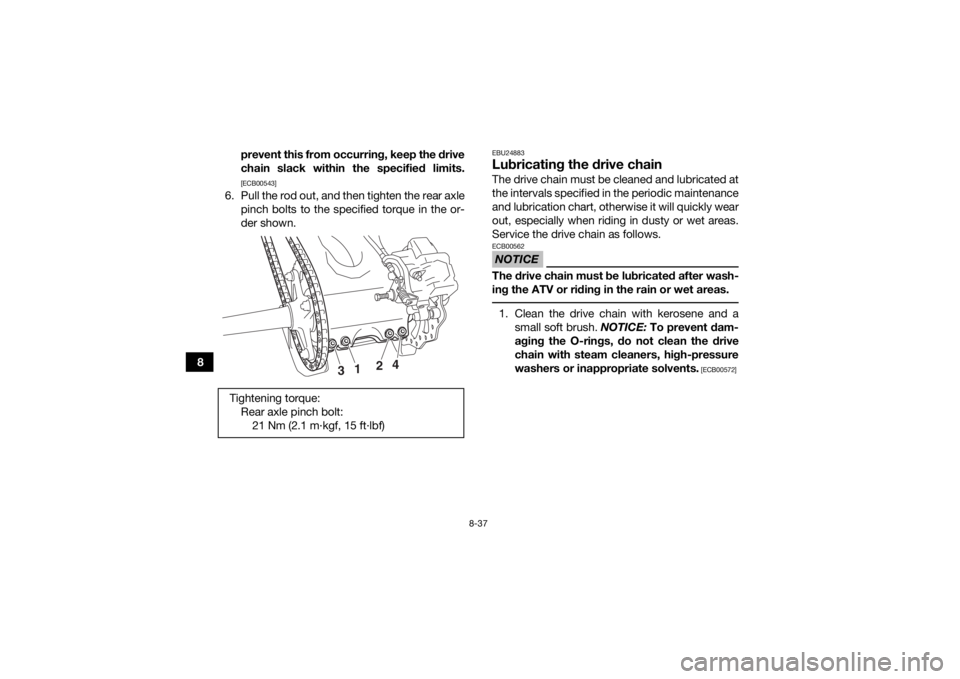

6. Pull the rod out, and then tighten the rear axle
pinch bolts to the specified torque in the or-
der shown.
EBU24883Lubricating the drive chainThe drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00562The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas. 1. Clean the drive chain with kerosene and asmall soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00572]
Tightening torque: Rear axle pinch bolt:21 Nm (2.1 m·kgf, 15 ft·lbf)
3 1 2
4
U1TD6AE0.book Page 37 Wednesday, January 8, 2014 8:46 AM

8-38
8
2. Wipe the drive chain dry.

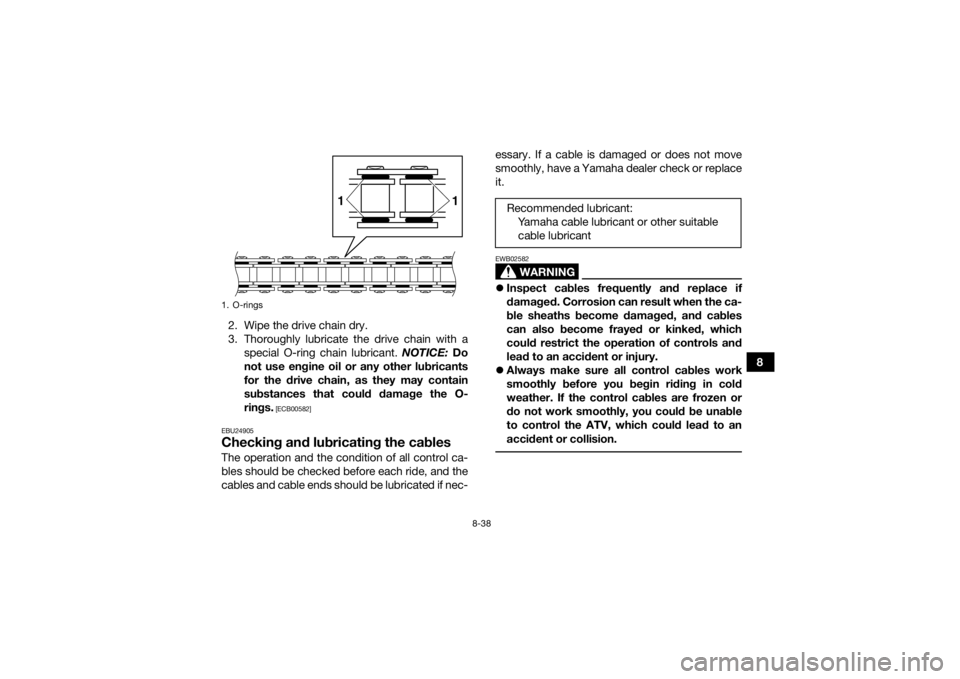

3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00582]
EBU24905
Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec- essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582
Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or
do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision.
1. O-rings
1
1
Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricant
U1TD6AE0.book Page 38 Wednesday, January 8, 2014 8:46 AM

8-39
8

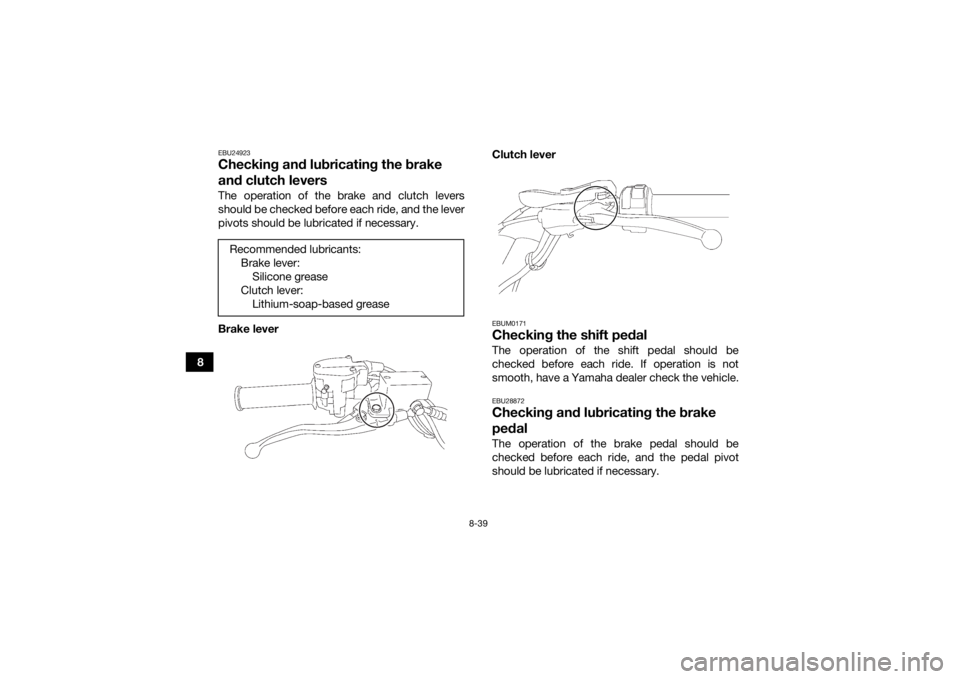

EBU24923Checking and lubricating the brake
and clutch leversThe operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Brake leverClutch lever

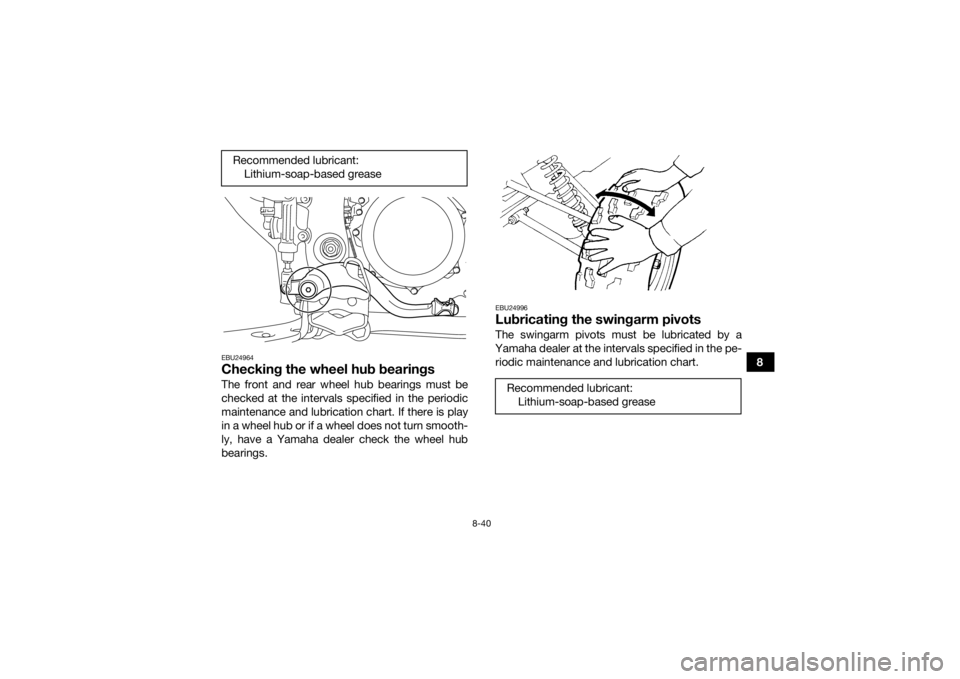

EBUM0171Checking the shift pedalThe operation of the shift pedal should be
checked before each ride. If operation is not
smooth, have a Yamaha dealer check the vehicle.EBU28872Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.
Recommended lubricants:
Brake lever:Silicone grease
Clutch lever: Lithium-soap-based grease
U1TD6AE0.book Page 39 Wednesday, January 8, 2014 8:46 AM

8-40
8
EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
EBU24996Lubricating the swingarm pivotsThe swingarm pivots must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.
Recommended lubricant:
Lithium-soap-based greaseRecommended lubricant:Lithium-soap-based grease
U1TD6AE0.book Page 40 Wednesday, January 8, 2014 8:46 AM

8-41
8

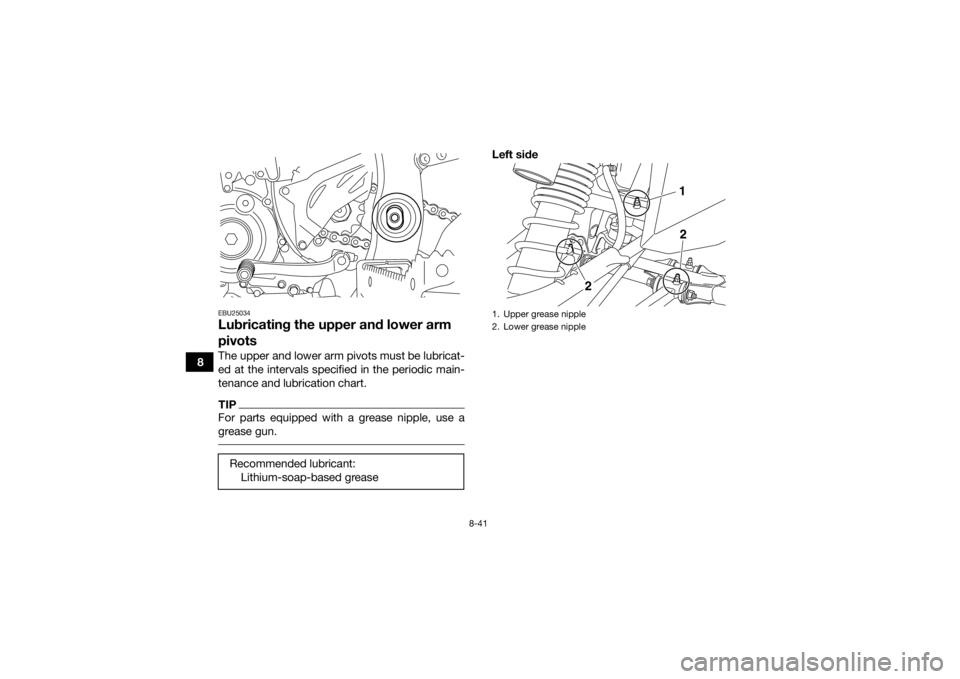

EBU25034Lubricating the upper and lower arm
pivotsThe upper and lower arm pivots must be lubricat-
ed at the intervals specified in the periodic main-
tenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
Left side
Recommended lubricant: Lithium-soap-based grease1. Upper grease nipple
2. Lower grease nipple
21
2
U1TD6AE0.book Page 41 Wednesday, January 8, 2014 8:46 AM
