4-12
4
WARNING
EWB02492Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or
the oil reservoir with your bare hand or skin
until suspension components have cooled.
 Always adjust the shock absorber assem-
blies on the left and right side to the same
setting. Uneven adjustment can cause poor
handling and loss of stability, which could
lead to an accident. NOTICEECB00091Never turn an adjusting mechanism beyond
the minimum and maximum settings. TIPAlthough the total number of clicks or turns of a
damping force adjusting mechanism may not ex-
actly match the following specifications due to
small differences in production, the actual number
of clicks or turns always represents the entire ad-
justing range. To obtain a precise adjustment, it would be advisable to check the number of clicks
or turns of each damping force adjusting mecha-
nism and to modify the specifications as neces-
sary.
Spring preload

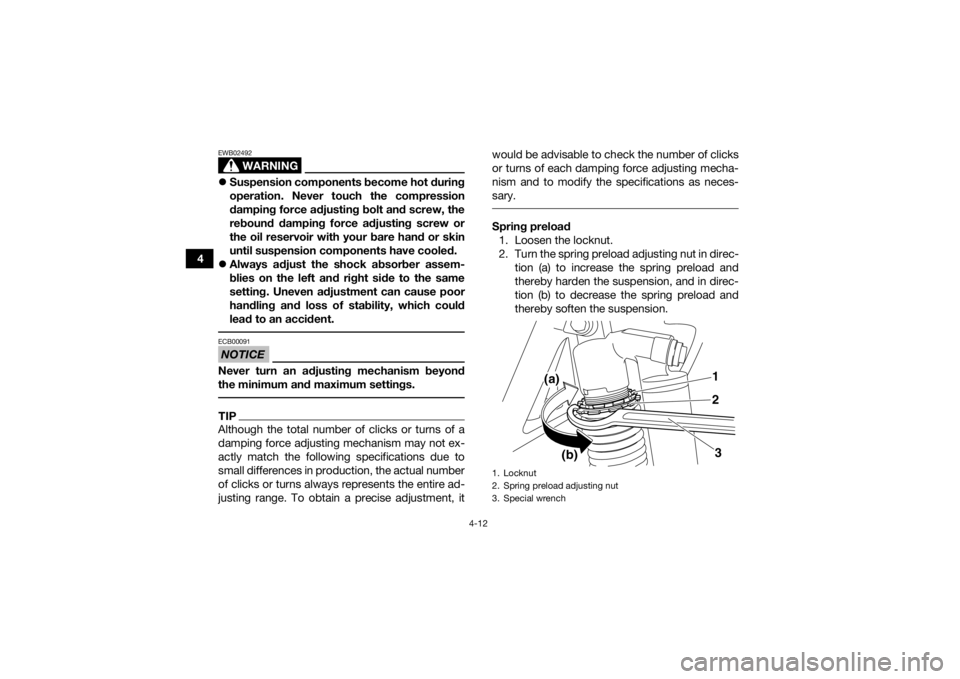

1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direc- tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.1. Locknut
2. Spring preload adjusting nut
3. Special wrench
(a)
(b) 2 1
3
U1TD62E0.book Page 12 Monday, May 18, 2015 9:20 AM

4-16
4
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and un-
derstand the following information before han-
dling the shock absorber assemblies.
Do not tamper with or attempt to open the
cylinder assemblies.
 Do not subject the shock absorber assem-
blies to an open flame or other high heat
source. This may cause the unit to explode
due to excessive gas pressure.
 Do not deform or damage the cylinders in
any way. Cylinder damage will result in poor
damping performance. 
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
EBU30142Adjusting the rear shock absorber as-
semblyThis shock absorber assembly is equipped with a
spring preload adjusting nut, a rebound damping
force adjusting screw, a compression damping
force adjusting bolt (for fast compression damp-
ing), and a compression damping force adjusting
screw (for slow compression damping).
WARNING
EWB02681Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or the
oil reservoir with your bare hand or skin until
the suspension components have cooled.
Compression damping setting (for slow com-
pression damping):
Minimum (soft):20 click(s) in direction (b)*
Standard: 7 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
U1TD62E0.book Page 16 Monday, May 18, 2015 9:20 AM

8-49
8
EBU27482Installing a wheel1. Place the ATV on a level surface.

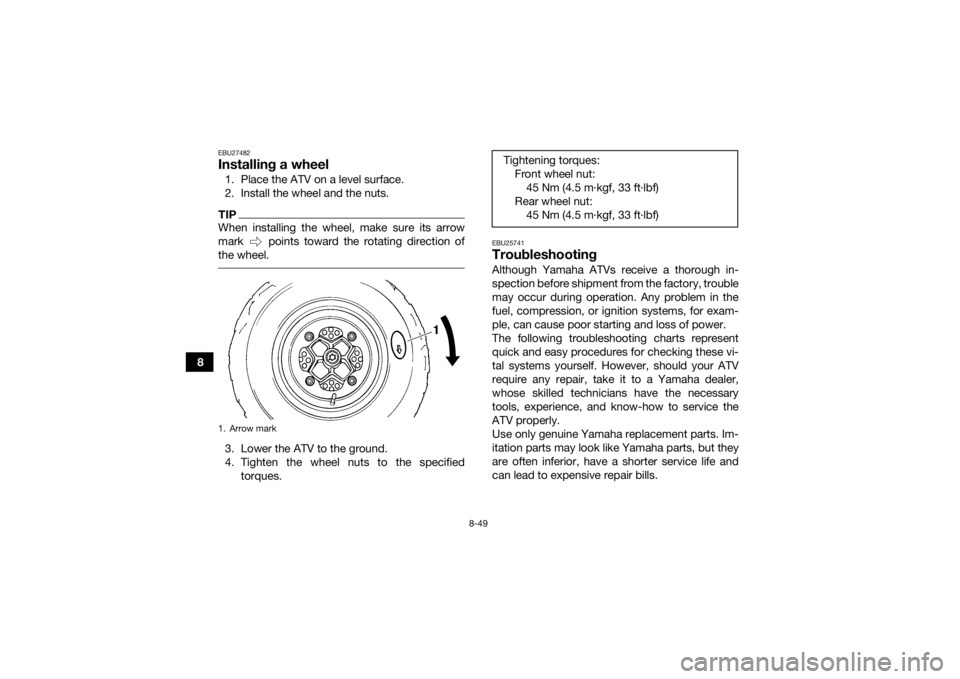

2. Install the wheel and the nuts.TIPWhen installing the wheel, make sure its arrow
mark points toward the rotating direction of
the wheel. 3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specifiedtorques.
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
1. Arrow mark
Tightening torques:Front wheel nut:45 Nm (4.5 m·kgf, 33 ft·lbf)
Rear wheel nut: 45 Nm (4.5 m·kgf, 33 ft·lbf)
U1TD62E0.book Page 49 Monday, May 18, 2015 9:20 AM

10-1
10
EBU25962
SPECIFICATIONS
Dimensions:Overall length:1795 mm (70.7 in)
Overall width: 1240 mm (48.8 in)
Overall height:
1065 mm (41.9 in)
Seat height: 810 mm (31.9 in)
Wheelbase: 1270 mm (50.0 in)
Ground clearance:
235 mm (9.3 in)
Minimum turning radius: 3600 mm (142 in)Weight:Curb weight:
184.0 kg (406 lb)Noise and vibration level:Noise level (77/311/EEC):85.9 dB(A) at 3750 r/min (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
Uncertainty of measurement: 3.0 dB(A) (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
A-weighted sound power level: 99.0 dB(A) at 3750 r/min (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR) Uncertainty of measurement:
3.0 dB(A) (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
Uncertainty of measurement:
0.1 m/s² (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
Vibration on handle (EN1032, ISO5008):
Will not exceed 2.5 m/s² (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
Uncertainty of measurement:
0.8 m/s² (YFZ45YSSG_EUR/FRA/GBR,
YFZ45YSXG_EUR/FRA/GBR)
Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Single cylinder
Displacement:
449 cm³
Bore × stroke:
95.0 × 63.4 mm (3.74 × 2.50 in)
Compression ratio: 11.8 : 1
Starting system:
Electric starter
