4-13
4
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).
3. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00082]
Spring preload setting: Minimum (soft):Distance A = 302.5 mm (11.91 in)
Standard: Distance A = 293.0 mm (11.54 in)
Maximum (hard): Distance A = 282.5 mm (11.12 in)
1. Distance ATightening torque: Locknut:50 N·m (5.0 kgf·m, 36 lb·ft)
1
UBW260E0.book Page 13 Thursday, May 12, 2016 2:28 PM
Page 42 of 154
4-14
4Rebound damping force
Turn the rebound damping force adjusting screw
in direction (a) to increase the rebound damping
force and thereby harden the damping, and in di-
rection (b) to decrease the rebound damping force
and thereby soften the damping.
Compression damping force
Compression damping force (for fast compres-
sion damping)To increase the compression damping force and
thereby harden the compression damping, turn
the compression damping force adjusting bolt in
direction (a). To decrease the compression damp-
ing force and thereby soften the compression
damping, turn the adjusting bolt in direction (b).

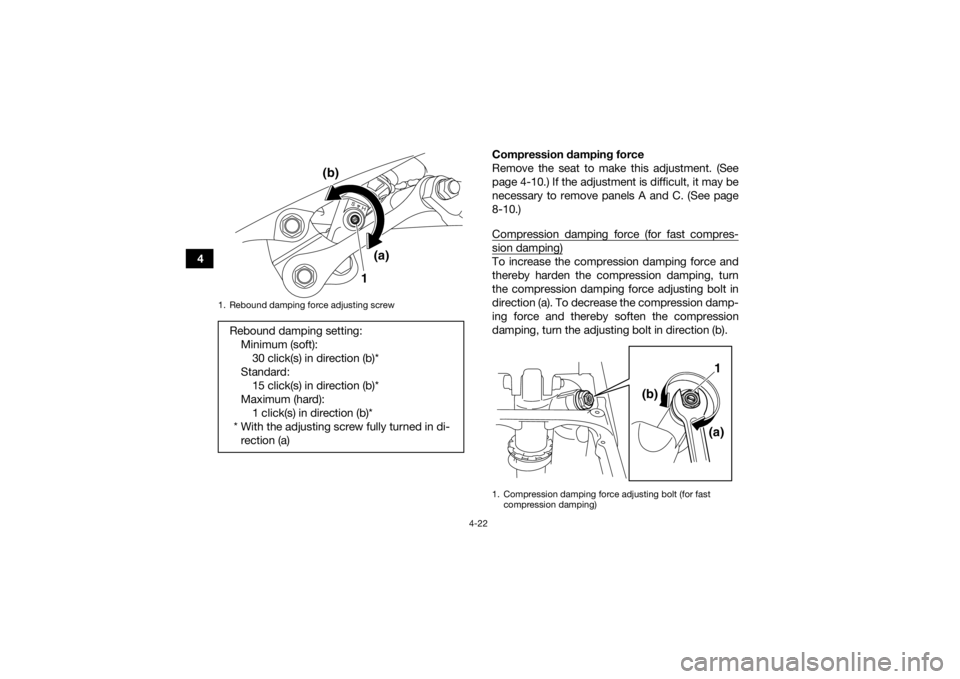

1. Rebound damping force adjusting screw
(a)
(b)1
Rebound damping setting:Minimum (soft):30 click(s) in direction (b)*
Standard: 16 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
UBW260E0.book Page 14 Thursday, May 12, 2016 2:28 PM
Page 43 of 154
4-15
4
Compression damping force (for slow compres-
sion damping)To increase the compression damping force and
thereby harden the compression damping, turn
the compression damping force adjusting screw
in direction (a). To decrease the compression
damping force and thereby soften the compres-
sion damping, turn the adjusting screw in direction
(b).
1. Compression damping force adjusting bolt (for fast
compression damping)Compression damping setting (for fast com-
pression damping):
Minimum (soft):2 turn(s) out from the fully turned in posi-
tion
Standard: 1 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting bolt fully turned in
(a)
(b)1
1. Compression damping force adjusting screw (for slow
compression damping)
(a)
(b)
1
UBW260E0.book Page 15 Thursday, May 12, 2016 2:28 PM
Page 44 of 154
4-16
4
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and un-
derstand the following information before han-
dling the shock absorber assemblies.
Do not tamper with or attempt to open the
cylinder assemblies.
Do not subject the shock absorber assem-
blies to an open flame or other high heat
source. This may cause the unit to explode
due to excessive gas pressure.
Do not deform or damage the cylinders in
any way. Cylinder damage will result in poor
damping performance.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
EBU30142Adjusting the rear shock absorber as-
semblyThis shock absorber assembly is equipped with a
spring preload adjusting nut, a rebound damping
force adjusting screw, a compression damping
force adjusting bolt (for fast compression damp-
ing), and a compression damping force adjusting
screw (for slow compression damping).
WARNING
EWB02681Suspension components become hot during
operation. Never touch the compression
damping force adjusting bolt and screw, the
rebound damping force adjusting screw or the
oil reservoir with your bare hand or skin until
the suspension components have cooled.
Compression damping setting (for slow com-
pression damping):
Minimum (soft):20 click(s) in direction (b)*
Standard: 7 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
UBW260E0.book Page 16 Thursday, May 12, 2016 2:28 PM
Page 45 of 154
4-17
4
NOTICEECB00091Never turn an adjusting mechanism beyond
the minimum and maximum settings. TIPAlthough the total number of clicks or turns of a
damping force adjusting mechanism may not ex-
actly match the following specifications due to
small differences in production, the actual number
of clicks or turns always represents the entire ad-
justing range. To obtain a precise adjustment, it
would be advisable to check the number of clicks
or turns of each damping force adjusting mecha-
nism and to modify the specifications as neces-
sary. Spring preload 1. Remove the cowling. (See page 8-10.)
2. Remove the clip from the hose holder, re- move the bolt, and then move the blow-by
gas chamber away from the vehicle. 3. Loosen the clamp screw at the air filter case
side.

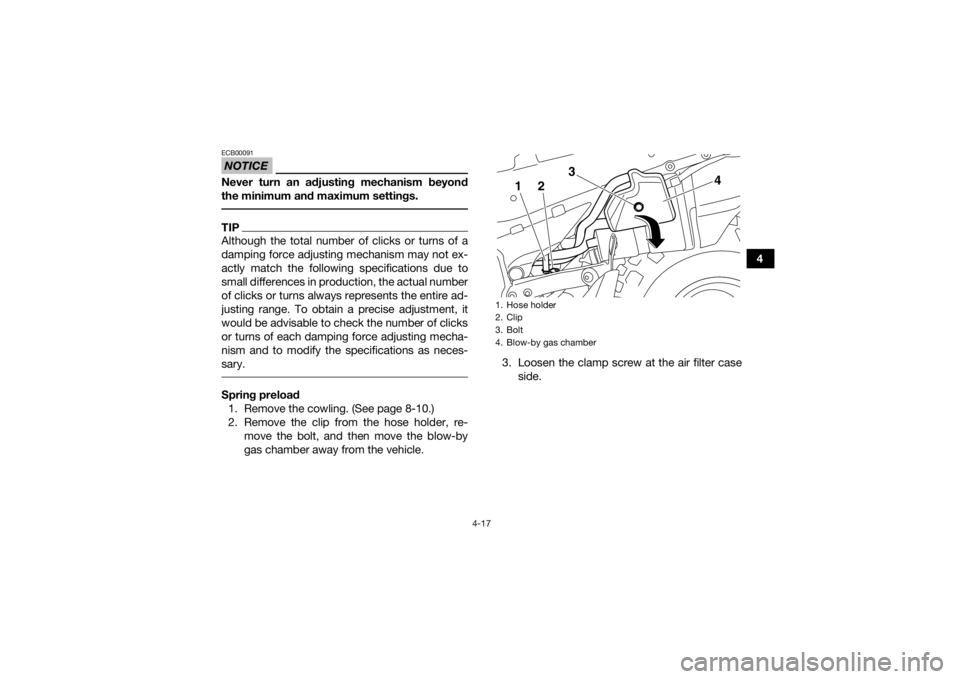

1. Hose holder
2. Clip
3. Bolt
4. Blow-by gas chamber
2 3
4
1
UBW260E0.book Page 17 Thursday, May 12, 2016 2:28 PM
Page 46 of 154
4-18
44. Remove the air filter case holding plate by re-moving the bolts and collars. 5. Remove the bolts, and then remove the air fil-
ter case by disconnecting it from the air in-
take duct.

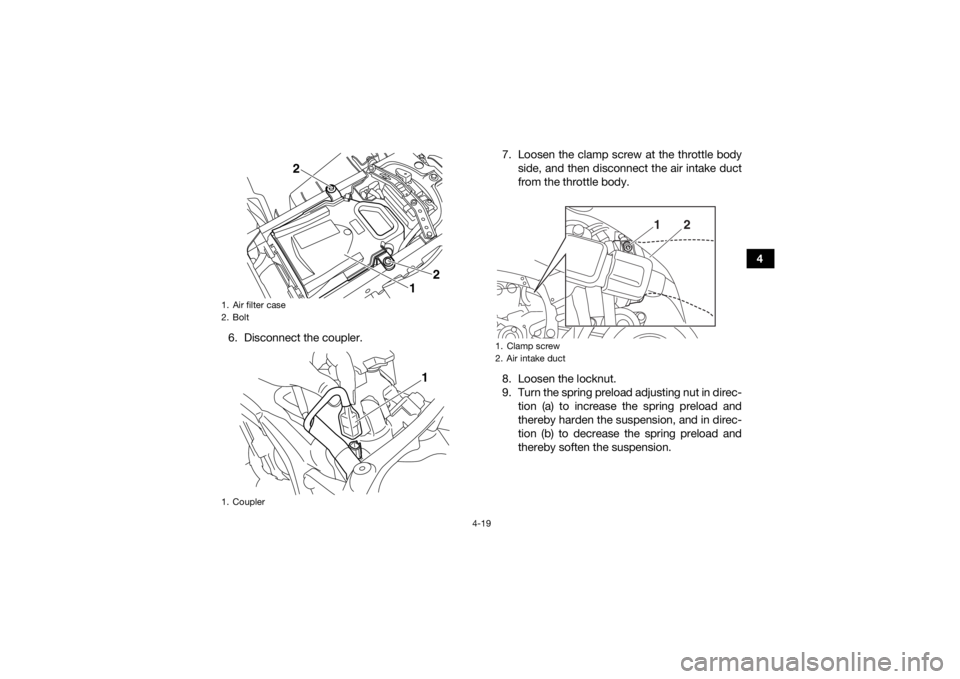

1. Clamp screw
1
1. Bolt
2. Collar
3. Air filter case holding plate
1
1
2
3
UBW260E0.book Page 18 Thursday, May 12, 2016 2:28 PM
Page 47 of 154
4-19
4
6. Disconnect the coupler. 7. Loosen the clamp screw at the throttle body
side, and then disconnect the air intake duct
from the throttle body.
8. Loosen the locknut.
9. Turn the spring preload adjusting nut in direc- tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.
1. Air filter case
2. Bolt
1. Coupler
1 2
2
1
1. Clamp screw
2. Air intake duct
1
2
UBW260E0.book Page 19 Thursday, May 12, 2016 2:28 PM
Page 48 of 154
4-20
4
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).
10. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00082]

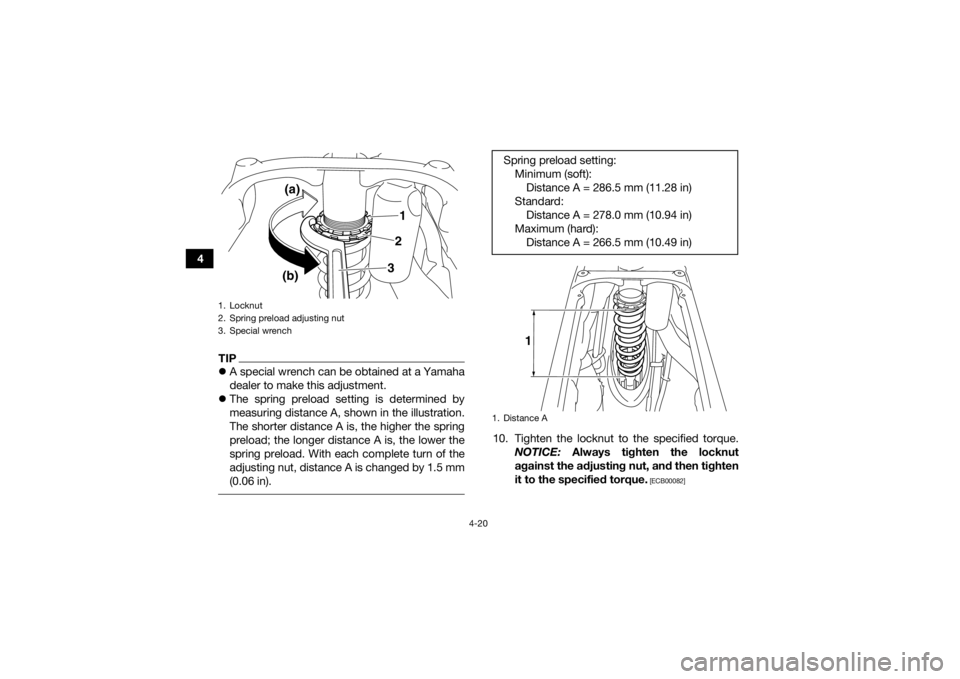

1. Locknut
2. Spring preload adjusting nut
3. Special wrench
2 13
(a)
(b)
Spring preload setting: Minimum (soft):Distance A = 286.5 mm (11.28 in)
Standard: Distance A = 278.0 mm (10.94 in)
Maximum (hard): Distance A = 266.5 mm (10.49 in)1. Distance A
1
UBW260E0.book Page 20 Thursday, May 12, 2016 2:28 PM
Page 49 of 154
4-21
4
11. Connect the air intake duct to the throttle
body, and then tighten the clamp screw at the
throttle body side. NOTICE: Make sure that
the air intake duct is properly connected to
the throttle body, and that the clamp
screw is tightened securely.
[ECB00962]
12. Connect the coupler.
13. Connect the air filter case to the air intake duct, place the air filter case in the original po-
sition, and then tighten the clamp screw at
the air filter case side. NOTICE: Make sure
that the air intake duct is properly con-
nected to the air filter case, and that the
clamp screw is tightened securely.
[ECB00972]
14. Install the air filter case bolts, and then tighten them to the specified torque. 15. Install the air filter case holding plate by in-
stalling the bolts and collars, and then tighten
the bolts to the specified torque.
16. Install the blow-by gas chamber by installing the bolt, tighten the bolt to the specified
torque, and then install the clip to the hose
holder.
17. Install the cowling.
Rebound damping force
Turn the rebound damping force adjusting screw
in direction (a) to increase the rebound damping
force and thereby harden the damping, and in di-
rection (b) to decrease the rebound damping force
and thereby soften the damping.
Tightening torque:
Locknut:30 N·m (3.0 kgf·m, 22 lb·ft)
Tightening torque: Air filter case bolt:7 N·m (0.7 kgf·m, 5.1 lb·ft)
Tightening torque: Air filter case holding plate bolt:7 N·m (0.7 kgf·m, 5.1 lb·ft)
Tightening torque: Blow-by gas chamber bolt:7 N·m (0.7 kgf·m, 5.1 lb·ft)
UBW260E0.book Page 21 Thursday, May 12, 2016 2:28 PM
Page 50 of 154
4-22
4Compression damping force
Remove the seat to make this adjustment. (See
page 4-10.) If the adjustment is difficult, it may be
necessary to remove panels A and C. (See page
8-10.)
Compression damping force (for fast compres-
sion damping)To increase the compression damping force and
thereby harden the compression damping, turn
the compression damping force adjusting bolt in
direction (a). To decrease the compression damp-
ing force and thereby soften the compression
damping, turn the adjusting bolt in direction (b).
1. Rebound damping force adjusting screwRebound damping setting:
Minimum (soft):30 click(s) in direction (b)*
Standard: 15 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
1
(a)
(b)

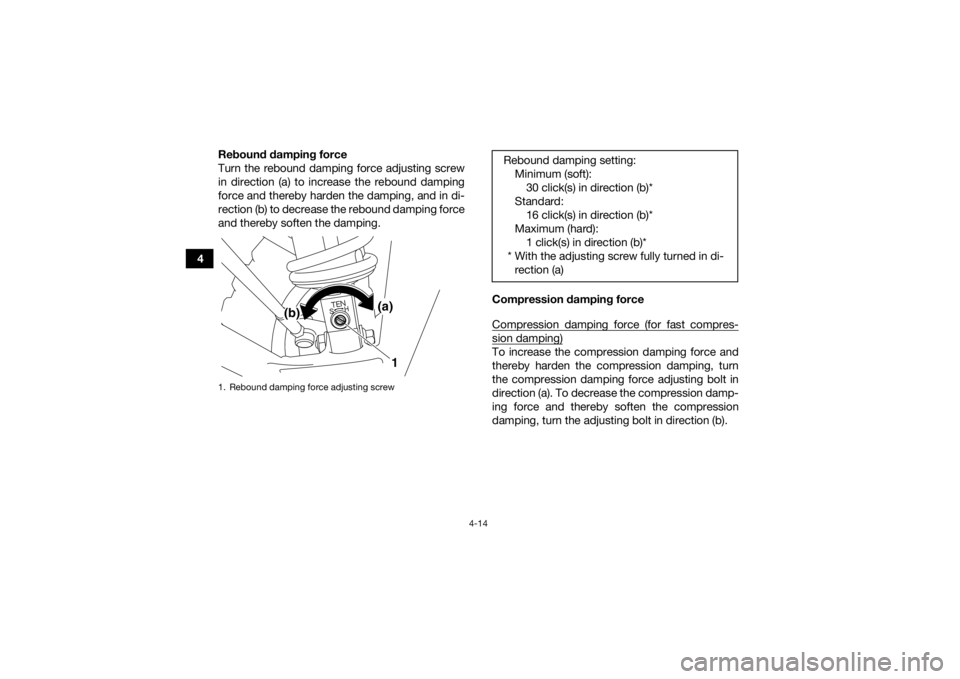

1. Compression damping force adjusting bolt (for fast
compression damping)
(a)
(b)
1
