A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or death in a crash.
To help make sure your restraint systems are
working properly after a crash, have them in-
spected and any necessary replacements
made as soon as possible.

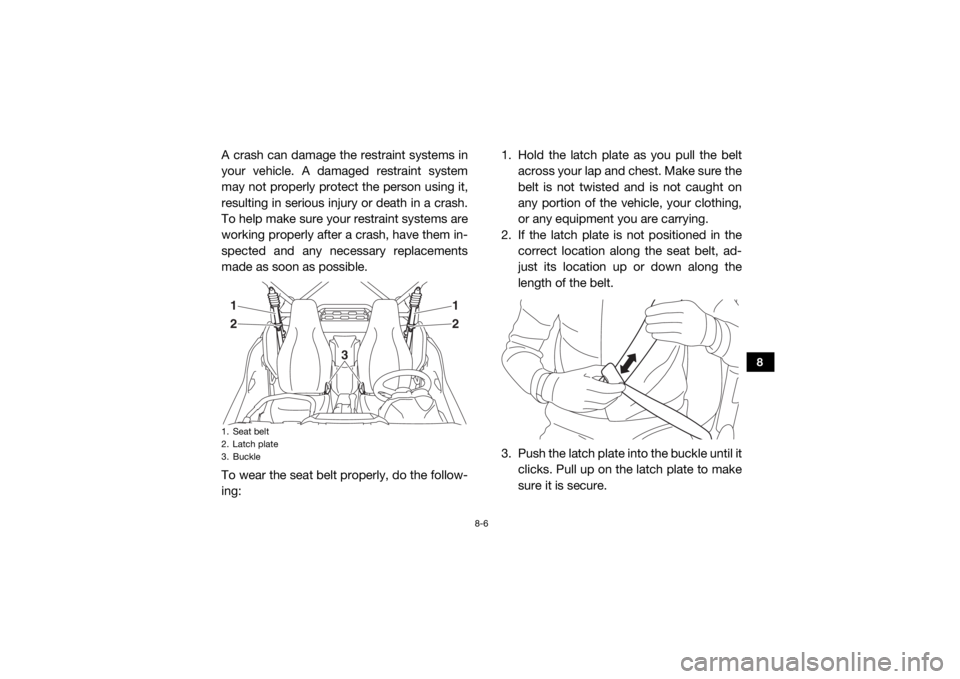

To wear the seat belt properly, do the follow-
ing:1. Hold the latch plate as you pull the belt
across your lap and chest. Make sure the
belt is not twisted and is not caught on
any portion of the vehi cle, your clothing,
or any equipment you are carrying.
2. If the latch plate is not positioned in the correct location along the seat belt, ad-
just its location up or down along the
length of the belt.
3. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make
sure it is secure.1. Seat belt
2. Latch plate
3. Buckle
12
12
3
UB5J7BE0.book Page 6 Tuesday, June 18, 2019 10:07 AM

8-8
8
Doors
The doors are designed to reduce the likeli-
hood that you will stick your leg out to stop
the vehicle from tipping over or for any other
reason in a rollover. The doors may also re-
duce intrusion of objects into the occupant
area. Make sure the door is securely latched
before operation. Do not place your arm or
hand on the door during operation. Your hand
or arm may be struck by objects or crushed
against outside objects or the ground during
a rollover.Passenger handhold
The passenger handhold is provided to grip
during operation to maintain proper position
and balance. Holding onto the handhold
helps to reduce the likelihood that the pas-
senger puts a hand outside the vehicle if the
vehicle begins to tip.
The driver should make sure the passenger is
holding onto the handhold with both hands
before operating the vehicle.
Adjusting the handhold position
The handhold can be adjusted to one of three
positions to suit the passenger’s preference.
UB5J7BE0.book Page 8 Tuesday, June 18, 2019 10:07 AM

8-9
8

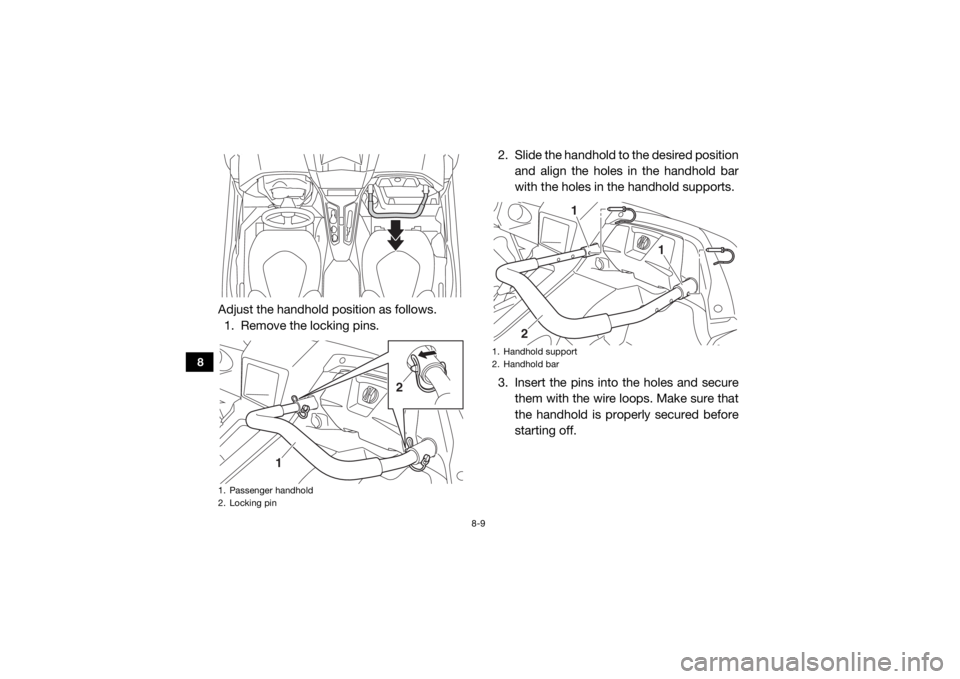

Adjust the handhold position as follows.1. Remove the locking pins. 2. Slide the handhold to
the desired position
and align the holes in the handhold bar
with the holes in the handhold supports.
3. Insert the pins into the holes and secure them with the wire loops. Make sure that
the handhold is properly secured before
starting off.1. Passenger handhold
2. Locking pin
1
2
1. Handhold support
2. Handhold bar
2
1
1
UB5J7BE0.book Page 9 Tuesday, June 18, 2019 10:07 AM

9-14
9
2. Install the passenger seat by installing thebolts, and then tighten them to the spec-
ified torque.TIPMake sure that the seat frame is properly
secured. 
Place the passenger seat belt in the original
position.
3. Install the passenger seat cushion.
4. Install the top cover by installing the bolts
and quick fastener screw.
5. Install panel A and the hood.
Panels C and D
To remove a panel1. Pull the tab on the panel lock up, and then turn the panel lock 1/4 turn clock-
wise.
1. Panel BTightening torque:Passenger seat bolt:32 N·m (3.2 kgf·m, 24 lb·ft)
1
UB5J7BE0.book Page 14 Tuesday, June 18, 2019 10:07 AM

9-40
9
TIPService the air filters more frequently when
operating in wet or dusty environments. Whenever air filter maintenance is performed:
check the air inlet for obstructions and the
air filter case for dirt and foreign matter.
 check the air filter case check hoses for dirt
or water and clean as necessary.
 check the air filter case joints and the rub-
ber joints to and from the throttle body for
proper fit and sealing.
 tighten all fittings securely to avoid the pos-
sibility of unfiltered air entering the engine.NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage. Additionally, the fuel injection system
would be affected, re
sulting in poor engine
performance and possible overheating.
Clean the primary air filter as follows. 1. Remove the air filter case cover by turn- ing the air filter case cover lock counter-
clockwise.TIPMake sure that the match mark on the cover
lock is aligned with the open match mark on
the air filter case cover.
