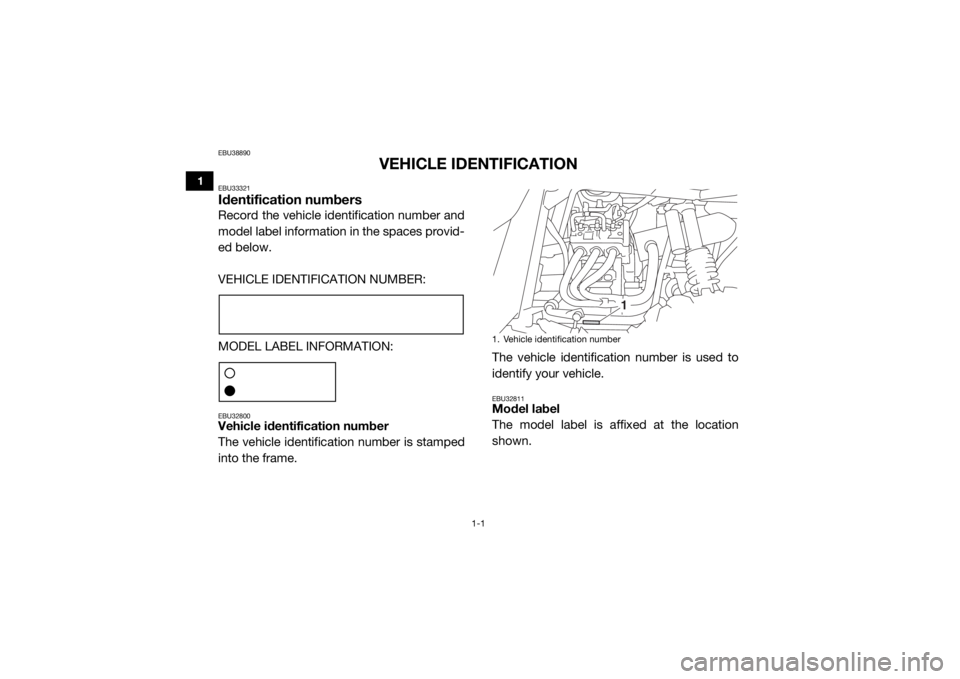

VEHICLE IDENTIFICATION
EBU33321Identification numbersRecord the vehicle identification number and
model label information in the spaces provid-
ed below.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU32800Vehicle identification number
The vehicle identification number is stamped
into the frame.The vehicle identification number is used to
identify your vehicle.
EBU32811Model label
The model label is affixed at the location
shown.1. Vehicle identification number
1
UB5J7BE0.book Page 1 Tuesday, June 18, 2019 10:07 AM

5-14
5
Deactivation point: this function allows you
to select the engine speed at which the light
is deactivated.
To enter shift light control mode1. Turn the key to “ ” (off).
2. Push and hold the “MODE” button.
3. Turn the key to “ ” (on), and then re- lease the “MODE” button after five sec-
onds. After all segments of the display
disappear and the shift light comes on,
the shift light can be adjusted as follows.
To set the flashing pattern1. Push the “RESET” button to select one of the following flashing pattern settings:
On: the shift light stays on when acti-
vated. (The shift light will confirm this
setting by staying on.)
 Flash: the shift light flashes when acti-
vated. (The shift light will confirm this
setting by flashing four times per se-
cond.) 
Off: the shift light is deactivated; in oth-
er words, it does not come on or flash.
(The shift light will confirm this setting
by flashing once every two seconds.)
2. Push the “MODE” button to confirm the
selected flashing pattern. The control
mode then changes to the activation
point setting function. The shift light re-
mains on and the tachometer shows the
current setting r/min for the activation
point.
To set the activation point
TIP The shift light activation point can be set
between 7000 r/min and 12000 r/min. The
activation point can be set in increments of
500 r/min.
 The tachometer needle will start over at
7000 r/min after 12000 r/min.
UB5J7BE0.book Page 14 Tuesday, June 18, 2019 10:07 AM

5-28
5
EBU35660Flag pole bracketThis model is equipped with a flag pole brack-
et.NOTICEECB03010Do not use the flag pole bracket as a cargo
hook.
EBU35035Front shock absorbersThe shock absorber assemblies are equipped
with a spring preload adjusting nut, a rebound
damping force adjusting screw, a fast com-
pression damping force adjusting bolt, and a
slow compression damping force adjusting
screw.
WARNING
EWB02492Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting screw or the oil reservoir with
your bare hand or skin until suspension
components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident.
1. Flag pole bracket
1
1
UB5J7BE0.book Page 28 Tuesday, June 18, 2019 10:07 AM

8-13
8
Practice for new Yamaha YXZ1000R users
Become familiar with the performance char-
acteristics of the vehicle in a large, flat area
that is free of obstacles and other vehicles.
Practice controlling the accelerator pedal,
clutch, brakes, steering, and shift lever. Drive
at slow speeds with gradual acceleration and
smooth turns. Practice applying the accelera-
tor pedal smoothly. Practice slowing down
before turning. Practice maintaining a steady
amount of throttle (accelerator pedal position)
through the turn. Avoid higher speeds until
you are thoroughly familiar with the operation
and handling of the vehicle. Remember, driv-
ing aggressively or making abrupt maneuvers
even on flat, open areas can cause side roll-
overs.Become familiar with the way the vehicle han-
dles in the various drive modes. Start off with
two-wheel drive “2WD”, then four-wheel drive
“4WD”, and finally four-wheel drive with the
differential locked “DIFF LOCK”. Steering
may take more effort in four-wheel drive with
the differential locked “DIFF LOCK”. Also
practice driving in reverse.
TIPTake the time to learn basic operation of the
vehicle before driving at higher speeds or at-
tempting more difficult maneuvers.
UB5J7BE0.book Page 13 Tuesday, June 18, 2019 10:07 AM

9-39
9
TIPIf a torque wrench is not available when in-
stalling the spark plug, a good estimate of the
correct torque is 1/4–1/2 turn past finger tight.
However, the spark plug should be tightened
to the specified torque as soon as possible. NOTICEECB02900Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler may be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the cap
fits tightly. To remove the spark plug cap,
simply twist it back and forth while pulling
it out; to install it, twist it back and forth
while pushing it in.
EBU38320Air filter maintenanceThis model is equipped with two air filter ele-
ments, a primary foam-type air filter and a
secondary paper-type air filter.
The primary air filter is easily accessed and
should be cleaned and oiled every 300–600
km (200–400 mi).
The secondary air filter is more difficult to ac-
cess, cannot be cleaned, and should be re-
placed by a Yamaha dealer every 2000–5000
km (1200–3000 mi).1. Primary air filter
2. Secondary air filter
1
2
UB5J7BE0.book Page 39 Tuesday, June 18, 2019 10:07 AM

9-57
9
EBU32620Tire replacementAlways use the same size and type of tires
recommended in this owner’s manual. The
tires that came with your Yamaha YXZ1000R
were designed to match the performance ca-
pabilities and to provide the best combination
of handling, braking, and comfort. It is best to
replace all four tires at the same time. If that is
not possible, you must replace the tires inpairs (front or rear) with tires of the same size
and type as the originals. Never replace just
one tire.
WARNING
EWB03390Installing improper tires on your Yamaha
YXZ1000R can affect handling and stabili-
ty. This can cause a loss of control. The tires listed below have been approved by
Yamaha Motor Manufacturing Corporation of
America for this model.
1. Wheel nut
1 1
Front tire:
Size:29 x 9.00R-14NHS
Manufacturer/model: MAXXIS/M917 / BIGHORN
Rear tire: Size:29 x 11.00R-14NHS
Manufacturer/model: MAXXIS/M918 / BIGHORN
UB5J7BE0.book Page 57 Tuesday, June 18, 2019 10:07 AM

11-3
11
Final gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.47 L (0.50 US qt, 0.41 Imp.qt)Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.18 L (0.19 US qt, 0.16 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level mark):0.56 L (0.59 US qt, 0.49 Imp.qt)
Radiator (including all routes):
3.78 L (4.00 US qt, 3.33 Imp.qt)Air filter:Air filter element:Wet element
Air filter oil grade:
Foam air-filter oil
Secondary air filter element: Oil-coated paper elementFuel:Recommended fuel:
Regular unleaded gasoline (Gasohol [E10] acceptable)
Minimum research octane: 91
Fuel tank capacity: 34 L (9.0 US gal, 7.5 Imp.gal)
Fuel reserve amount:
8.5 L (2.24 US gal, 1.87 Imp.gal)
Throttle body:ID mark:B5H1 00Spark plug (s):Manufacturer/model:NGK/CR9EB
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)Drivetrain:Primary reduction ratio:1.660 (88/53)
Secondary reduction ratio: 7.333 (46/23 x 33/9)
Final drive:
Shaft
Clutch type: Wet, multiple-disc
Transmission type: 5-speed with reverse
Gear ratio:
1st: 2.400 (36/15)
2nd:
1.545 (34/22)
3rd: 1.192 (31/26)
4th: 0.962 (25/26)
5th:
0.806 (25/31)
Reverse gear: 2.467 (28/15 x 37/28)
UB5J7BE0.book Page 3 Tuesday, June 18, 2019 10:07 AM

11-4
11
Front tire:Size:29 x 9.00R-14NHS
Manufacturer/model:
MAXXIS/M917 / BIGHORNRear tire:Size:29 x 11.00R-14NHS
Manufacturer/model:
MAXXIS/M918 / BIGHORNTire air pressure (measured on cold tires):Vehicle load:0.0–195.0 kg (0–430 lb)
Recommended:
Front:114.0 kPa (1.140 kgf/cm², 16.5 psi)
Rear:
128.0 kPa (1.280 kgf/cm², 18.5 psi)
Minimum: Front:
110.0 kPa (1.100 kgf/cm², 16.0 psi)
Rear: 124.0 kPa (1.240 kgf/cm², 18.0 psi)
Vehicle load: 195.0–328.0 kg (430–723 lb)
Recommended:
Front:114.0 kPa (1.140 kgf/cm², 16.5 psi)
Rear:
169.0 kPa (1.690 kgf/cm², 24.5 psi) Minimum:
Front:
110.0 kPa (1.100 kgf/cm², 16.0 psi)
Rear: 165.0 kPa (1.650 kgf/cm², 24.0 psi)
Front wheel:Rim size:
14 x 6.5 ATRear wheel:Rim size:14 x 8.0 ATFront brake:Type:Hydraulic disc brakeRear brake:Type:
Hydraulic disc brakeBrake fluid:Specified brake fluid:DOT 4Front suspension:Type:Double wishbone
Spring: Coil spring
Shock absorber:
Gas-hydraulic damper
Wheel travel: 412 mm (16.3 in)
UB5J7BE0.book Page 4 Tuesday, June 18, 2019 10:07 AM

12-1
12
EBU32774
CONSUMER INFORMATION
EBU38330Vehicle data recordingThis model’s control unit(s) store certain vehi-
cle data to assist in the diagnosis of malfunc-
tions and for research, statistical analysis and
development purposes.
Although the sensors and recorded data will
vary by model, the main data points are:
 Vehicle status and engine performance
data
 Fuel-injection and emission-related data
This data will be uploaded only when a spe-
cial Yamaha diagnostic tool is attached to the
vehicle, such as when maintenance checks or
service procedures are performed.
Vehicle data uploaded will be handled appro-
priately according to the following Privacy
Policy. Privacy Policy
Yamaha will not disclose this data to a third party except in the following cases. In addi-
tion, Yamaha may provide vehicle data to a
contractor in order to outsource services re-
lated to the handling of vehicle data. Even in
this case, Yamaha will require the contractor
to properly handle the vehicle data we provid-
ed and Yamaha will appropriately manage the
data.
 With the consent of the vehicle owner
 Where obligated by law
 For use by Yamaha in litigation
 When the data is not related to an individual
vehicle nor owner
https://www.yamaha-motor.eu/eu/privacy/
privacy-policy.aspx
UB5J7BE0.book Page 1 Tuesday, June 18, 2019 10:07 AM

13-1
13
INDEX
AAccelerator pedal ......................................................... 5-18
Accelerator pedal, checking ........................................ 9-51
Accelerator pedal, Pre-operation check ........................ 6-7
Air filter ......................................................................... 9-39
Air filter case hoses, cleaning ...................................... 9-43
Auxiliary DC jack .......................................................... 5-38
Axle boots .................................................................... 9-37BBasic guide for safe use ................................................. 8-1
Battery, Periodic maintenance ..................................... 9-58
Brake and clutch fluid levels, checking ........................ 9-47
Brake fluid, replacing ...................................................9-49
Brake light switch, adjusting ........................................ 9-52
Brake pedal .................................................................. 5-19
Brake pedal, checking ................................................. 9-50
Brakes, Periodic maintenance ..................................... 9-46
Brakes, Pre-operation check ......................................... 6-3
Brake/tail light .............................................................. 9-66CCable, inspecting and lubrication ................................ 9-53
Cargo bed .................................................................... 5-27
Cleaning ....................................................................... 10-1
Clutch pedal ................................................................. 5-18
Clutch pedal, checking ................................................ 9-49
Clutch, Pre-operation check .......................................... 6-3
Control cables, Pre-operation check ............................. 6-8
Coolant, Periodic maintenance .................................... 9-35
Coolant, Pre-operation check ........................................ 6-6Coolant temperature warning light ................................ 5-4
Cup holders ................................................................. 5-26
DData recording, vehicle ................................................ 12-1
Differential gear lock indicator light ............................... 5-3
Differential gear oil, Periodic maintenance .................. 9-32
Differential gear, Pre-operation check ........................... 6-6
Doors ........................................................................... 5-21
Drive mode, selecting .................................................... 7-7
Driver seat position ...................................................... 5-23
Drive shaft universal joint, lubrication .......................... 9-55
Drivetrain icon ................................................................ 5-3EEngine break-in .............................................................. 7-1
Engine oil and oil filter, Periodic maintenance ............. 9-16
Engine oil, Pre-operation check ..................................... 6-6
Engine trouble warning light .......................................... 5-5
EPS warning light ........................................................... 5-5FFinal gear oil, Periodic maintenance ............................ 9-30
Final gear, Pre-operation check ..................................... 6-6
Fittings and fasteners, Pre-operation check .................. 6-8
Flag pole bracket ......................................................... 5-28
Four–wheel drive knob (On–Command 4WD) .............. 5-17
Front and rear brake pads, checking ........................... 9-46
Fuel, Pre-operation check .............................................. 6-4
Fuel tank cap ............................................................... 5-21
Fuse, replacing ............................................................. 9-63GGlove compartment ..................................................... 5-25
UB5J7BE0.book Page 1 Tuesday, June 18, 2019 10:07 AM
